Hunza Surface Mount Path Light

Hunza LightingSKU: PLSM1/L-D3-SS-2

Select Luminaire Options: Surface Mount Path Light - 1 Facet
Select Power Options: 12V 1.05W
Select Material: 316 Marine Grade Stainless Steel
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

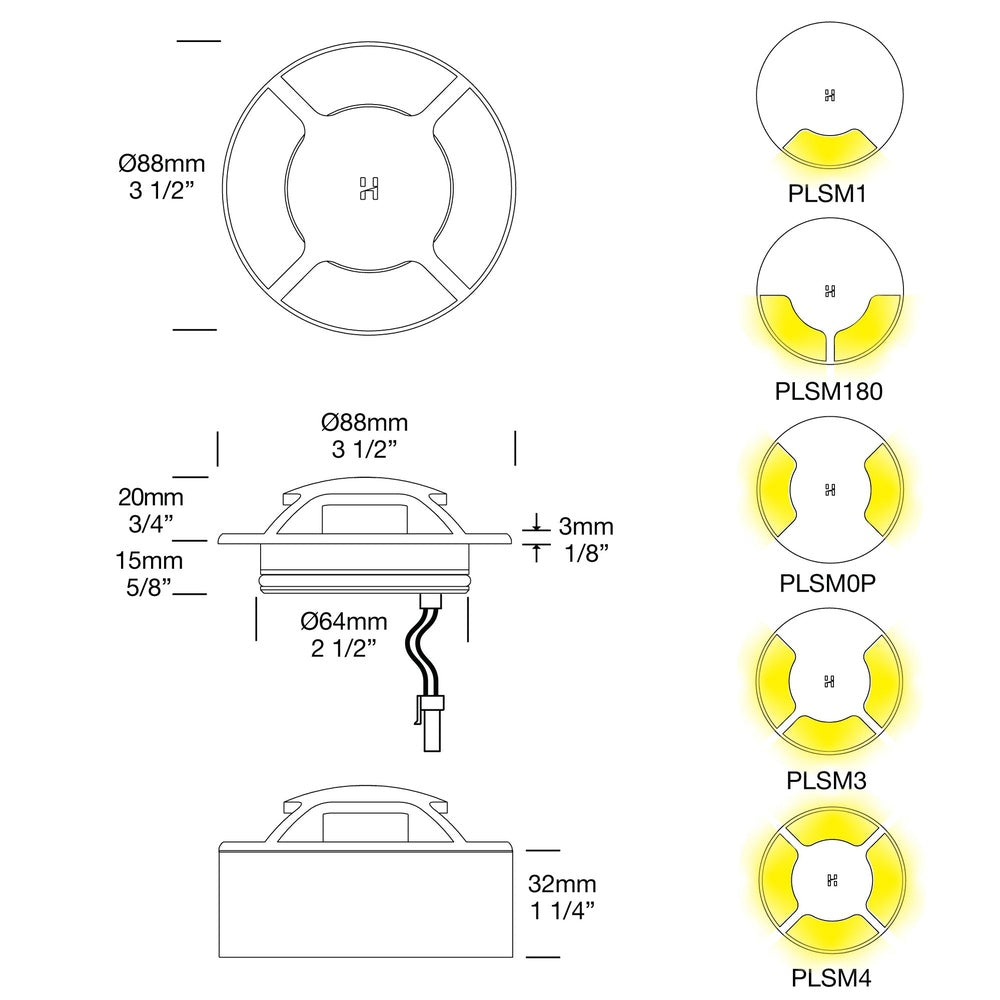

Dimensions Drawing

Description

Hunza Surface Mount Path Light

The Surface Mount Path Light is an ideal mounting solution for surfaces where a recessed fitting is not suitable.

Product Specifications

Lumen Output*
  • 120 lumens @ 700mA (2 Watts)
  • 60 lumens @ 350mA (1 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 60 lm/W
Beam Angle Options
  • 90 Degree
  • 90×90 Degree
  • 180 Degree
  • 270 Degree
  • 360 Degree
Lens Options
  • with Clear Lens
LED
  • Cree® XPG-3 Plug and Play field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 90+ Standard
Ingress Protection
  • IP66
Materials
  • 316 Marine Grade Stainless Steel
  • Solid Copper
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components - 10 years
  • Electronics - 5 Years
  • Solid Copper Components - 10 Years
Standards
  • IEC/BS/AS/NZ 60598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Required for Series Wired (CC format)
  • 24VDC Power Supply Required for 24VDC Input ( CV format )
  • Transformer Required for 12VAC Parallel Wired ( CV format )
Product Files

Click for Surface Mount Path Light - PLSM-L - Specification Sheet

Click for Surface Mount Path Light - PLSM-L - Product Diagram

Click for Surface Mount Light - Installation Instructions International

Click for Surface Mount Light - Installation Instructions USA

Click for Hunza Slim & Surface Mount - Product Flyer
