Hunza Tree Mount High Power

Hunza LightingSKU: TM/HP-R-EBK-15-2

Select Material: Black
Select Beam Angle: 15 Degree
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

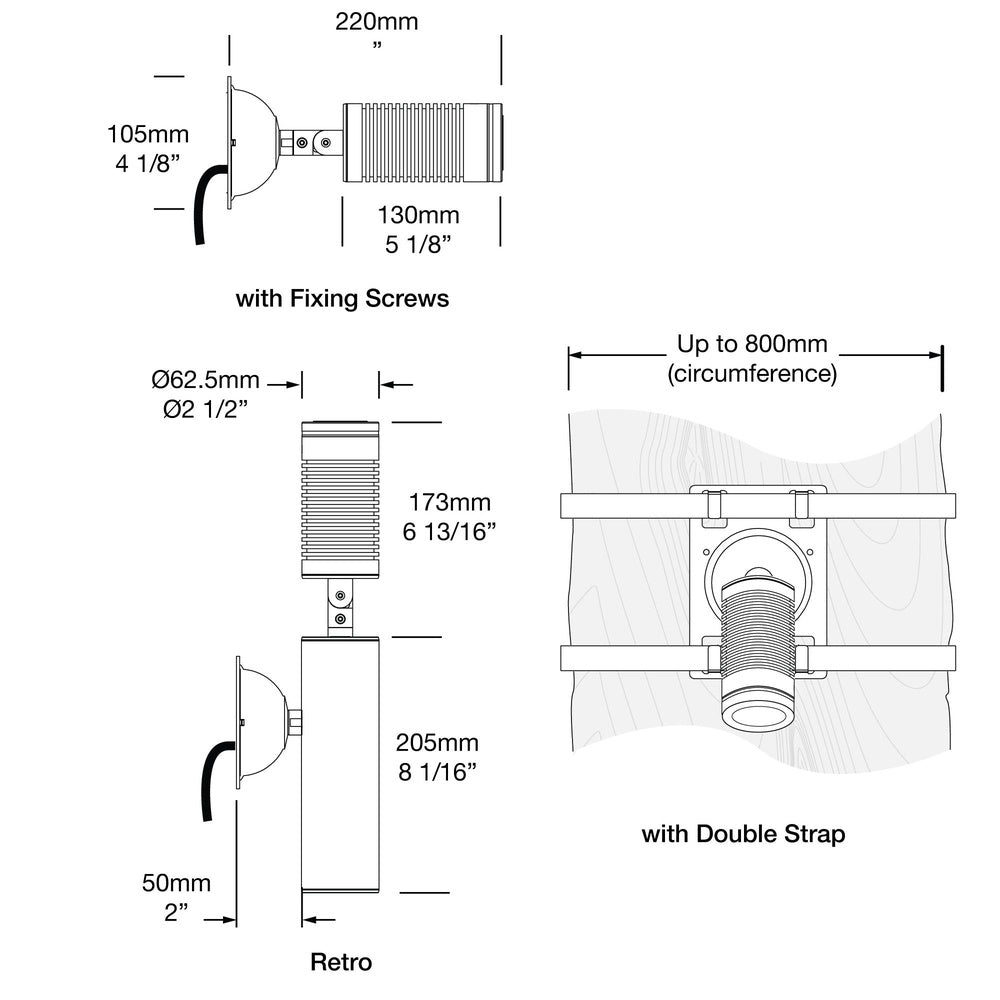

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

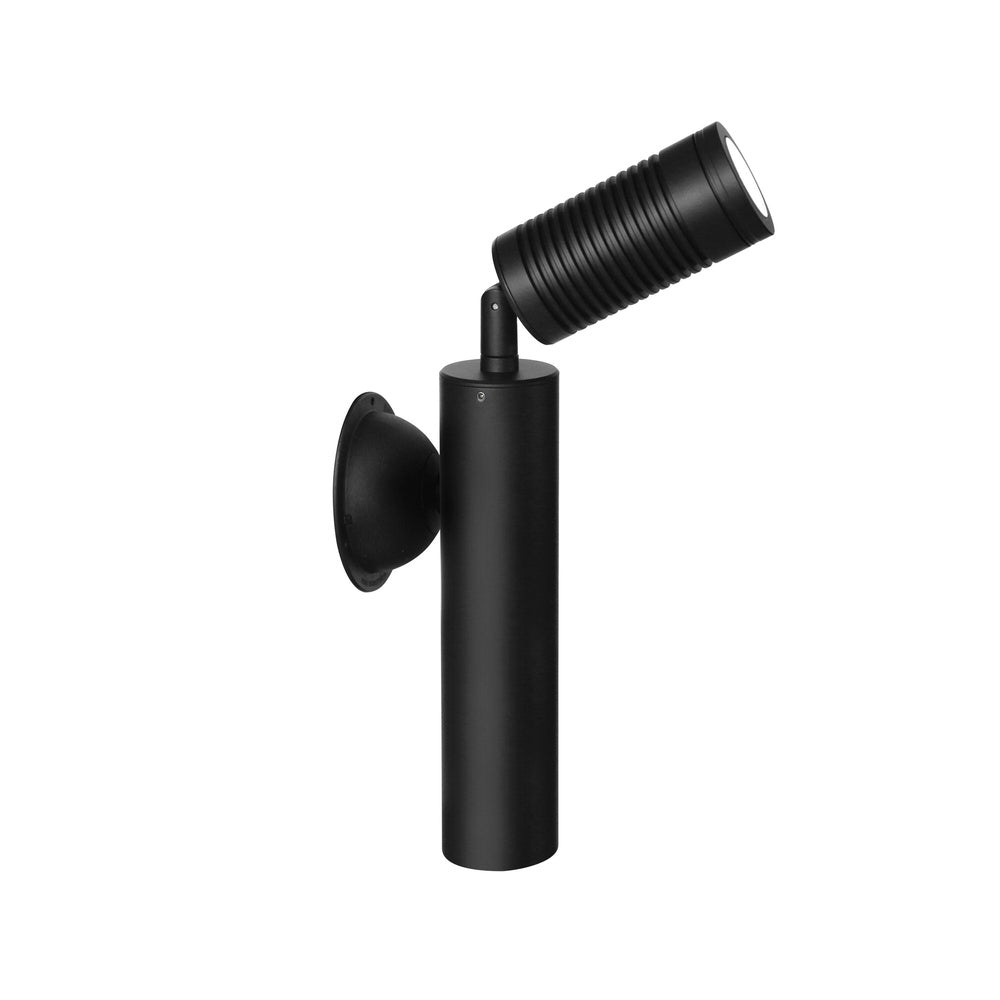

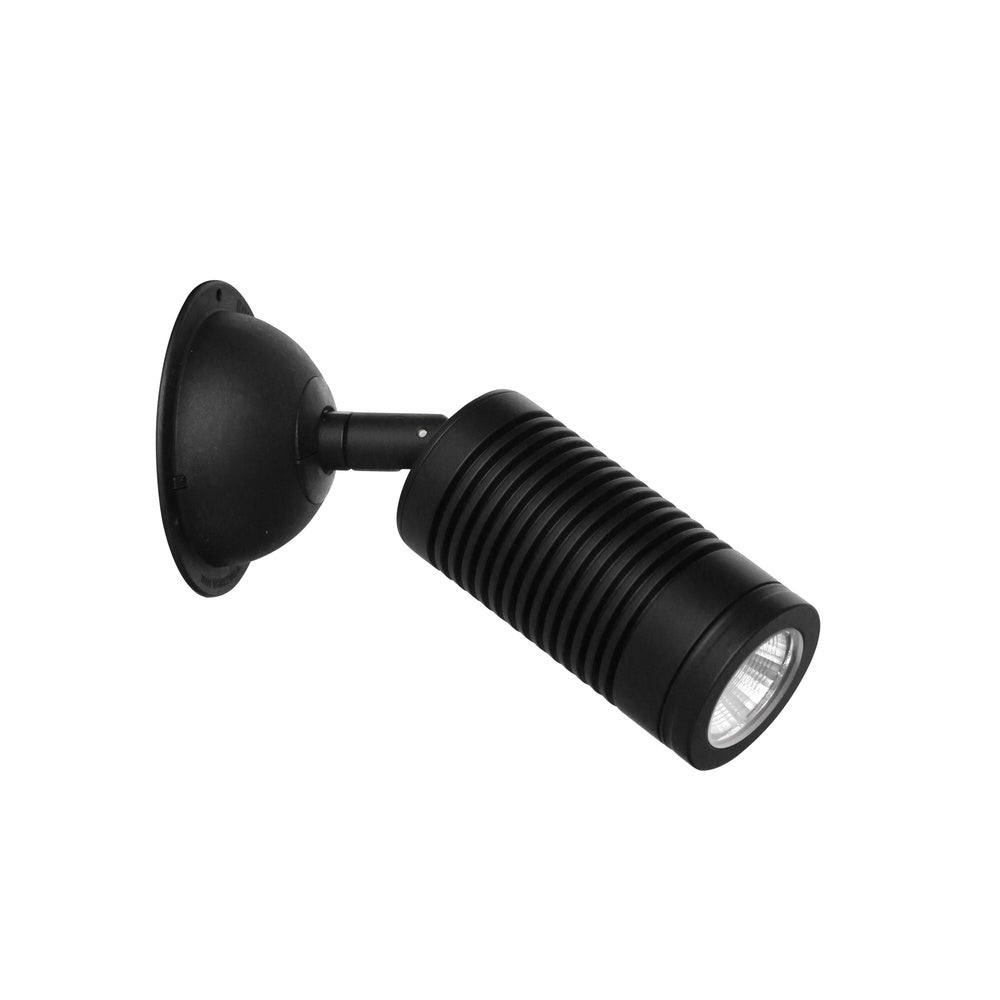

Hunza Tree Mount High Power

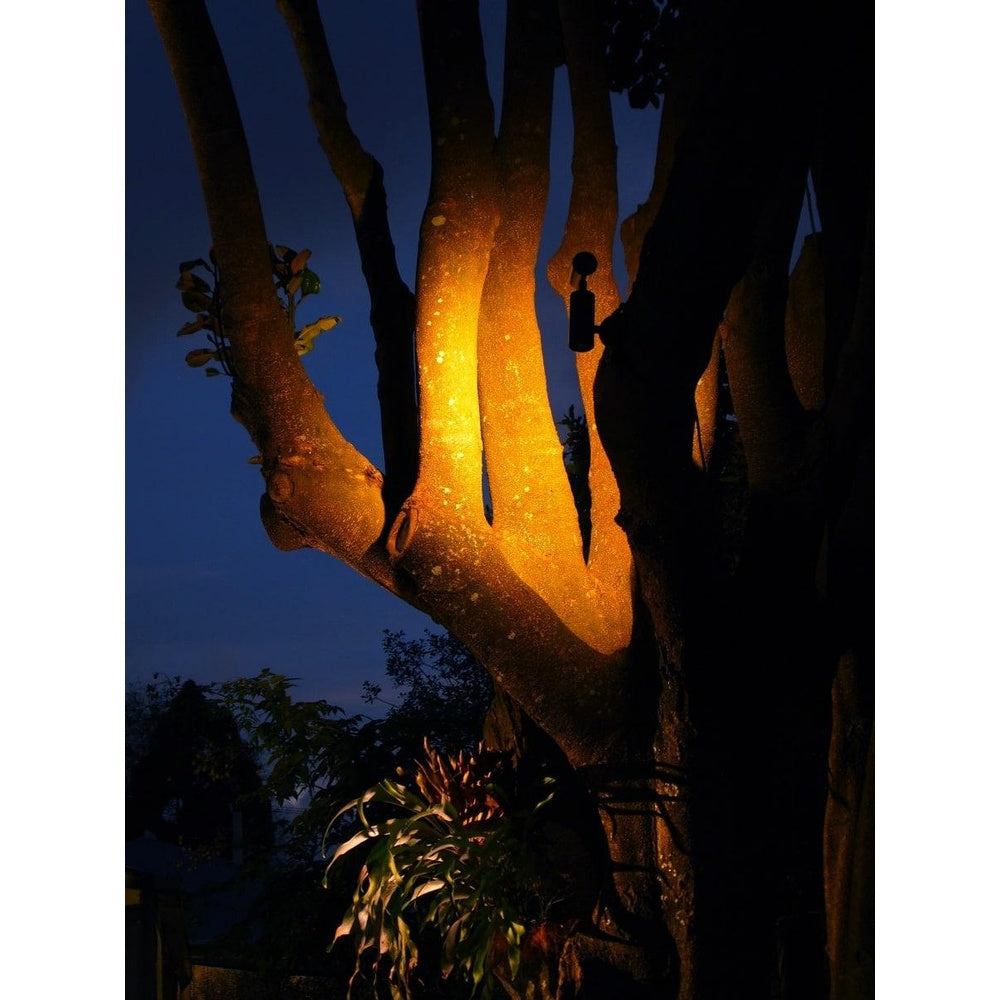

The Tree Mount High Power has been designed so it can be mounted onto a tree to create a moon lighting effect, increase illumination in the higher parts of the canopy or for cross lighting into other high objects. The luminaire is available with mounting stainless steel bolts or a rubber strap. All Hunza High Power products have an extra powder coat layer to ensure maximum corrosion protection.

Product Specifications

Lumen Output*
  • 1200 lumens @ 700mA (12 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 100 lm/W
Warranty
  • *Excludes third party lamps and power supplies*
  • Aluminium Components - 5 years
  • Electronics - 5 Years
Power Options
  • 700mA CC Input - Series Wired - Remote Driver 18Vf 12.6W
  • 24VDC Input - Parallel Wired 12.6W
  • 120-277 VAC - Integral Retro Driver 12.6W
Lens Options
  • with Clear Lens
  • with Frosted Lens
  • with Hex Cell Louvre Kit (MR16)
Accessories
  • Glare Guard
  • Snoot
LED
  • Cree® CXB 1512 field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 85+ Optional
  • 90+ Standard
Ingress Protection
  • IP66
Materials
  • Solid Powder Coated Aluminium
Standards
  • IEC/BS/AS/NZ 60598
  • UL 1598
  • CE
Recommended Power Supplies
  • Driver Supplied for Series Remote Wired (CC format)
  • 24VDC Power Supply Required for 24VDC Input ( CV format )
  • No Driver Required for Retro™ 'R' ( 120/240V Input )
Product Files

Click for High Power Tree Mount - TM-HP - Specification Sheet

Click for High Power Tree Mount - TM-HP - Product Diagram

Click for High Power Tree Mount - TM-HP - Installation Instructions USA

Click for High Power Tree Mount - TM-HP - Installation Instructions International

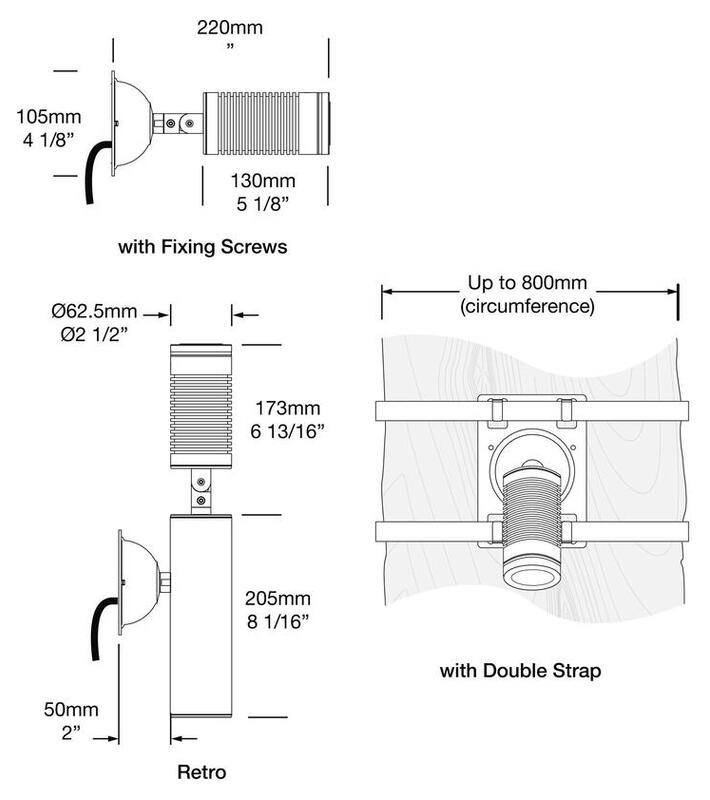

Diagram Image
