Hunza Twin Bar Light

Hunza LightingSKU: TBL/L-D3-SS-15-2

Select Power Options: 12V 4.2W (2x2.1W - per head)
Select Material: 316 Marine Grade Stainless Steel
Select Beam Angle: 15 Degree
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

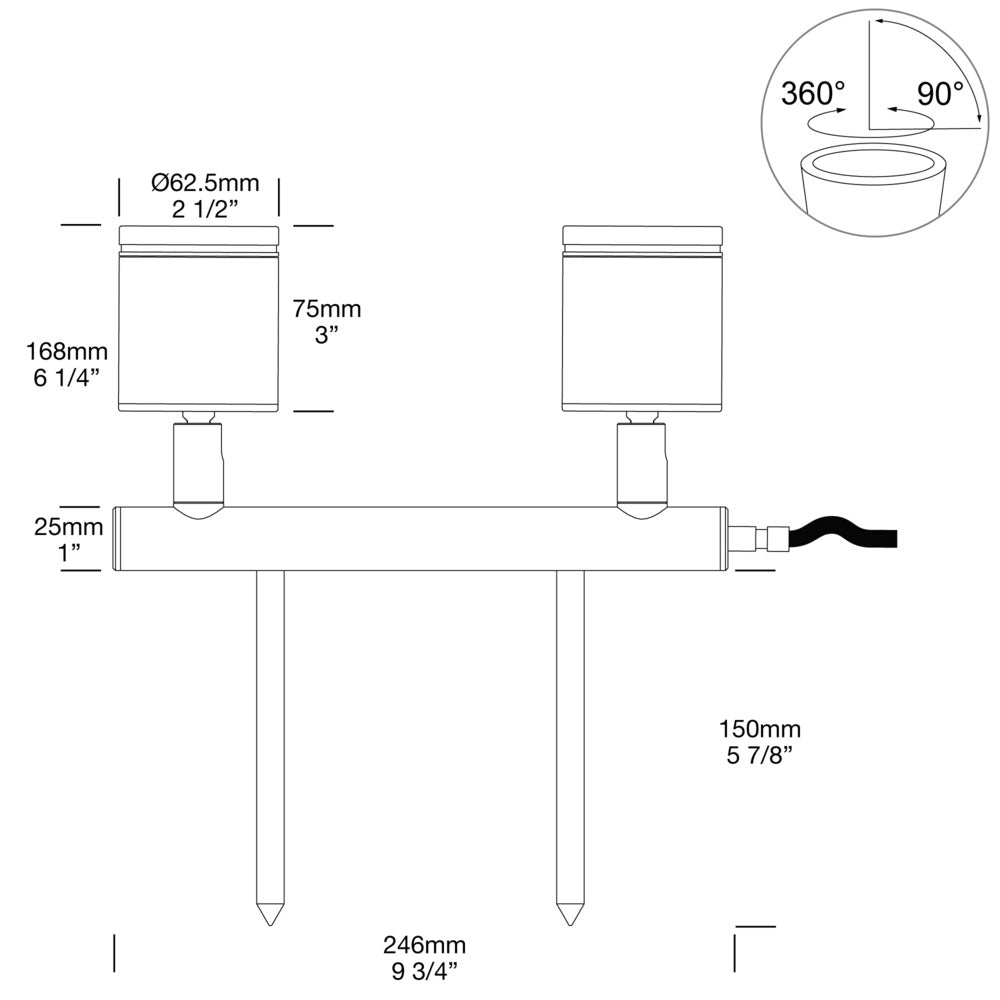

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

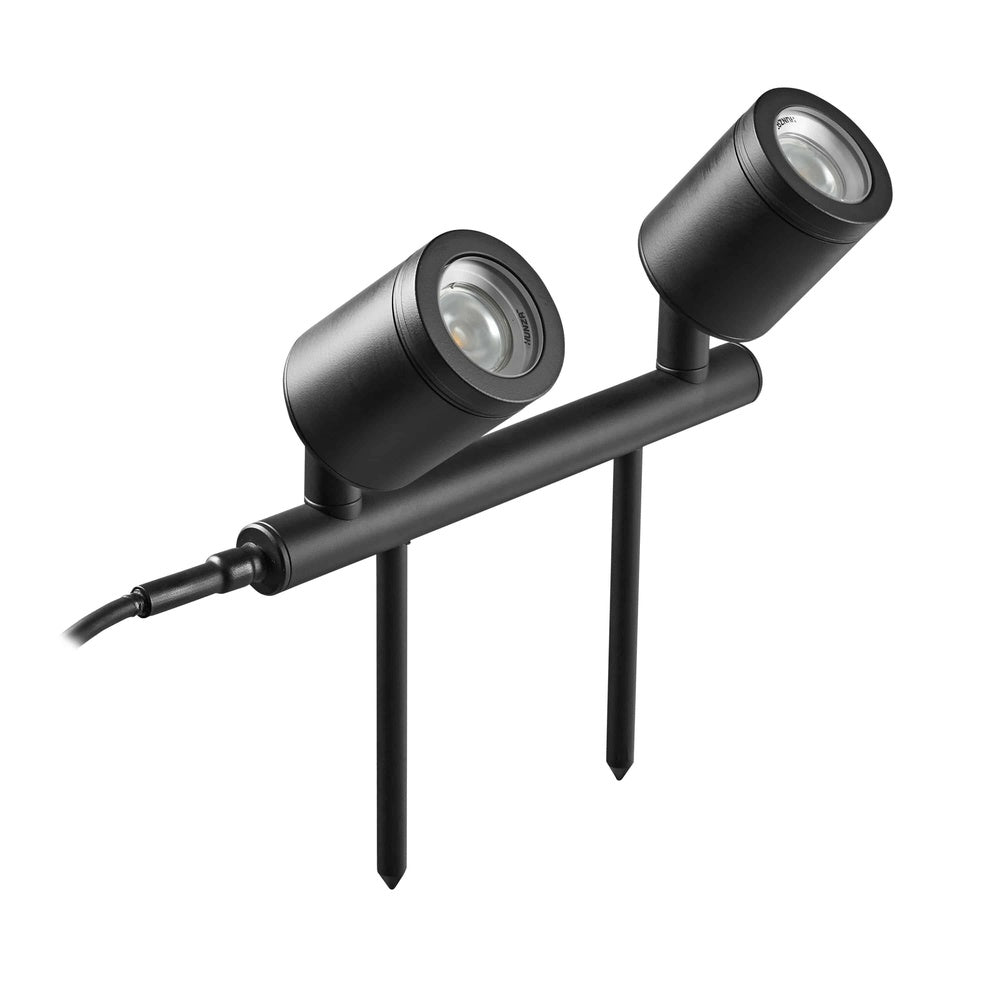

Hunza Twin Bar Light

The Twin Bar Light is ideal for wall or sign illumination. The luminaire has two individual spotlights which can be aimed in two entirely different directions. Each head has a fully adjustable arm allowing 360 degree rotation and 0-90 degree elevation adjustment.

Product Specifications

Lumen Output Per Head*
  • 600 lumens @ 1050mA (6 Watts)
  • 420 lumens @ 700mA (4 Watts)
  • 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 100 lm/W
Lens Options
  • with Clear Lens
  • with Frosted Lens
  • with Clear Lens and Hex Cell Louvre
Mounting Options
  • 300mm Spike (12")
  • Standard 150mm Spike (6")
Knuckle Option
  • with Adjustable Knuckle (Standard)
  • with Locking Knuckle
Accessories
  • Glare Guard
  • Snoot
LED
  • 2x Cree® XHP-50-2 Plug and Play field replaceable LED boards
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 90+ Standard
Ingress Protection
  • IP66
Materials
  • 316 Marine Grade Stainless Steel
  • Solid Copper
  • Solid Powder Coated Aluminium
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components - 10 years
  • Aluminium Components - 5 years
  • Electronics - 5 Years
  • Solid Copper Components - 10 Years
Standards
  • IEC/BS/AS/NZ 60598
  • UL 1838
Recommended Power Supplies
  • Driver Required for Series Wired (CC format)
  • Transformer Required for 12VAC Parallel Wired ( CV format )
Product Files

Click for Twin Bar Light - TBL-L - Specification Sheet

Click for Twin Bar Light - TBL-L - Product Diagram

Click for Twin Bar Light - TBL-L - Installation Instructions International

Click for Twin Bar Light - TBL-L - Installation Instructions USA

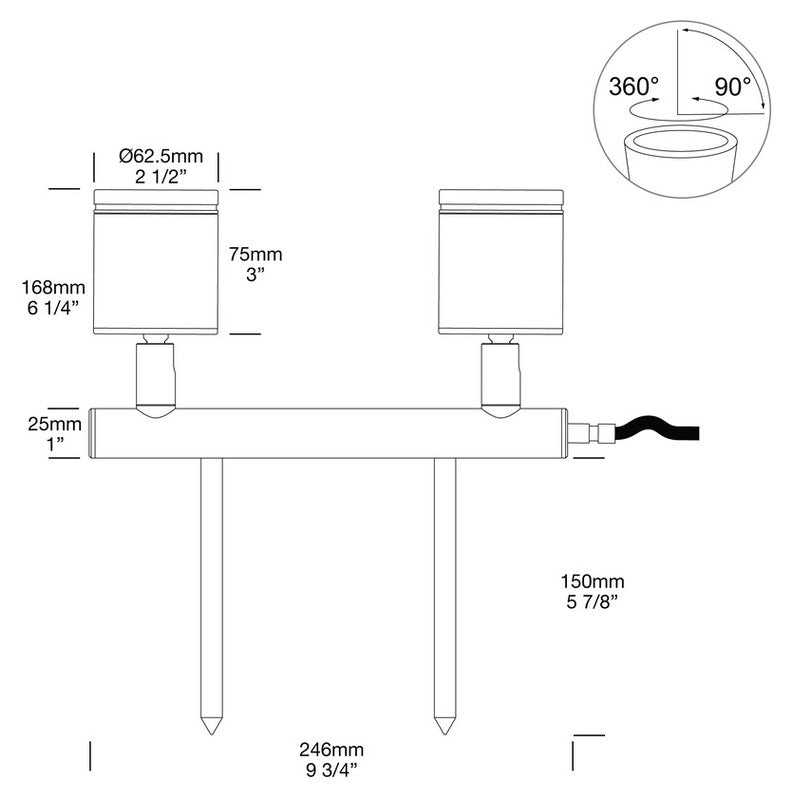

Diagram Image
