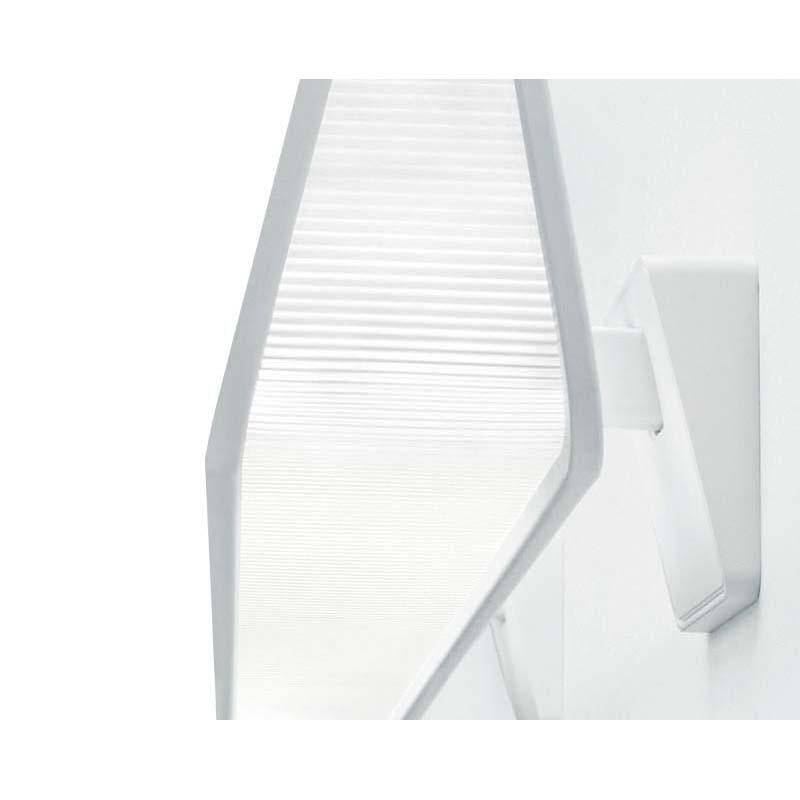

Ledalite Jump Linear Wall Washer Additional Image 2
Roll over image to zoom in Click on image to zoom
Ledalite Jump Linear Wall WasherLedalite Jump Linear Wall Washer Additional Image 1Ledalite Jump Linear Wall Washer Additional Image 2

Ledalite Jump Linear Wall Washer

LedaliteSKU: 1228LCGQP‐04‐N‐D‐E‐T
Type: 1228LCGQP‐04‐N‐D‐E‐T
Price:
$1,008.25 USD

Fast & Easy Quote Request

Click the “Request A Quote” button. Next, in the notes section, please include the complete products catalog numbers and quantity requested. For details see the PDF spec sheet on this page. You may also include your lighting fixtures list and attach files.

Description

Ledalite Jump Linear Wall Washer

Products List

Products Watts Lumen Kelvin
Jump wall, MesoOptics Lens + SolidSide Housing, 2000lm/4ft, 80 CRI, 3000K 1228LCGQE 19.7 2000 3000
Jump wall, MesoOptics Lens + SolidSide Housing, 2000lm/4ft, 80 CRI, 3500K 1228LBGQE 19.6 2000 3500
Jump wall, MesoOptics Lens + SolidSide Housing, 2000lm/4ft, 80 CRI, 4000K 1228LAGQE 19.8 2000 4000
Jump wall, MesoOptics Lens + SolidSide Housing, 3100lm/4ft, 80 CRI, 3000K 1228LCEQE 32.8 3100 3000
Jump wall, MesoOptics Lens + SolidSide Housing, 3100lm/4ft, 80 CRI, 3500K 1228LBEQE 32.6 3100 3500
Jump wall, MesoOptics Lens + SolidSide Housing, 3100lm/4ft, 80 CRI, 4000K 1228LAEQE 33 3100 4000
Jump wall, MesoOptics Lens + SolidSide Housing, 4200lm/4ft, 80 CRI, 3000K 1228LCCQE 45.6 4200 3000
Jump wall, MesoOptics Lens + SolidSide Housing, 4200lm/4ft, 80 CRI, 3500K 1228LBCQE 45.4 4200 3500
Jump wall, MesoOptics Lens + SolidSide Housing, 4200lm/4ft, 80 CRI, 4000K 1228LACQE 45.8 4200 4000
Jump wall, MesoOptics Lens + SplashPerf Housing, 2000lm/4ft, 80 CRI, 3000K 1228LCGQS 19.7 2000 3000
Jump wall, MesoOptics Lens + SplashPerf Housing, 2000lm/4ft, 80 CRI, 3500K 1228LBGQS 19.6 2000 3500
Jump wall, MesoOptics Lens + SplashPerf Housing, 2000lm/4ft, 80 CRI, 4000K 1228LAGQS 19.8 2000 4000
Jump wall, MesoOptics Lens + SplashPerf Housing, 3100lm/4ft, 80 CRI, 3000K 1228LCEQS 32.8 3100 3000
Jump wall, MesoOptics Lens + SplashPerf Housing, 3100lm/4ft, 80 CRI, 3500K 1228LBEQS 32.6 3100 3500
Jump wall, MesoOptics Lens + SplashPerf Housing, 3100lm/4ft, 80 CRI, 4000K 1228LAEQS 33 3100 4000
Jump wall, MesoOptics Lens + SplashPerf Housing, 4200lm/4ft, 80 CRI, 3000K 1228LCCQS 45.6 4200 3000
Jump wall, MesoOptics Lens + SplashPerf Housing, 4200lm/4ft, 80 CRI, 3500K 1228LBCQS 45.4 4200 3500
Jump wall, MesoOptics Lens + SplashPerf Housing, 4200lm/4ft, 80 CRI, 4000K 1228LACQS 45.8 4200 4000
Jump wall, MesoOptics Lens + PixelPerf Housing, 2000lm/4ft, 80 CRI, 3000K 1228LCGQP 19.7 2000 3000
Jump wall, MesoOptics Lens + PixelPerf Housing, 2000lm/4ft, 80 CRI, 3500K 1228LBGQP 19.6 2000 3500
Jump wall, MesoOptics Lens + PixelPerf Housing, 2000lm/4ft, 80 CRI, 4000K 1228LAGQP 19.8 2000 4000
Jump wall, MesoOptics Lens + PixelPerf Housing, 3100lm/4ft, 80 CRI, 3000K 1228LCEQP 32.8 3100 3000
Jump wall, MesoOptics Lens + PixelPerf Housing, 3100lm/4ft, 80 CRI, 3500K 1228LBEQP 32.6 3100 3500
Jump wall, MesoOptics Lens + PixelPerf Housing, 3100lm/4ft, 80 CRI, 4000K 1228LAEQP 33 3100 4000
Jump wall, MesoOptics Lens + PixelPerf Housing, 4200lm/4ft, 80 CRI, 3000K 1228LCCQP 45.6 4200 3000
Jump wall, MesoOptics Lens + PixelPerf Housing, 4200lm/4ft, 80 CRI, 3500K 1228LBCQP 45.4 4200 3500
Jump wall, MesoOptics Lens + PixelPerf Housing, 4200lm/4ft, 80 CRI, 4000K 1228LACQP 45.8 4200 4000
Jump cantilever, MesoOptics Lens + SolidSide Housing, 2400lm/4ft, 80 CRI, 3000K 1231LCGQE 19.7 2400 3000
Jump cantilever, MesoOptics Lens + SolidSide Housing, 2400lm/4ft, 80 CRI, 3500K 1231LBGQE 19.6 2400 3500
Jump cantilever, MesoOptics Lens + SolidSide Housing, 2400lm/4ft, 80 CRI, 4000K 1231LAGQE 19.8 2400 4000
Jump cantilever, MesoOptics Lens + SolidSide Housing, 3600lm/4ft, 80 CRI, 3000K 1231LCEQE 32.8 3600 3000
Jump cantilever, MesoOptics Lens + SolidSide Housing, 3600lm/4ft, 80 CRI, 3500K 1231LBEQE 32.6 3600 3500
Jump cantilever, MesoOptics Lens + SolidSide Housing, 3600lm/4ft, 80 CRI, 4000K 1231LAEQE 33 3600 4000
Jump cantilever, MesoOptics Lens + SolidSide Housing, 4900lm/4ft, 80 CRI, 3000K 1231LCCQE 45.6 4900 3000
Jump cantilever, MesoOptics Lens + SolidSide Housing, 4900lm/4ft, 80 CRI, 3500K 1231LBCQE 45.4 4900 3500
Jump cantilever, MesoOptics Lens + SolidSide Housing, 4900lm/4ft, 80 CRI, 4000K 1231LACQE 45.8 4900 4000
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 2400lm/4ft, 80 CRI, 3000K 1231LCGQS 19.6 2400 3000
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 2400lm/4ft, 80 CRI, 3500K 1231LBGQS 19.5 2400 3500
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 2400lm/4ft, 80 CRI, 4000K 1231LAGQS 19.7 2400 4000
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 3600lm/4ft, 80 CRI, 3000K 1231LCEQS 32.6 3600 3000
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 3600lm/4ft, 80 CRI, 3500K 1231LBEQS 32.5 3600 3500
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 3600lm/4ft, 80 CRI, 4000K 1231LAEQS 32.8 3600 4000
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 4900lm/4ft, 80 CRI, 3000K 1231LCCQS 45.4 4900 3000
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 4900lm/4ft, 80 CRI, 3500K 1231LBCQS 45.1 4900 3500
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 4900lm/4ft, 80 CRI, 4000K 1231LACQS 45.6 4900 4000
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 2400lm/4ft, 80 CRI, 3000K 1231LCGQP 19.6 2400 3000
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 2400lm/4ft, 80 CRI, 3500K 1231LBGQP 19.5 2400 3500
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 2400lm/4ft, 80 CRI, 4000K 1231LAGQP 19.7 2400 4000
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 3600lm/4ft, 80 CRI, 3000K 1231LCEQP 32.6 3600 3000
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 3600lm/4ft, 80 CRI, 3500K 1231LBEQP 32.5 3600 3500
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 3600lm/4ft, 80 CRI, 4000K 1231LAEQP 32.8 3600 4000
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 4900lm/4ft, 80 CRI, 3000K 1231LCCQP 45.4 4900 3000
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 4900lm/4ft, 80 CRI, 3500K 1231LBCQP 45.1 4900 3500
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 4900lm/4ft, 80 CRI, 4000K 1231LACQP 45.6 4900 4000
Jump cantilever, MesoOptics Lens + SolidSide Housing, 2000lm/4ft, 80 CRI, 3000K 1238LCGQE 19.6 2000 3000
Jump cantilever, MesoOptics Lens + SolidSide Housing, 2000lm/4ft, 80 CRI, 3500K 1238LBGQE 19.5 2000 3500
Jump cantilever, MesoOptics Lens + SolidSide Housing, 2000lm/4ft, 80 CRI, 4000K 1238LAGQE 19.7 2000 4000
Jump cantilever, MesoOptics Lens + SolidSide Housing, 3100lm/4ft, 80 CRI, 3000K 1238LCEQE 32.6 3100 3000
Jump cantilever, MesoOptics Lens + SolidSide Housing, 3100lm/4ft, 80 CRI, 3500K 1238LBEQE 32.5 3100 3500
Jump cantilever, MesoOptics Lens + SolidSide Housing, 3100lm/4ft, 80 CRI, 4000K 1238LAEQE 32.8 3100 4000
Jump cantilever, MesoOptics Lens + SolidSide Housing, 4200lm/4ft, 80 CRI, 3000K 1238LCCQE 45.4 4200 3000
Jump cantilever, MesoOptics Lens + SolidSide Housing, 4200lm/4ft, 80 CRI, 3500K 1238LBCQE 45.1 4200 3500
Jump cantilever, MesoOptics Lens + SolidSide Housing, 4200lm/4ft, 80 CRI, 4000K 1238LACQE 45.6 4200 4000
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 2000lm/4ft, 80 CRI, 3000K 1238LCGQS 19.7 2000 3000
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 2000lm/4ft, 80 CRI, 3500K 1238LBGQS 19.6 2000 3500
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 2000lm/4ft, 80 CRI, 4000K 1238LAGQS 19.8 2000 4000
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 3100lm/4ft, 80 CRI, 3000K 1238LCEQS 32.8 3100 3000
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 3100lm/4ft, 80 CRI, 3500K 1238LBEQS 32.6 3100 3500
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 3100lm/4ft, 80 CRI, 4000K 1238LAEQS 33 3100 4000
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 4200lm/4ft, 80 CRI, 3000K 1238LCCQS 45.6 4200 3000
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 4200lm/4ft, 80 CRI, 3500K 1238LBCQS 45.4 4200 3500
Jump cantilever, MesoOptics Lens + SplashPerf Housing, 4200lm/4ft, 80 CRI, 4000K 1238LACQS 45.8 4200 4000
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 2000lm/4ft, 80 CRI, 3000K 1238LCGQP 19.7 2000 3000
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 2000lm/4ft, 80 CRI, 3500K 1238LBGQP 19.6 2000 3500
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 2000lm/4ft, 80 CRI, 4000K 1238LAGQP 19.8 2000 4000
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 3100lm/4ft, 80 CRI, 3000K 1238LCEQP 32.8 3100 3000
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 3100lm/4ft, 80 CRI, 3500K 1238LBEQP 32.6 3100 3500
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 3100lm/4ft, 80 CRI, 4000K 1238LAEQP 33 3100 4000
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 4200lm/4ft, 80 CRI, 3000K 1238LCCQP 45.6 4200 3000
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 4200lm/4ft, 80 CRI, 3500K 1238LBCQP 45.4 4200 3500
Jump cantilever, MesoOptics Lens + PixelPerf Housing, 4200lm/4ft, 80 CRI, 4000K 1238LACQP 45.8 4200 4000


Product family information

Jump’s contemporary aesthetic combines the latest lighting technologies with texture, pattern, and rhythm along an uninterrupted end to end continuum of luminance.

Benefits

  • Highly flexible choice for functional environments
  • Aesthetic design elements
  • Maximum control,performance and energy savings

Features

  • LED light source
  • Suspended, surface, wall and cantilever mount versions
  • Choice of flat die-cast or sculpted luminous endcaps
  • Three sophisticated aesthetic styles: SplashPerf, PixelPerf and SolidSide
  • Symmetric and asymmetric distribution options

Applications

  • Office
  • Hospitality
  • Banks
  • Fashion

Click for Jump Wall

Click for Jump Cantilever
