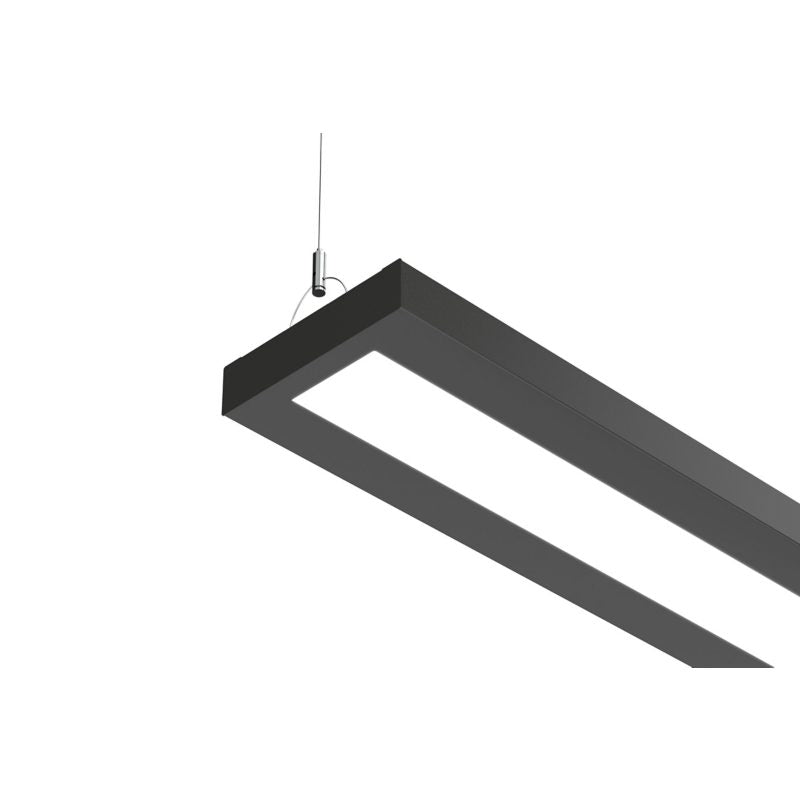

Ledalite SyncLine Linear Suspended Light
A sleek design with performance that's in sync with your budget.
Product Family Information
SyncLine's slim design rivals that of high-end LED luminaires with performance that's in sync with your budget. SyncLine offers premium quality of light with AccuRender high efficacy CRI 90+. Options include Interact, AccuRender Tunable White and new BioUp high melanopic tunable technology to enhance your daily life.
Benefits
- Broad choice of optical distributions in a compact size
- Design ready, 10-day QuickShip on many configurations
- Efficacy up to 150 lm/W
- Small housing (6.75” wide x 1.5” high)
- 4’, 6’, 8’ lengths + continuous runs for both suspended and wall mount versions
Features
- Single circuit and dual circuit for independent up/down lighting control
- AccuRender static and tunable white with CRI 90+ across the CCT range
- Available with BioUp tunable technology that supports health and wellbeing
- Wide choice of controls (Interact, 0-10V, DALI, Lutron)
- Variable mounting – 6 x 1” increments at each end of fixture to avoid ceiling obstructions
Applications
- Offices
- Education
- Healthcare
- Retail
- Hospitality
- Airports
Product Variations
| Image | Title | SKU |
|---|---|---|
 |
SyncLine suspended, Direct, 2000lm/4ft, CRI 90+, 3500K | SL01L93520NNAJ |
|
SyncLine suspended, Direct, 3000lm/4ft, CRI 90+, 3500K | SL01L93530NNAJ |
|
SyncLine suspended, Direct, 4000lm/4ft, CRI 90+, 3500K | SL01L93540NNAJ |
|
SyncLine suspended, Indirect, 2000lm/4ft, DC, CRI 90+, 3500K | SL03L93520NNNA |
|
SyncLine suspended, Indirect, 2000lm/4ft, CRI 90+, 3500K | SL03L93520NNNB |
|
SyncLine suspended, Indirect, 3000lm/4ft, DC, CRI 90+, 3500K | SL03L93530NNNA |
|
SyncLine suspended, Indirect, 3000lm/4ft, CRI 90+, 3500K | SL03L93530NNNB |
|
SyncLine suspended, Indirect, 4000lm/4ft, DC, CRI 90+, 3500K | SL03L93540NNNA |
|
SyncLine suspended, Indirect, 4000lm/4ft, CRI 90+, 3500K | SL03L93540NNNB |
|
SyncLine suspended, Indirect, 5000lm/4ft, DC, CRI 90+, 3500K | SL03L93550NNNA |
|
SyncLine suspended, Indirect, 5000lm/4ft, CRI 90+, 3500K | SL03L93550NNNB |
|
SyncLine suspended, Indirect, 6000lm/4ft, DC, CRI 90+, 3500K | SL03L93560NNNA |
|
SyncLine suspended, Indirect, 6000lm/4ft, CRI 90+, 3500K | SL03L93560NNNB |
|
SyncLine suspended, Indirect, 7000lm/4ft, DC, CRI 90+, 3500K | SL03L93570NNNA |
|
SyncLine suspended, Indirect, 7000lm/4ft, CRI 90+, 3500K | SL03L93570NNNB |
|
SyncLine suspended, Semi-Indirect, 2000lm/4ft, 30%Dn/70%Up, DC, CRI 90+, 3500K | SL06L93520NNAA |
|
SyncLine suspended, Semi-Indirect, 2000lm/4ft, 20%Dn/80%Up, CRI 90+, 3500K | SL06L93520NNAB |
|
SyncLine suspended, Direct-Indirect, 2000lm/4ft, 50%Dn/50%Up, DC, CRI 90+, 3500K | SL06L93520NNAD |
|
SyncLine suspended, Semi-Indirect, 2000lm/4ft, 40%Dn/60%Up, CRI 90+, 3500K | SL06L93520NNAE |
|
SyncLine suspended, Semi-Direct, 2000lm/4ft, 80%Dn/20%Up, DC, CRI 90+, 3500K | SL06L93520NNAG |
|
SyncLine suspended, Semi-Indirect, 3000lm/4ft, 30%Dn/70%Up, DC, CRI 90+, 3500K | SL06L93530NNAA |
|
SyncLine suspended, Semi-Indirect, 3000lm/4ft, 20%Dn/80%Up, CRI 90+, 3500K | SL06L93530NNAB |
|
SyncLine suspended, Direct-Indirect, 3000lm/4ft, 50%Dn/50%Up, DC, CRI 90+, 3500K | SL06L93530NNAD |
|
SyncLine suspended, Semi-Indirect, 3000lm/4ft, 40%Dn/60%Up, CRI 90+, 3500K | SL06L93530NNAE |
|
SyncLine suspended, Semi-Direct, 3000lm/4ft, 80%Dn/20%Up, DC, CRI 90+, 3500K | SL06L93530NNAG |
|
SyncLine suspended, Semi-Indirect, 4000lm/4ft, 30%Dn/70%Up, DC, CRI 90+, 3500K | SL06L93540NNAA |
|
SyncLine suspended, Semi-Indirect, 4000lm/4ft, 20%Dn/80%Up, CRI 90+, 3500K | SL06L93540NNAB |
|
SyncLine suspended, Direct-Indirect, 4000lm/4ft, 50%Dn/50%Up, DC, CRI 90+, 3500K | SL06L93540NNAD |
|
SyncLine suspended, Semi-Indirect, 4000lm/4ft, 40%Dn/60%Up, CRI 90+, 3500K | SL06L93540NNAE |
|
SyncLine suspended, Semi-Direct, 4000lm/4ft, 80%Dn/20%Up, DC, CRI 90+, 3500K | SL06L93540NNAG |
|
SyncLine suspended, Semi-Indirect, 5000lm/4ft, 30%Dn/70%Up, DC, CRI 90+, 3500K | SL06L93550NNAA |
|
SyncLine suspended, Semi-Indirect, 5000lm/4ft, 20%Dn/80%Up, CRI 90+, 3500K | SL06L93550NNAB |
|
SyncLine suspended, Direct-Indirect, 5000lm/4ft, 50%Dn/50%Up, DC, CRI 90+, 3500K | SL06L93550NNAD |
|
SyncLine suspended, Semi-Indirect, 5000lm/4ft, 40%Dn/60%Up, CRI 90+, 3500K | SL06L93550NNAE |
|
SyncLine suspended, Semi-Direct, 5000lm/4ft, 80%Dn/20%Up, DC, CRI 90+, 3500K | SL06L93550NNAG |
|
SyncLine suspended, Semi-Indirect, 6000lm/4ft, 30%Dn/70%Up, DC, CRI 90+, 3500K | SL06L93560NNAA |
|
SyncLine suspended, Semi-Indirect, 6000lm/4ft, 20%Dn/80%Up, CRI 90+, 3500K | SL06L93560NNAB |
|
SyncLine suspended, Direct-Indirect, 6000lm/4ft, 50%Dn/50%Up, DC, CRI 90+, 3500K | SL06L93560NNAD |
|
SyncLine suspended, Semi-Indirect, 6000lm/4ft, 40%Dn/60%Up, CRI 90+, 3500K | SL06L93560NNAE |
|
SyncLine suspended, Semi-Indirect, 7000lm/4ft, 30%Dn/70%Up, DC, CRI 90+, 3500K | SL06L93570NNAA |
|
SyncLine suspended, Semi-Indirect, 7000lm/4ft, 20%Dn/80%Up, CRI 90+, 3500K | SL06L93570NNAB |
|
SyncLine suspended, Direct-Indirect, 7000lm/4ft, 50%Dn/50%Up, DC, CRI 90+, 3500K | SL06L93570NNAD |
|
SyncLine suspended, Semi-Indirect, 7000lm/4ft, 40%Dn/60%Up, CRI 90+, 3500K | SL06L93570NNAE |
|
SyncLine suspended, Semi-Indirect, 8000lm/4ft, 30%Dn/70%Up, DC, CRI 90+, 3500K | SL06L93580NNAA |
|
SyncLine suspended, Semi-Indirect, 8000lm/4ft, 20%Dn/80%Up, CRI 90+, 3500K | SL06L93580NNAB |
|
SyncLine suspended, Direct-Indirect, 8000lm/4ft, 50%Dn/50%Up, DC, CRI 90+, 3500K | SL06L93580NNAD |
|
SyncLine suspended, Semi-Indirect, 8000lm/4ft, 40%Dn/60%Up, CRI 90+, 3500K | SL06L93580NNAE |
|
SyncLine suspended, Direct-Indirect, 1000lm Dn/1000lm Up /4ft, CRI 90+, 3500K | SL16L9351010AN |
|
SyncLine suspended, Semi-Indirect, 1000lm Dn/2000lm Up /4ft, CRI 90+, 3500K | SL16L9351020AN |
|
SyncLine suspended, Semi-Indirect, 1000lm Dn/3000lm Up /4ft, CRI 90+, 3500K | SL16L9351030AN |
|
SyncLine suspended, Semi-Indirect, 1000lm Dn/4000lm Up /4ft, CRI 90+, 3500K | SL16L9351040AN |
|
SyncLine suspended, Semi-Indirect, 1000lm Dn/5000lm Up /4ft, CRI 90+, 3500K | SL16L9351050AN |
|
SyncLine suspended, Semi-Indirect, 1000lm Dn/6000lm Up /4ft, CRI 90+, 3500K | SL16L9351060AN |
|
SyncLine suspended, Semi-Indirect, 1000lm Dn/7000lm Up /4ft, CRI 90+, 3500K | SL16L9351070AN |
|
SyncLine suspended, Direct-Indirect, 1500lm Dn/1000lm Up /4ft, CRI 90+, 3500K | SL16L9351510AN |
|
SyncLine suspended, Direct-Indirect, 1500lm Dn/2000lm Up /4ft, CRI 90+, 3500K | SL16L9351520AN |
|
SyncLine suspended, Semi-Indirect, 1500lm Dn/3000lm Up /4ft, CRI 90+, 3500K | SL16L9351530AN |
|
SyncLine suspended, Semi-Indirect, 1500lm Dn/4000lm Up /4ft, CRI 90+, 3500K | SL16L9351540AN |
|
SyncLine suspended, Semi-Indirect, 1500lm Dn/5000lm Up /4ft, CRI 90+, 3500K | SL16L9351550AN |
|
SyncLine suspended, Semi-Indirect, 1500lm Dn/6000lm Up /4ft, CRI 90+, 3500K | SL16L9351560AN |
|
SyncLine suspended, Semi-Indirect, 1500lm Dn/7000lm Up /4ft, CRI 90+, 3500K | SL16L9351570AN |
|
SyncLine suspended, Semi-Direct, 2000lm Dn/1000lm Up /4ft, CRI 90+, 3500K | SL16L9352010AN |
|
SyncLine suspended, Direct-Indirect, 2000lm Dn/2000lm Up /4ft, CRI 90+, 3500K | SL16L9352020AN |
|
SyncLine suspended, Semi-Indirect, 2000lm Dn/3000lm Up /4ft, CRI 90+, 3500K | SL16L9352030AN |
|
SyncLine suspended, Semi-Indirect, 2000lm Dn/4000lm Up /4ft, CRI 90+, 3500K | SL16L9352040AN |
|
SyncLine suspended, Semi-Indirect, 2000lm Dn/5000lm Up /4ft, CRI 90+, 3500K | SL16L9352050AN |
|
SyncLine suspended, Semi-Indirect, 2000lm Dn/6000lm Up /4ft, CRI 90+, 3500K | SL16L9352060AN |
|
SyncLine suspended, Semi-Indirect, 2000lm Dn/7000lm Up /4ft, CRI 90+, 3500K | SL16L9352070AN |
|
SyncLine suspended, Semi-Direct, 2500lm Dn/1000lm Up /4ft, CRI 90+, 3500K | SL16L9352510AN |
|
SyncLine suspended, Direct-Indirect, 2500lm Dn/2000lm Up /4ft, CRI 90+, 3500K | SL16L9352520AN |
|
SyncLine suspended, Direct-Indirect, 2500lm Dn/3000lm Up /4ft, CRI 90+, 3500K | SL16L9352530AN |
|
SyncLine suspended, Semi-Indirect, 2500lm Dn/4000lm Up /4ft, CRI 90+, 3500K | SL16L9352540AN |
|
SyncLine suspended, Semi-Indirect, 2500lm Dn/5000lm Up /4ft, CRI 90+, 3500K | SL16L9352550AN |
|
SyncLine suspended, Semi-Indirect, 2500lm Dn/6000lm Up /4ft, CRI 90+, 3500K | SL16L9352560AN |
|
SyncLine suspended, Semi-Indirect, 2500lm Dn/7000lm Up /4ft, CRI 90+, 3500K | SL16L9352570AN |
|
SyncLine suspended, Semi-Direct, 3000lm Dn/1000lm Up /4ft, CRI 90+, 3500K | SL16L9353010AN |
|
SyncLine suspended, Direct-Indirect, 3000lm Dn/2000lm Up /4ft, CRI 90+, 3500K | SL16L9353020AN |
|
SyncLine suspended, Direct-Indirect, 3000lm Dn/3000lm Up /4ft, CRI 90+, 3500K | SL16L9353030AN |
|
SyncLine suspended, Direct-Indirect, 3000lm Dn/4000lm Up /4ft, CRI 90+, 3500K | SL16L9353040AN |
|
SyncLine suspended, Semi-Indirect, 3000lm Dn/5000lm Up /4ft, CRI 90+, 3500K | SL16L9353050AN |
|
SyncLine suspended, Semi-Indirect, 3000lm Dn/6000lm Up /4ft, CRI 90+, 3500K | SL16L9353060AN |
|
SyncLine suspended, Semi-Indirect, 3000lm Dn/7000lm Up /4ft, CRI 90+, 3500K | SL16L9353070AN |
|
SyncLine suspended, Semi-Direct, 3500lm Dn/1000lm Up /4ft, CRI 90+, 3500K | SL16L9353510AN |
|
SyncLine suspended, Semi-Direct, 3500lm Dn/2000lm Up /4ft, CRI 90+, 3500K | SL16L9353520AN |
|
SyncLine suspended, Direct-Indirect, 3500lm Dn/3000lm Up /4ft, CRI 90+, 3500K | SL16L9353530AN |
|
SyncLine suspended, Direct-Indirect, 3500lm Dn/4000lm Up /4ft, CRI 90+, 3500K | SL16L9353540AN |
|
SyncLine suspended, Direct-Indirect, 3500lm Dn/5000lm Up /4ft, CRI 90+, 3500K | SL16L9353550AN |
|
SyncLine suspended, Semi-Indirect, 3500lm Dn/6000lm Up /4ft, CRI 90+, 3500K | SL16L9353560AN |
|
SyncLine suspended, Semi-Indirect, 3500lm Dn/7000lm Up /4ft, CRI 90+, 3500K | SL16L9353570AN |
|
SyncLine suspended, Semi-Direct, 4000lm Dn/1000lm Up /4ft, CRI 90+, 3500K | SL16L9354010AN |
|
SyncLine suspended, Semi-Direct, 4000lm Dn/2000lm Up /4ft, CRI 90+, 3500K | SL16L9354020AN |
|
SyncLine suspended, Direct-Indirect, 4000lm Dn/3000lm Up /4ft, CRI 90+, 3500K | SL16L9354030AN |
|
SyncLine suspended, Direct-Indirect, 4000lm Dn/4000lm Up /4ft, CRI 90+, 3500K | SL16L9354040AN |
|
SyncLine suspended, Direct-Indirect, 4000lm Dn/5000lm Up /4ft, CRI 90+, 3500K | SL16L9354050AN |
|
SyncLine suspended, Semi-Indirect, 4000lm Dn/6000lm Up /4ft, CRI 90+, 3500K | SL16L9354060AN |
|
SyncLine suspended, Semi-Indirect, 4000lm Dn/7000lm Up /4ft, CRI 90+, 3500K | SL16L9354070AN |
Product Files
Click for Ledalite Syncline Suspended Ledalite Syncline Suspended Spec Sheet EN
Click for Ledalite Syncline Suspended Ledalite Suspended Mounting Options En
Click for Ledalite Syncline Suspended Ledalite Controls Design Guide
Click for Ledalite Syncline Suspended Syncline Row Config
Click for Ledalite Syncline Suspended Ledalite Accurender Brochure
Click for Ledalite Syncline Suspended Ledalite 10 Day Design Ready Brochure
Click for Ledalite Syncline Suspended Syncline Application Guide
Click for Ledalite Syncline Suspended Syncline Brochure
Click for Ledalite Syncline Suspended Syncline Suspended Installation Sheet
