Description

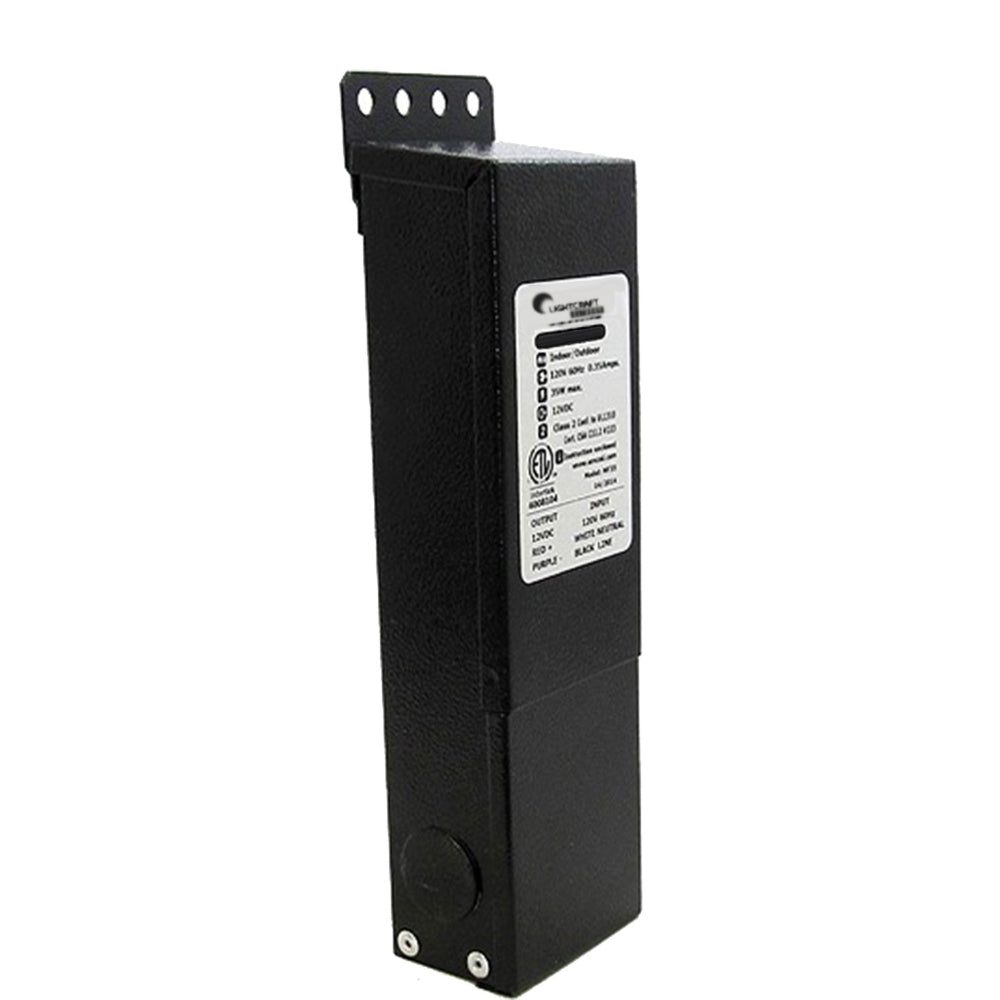

Lightcraft Outdoor 50W Micro Transformer 120V AC To 12V DC
Transformer
Dimmable with any LV magnetic dimmer as long as you cover dimmer???s
min load.
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 1.25A
Thermal self reset secondary breaker 5A
Housing
The actual transformer 150W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully loaded

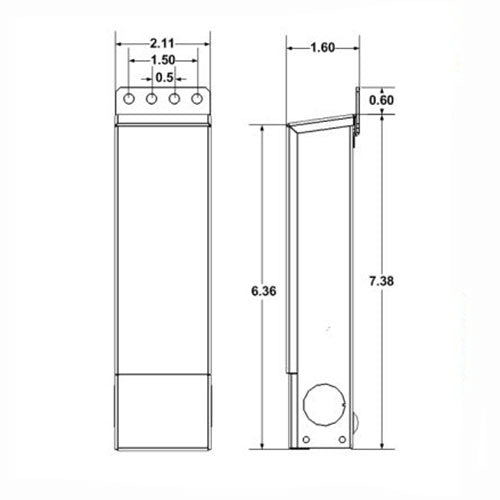

Dimensions (inch): H = 7, W = 2.11, D = 1.54
Electrical Parameters
- Input Voltage: 120V 60Hz
- Output voltage without load: 13.2VDC
- Output voltage fully loaded: 11.6VDC
- Max. Total Wattage: 50W
- Max. Output Current: 4.1A
- Efficiency: 85%
Class 2 Magnetic Dimmable
Outdoor Black Powder Coated Steel Enclosure
- Single Circuit: 12VDC
- Total Wattage: 150W max
- Input Voltage: 120V 60Hz
