Description
Lightcraft Outdoor TR-150-DC-MICRO 150W Transformer
Transformer
Dimmable with any MLV, CL dimmer, as long as, dimmer's min. load is covered.
Temperature class B(130°C)
Two section bobbin completely separated primary and secondary windings
Input leads are 18AWG 600V
Output leads are 12AWG 300V
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 2A
Magnetic manually reset secondary breaker 20A
Housing
The actual transformer 150W is encapsulated in the enclosure

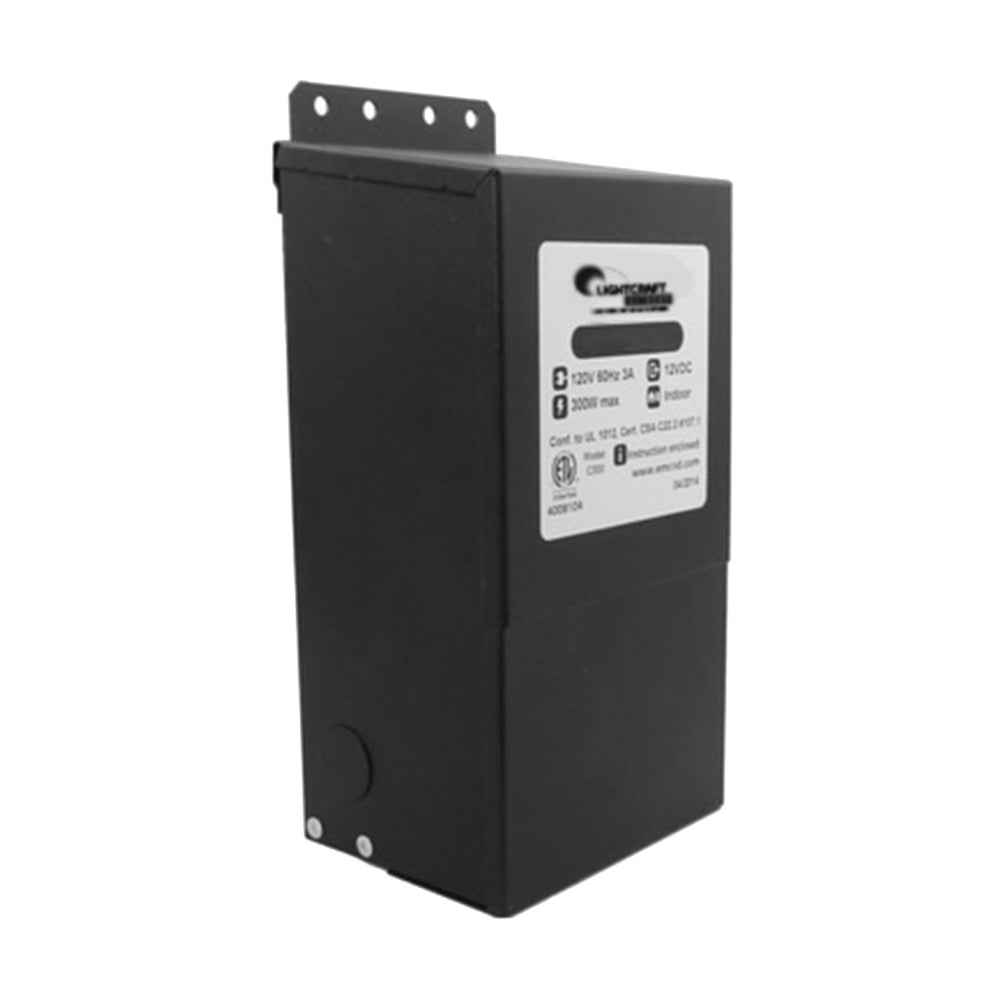

The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully loaded

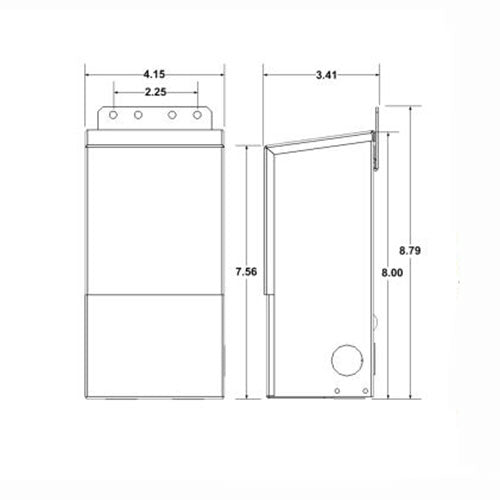

Dimensions (inch): H = 8, W = 4.15, D = 3.41
Weight (LBs): 0.83
Electrical Parameters
- Input Voltage: 120V 60Hz
- Max. input current at full load: 1.5A
- Output voltage without load: 12.7VDC
- Output voltage fully loaded: 11.5VDC
- Max. Total Wattage: 150W
- Max. Output Current: 12.5A
- Efficiency: 90%
Magnetic LV
Outdoor Black Powder Coated Steel Enclosure
- Single Circuit: 12VDC
- Total Wattage: 150W max
- Input Voltage: 120V 60Hz
