Lightolier Calculite LED 4" Square Gen 3

Lightolier LightingSKU: CALCULITE-LED-4-SQUARE

Sale price$0.00 USD

Fast & Easy Quote Request

Click the “Request A Quote” button. Next, in the notes section, please include the complete products catalog numbers and quantity requested. For details see the PDF spec sheet on this page. You may also include your lighting fixtures list and attach files.

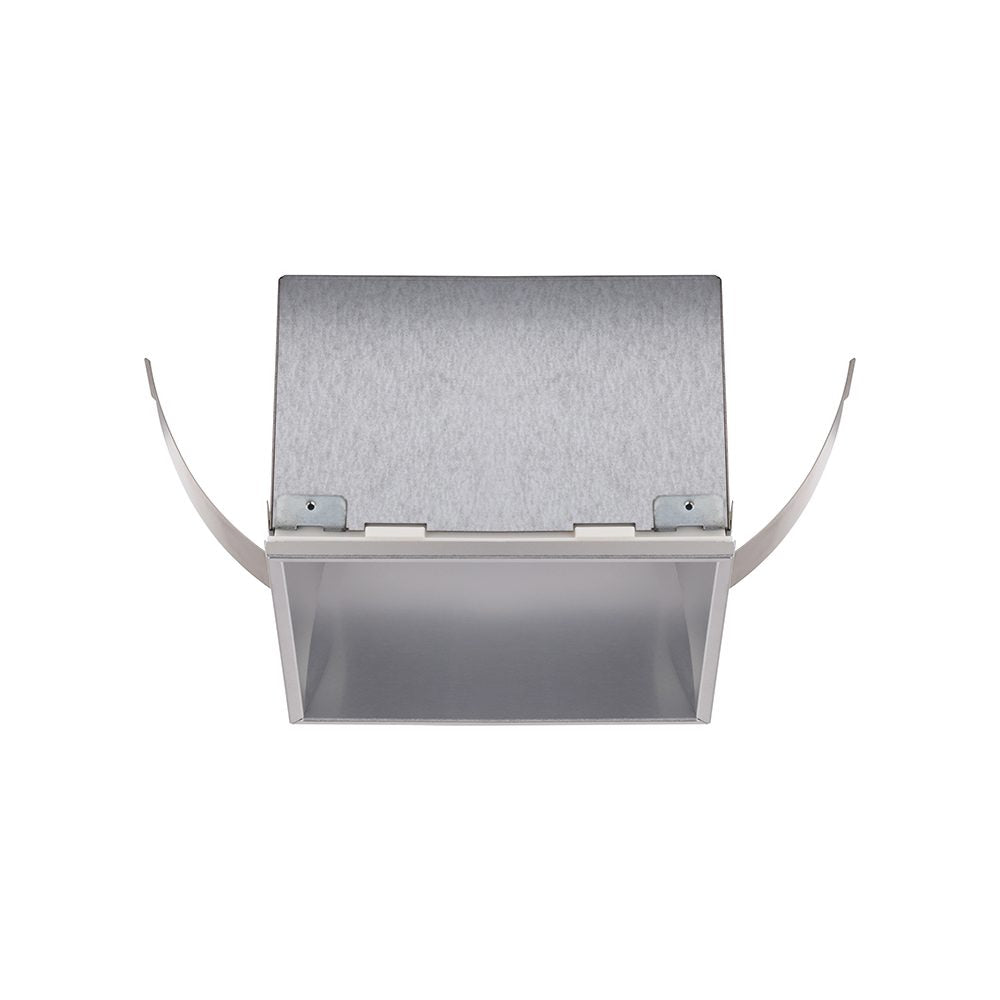

Lightolier Calculite LED 4" Square Gen 3

Product Name SKU Watts Lumens Kelvin

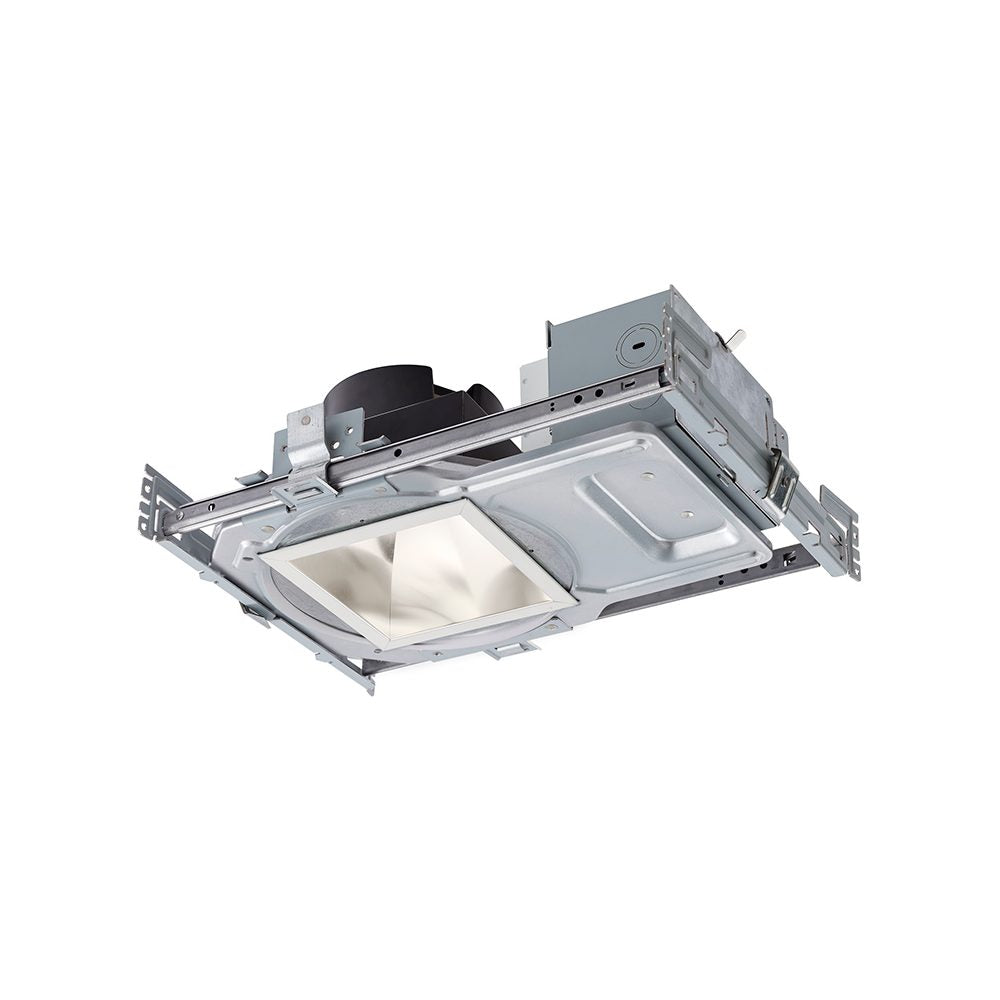

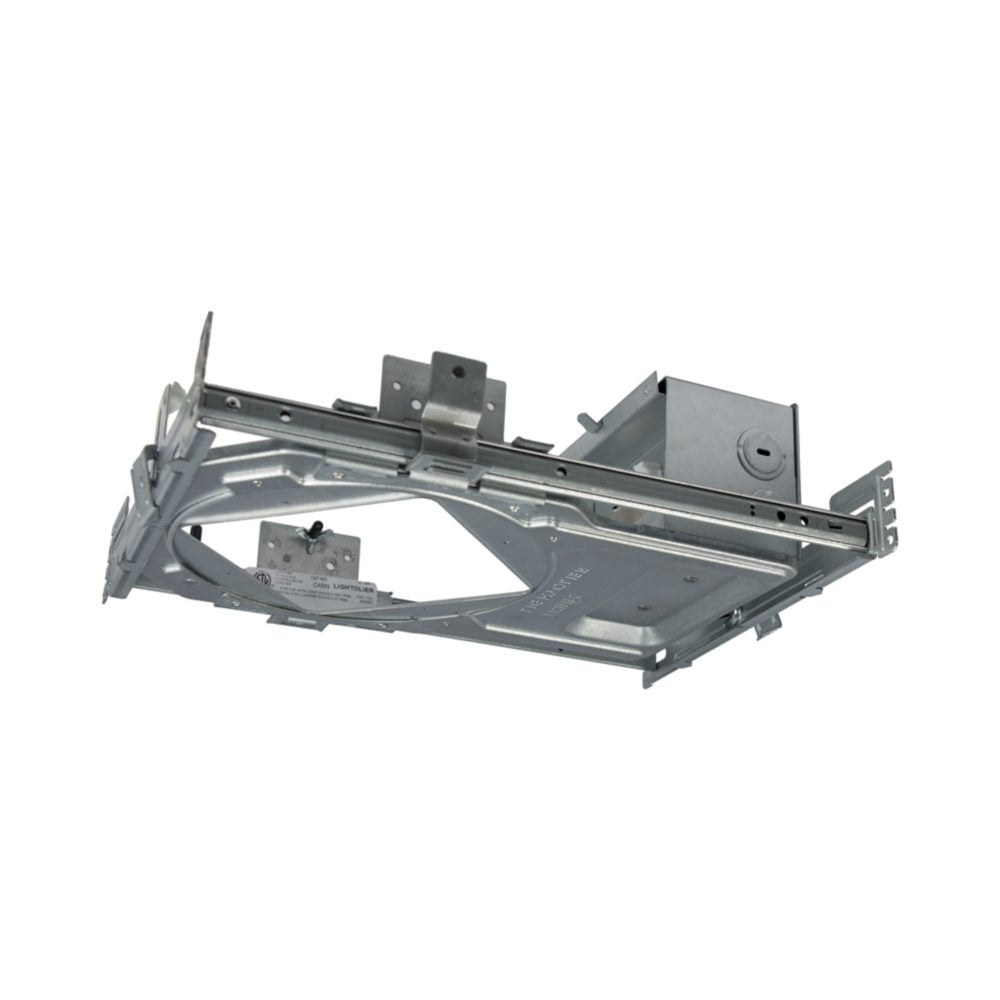

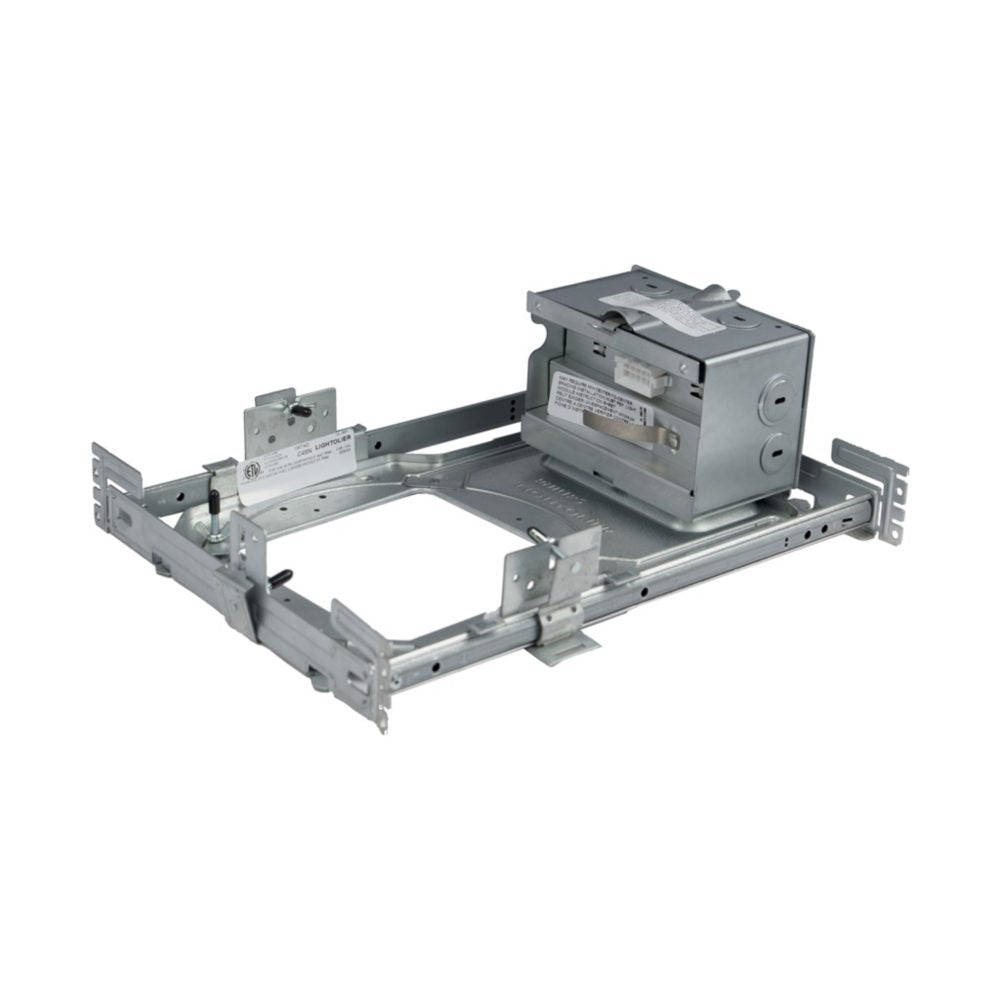

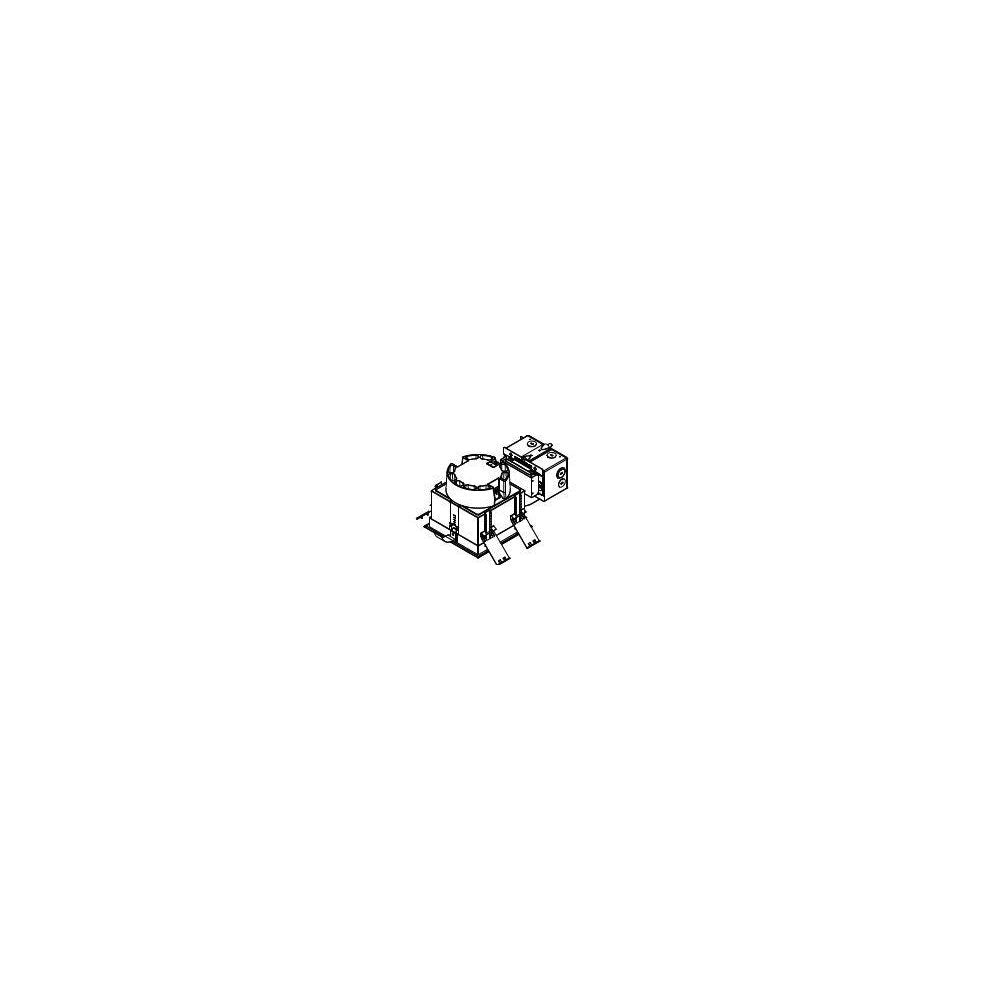

Calculite 4\" Non-IC frame C4SN
Calculite 4\" Non-IC 347V frame C4SN3
Calculite 4\" Non-IC Emergency frame C4SNEM
Calculite 4\" Non-IC Chicago Plenum frame C4SNLC

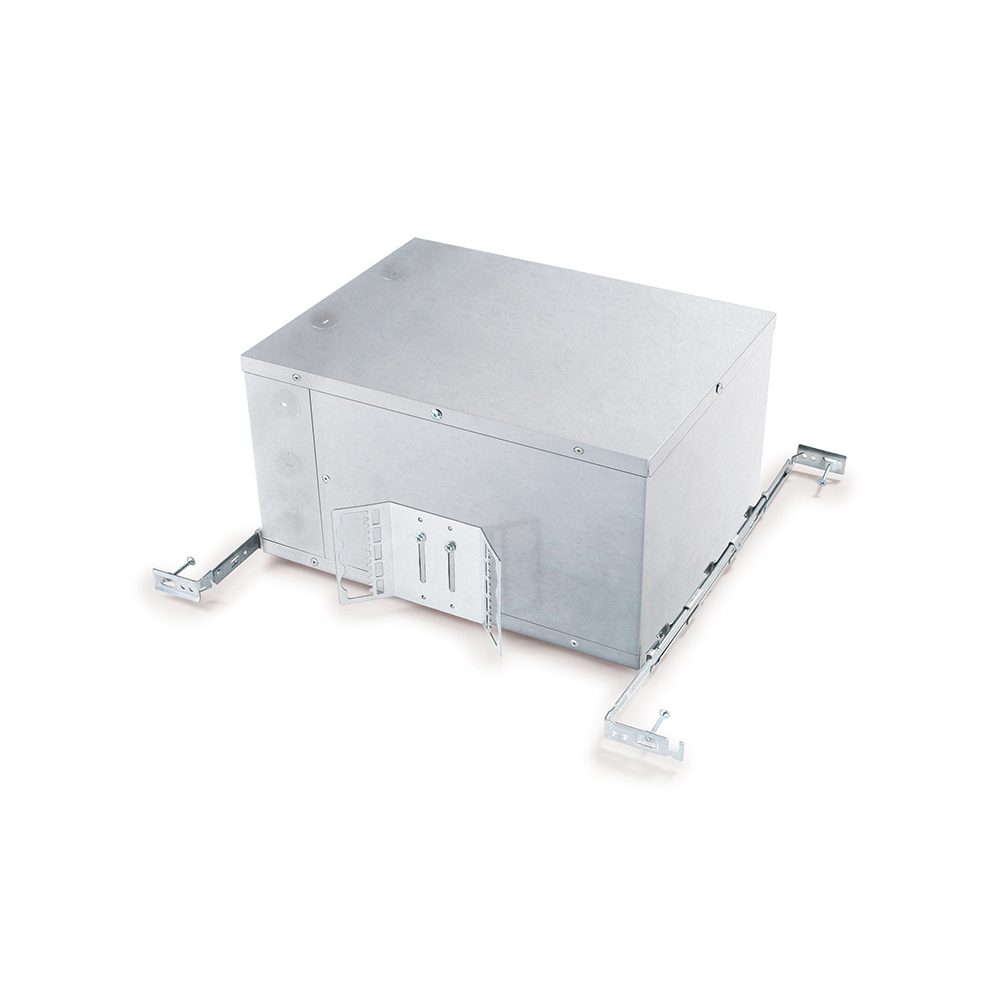

Calculite 4\" Airseal/IC frame C4SA

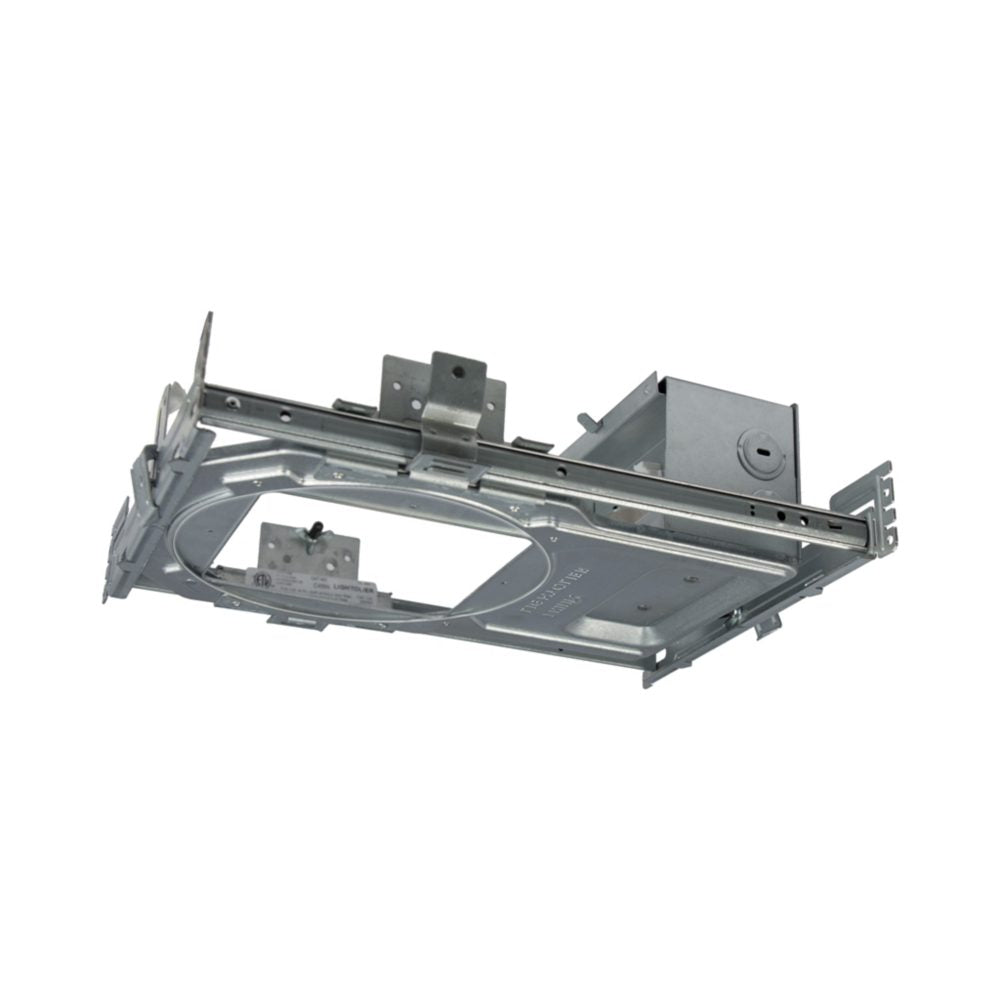

Calculite 4\" Non-IC Remodeler C4SR
Calculite 4\" Non-IC Remodeler 347V C4SR3
Calculite 4\" Light engine 500lm. Refer to spec sheet for entire catalog code. C4L05 6 500 2700
Calculite 4\" Light engine 1000lm. Refer to spec sheet for entire catalog code. C4L10 11 1000 3000
Calculite 4\" Light engine 1500lm. - Refer to spec sheet for entire catalog code. C4L15 16 1500 3500
Calculite 4\" Light engine 2000lm. - Refer to spec sheet for entire catalog code. C4L20 21 2000 4000
Calculite 4\" Light engine 2500lm. Refer to spec sheet for entire catalog code. C4L25 25 2500 2700
Calculite 4\" Light engine 3000lm. Refer to spec sheet for entire catalog code. C4L30 31 3000 3000

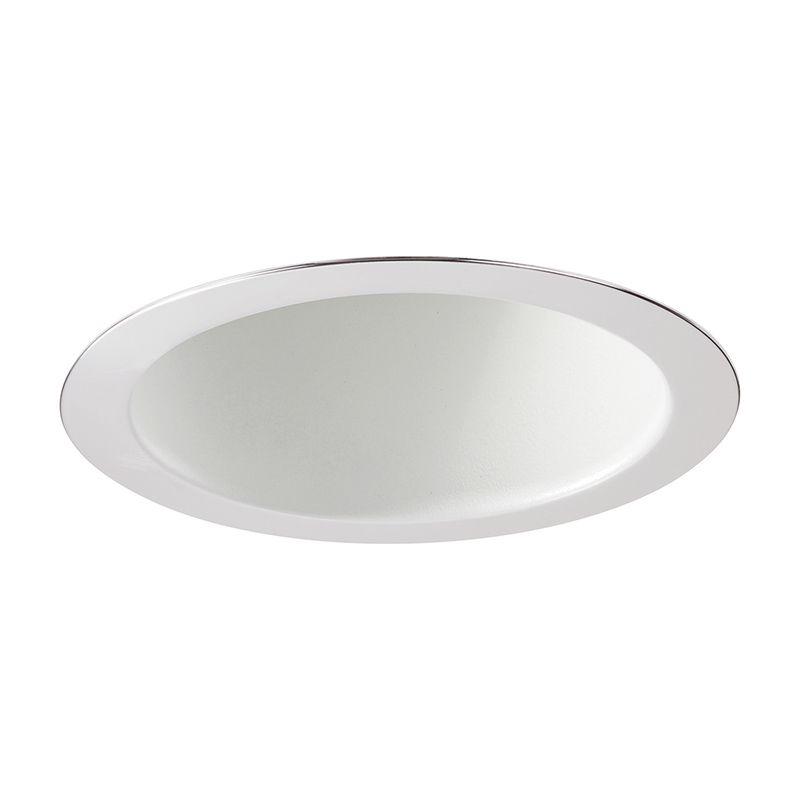

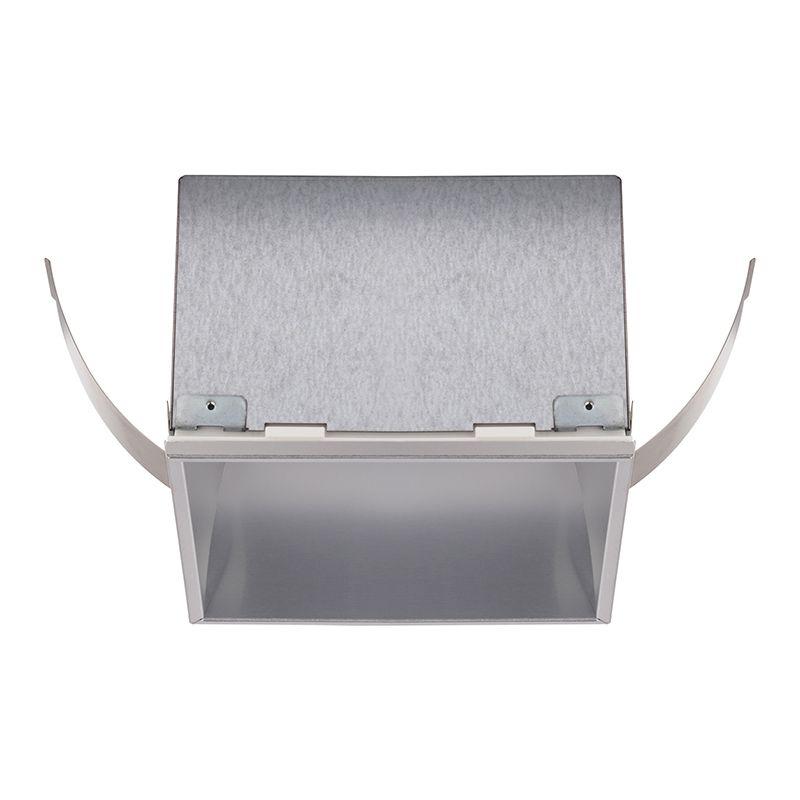

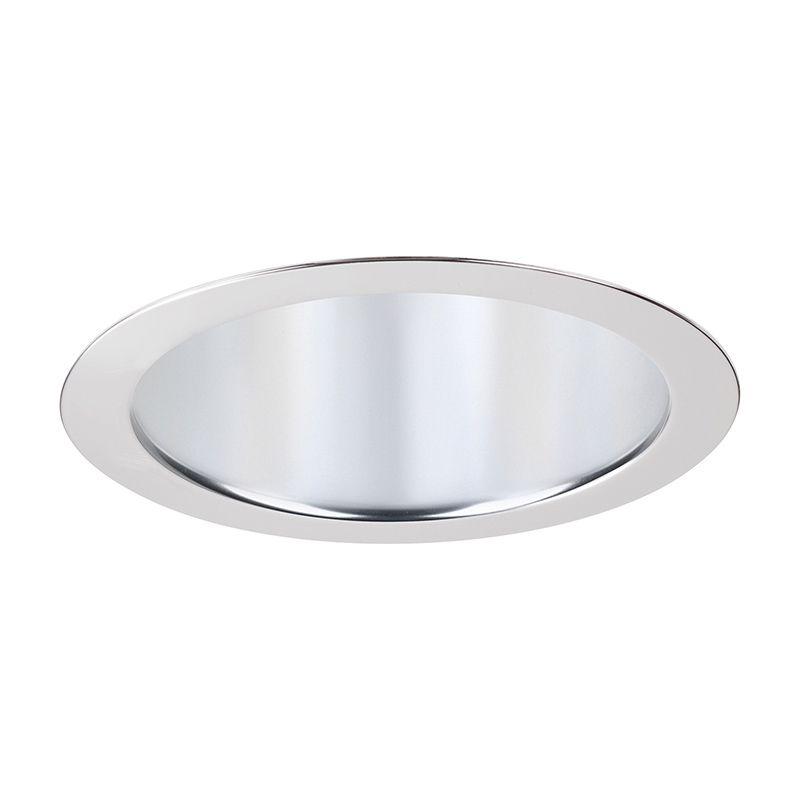

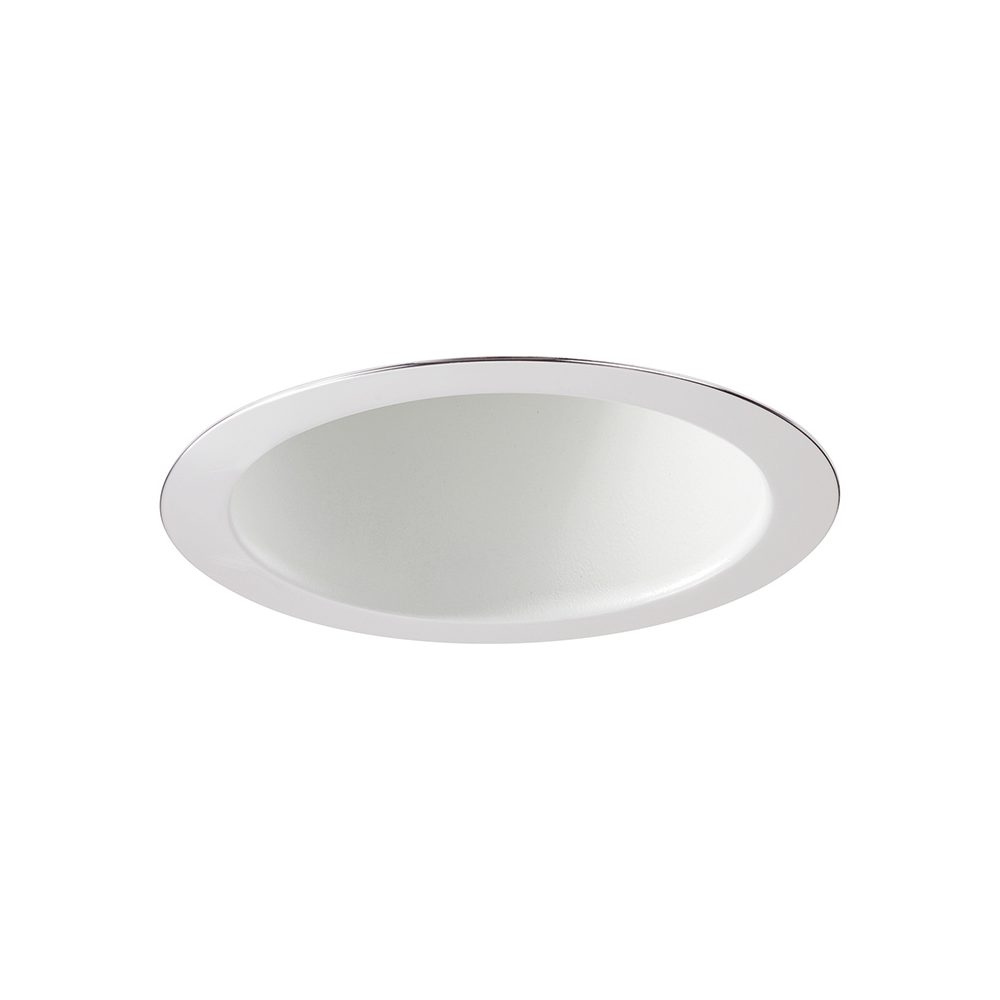

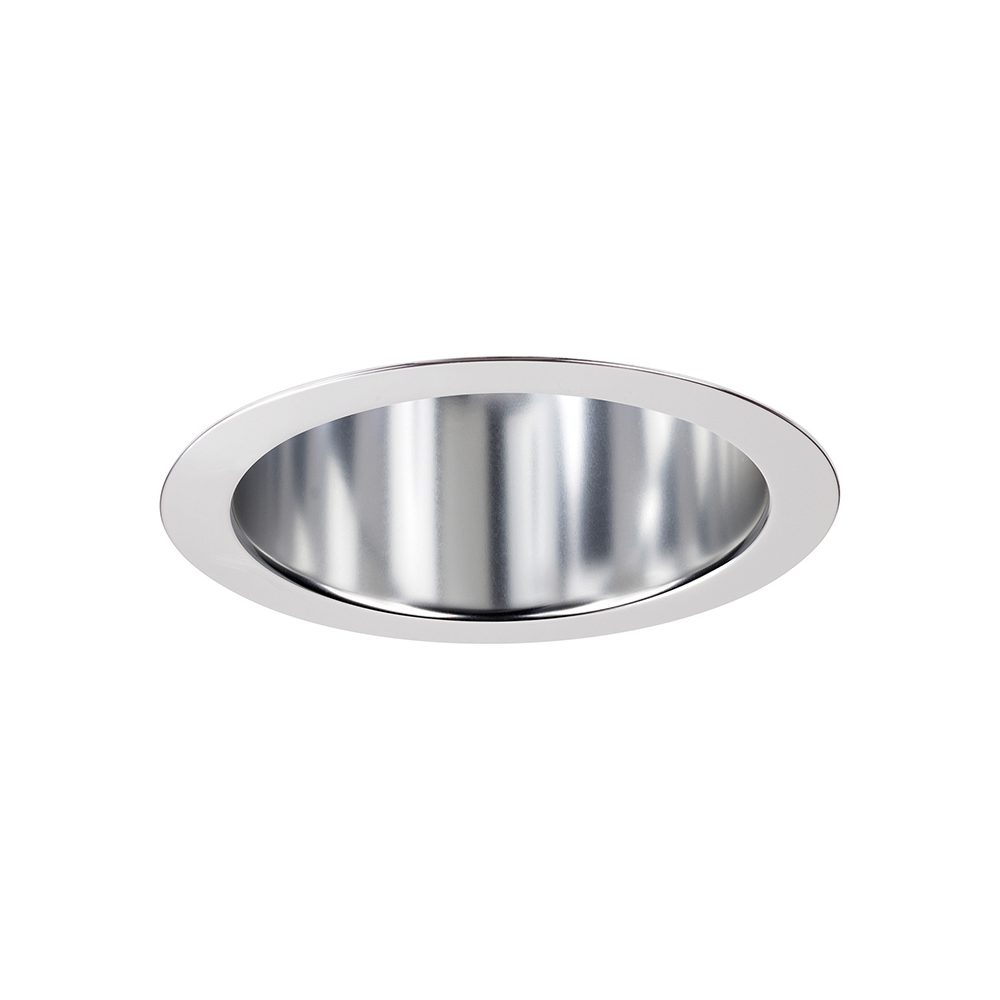

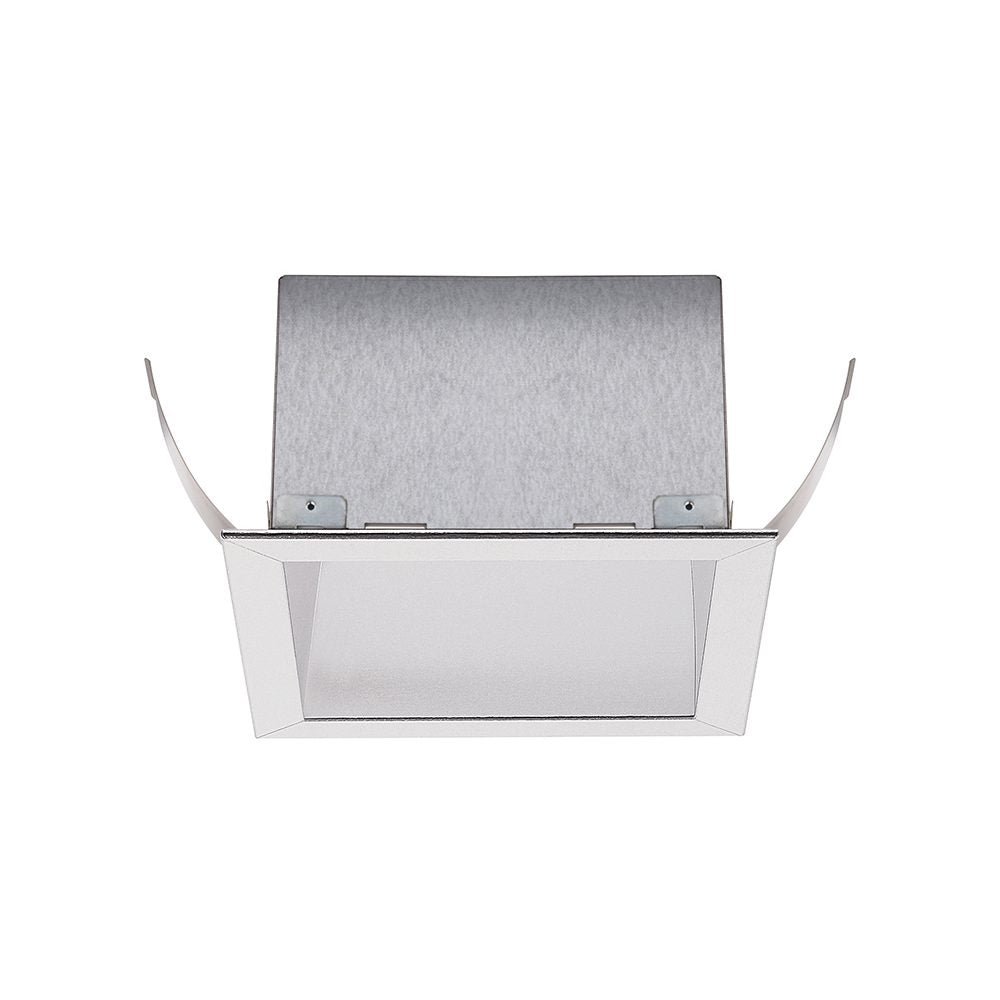

Calculite 4\" Downlight Nar/Med beam Comfort Clear finish with white flange C4SDLNMCC
Calculite 4\" Downlight Nar/Med beam Comfort Clear finish, flangeless C4SDLNMCCF
Calculite 4\" Downlight Wide beam Comfort Clear finish with white flange C4SDLWCC
Calculite 4\" Downlight Wide beam Comfort Clear finish, flangeless C4SDLWCCF

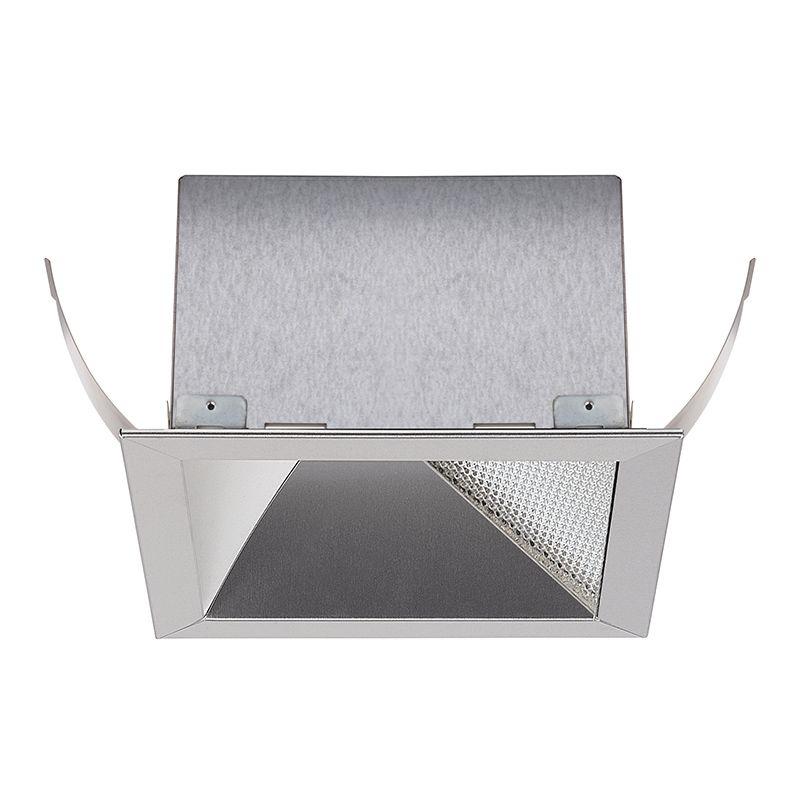

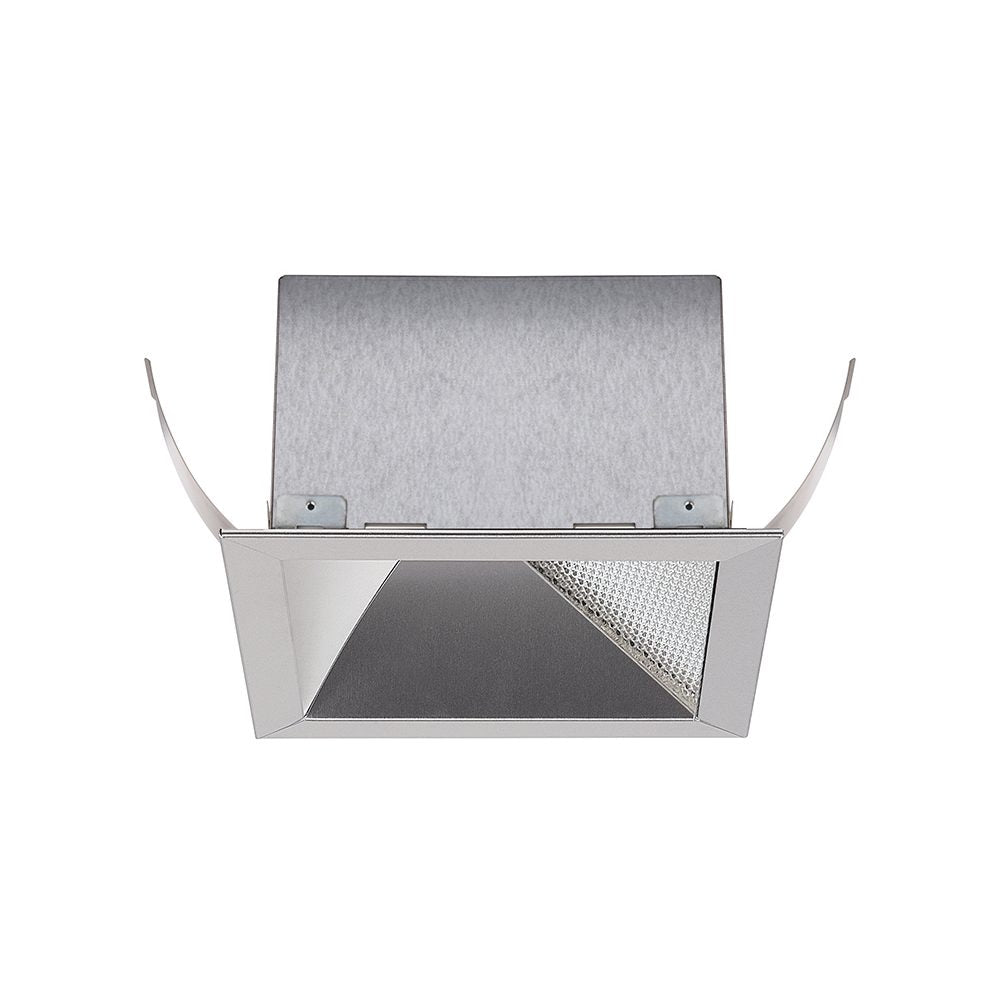

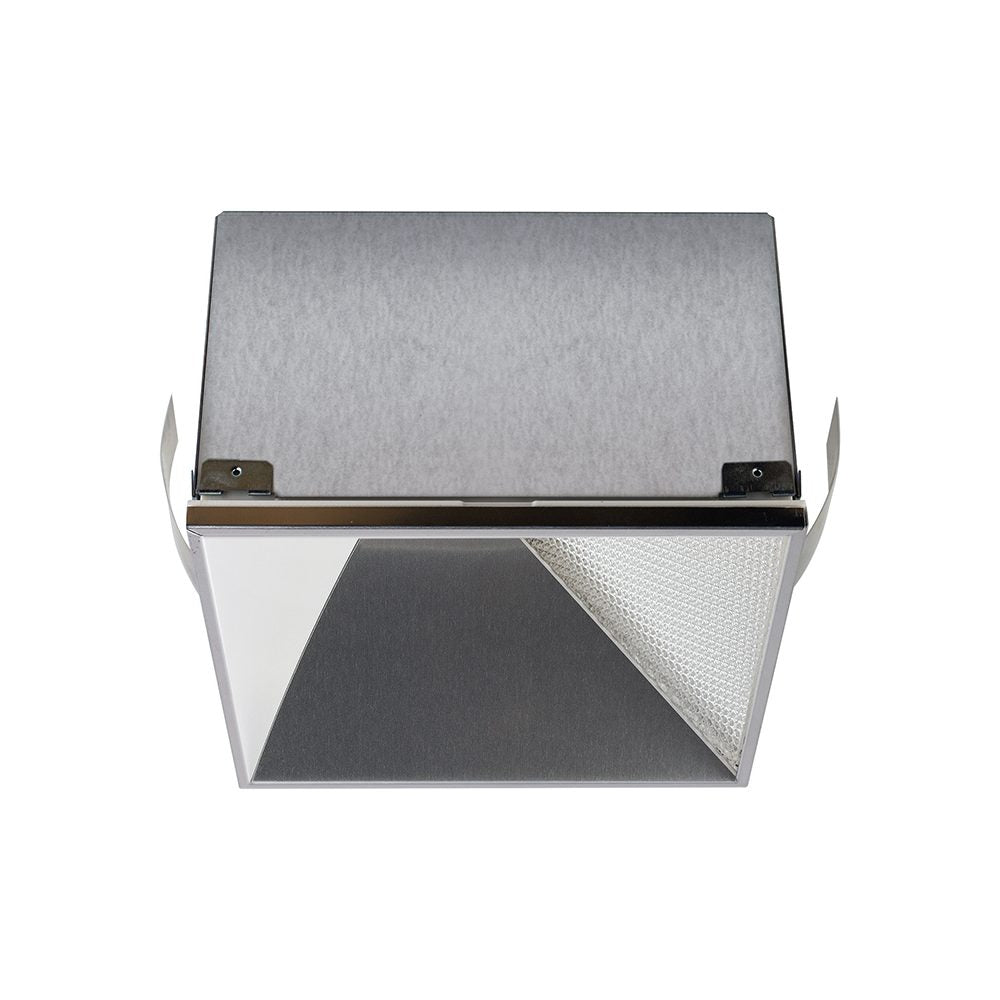

Calculite 4\" Lens Wall Wash Comfort Clear finish with white flange C4SLWCC
Calculite 4\" Lens Wall Wash Comfort Clear finish, flangeless C4SLWCCF

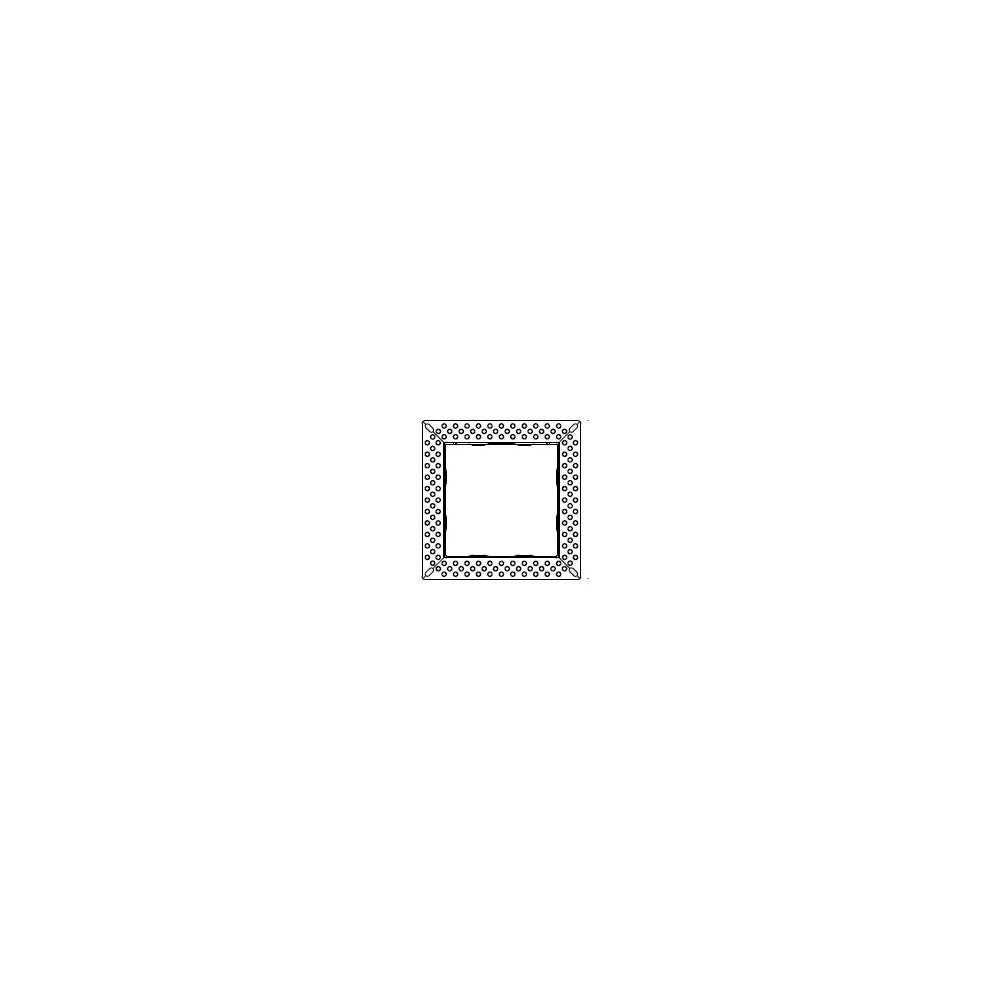

Calculite 4\" mud-in kit for flangeless installations CA4SFT

Product Family Details

Calculite 4" Square Gen3 features industry leading visual comfort, excellent uniform illumination over time, and patented installation flexibility.


  • Maximize visual appeal by three beam spreads options to give the right distribution and light output
  • Ultimate user comfort by providing 50 degree physical and 45 degree reflected cutoff, creating less brightness
  • Uniform light and color consistency at an SDCM of 2
  • Modular three piece design that makes servicing and upgrading convenient
  • Installation efficiency accomplished by a tool-free install and quick connect technology


  • L90 (90% lumen maintenance) up to 60,000 hrs. and efficacies as high as 115 lm/W
  • Construction: Lowest plenum height with plug & play connector between frame and light engine
  • Narrow, Medium, Wide beam options in all lumen packages
  • Dimming options: Standard dimming to 1% for 0-10V, Lutron, and Dali
  • Flange options available: Polished, white, or flangeless

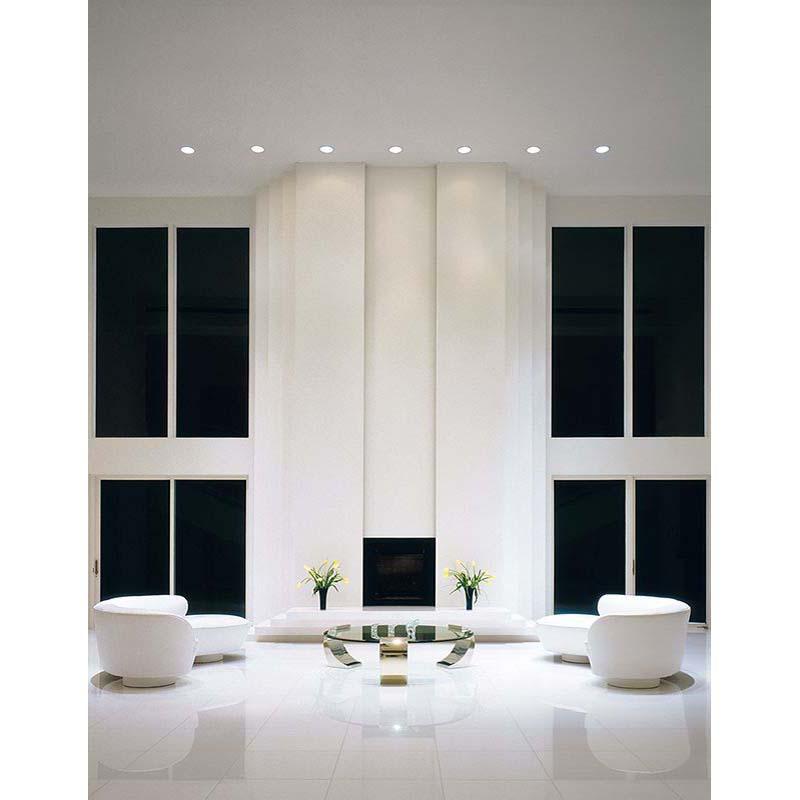

  • Residential

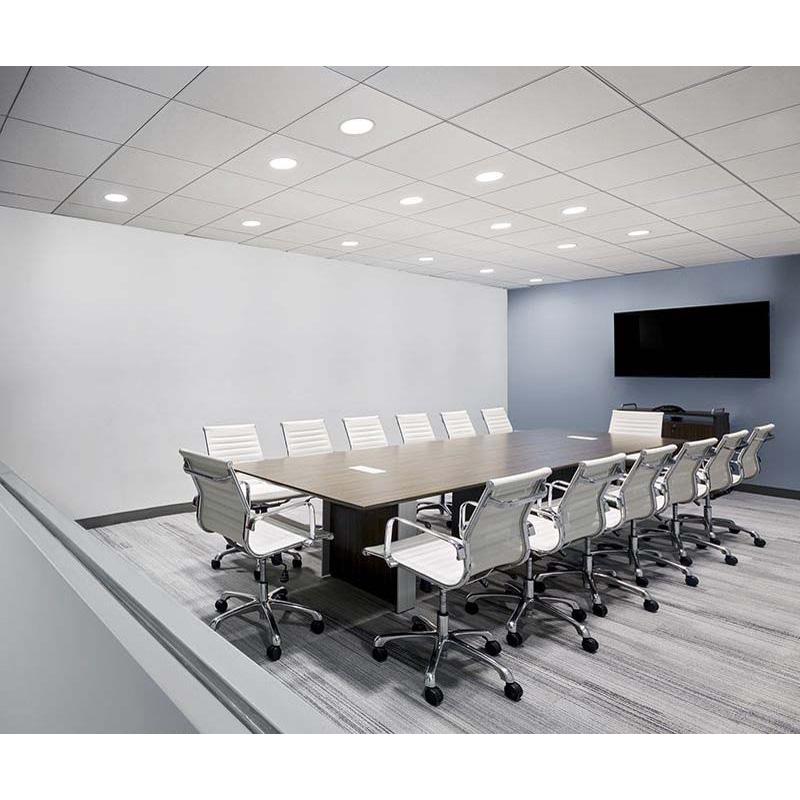

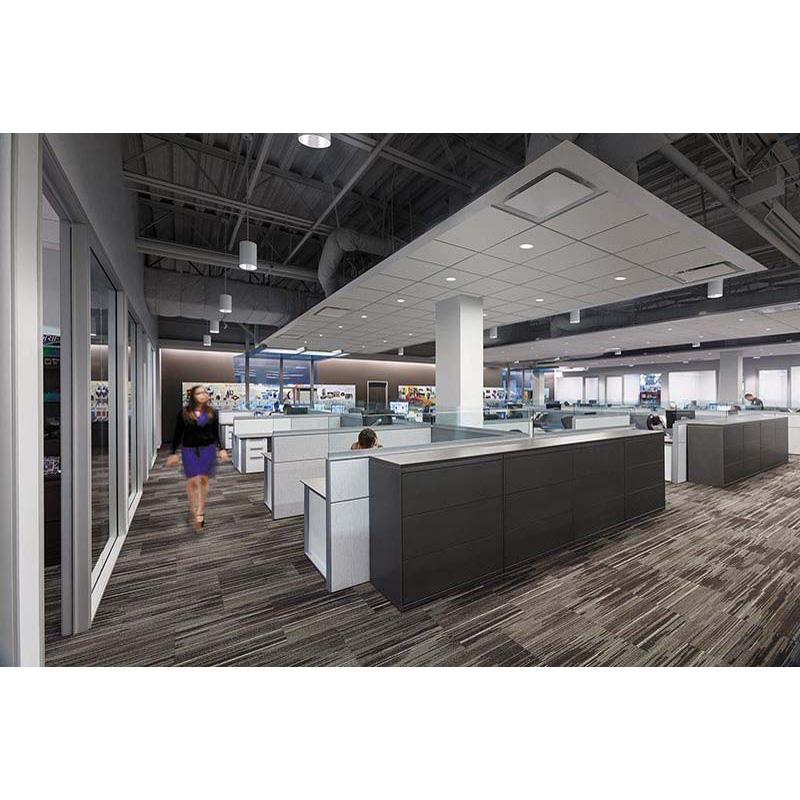

  • Office
  • Banks

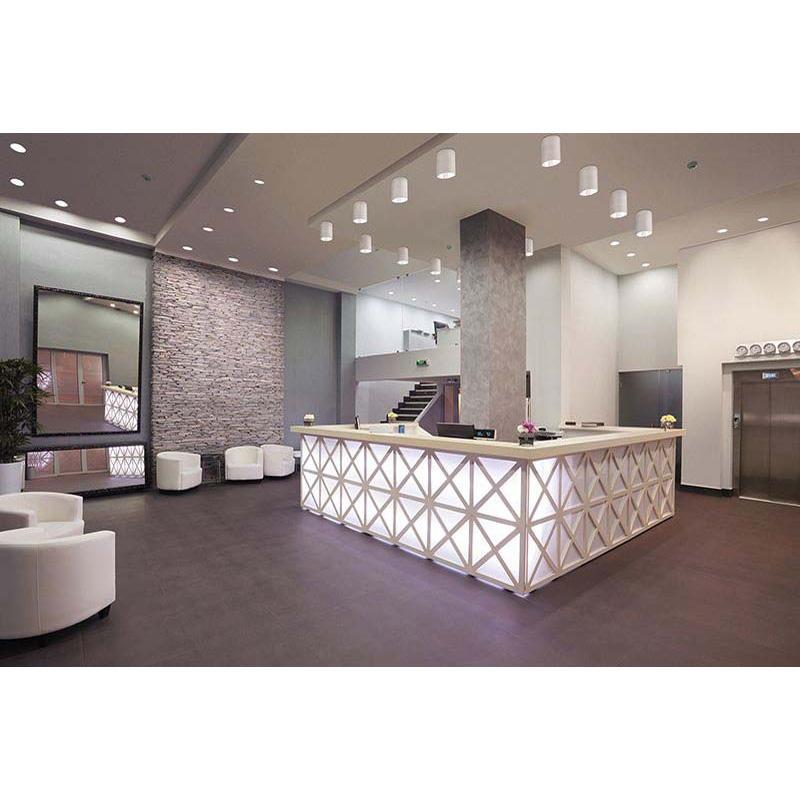

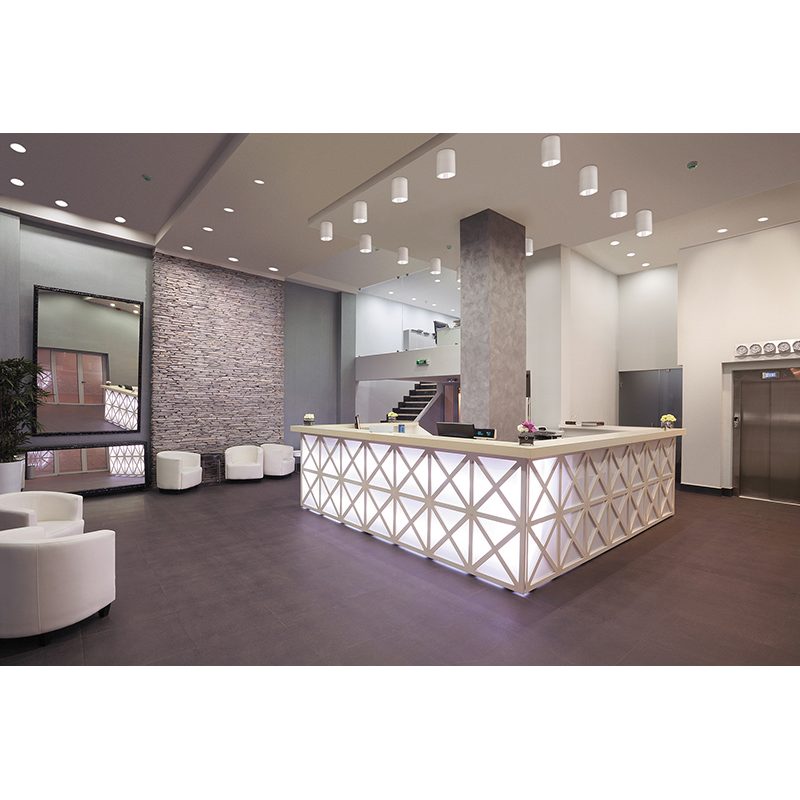

  • Hospitality

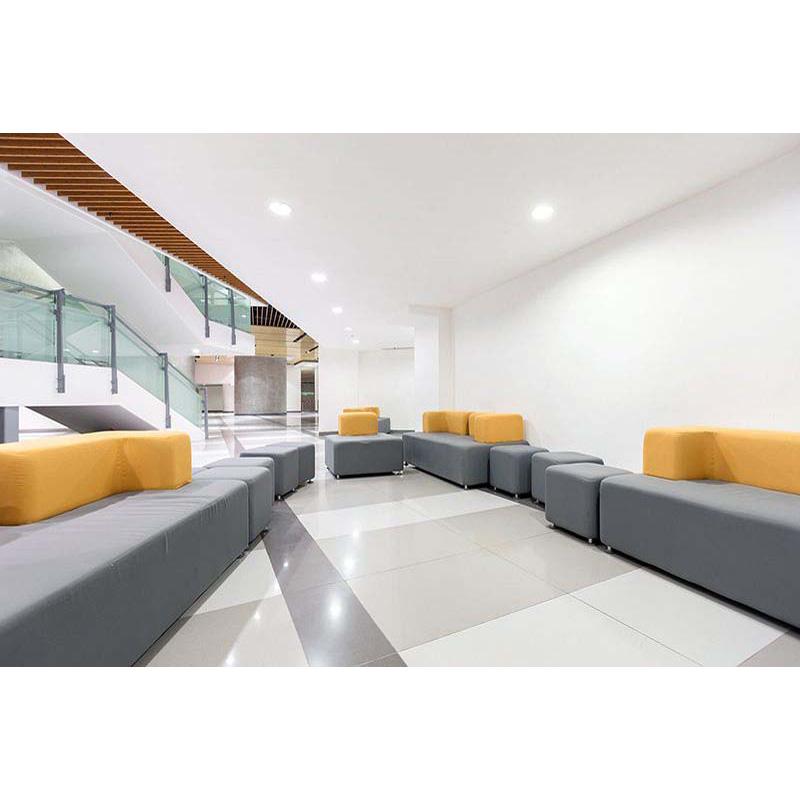

  • Airports

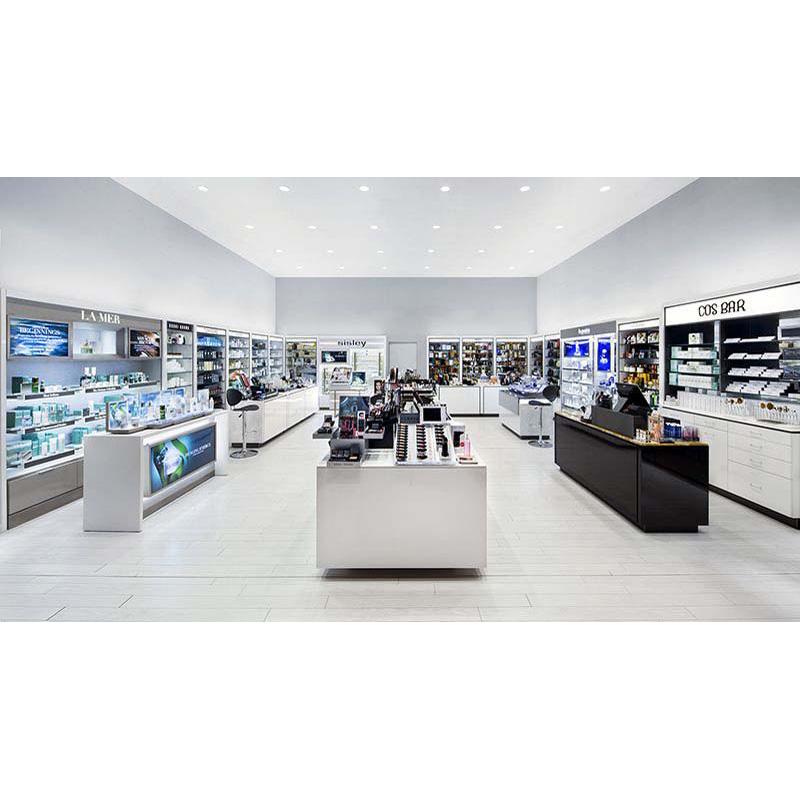

  • Fashion

**Made to order items. NO RETURNS ACCEPTED**


(a) In most instances, Signify Products are sold subject to an applicable standard limited warranty either accompanying the product or as published on Signify’s website as the standard warranty applicable for a particular Product (the “Standard Product Warranty”). For any Product that is sold by Signify that is not subject to an applicable Standard Product Warranty, Signify warrants only that for one (1) year from delivery to Customer the Products will be free from Defects. For any Services that are performed by Signify, Signify warrants only that for thirty (30) days from the performance, the Service will be free from Defects (except in respect of Installation where this thirty (30) days’ warranty period will commence upon acceptance as set out in section 6(c). A " Defect" (or “Defective”) means, in relation to a Product, that a Product has any defect in material or workmanship which causes the Product to fail to operate in accordance with the specifications provided by Signify, with consideration given to the overall performance of the Product and, in relation to Services, means that the Service has not been performed in a competent, diligent manner.

(b) In order to be entitled to make a valid claim under warranty, Customer shall promptly notify Signify of alleged Defective Products or Defective Services prior to expiration of the warranty period. In the event that Signify decides, in its sole discretion, that a claim under warranty is valid, Signify shall, within a reasonable time, at its own option, repair or offer replacement products for Defective Products, or remedy or supplement any Defective Services. If despite reasonable efforts of Signify, a Defective Product cannot be repaired, no replacement product can be supplied, or Defective Services cannot be remedied or supplemented, Signify shall make an appropriate refund or credit of monies paid by Customer for those Defective Products or Defective Services. Repairs, replacements or remedies will not extend or renew the applicable warranty period. Customer shall obtain consent from Signify on the specifications of any tests it plans to conduct to determine whether a Defect exists. Replacement products supplied by Signify may have minor deviations in design and/or specifications which do not affect the functionality of replaced Product. In respect of any replaced or credited Products, Signify may, in its sole discretion, either claim the property of replaced or credited Products and require Customer to return these to Signify, or instruct Customer to destroy these at Customer’s costs.

(c) Customer shall bear the costs of access for remedial warranty efforts by Signify, including removal and replacement of systems, structures or other parts of Customer’s facility, the de-installation of Defective Products, and the re-installation of replacement products. Customer shall not return Products to Signify without consent of Signify and unless in accordance with applicable Signify’s return policies. In the event that Signify decides that a claim under warranty is not valid, Customer will bear the costs incurred by Signify in handling and testing, and the transport of Products returned.

(d) Any indemnification and warranty obligations of Signify under an Agreement are conditional upon:

(e) proper storage, installation, use, operation, and maintenance of Products, all in accordance with user manuals, warranty policies and other instructions or terms communicated by Signify to Customer; (ii) Customer keeping accurate and complete records of operation and maintenance during the warranty period and providing Signify access to those records; and (iii) modification or repair of Products or Services only as authorized by Signify. Failure to meet these conditions renders the warranty null and void. Signify will not be responsible for normal wear and tear, or environmental or stress testing. The warranty provided in this section 9 does not apply to damage or failure to perform arising as a result of any Force Majeure or from any abuse, misuse, abnormal use, improper power supply, powers surges or fluctuations, corrosive environments, neglect, exposure or any use or installation in violation of the instructions or restrictions prescribed by Signify or any applicable standard or code.
