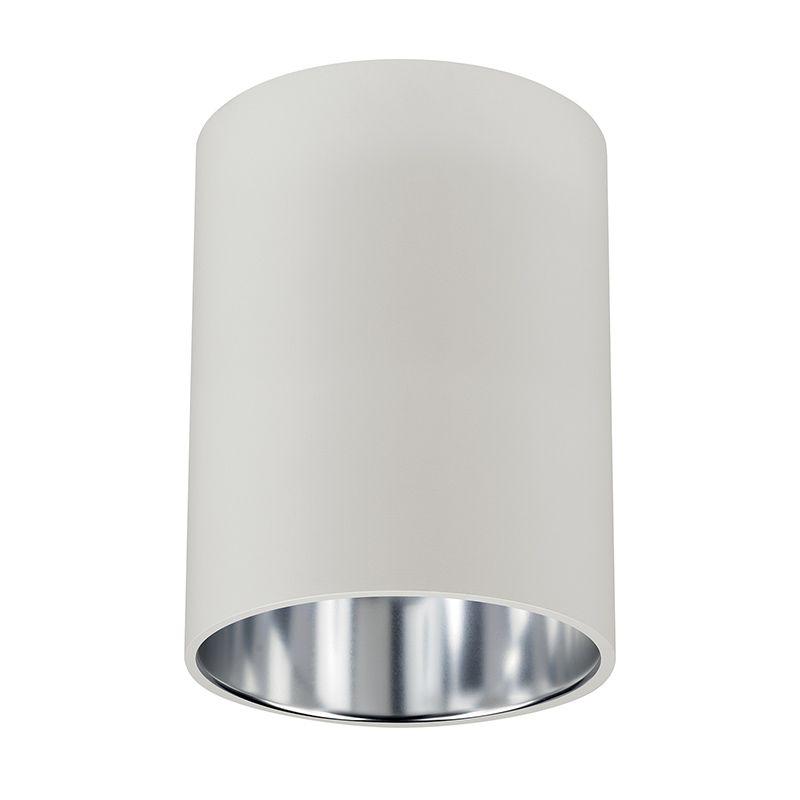

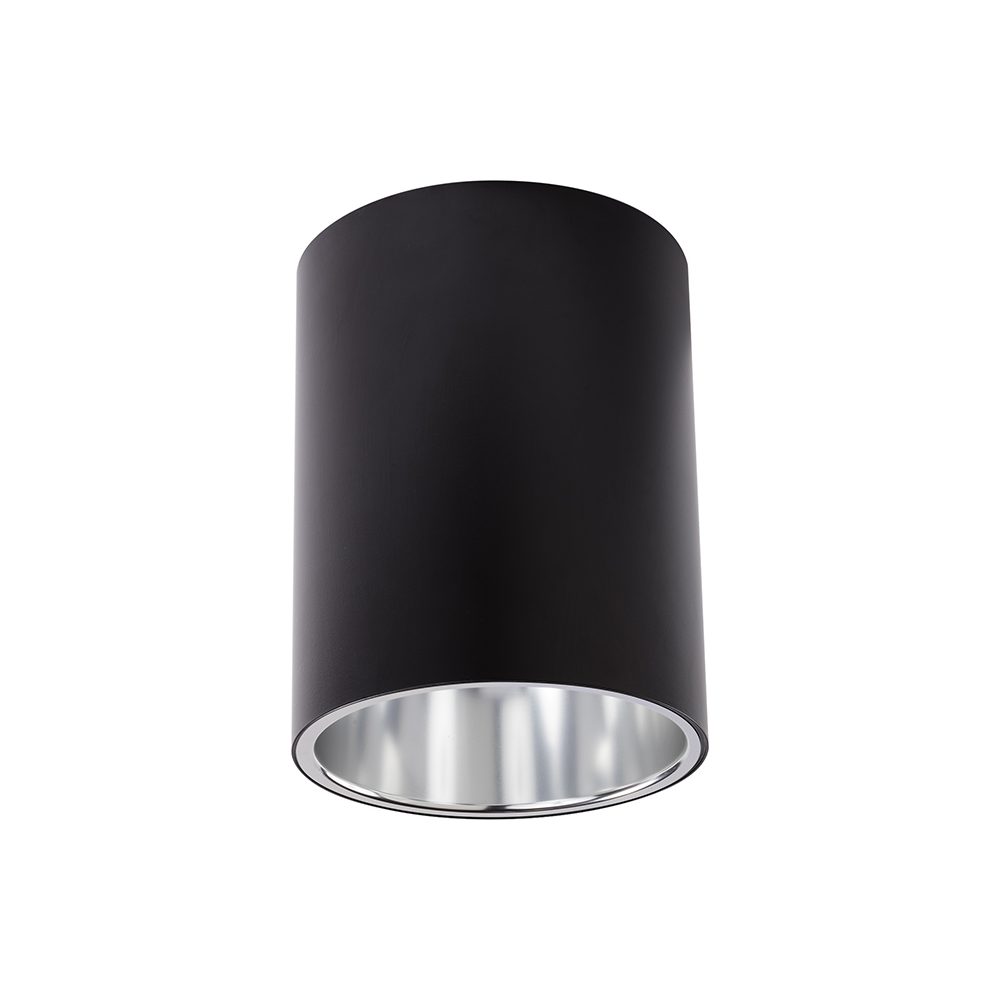

Lightolier Calculite LED 6" Cylinder Gen 3

Lightolier LightingSKU: CALCULITE-6-CYLINDER

Sale price$0.00 USD


Lightolier Calculite LED 6" Cylinder Gen 3

Product Name SKU Watts Lumens Kelvin
Calculite 6\" surface cylinder downlight. Refer to spec sheet for entire catalog code. C6SDL 1000 2700
Calculite 6\" surface cylinder wall wash. Refer to spec sheet for entire catalog code. C6SWW 1500 3000
Calculite 6\" surface cylinder double wall wash. Refer to spec sheet for entire catalog code. C6SDW 2000 3500
Calculite 6\" wall cylinder downlight. Refer to spec sheet for entire catalog code. C6WDL 2500 4000
Calculite 6\" wall cylinder wall wash. Refer to spec sheet for entire catalog code. C6WWW 3500 2700
Calculite 6\" wall cylinder double wall wash. Refer to spec sheet for entire catalog code. C6WDW 4800 3000
Calculite 6\" pendant cylinder wall wash. Refer to spec sheet for entire catalog code. C6PWW 1000 2700
Calculite 6\" pendant cylinder double wall wash. Refer to spec sheet for entire catalog code. C6PDW 1500 3000
Calculite 6\" pendant cylinder downlight. Refer to spec sheet for entire catalog code. C6PDL 6000 3500

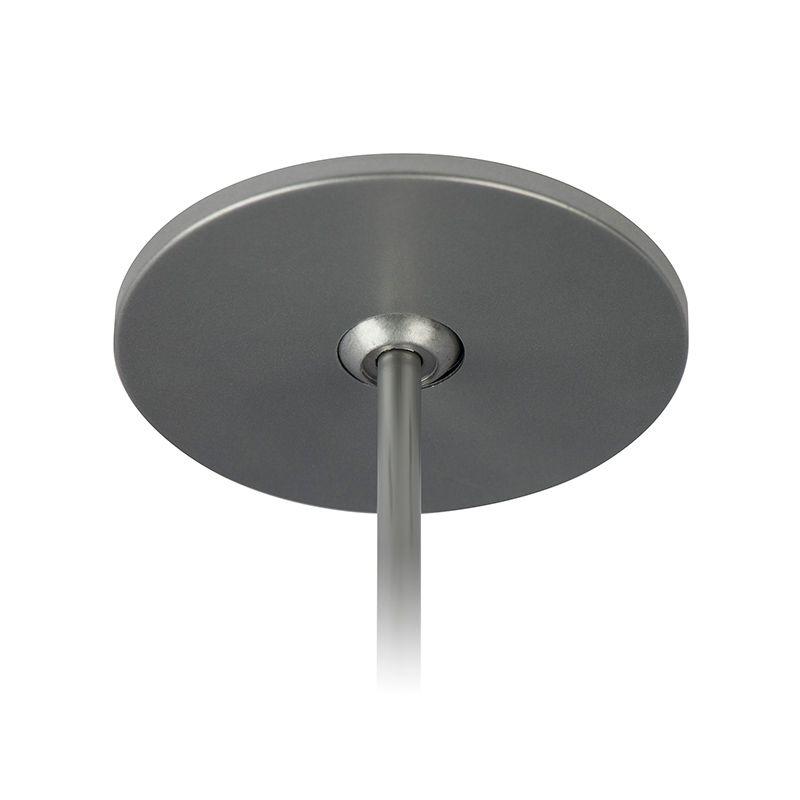

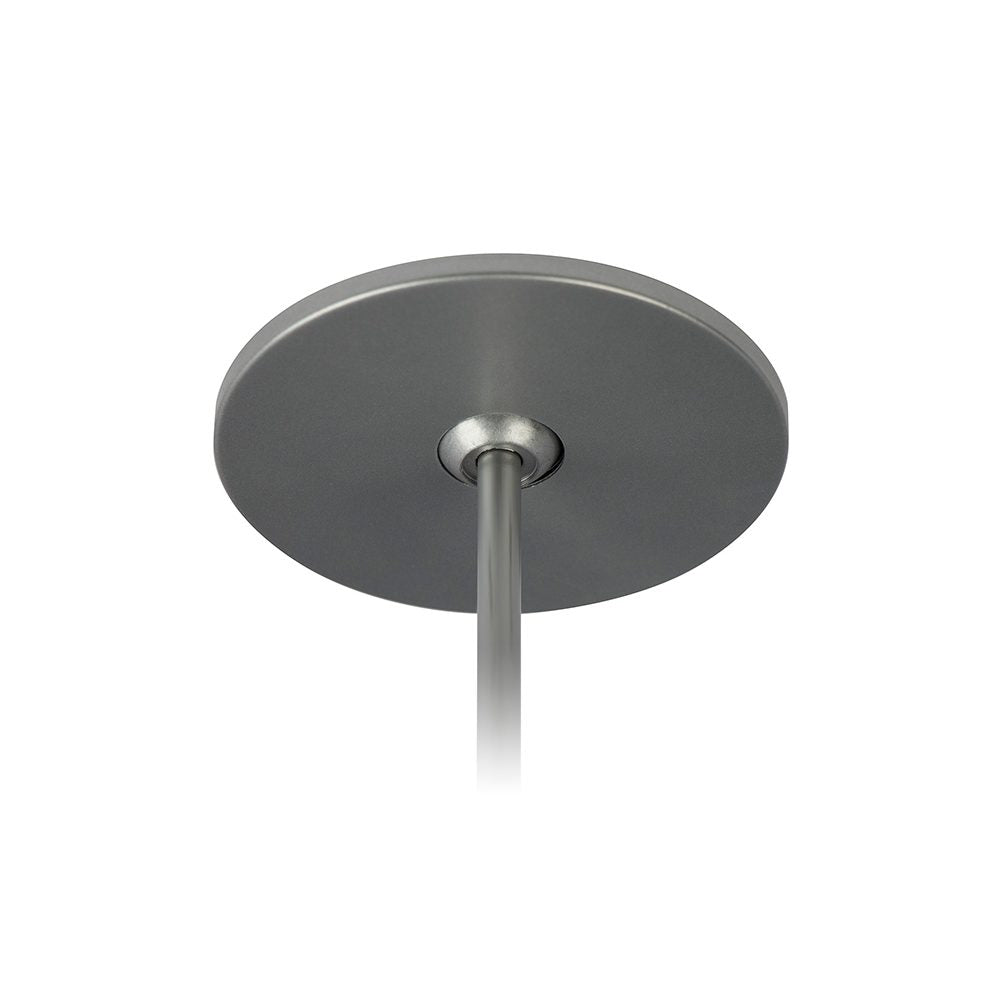

Calculite Stem Kit 36\" White CASK36WH
Calculite Stem Kit 36\" Black CASK36BK
Calculite Stem Kit 36\" Aluminum CASK36AL
Calculite Cable Kit 120\" White CACK10WH
Calculite Cable Kit 120\" Black CACK10BK

Product Family Details

Calculite 6" Cylinder Gen3 features industry leading visual comfort and excellent uniform illumination over time.


  • 3 different cylinder and reflector options to satisy a variety of applications
  • Maximize visual appeal by three beam spreads options to give the right distribution and light output
  • Ultimate user comfort by providing 50 degree physical and 45 degree reflected cutoff, creating less brightness
  • Uniform light and color consistency at an SDCM of 2
  • Smooth, sleek, and new smaller overall design


  • L90 (90% lumen maintenance) up to 60,000 hrs. and efficacies as high as 115 lm/W

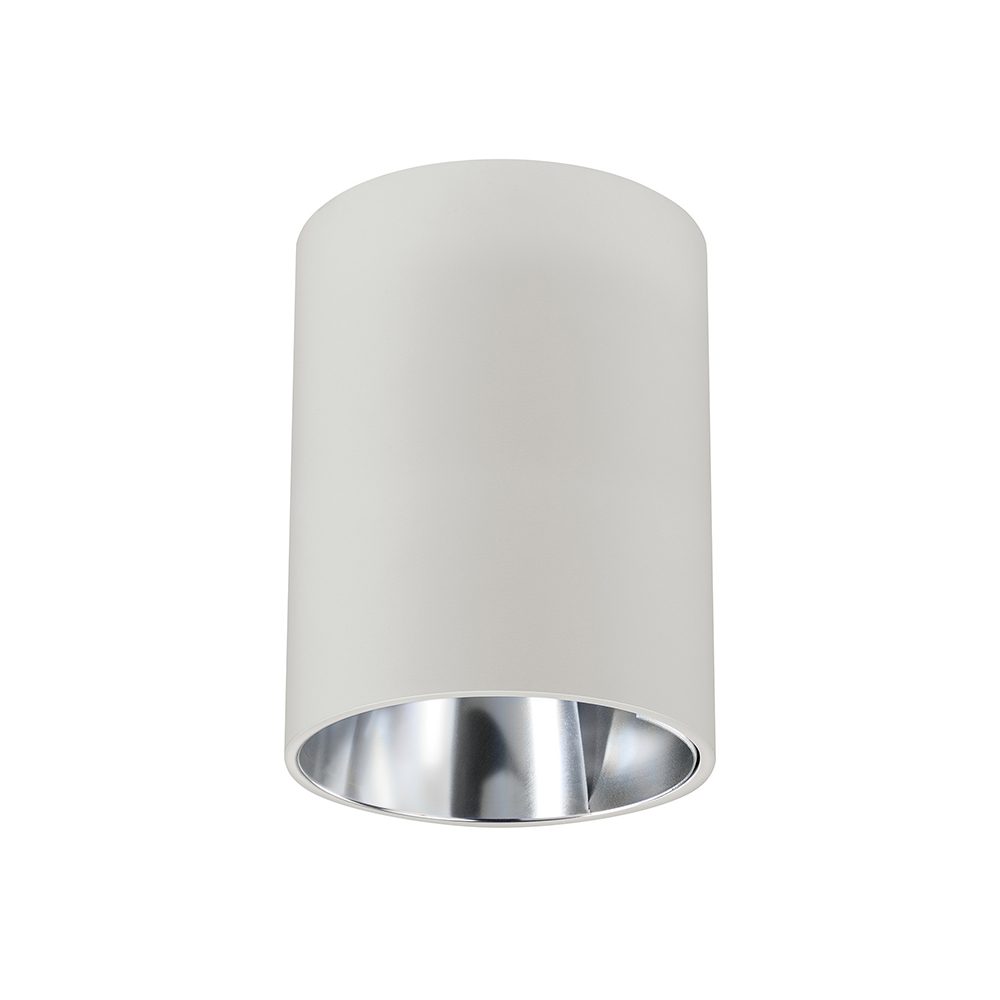

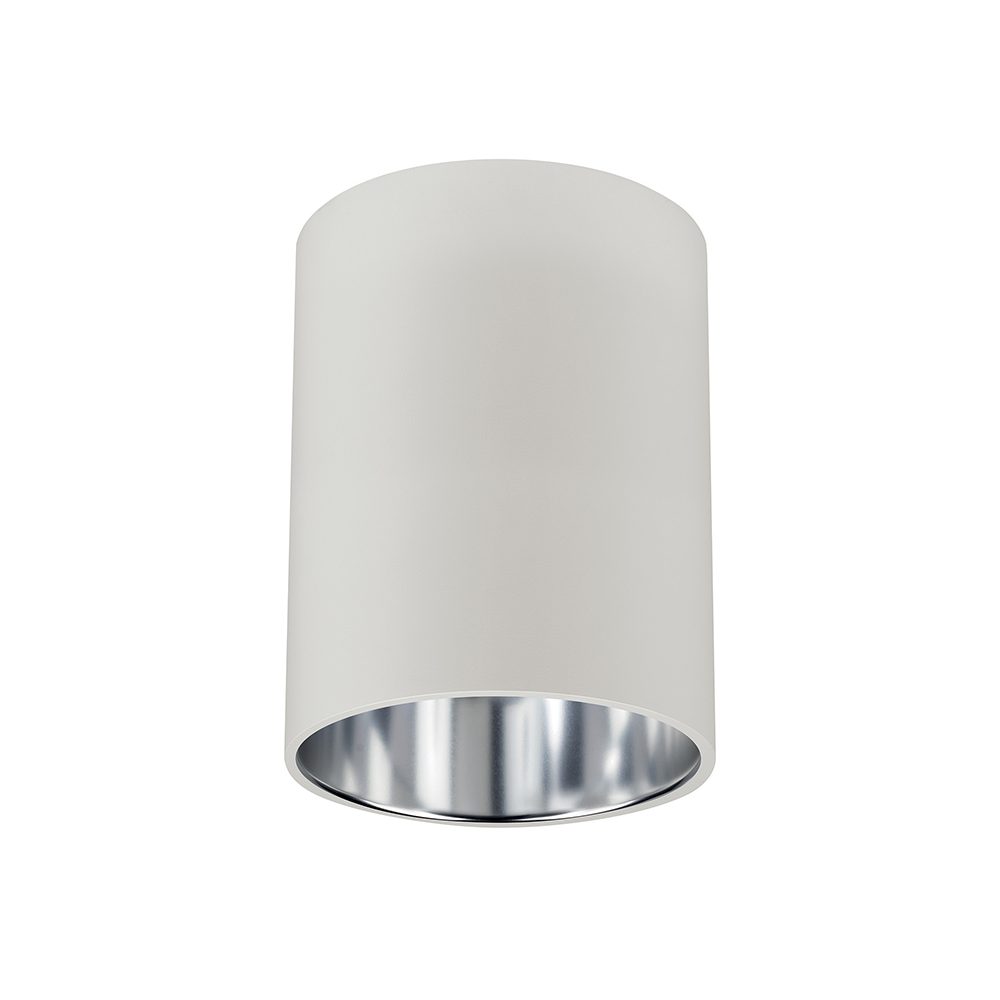

  • 3 cylinder options: Surface, Wall, and Pendant

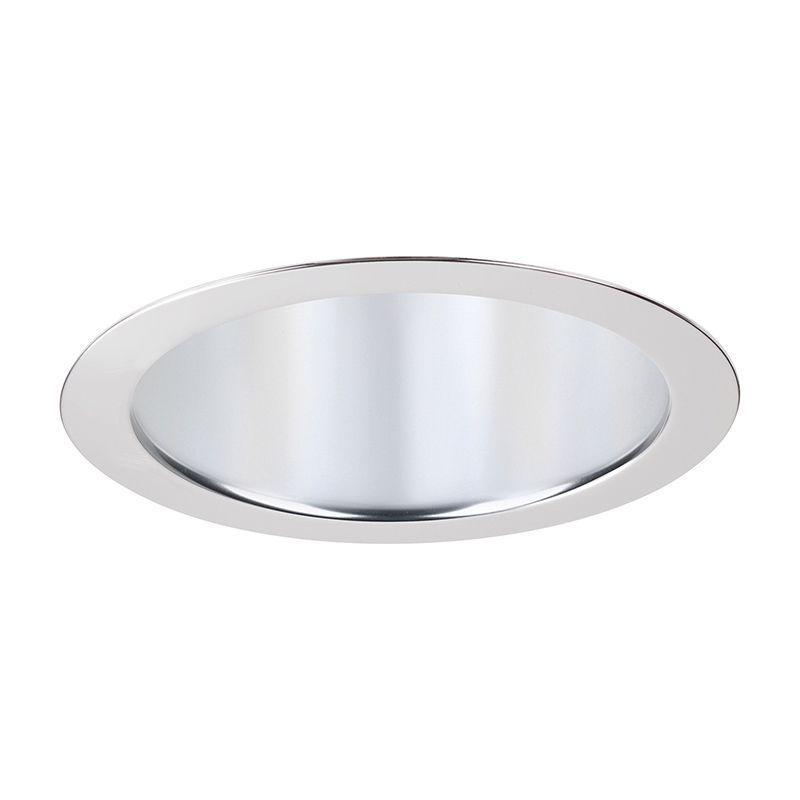

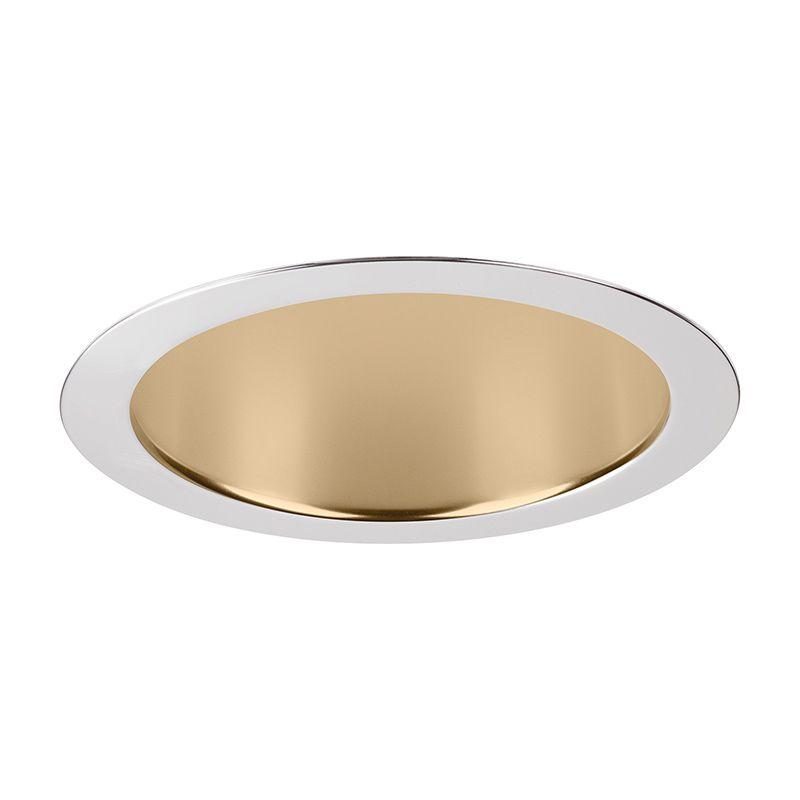

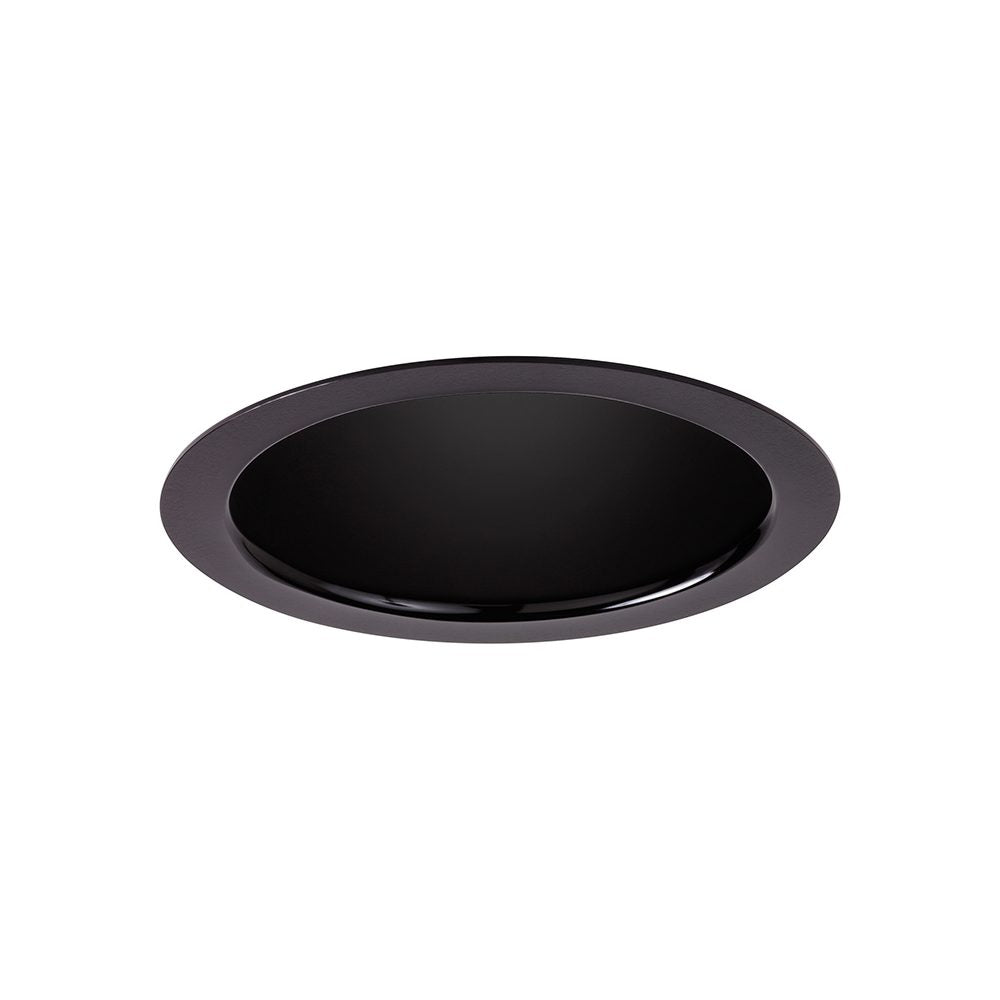

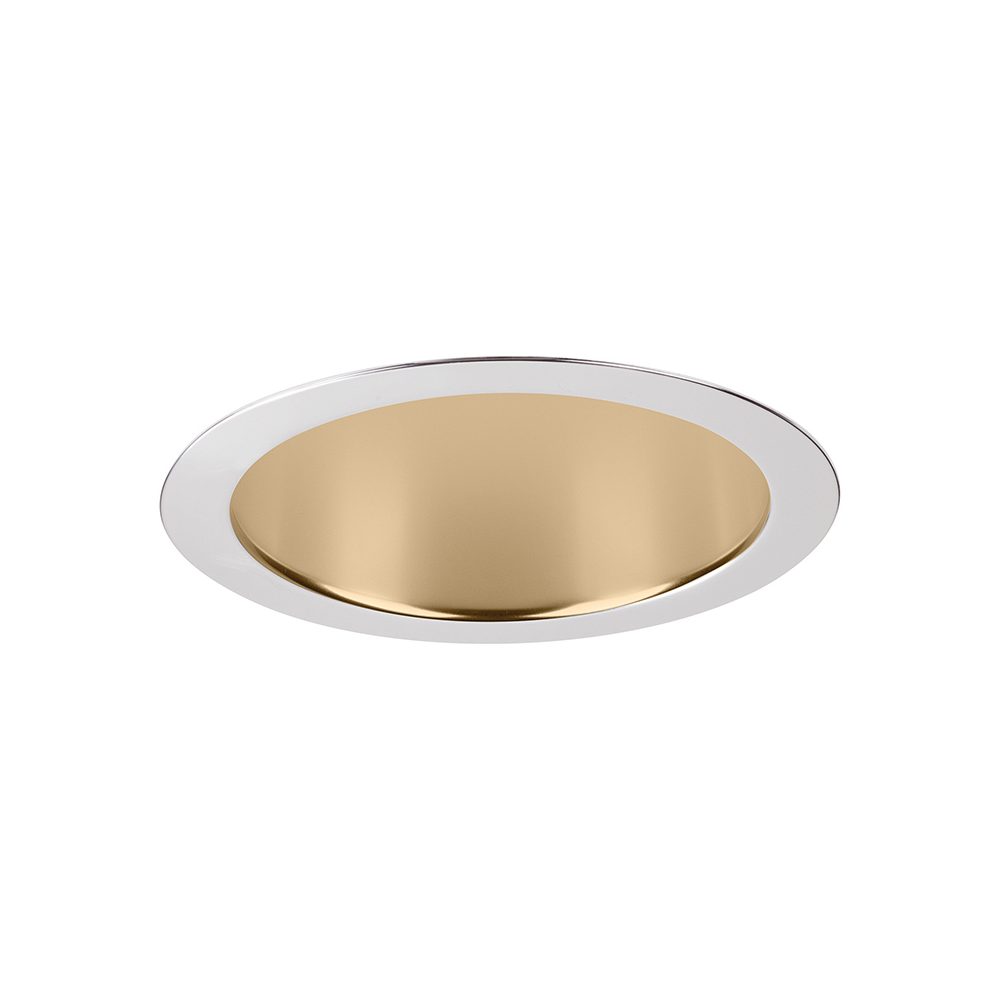

  • 3 reflector options: Downlight, Wall Wash, and Double Wall Wash
  • Narrow, Medium, Wide beam options in all lumen packages
  • Dimming options: Standard dimming to 1% for 0-10V, ELV

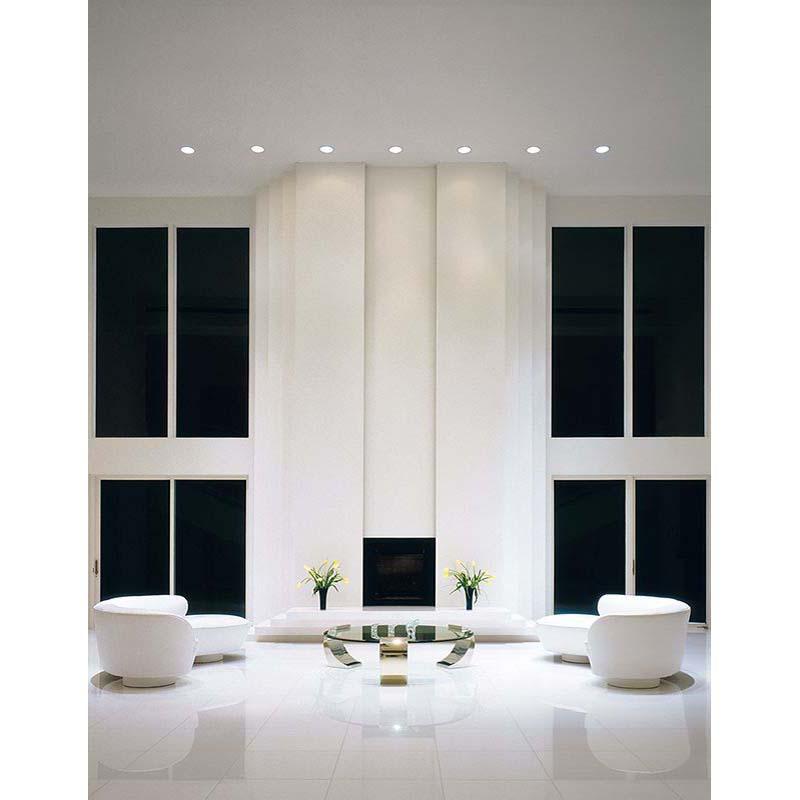

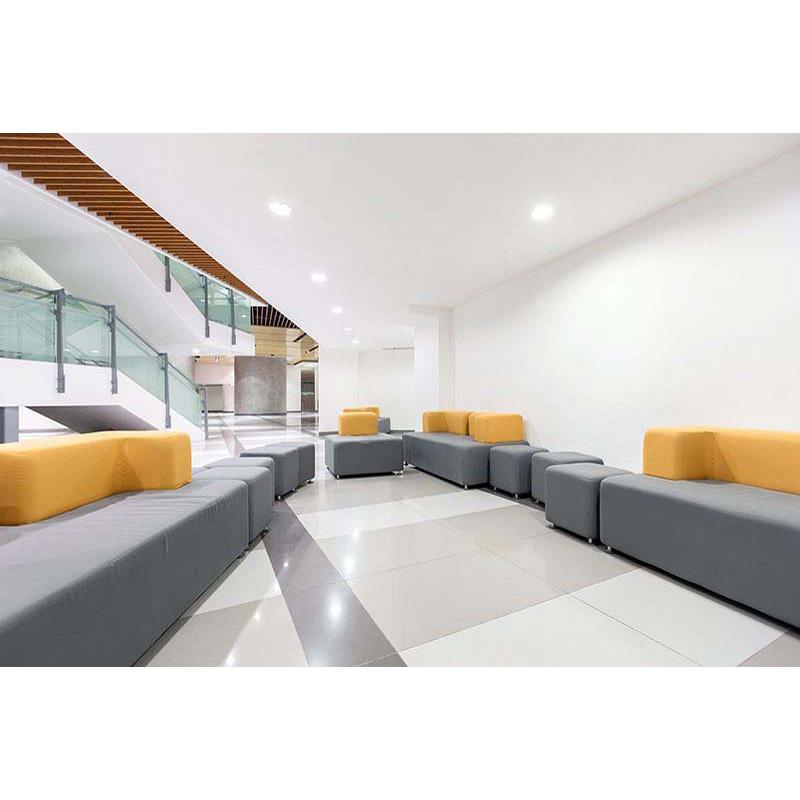

  • Residential

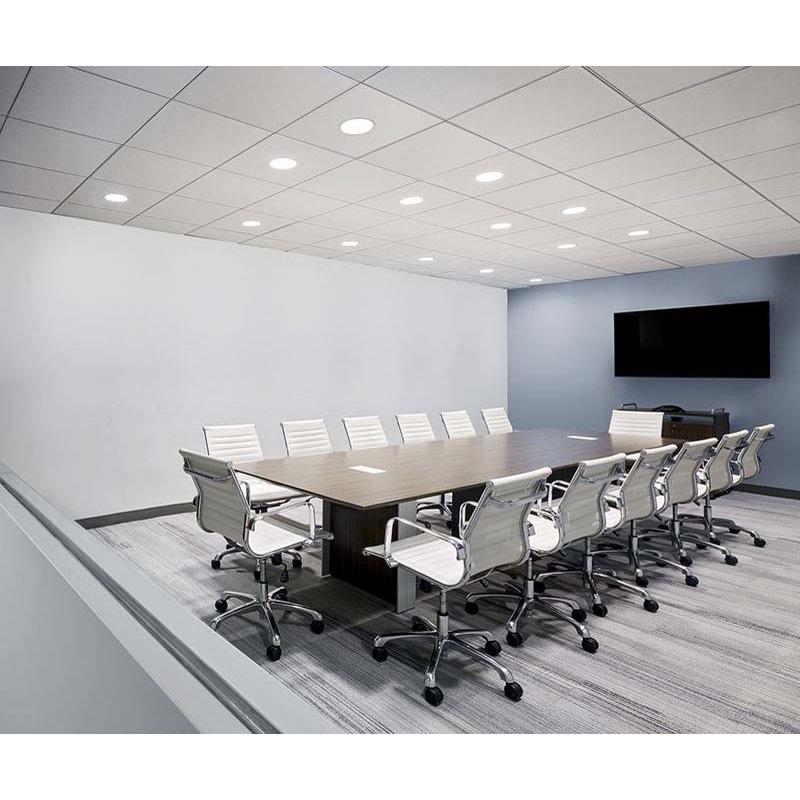

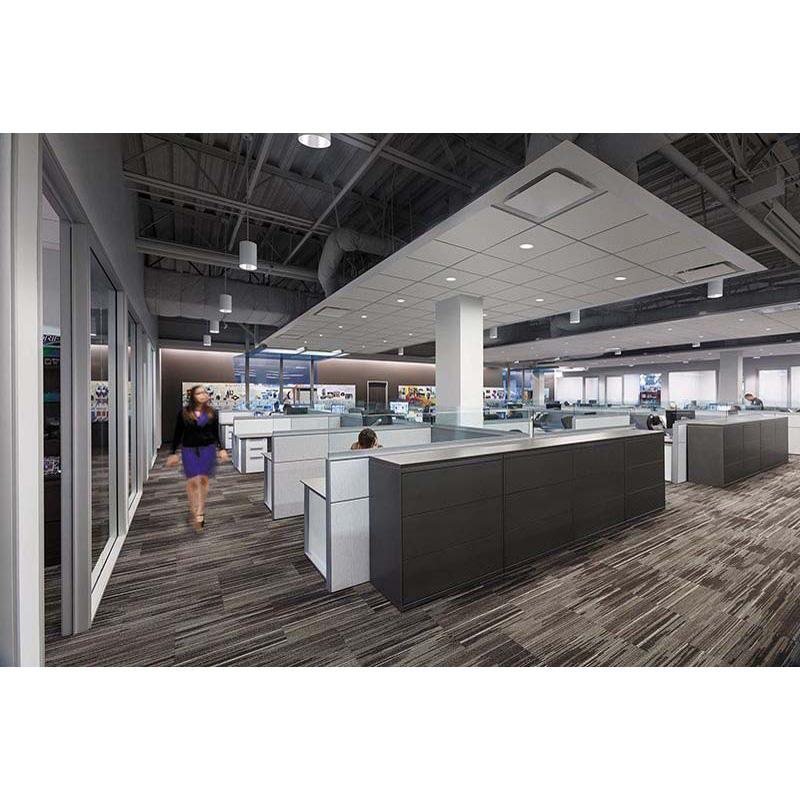

  • Office
  • Banks

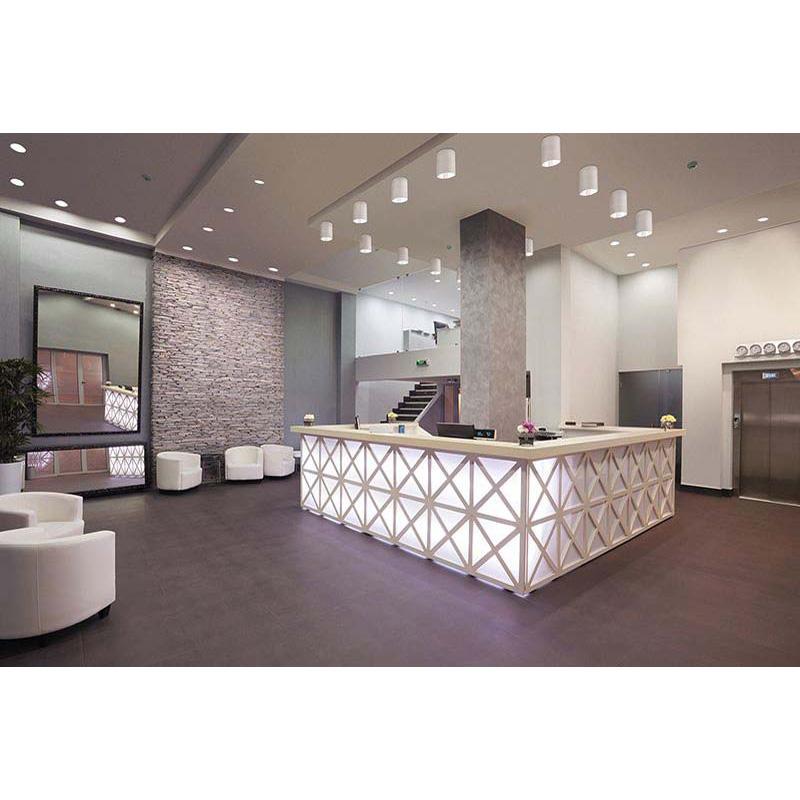

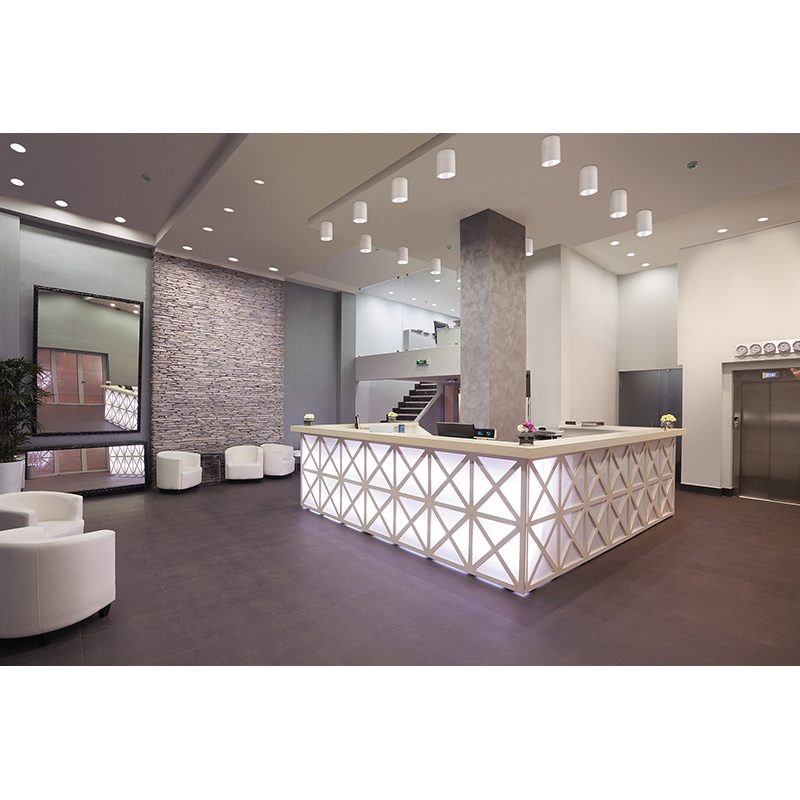

  • Hospitality
  • Airports

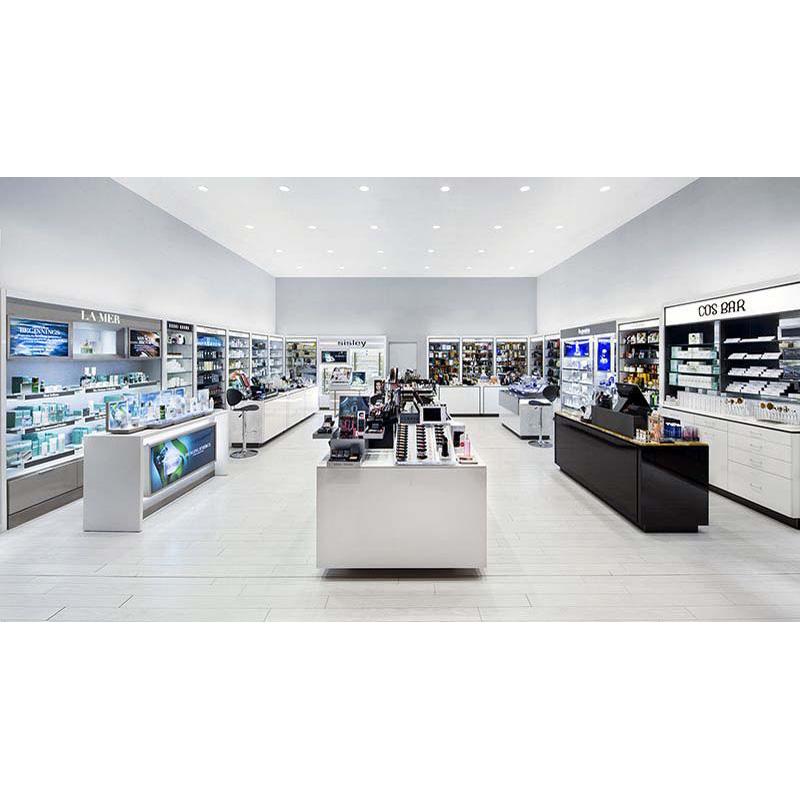

  • Fashion

**Made to order items. NO RETURNS ACCEPTED**


(a) In most instances, Signify Products are sold subject to an applicable standard limited warranty either accompanying the product or as published on Signify’s website as the standard warranty applicable for a particular Product (the “Standard Product Warranty”). For any Product that is sold by Signify that is not subject to an applicable Standard Product Warranty, Signify warrants only that for one (1) year from delivery to Customer the Products will be free from Defects. For any Services that are performed by Signify, Signify warrants only that for thirty (30) days from the performance, the Service will be free from Defects (except in respect of Installation where this thirty (30) days’ warranty period will commence upon acceptance as set out in section 6(c). A " Defect" (or “Defective”) means, in relation to a Product, that a Product has any defect in material or workmanship which causes the Product to fail to operate in accordance with the specifications provided by Signify, with consideration given to the overall performance of the Product and, in relation to Services, means that the Service has not been performed in a competent, diligent manner.

(b) In order to be entitled to make a valid claim under warranty, Customer shall promptly notify Signify of alleged Defective Products or Defective Services prior to expiration of the warranty period. In the event that Signify decides, in its sole discretion, that a claim under warranty is valid, Signify shall, within a reasonable time, at its own option, repair or offer replacement products for Defective Products, or remedy or supplement any Defective Services. If despite reasonable efforts of Signify, a Defective Product cannot be repaired, no replacement product can be supplied, or Defective Services cannot be remedied or supplemented, Signify shall make an appropriate refund or credit of monies paid by Customer for those Defective Products or Defective Services. Repairs, replacements or remedies will not extend or renew the applicable warranty period. Customer shall obtain consent from Signify on the specifications of any tests it plans to conduct to determine whether a Defect exists. Replacement products supplied by Signify may have minor deviations in design and/or specifications which do not affect the functionality of replaced Product. In respect of any replaced or credited Products, Signify may, in its sole discretion, either claim the property of replaced or credited Products and require Customer to return these to Signify, or instruct Customer to destroy these at Customer’s costs.

(c) Customer shall bear the costs of access for remedial warranty efforts by Signify, including removal and replacement of systems, structures or other parts of Customer’s facility, the de-installation of Defective Products, and the re-installation of replacement products. Customer shall not return Products to Signify without consent of Signify and unless in accordance with applicable Signify’s return policies. In the event that Signify decides that a claim under warranty is not valid, Customer will bear the costs incurred by Signify in handling and testing, and the transport of Products returned.

(d) Any indemnification and warranty obligations of Signify under an Agreement are conditional upon:

(e) proper storage, installation, use, operation, and maintenance of Products, all in accordance with user manuals, warranty policies and other instructions or terms communicated by Signify to Customer; (ii) Customer keeping accurate and complete records of operation and maintenance during the warranty period and providing Signify access to those records; and (iii) modification or repair of Products or Services only as authorized by Signify. Failure to meet these conditions renders the warranty null and void. Signify will not be responsible for normal wear and tear, or environmental or stress testing. The warranty provided in this section 9 does not apply to damage or failure to perform arising as a result of any Force Majeure or from any abuse, misuse, abnormal use, improper power supply, powers surges or fluctuations, corrosive environments, neglect, exposure or any use or installation in violation of the instructions or restrictions prescribed by Signify or any applicable standard or code.
