Description
Lightolier Calculite LED 6" Round Gen 3
| Product Name | SKU | Watts | Lumens | Kelvin |
|---|---|---|---|---|

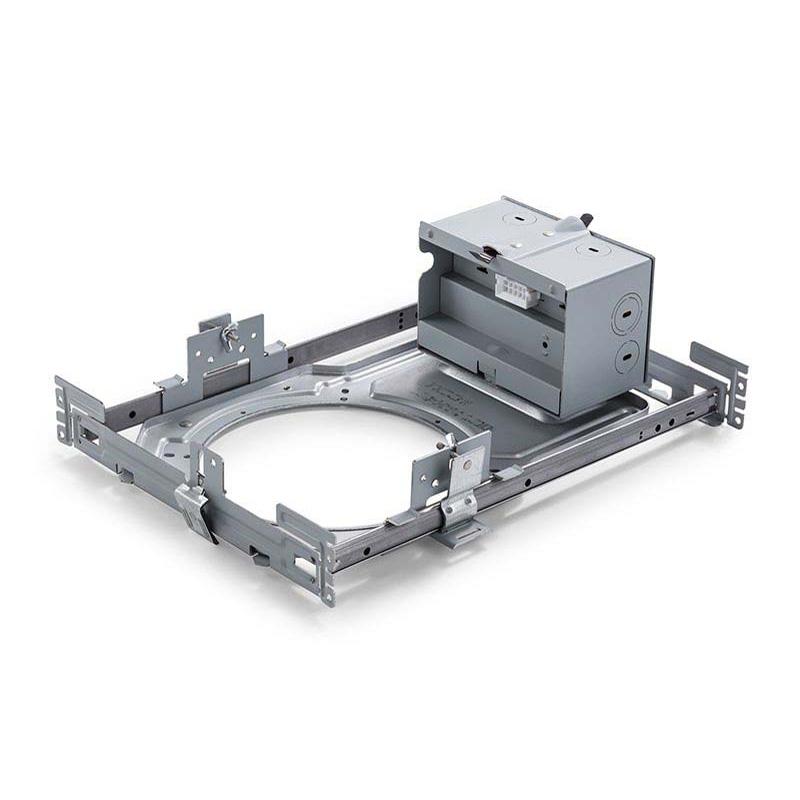

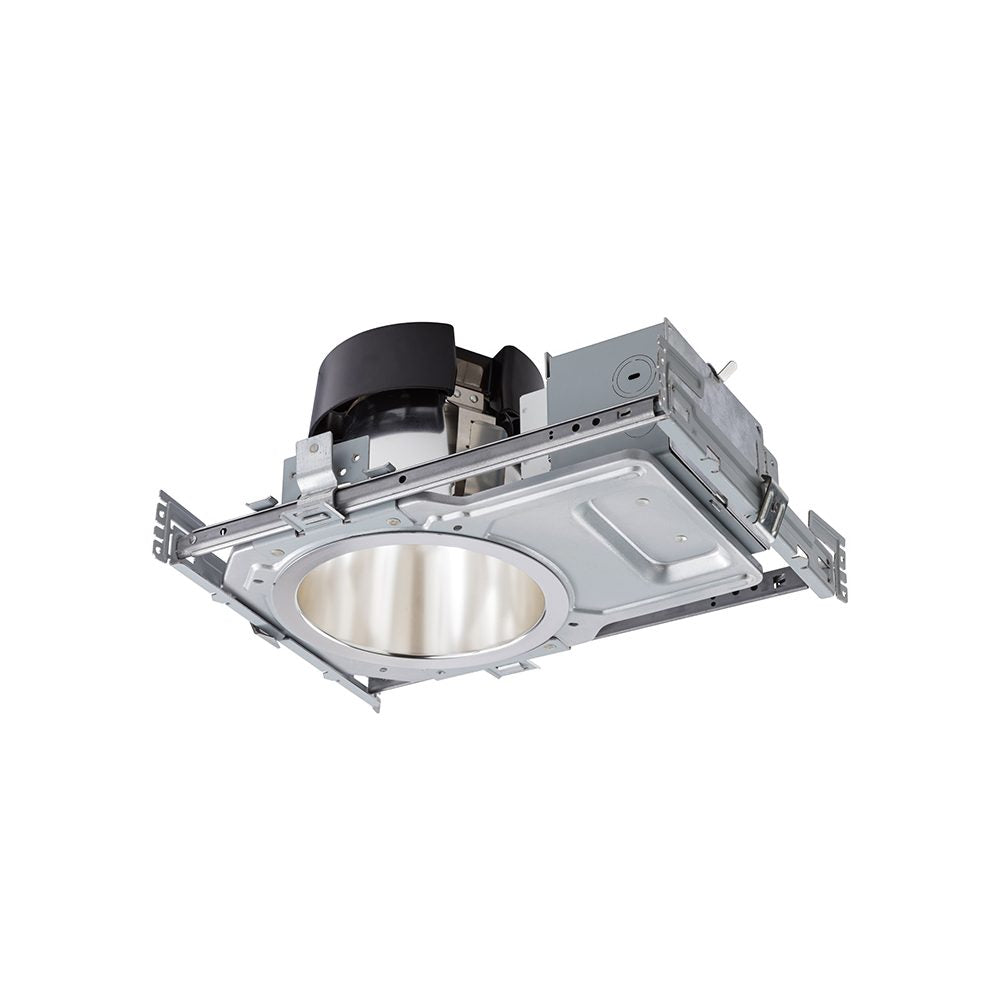

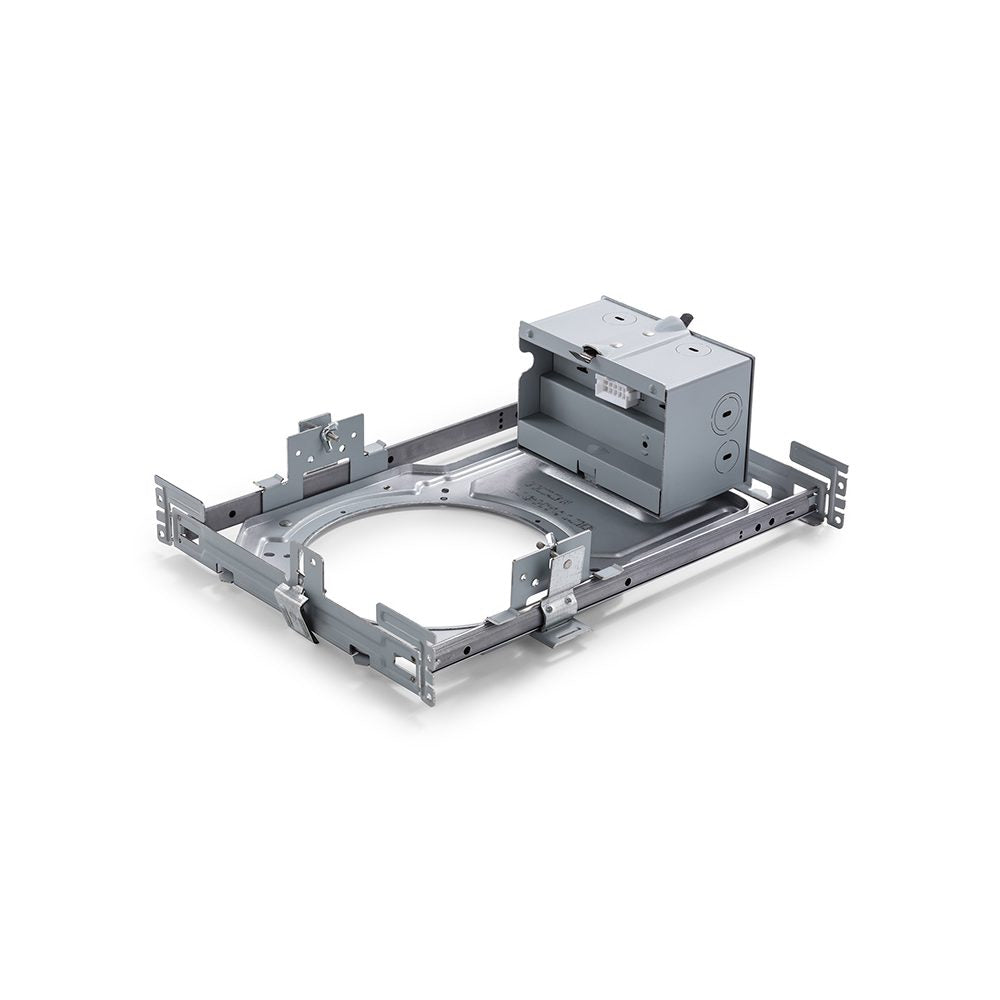

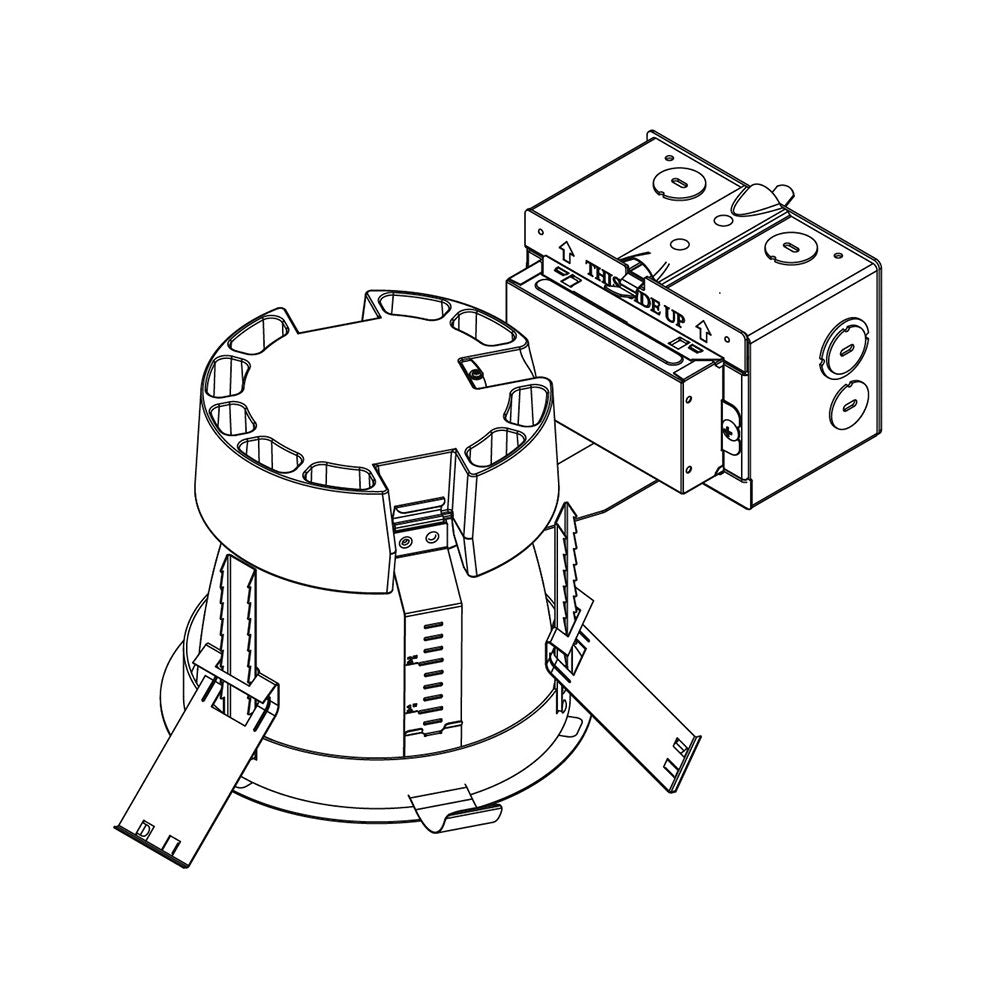

| Calculite 6\" Non-IC frame | C6RN | |||
| Calculite 6\" Non-IC 347V frame | C6RN3 | |||
| Calculite 6\" Non-IC Emergency frame | C6RNEM | |||
| Calculite 6\" Non-IC Chicago Plenum frame | C6RNLC | |||

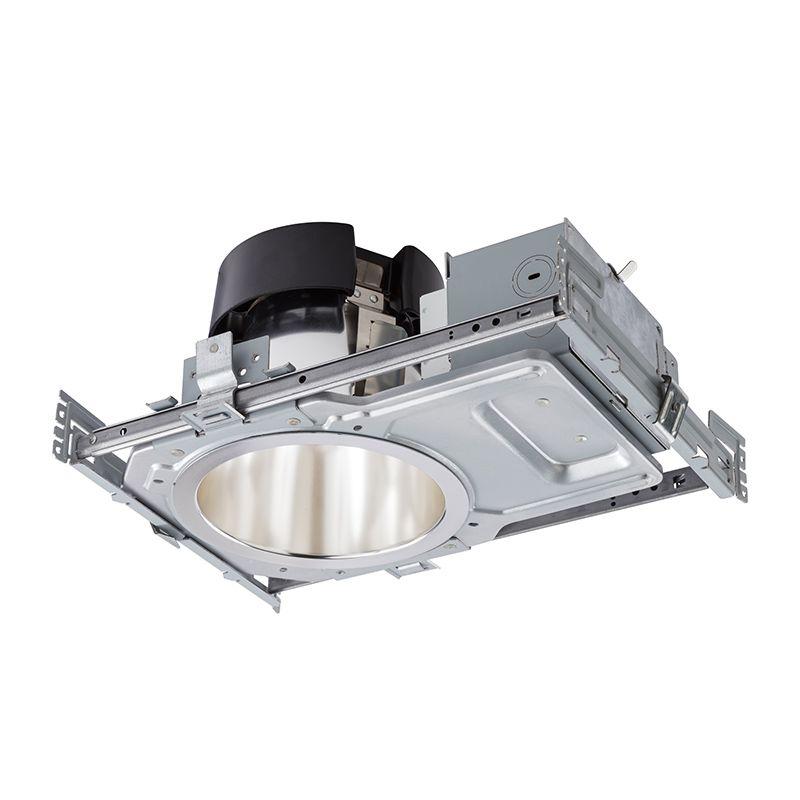

| Calculite 6\" Airseal/IC frame | C6RA | |||
| Calculite 6\" Non-IC Remodeler | C6RR | |||
| Calculite 6\" Non-IC Remodeler 347V | C6RR3 | |||
| Calculite 6\" Light engine 1000lm. Refer to spec sheet for entire catalog code. | C6L10 | 9 | 1000 | 2700 |
| Calculite 6\" Light engine 1500lm. Refer to spec sheet for entire catalog code. | C6L15 | 15 | 1500 | 3000 |
| Calculite 6\" Light engine 2000lm. Refer to spec sheet for entire catalog code. | C6L20 | 19 | 2000 | 3500 |
| Calculite 6\" Light engine 2500lm. Refer to spec sheet for entire catalog code. | C6L25 | 23 | 2500 | 4000 |
| Calculite 6\" Light engine 3500lm. Refer to spec sheet for entire catalog code. | C6L35 | 30 | 3500 | 2700 |
| Calculite 6\" Light engine 48000lm. Refer to spec sheet for entire catalog code. | C6L48 | 40 | 4800 | 3000 |
| Calculite 6\" Light engine 6000lm. Refer to spec sheet for entire catalog code. | C6L60 | 57 | 6000 | 3500 |

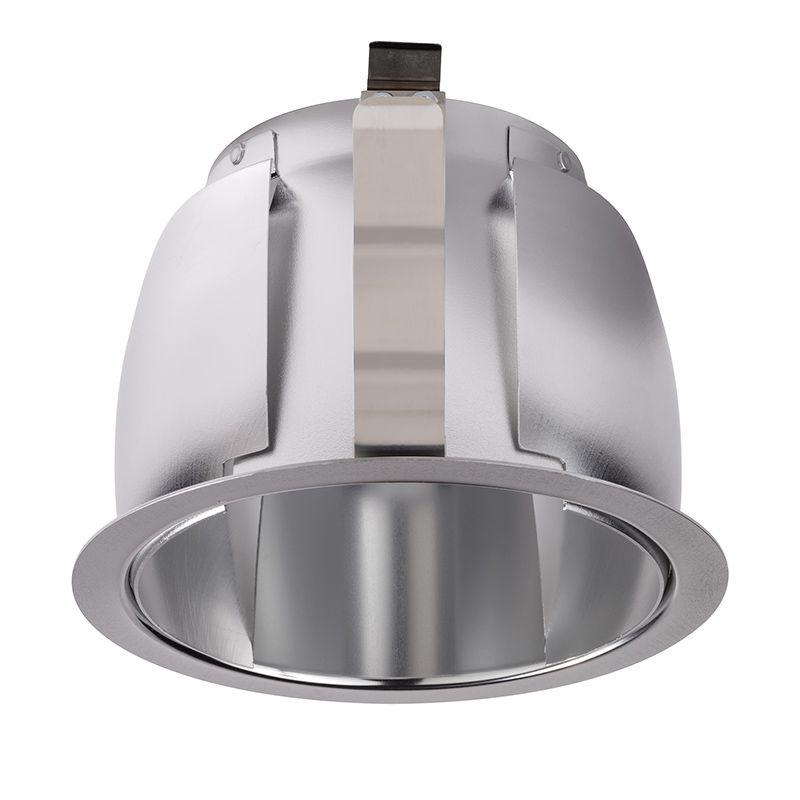

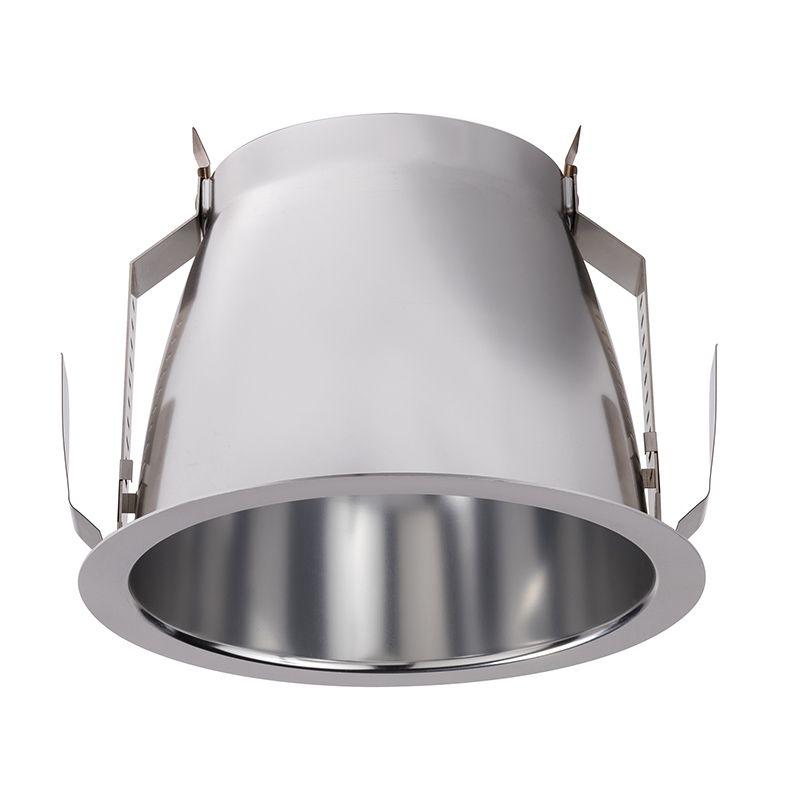

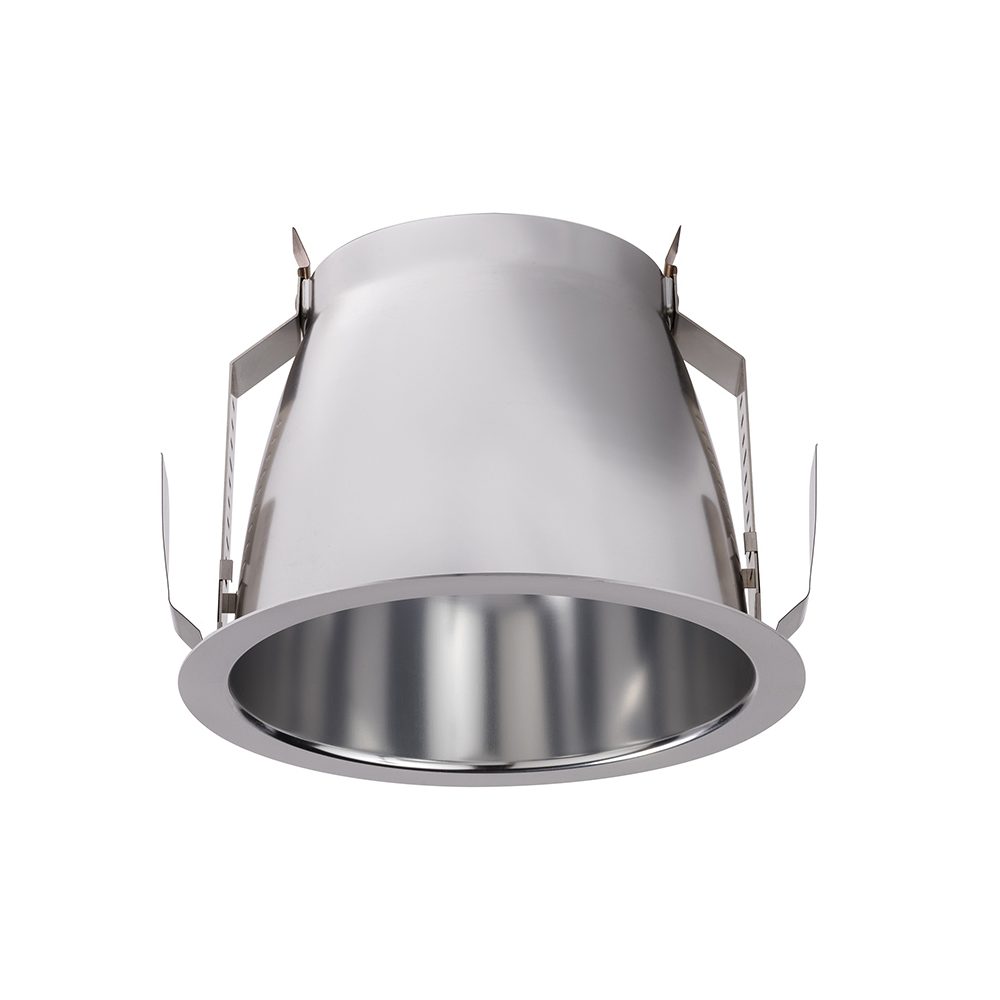

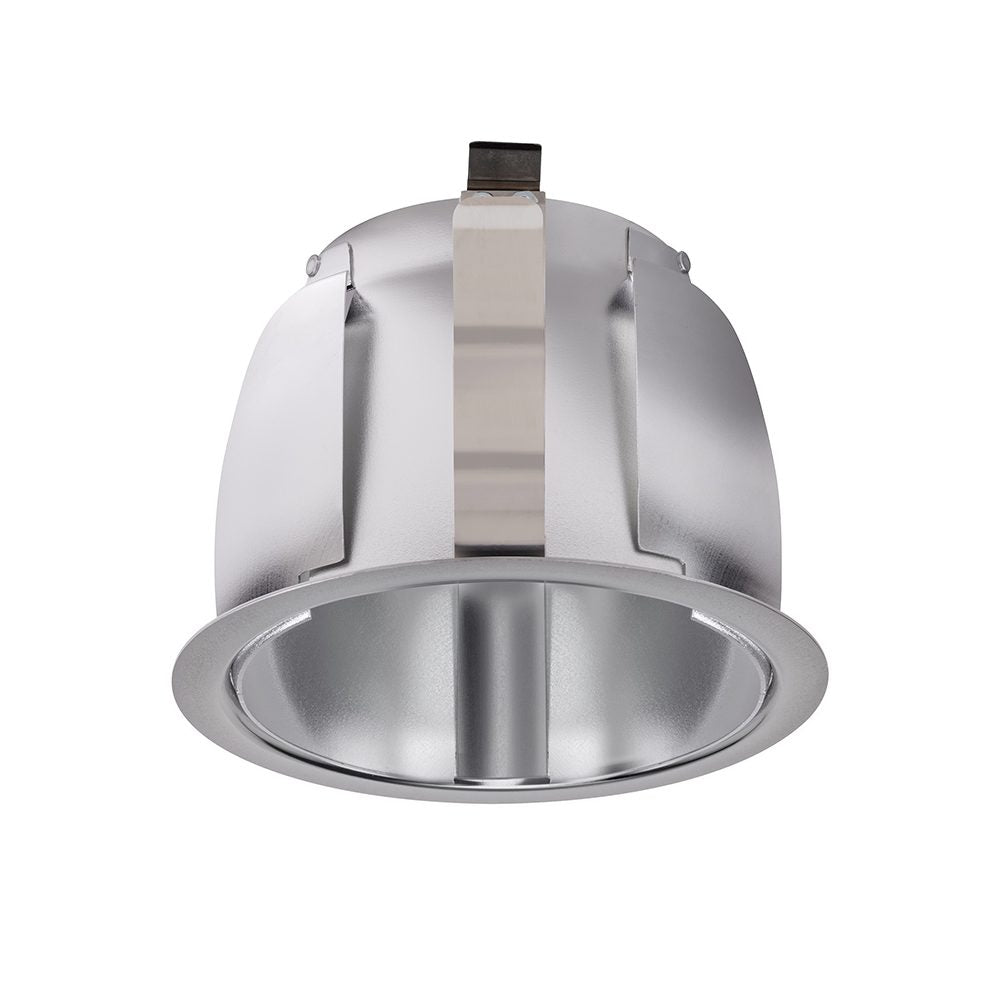

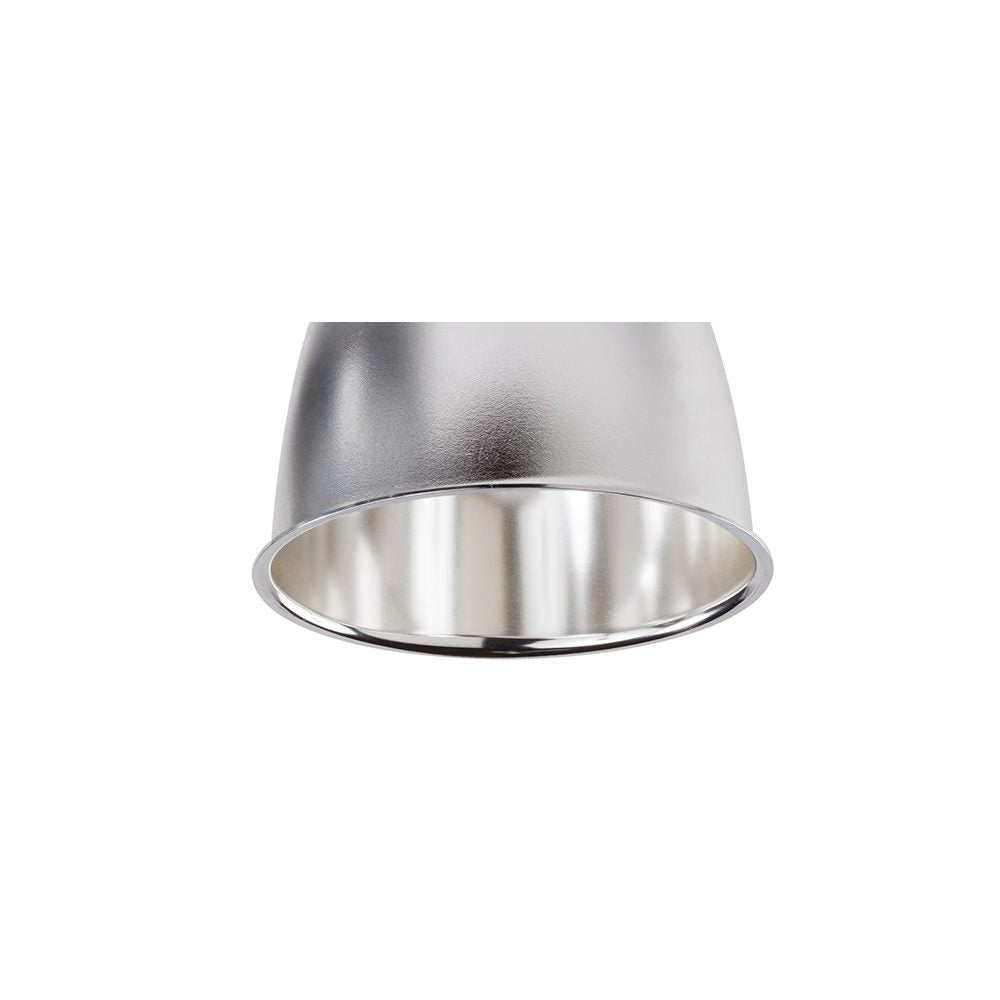

| Calculite 6\" Downlight Comfort Clear finish with white flange | C6RDLCC | |||
| Calculite 6\" Downlight Comfort Clear finish, flangeless | C6RDLCCF | |||

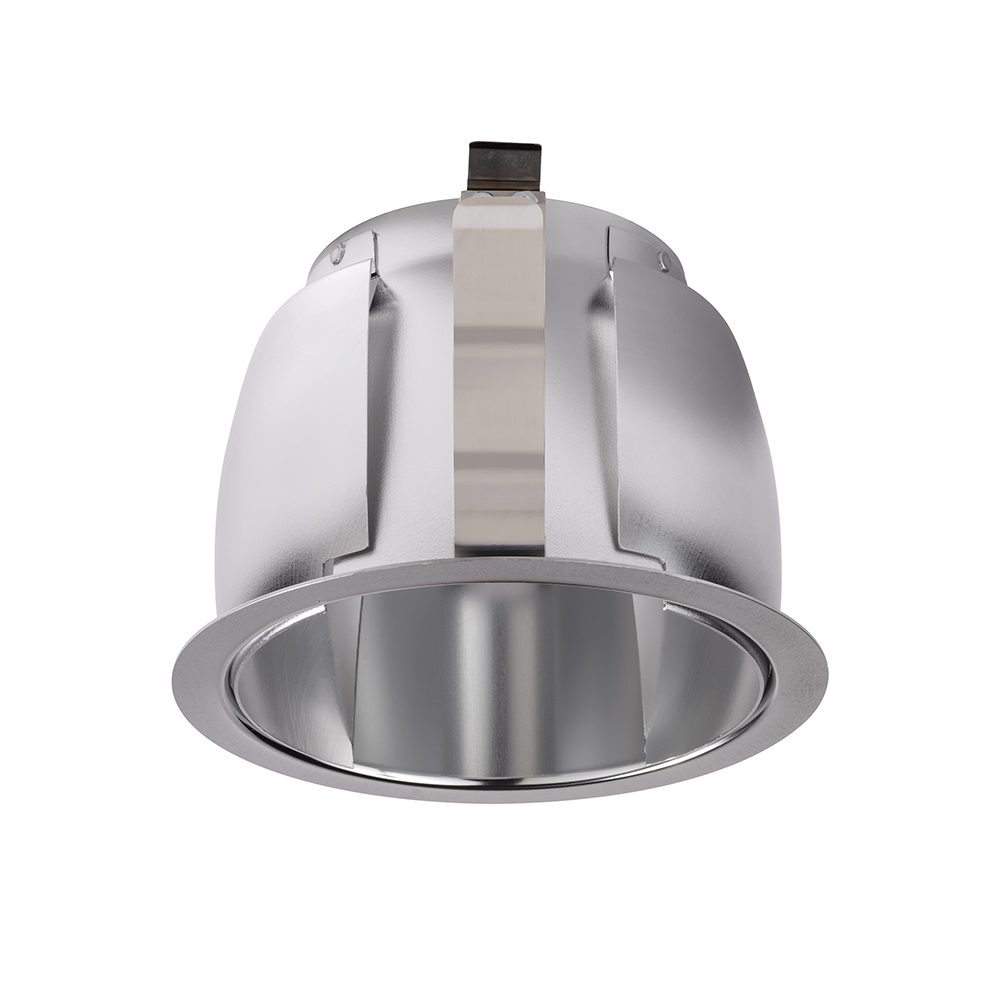

| Calculite 6\" Wall Wash Comfort Clear finish, flangeless | C6RWWCCF | |||
| Calculite 6\" Lens Wall Wash Comfort Clear finish, flangeless | C6RLWCCF | |||
| Calculite 6\" Double Wall Wash Comfort Clear finish, flangeless | C6RDWCCF | |||
| Calculite 6\" Wall Wash Comfort Clear finish with white flange | C6RWWCC | |||
| Calculite 6\" Lens Wall Wash Comfort Clear finish with white flange | C6RLWCC | |||
| Calculite 6\" Corner Wall Wash Comfort Clear finish with white flange | C6RCWCC | |||
| Calculite 6\" Corner Wall Wash Comfort Clear finish, flangeless | C6RCWCCF | |||
| Calculite 6\" Double Wall Wash Comfort Clear finish with white flange | C6RDWCC | |||
| Calculite 6\" mud-in kit for flangeless installations | CA6RFT | |||
| Calculite 6\" LED Shower Light | C6RSLWH |
Product Family Details
Calculite 6" Round Gen3 features industry leading visual comfort, excellent uniform illumination over time, and patented installation flexibility.
Benefits
- Maximize visual appeal by three beam spreads options to give the right distribution and light output
- Ultimate user comfort by providing 50 degree physical and 45 degree reflected cutoff, creating less brightness
- Uniform light and color consistency at an SDCM of 2

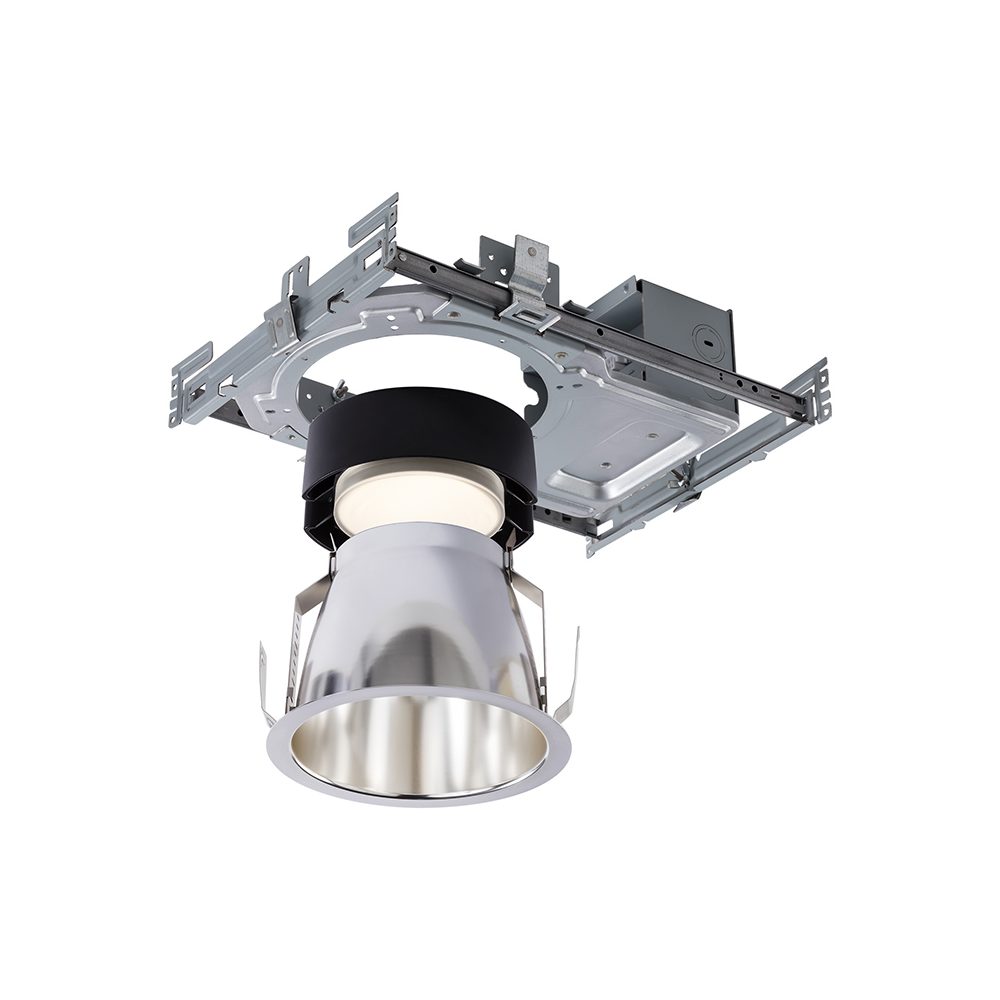

- Modular three piece design that makes servicing and upgrading convenient
- Installation efficiency accomplished by a tool-free install and quick connect technology
Features
- L90 (90% lumen maintenance) up to 60,000 hrs. and efficacies as high as 115 lm/W
- Construction: Lowest plenum height with plug & play connector between frame and light engine
- Narrow, Medium, Wide beam options in all lumen packages
- Dimming options: Standard dimming to 1% for 0-10V, Lutron, and Dali
- Flange options available: Polished, white, or flangeless

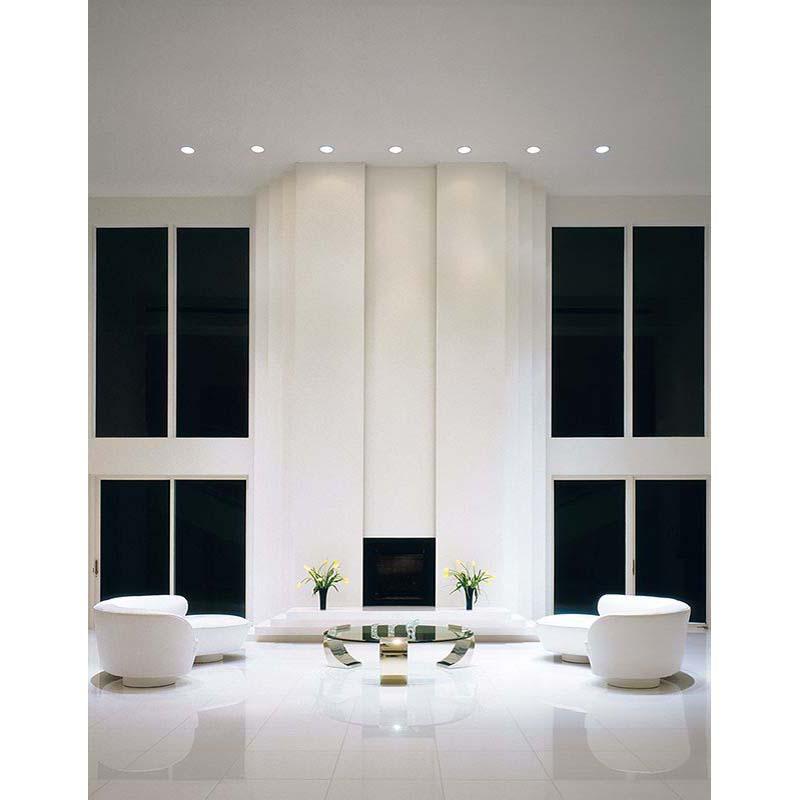

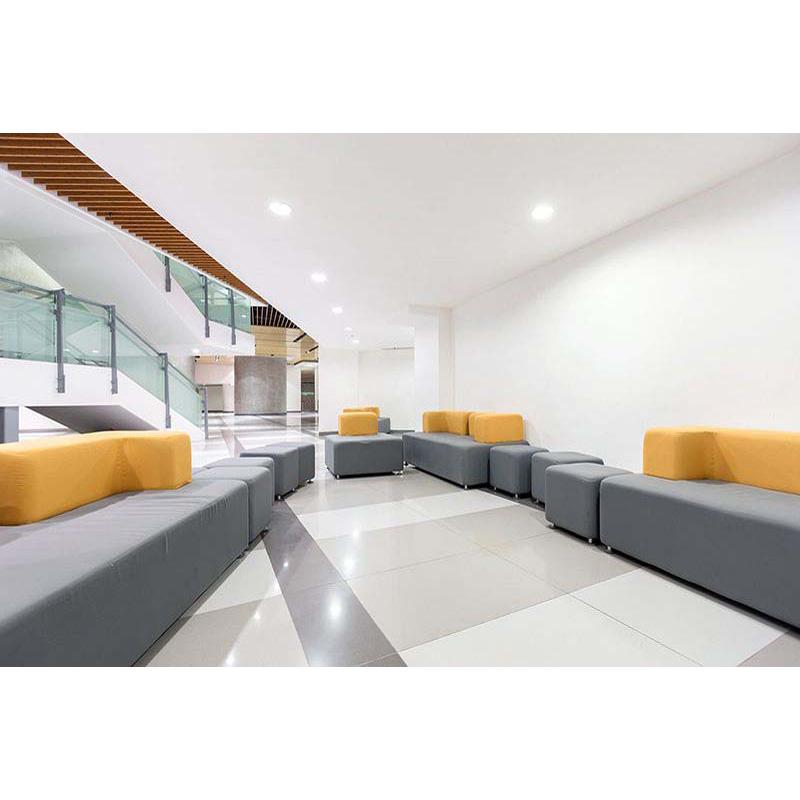

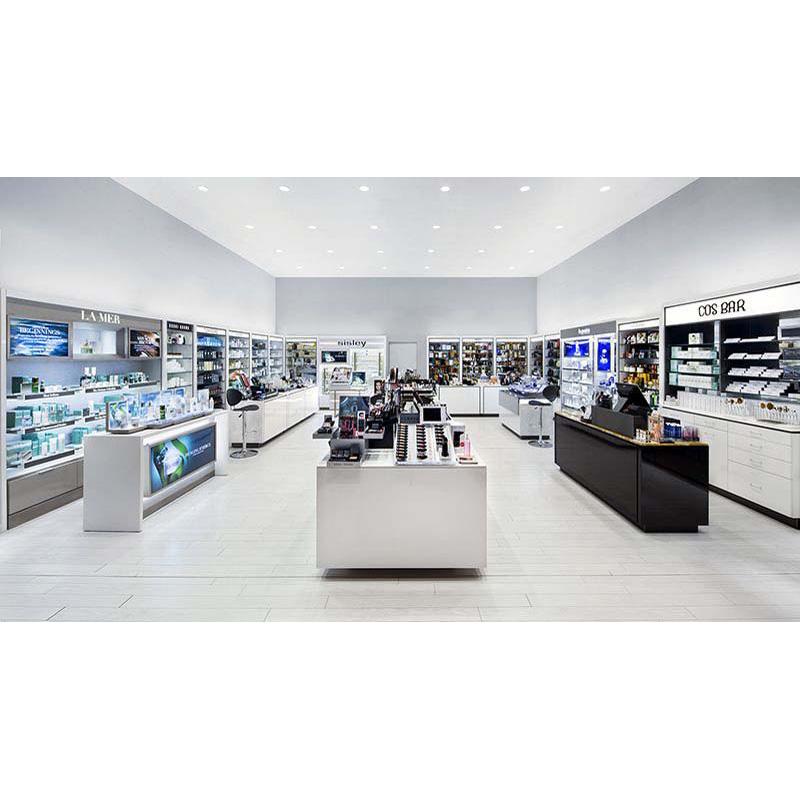

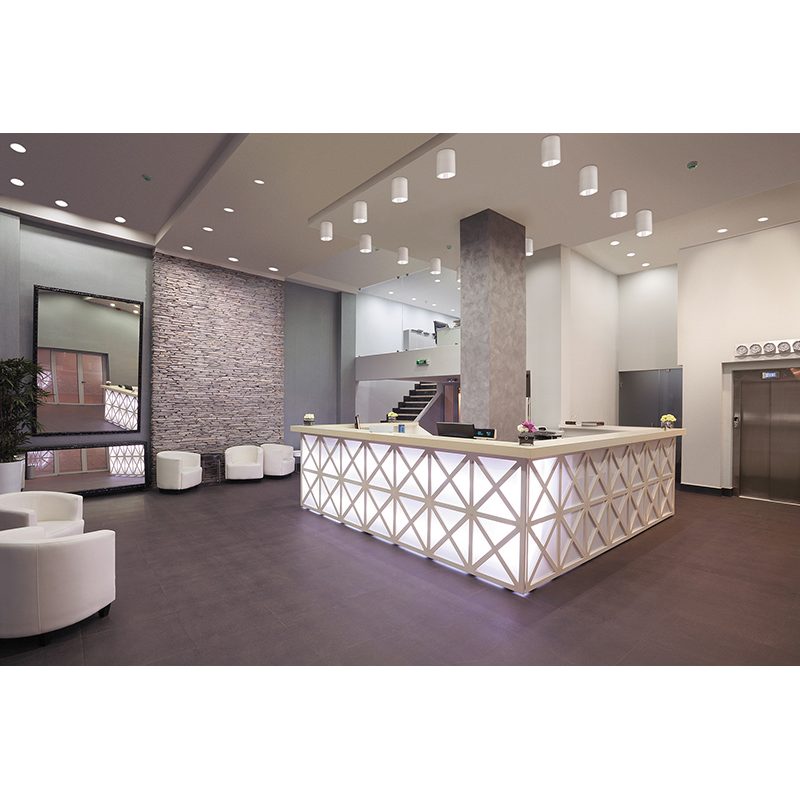

Applications
- Residential

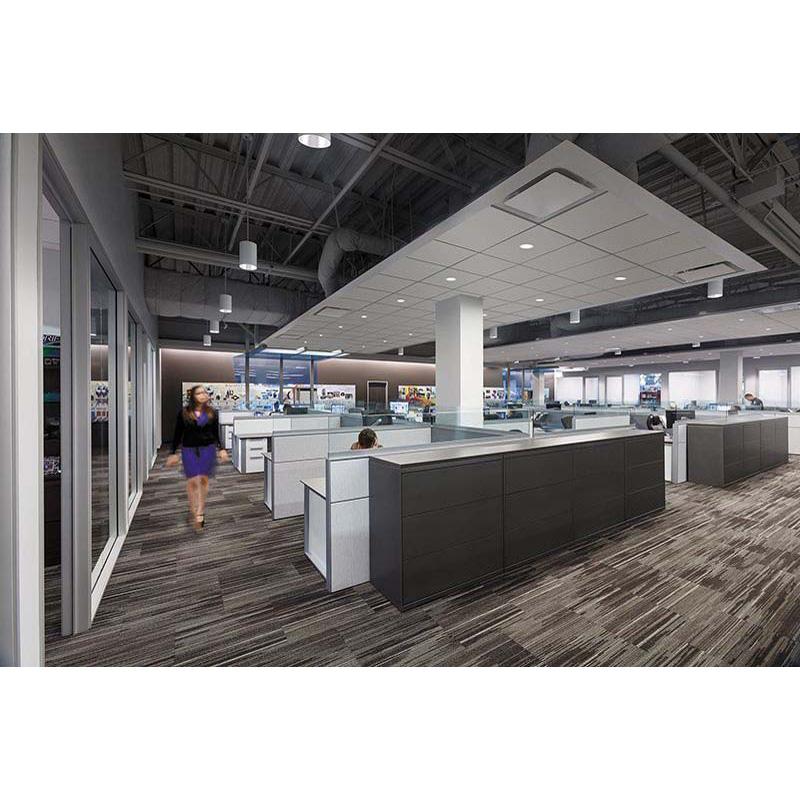

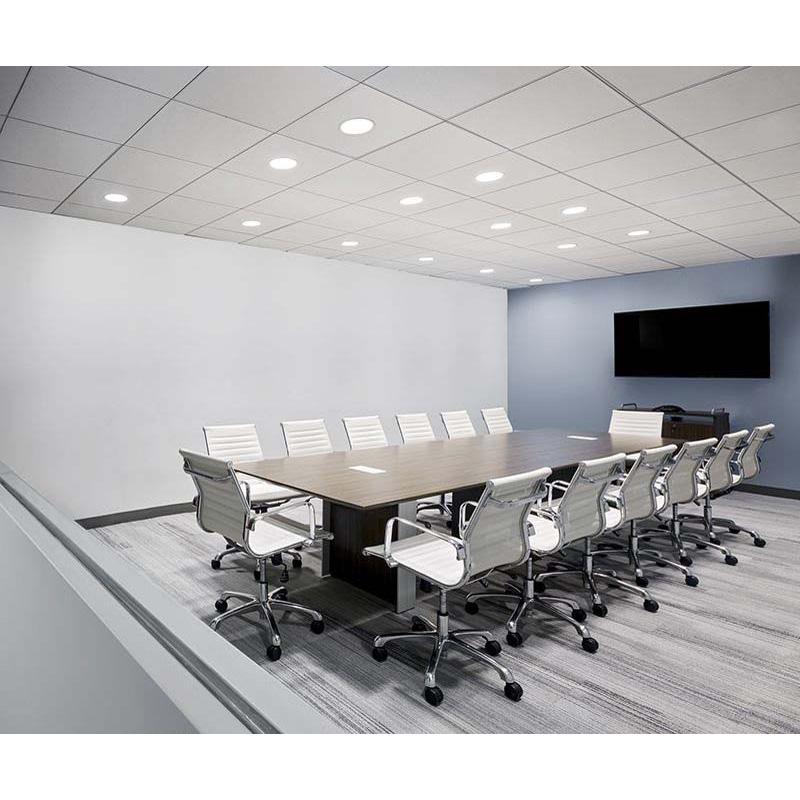

- Office
- Banks

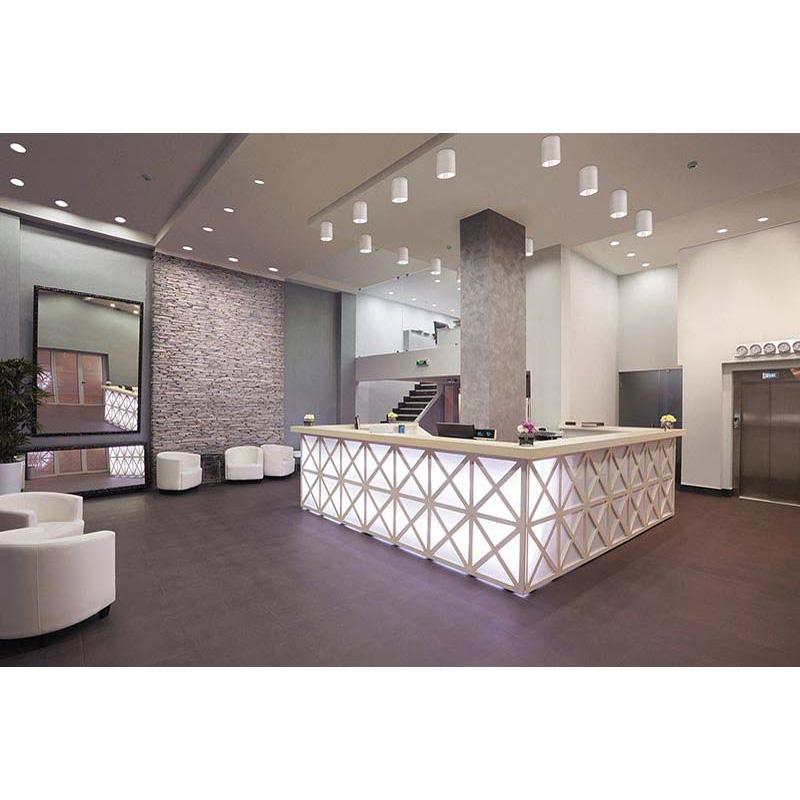

- Hospitality
- Airports
- Fashion
