Lightolier Calculite LED 7" Round Gen 3

Lightolier Lighting | SKU: LCALCULITE-7-ROUND
No reviews

Price:
Sale price$0.00 USD

Fast & Easy Quote Request

Click the “Request A Quote” button. Next, in the notes section, please include the complete products catalog numbers and quantity requested. For details see the PDF spec sheet on this page. You may also include your lighting fixtures list and attach files.

Description

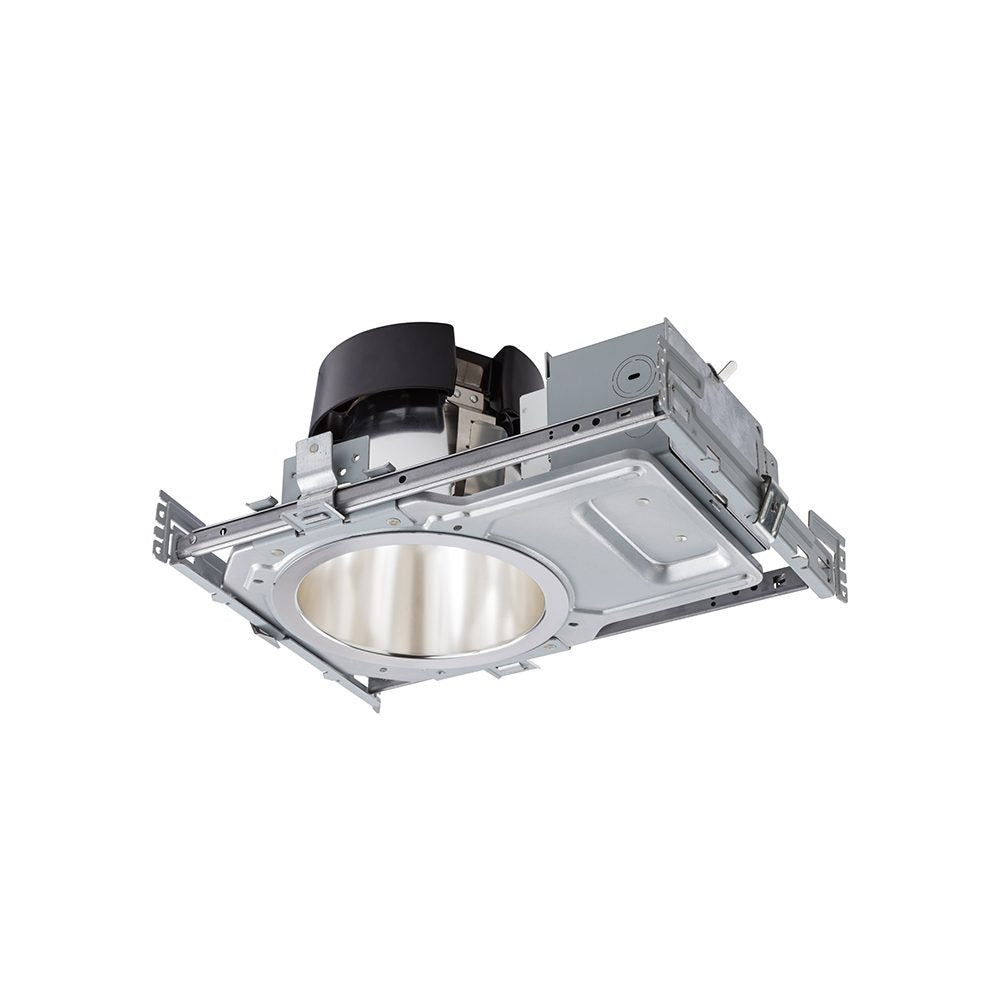

Lightolier Calculite LED 7" Round Gen 3

Product Name SKU Watts Lumens Kelvin

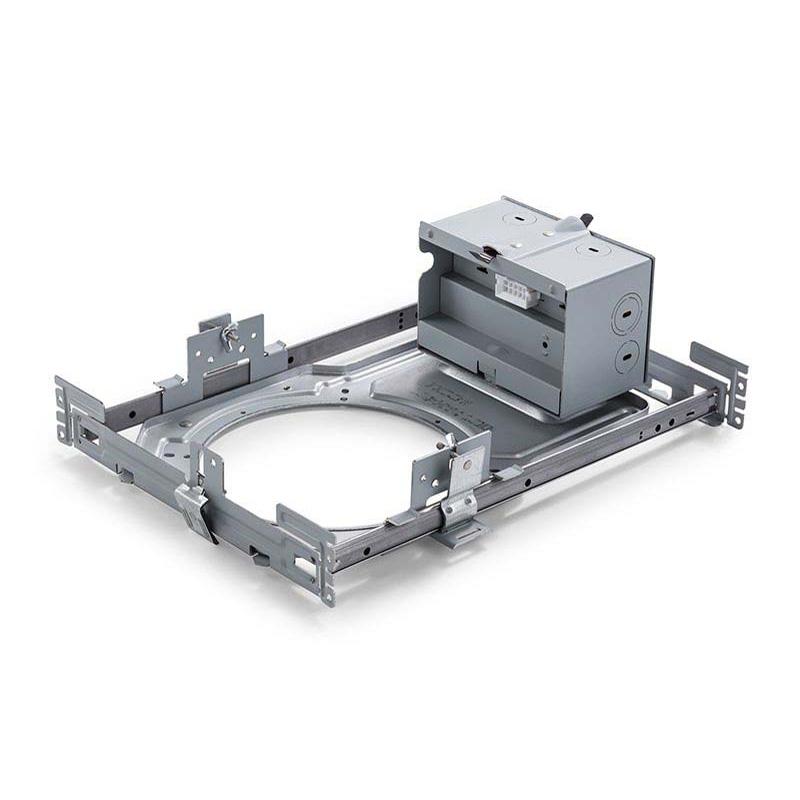

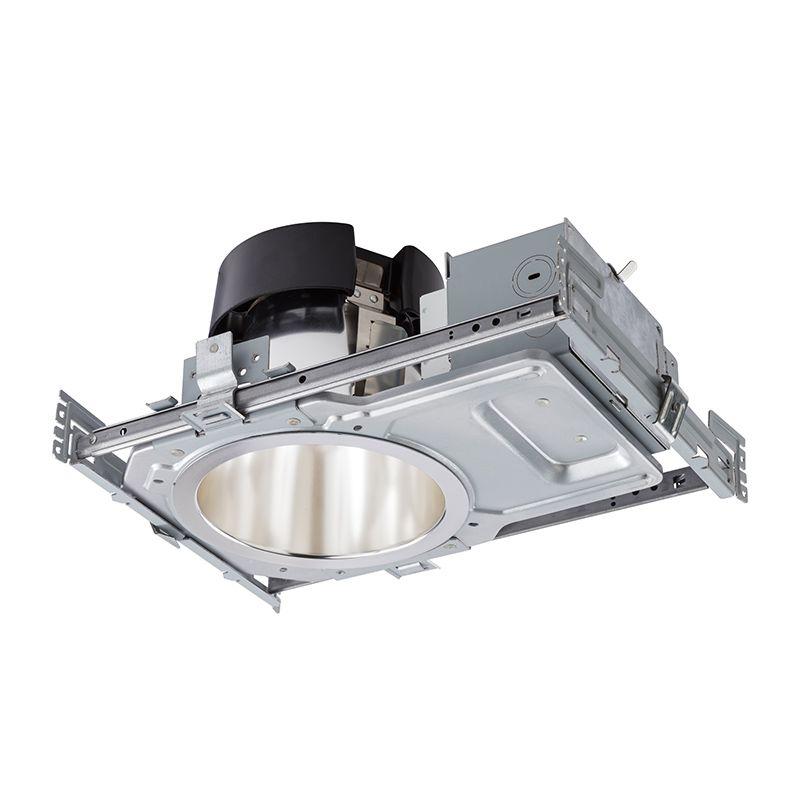

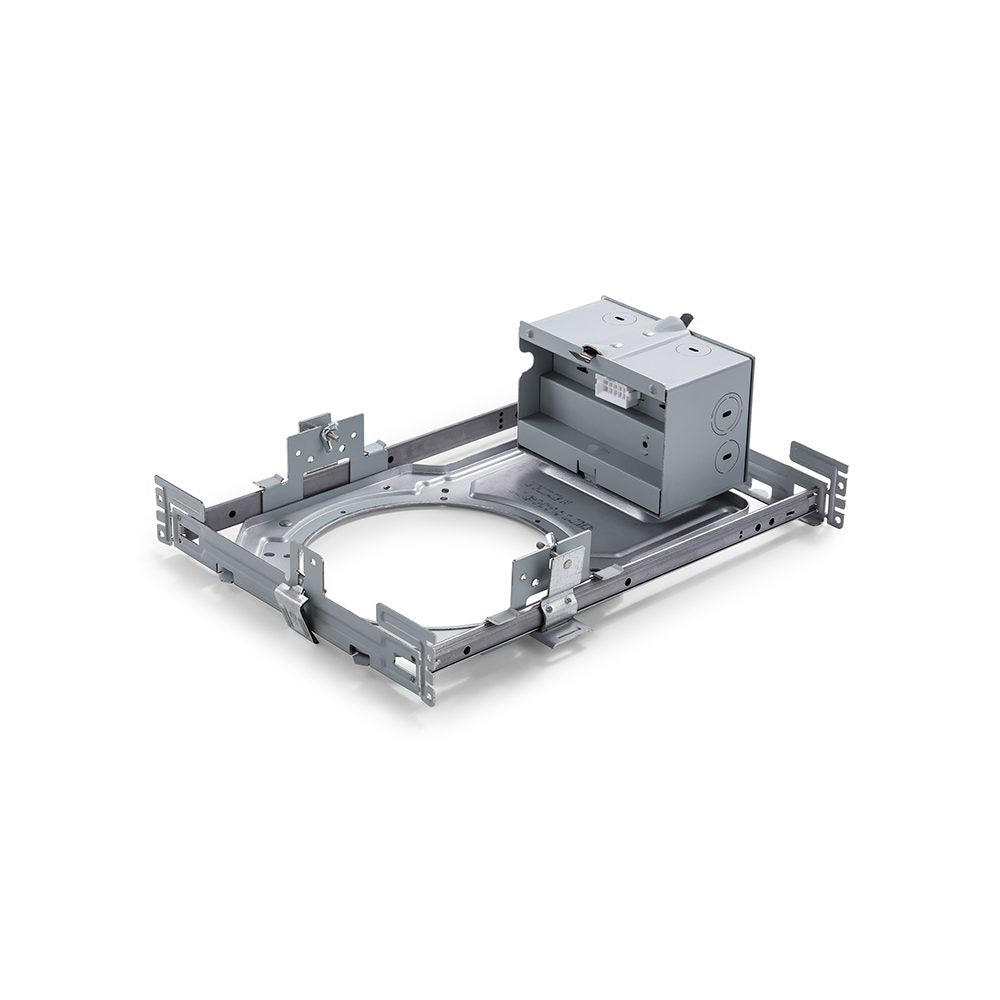

Calculite 7\" Non-IC frame C7RN
Calculite 7\" Non-IC 347V frame C7RN3
Calculite 7\" Non-IC Emergency frame C7RNEM
Calculite 7\" Non-IC Chicago Plenum frame C7RNLC
Calculite 6\" Light engine 1000lm. Refer to spec sheet for entire catalog code. C6L10 9 1000 2700
Calculite 6\" Light engine 1500lm. Refer to spec sheet for entire catalog code. C6L15 15 1500 3000
Calculite 6\" Light engine 2000lm. Refer to spec sheet for entire catalog code. C6L20 19 2000 3500
Calculite 6\" Light engine 2500lm. Refer to spec sheet for entire catalog code. C6L25 23 2500 4000
Calculite 6\" Light engine 3500lm. Refer to spec sheet for entire catalog code. C6L35 30 3500 2700
Calculite 6\" Light engine 48000lm. Refer to spec sheet for entire catalog code. C6L48 40 4800 3000
Calculite 6\" Light engine 6000lm. Refer to spec sheet for entire catalog code. C6L60 57 6000 3500

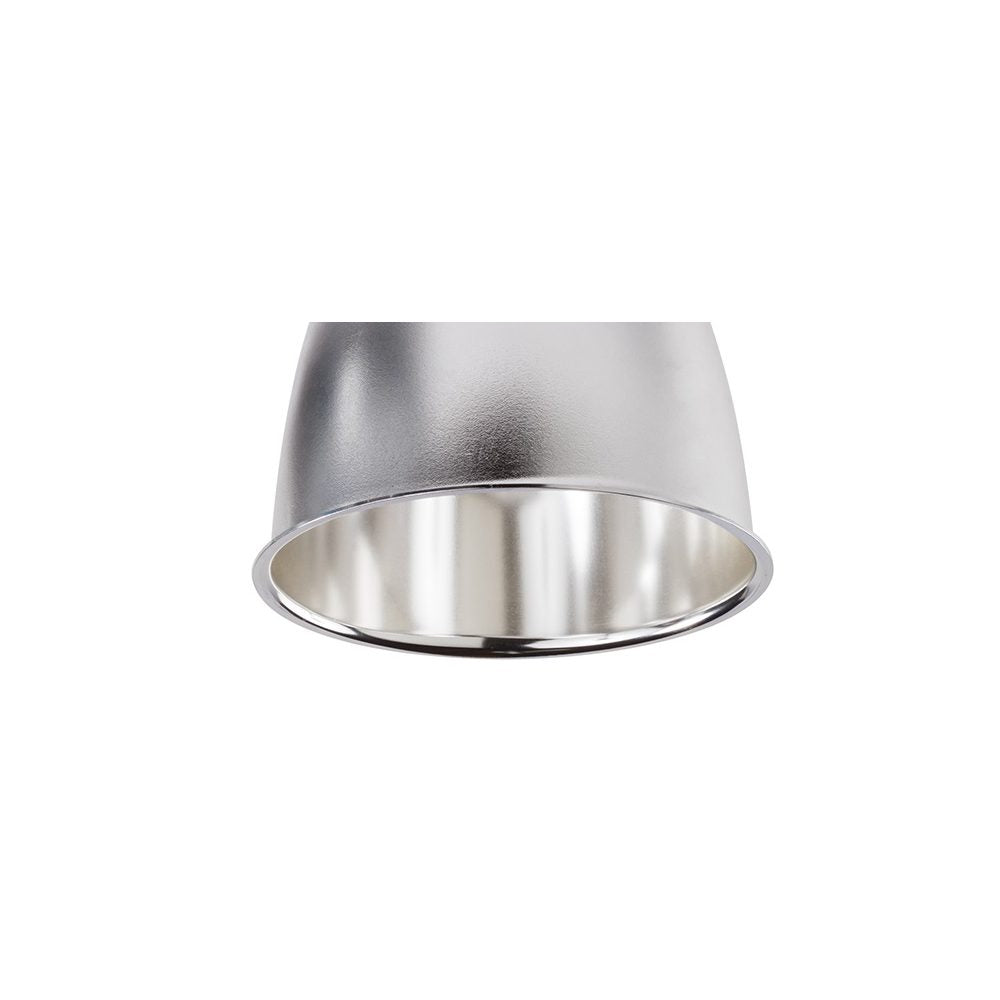

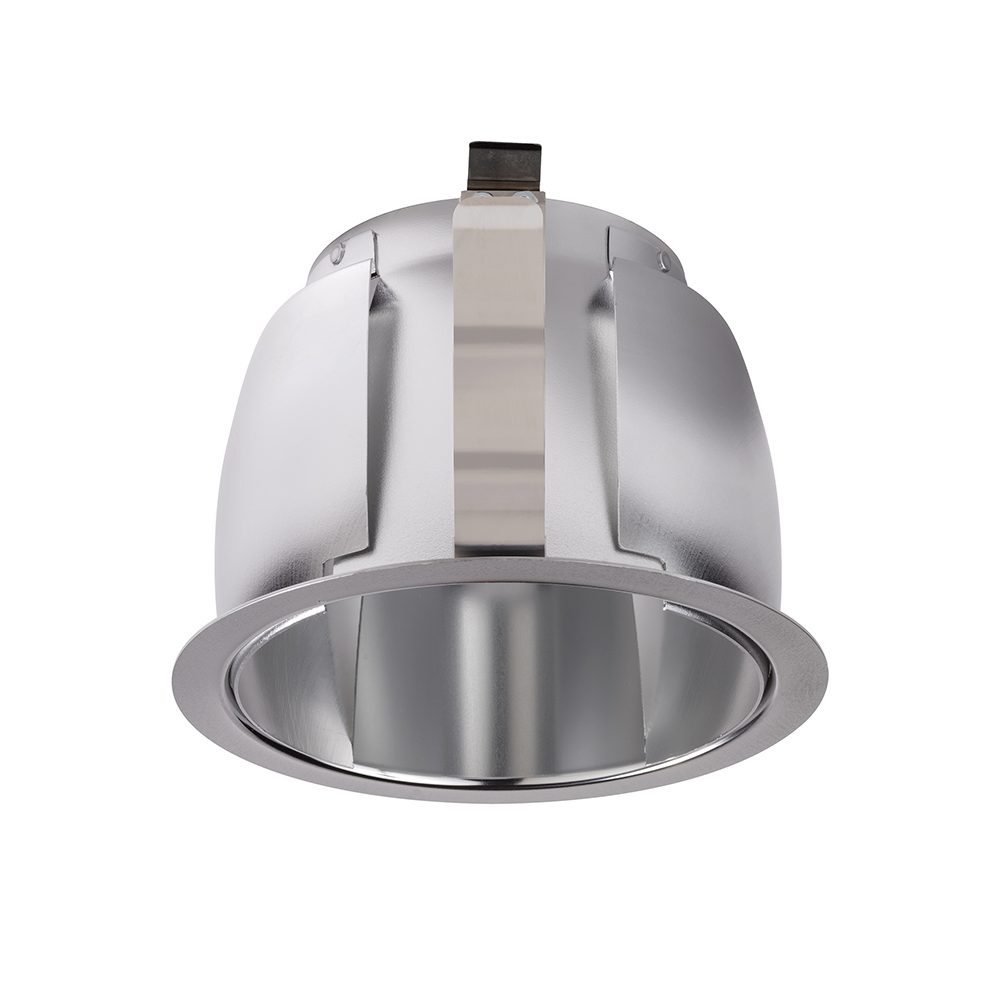

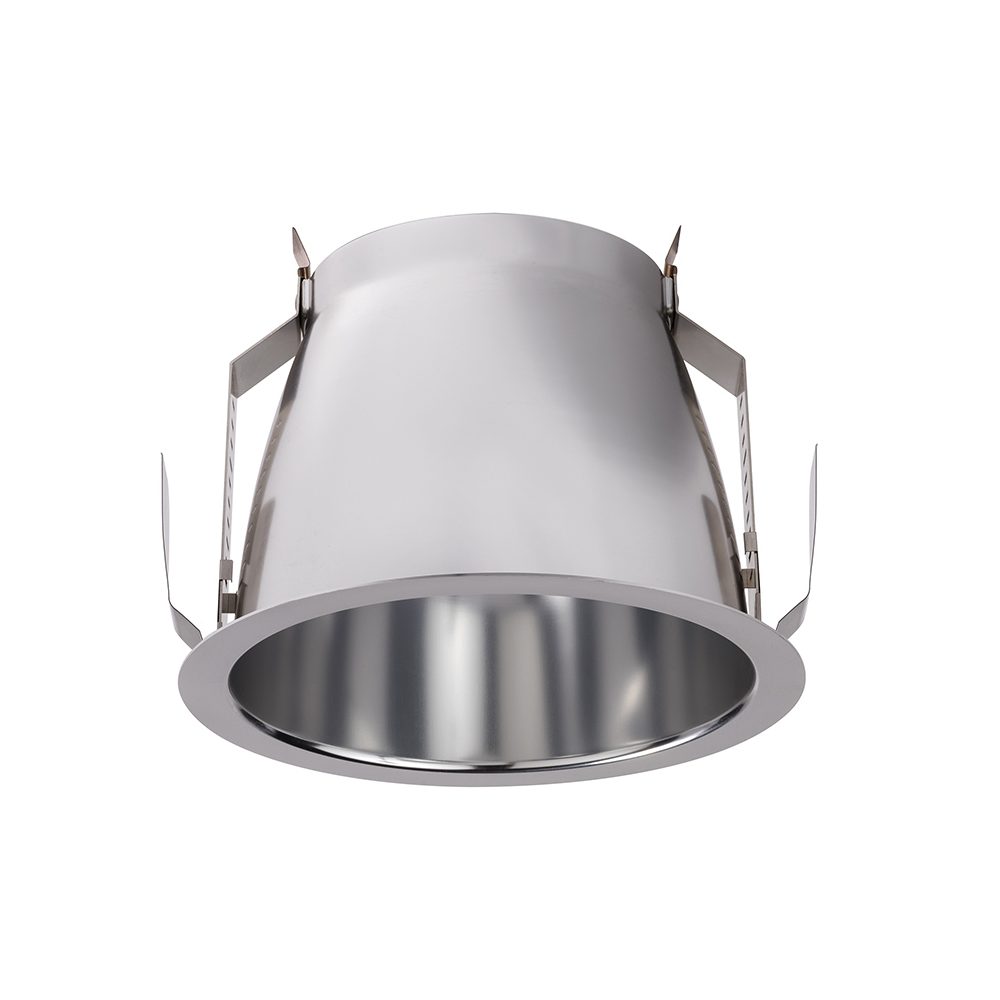

Calculite 7\" Downlight Narrow/Medium beam, Comfort Clear finish with white flange C7RDLNMCC
Calculite 7\" Downlight Wide beam, Comfort Clear finish with white flange C7RDLWCC
Calculite 7\" Downlight Narrow/Medium beam, Comfort Clear finish, flangeless C7RDLNMCCF
Calculite 7\" Downlight Wide beam, Comfort Clear finish, flangeless C7RDLWCCF
Calculite 7\" Wall Wash Comfort Clear finish, flangeless C7RWWCCF
Calculite 7\" Lens Wall Wash Comfort Clear finish, flangless C7RLWCCF
Calculite 7\" Wall Wash Comfort Clear finish with white flange C7RWWCC
Calculite 7\" Lens Wall Wash Comfort Clear finish with white flange C7RLWCC
Calculite 7\" Corner Wall Wash Comfort Clear finish with white flange C7RCWCC
Calculite 7\" Corner WW Comfort Clear finish, flangeless C7RCWCCF
Calculite 7\" Double Wall Wash Comfort Clear finish with white flange C7RDWCC
Calculite 7\" Double Wall Wash Comfort Clear finish, flangeless C7RDWCCF
Calculite 7\" mud-in kit for flangeless installations. CA7RFT

Product Family Details

Calculite 7" Round Gen3 features industry leading visual comfort, excellent uniform illumination over time, and patented installation flexibility.


Benefits

  • Maximize visual appeal by three beam spreads options to give the right distribution and light output
  • Ultimate user comfort by providing 50 degree physical and 45 degree reflected cutoff, creating less brightness
  • Uniform light and color consistency at an SDCM of 2
  • Modular three piece design that makes servicing and upgrading convenient
  • Installation efficiency accomplished by a tool-free install and quick connect technology

Features

  • L90 (90% lumen maintenance) up to 60,000 hrs. and efficacies as high as 115 lm/W
  • Construction: Lowest plenum height with plug & play connector between frame and light engine
  • Narrow, Medium, Wide beam options in all lumen packages
  • Dimming options: Standard dimming to 1% for 0-10V, Lutron, and Dali
  • Flange options available: Polished, white, or flangeless

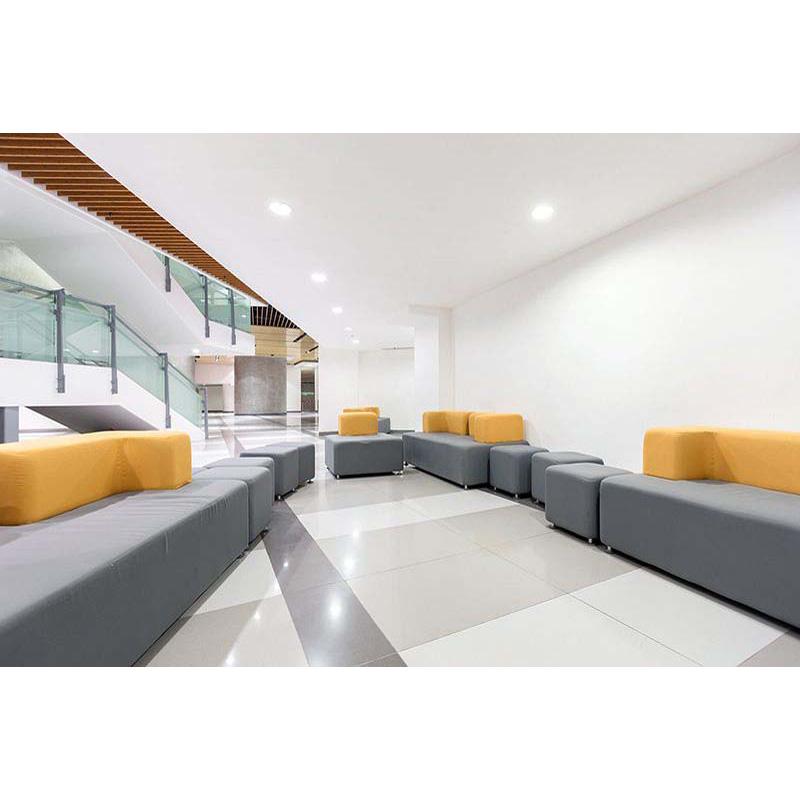

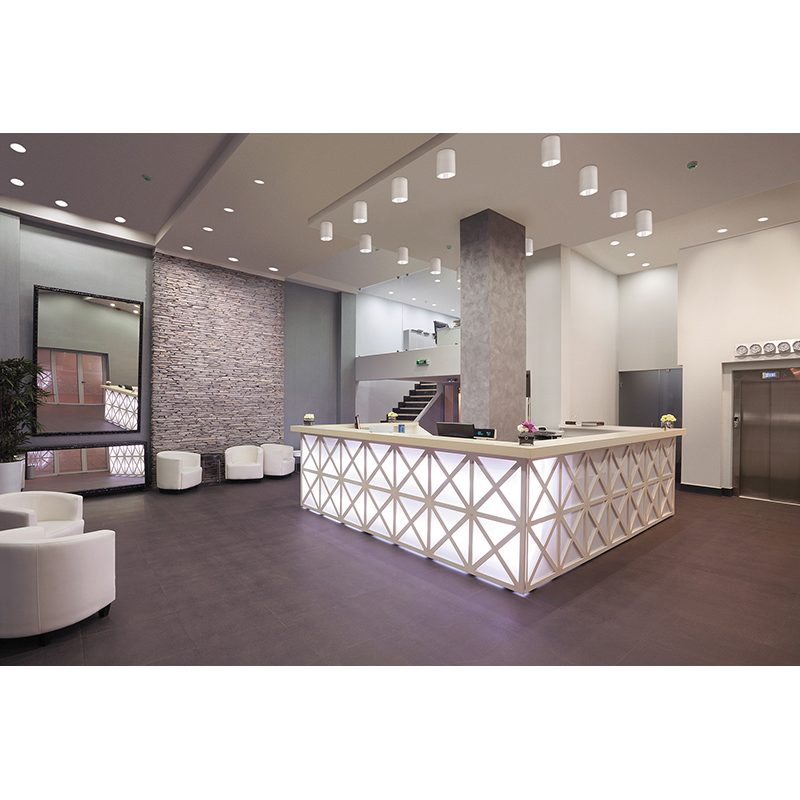

Applications

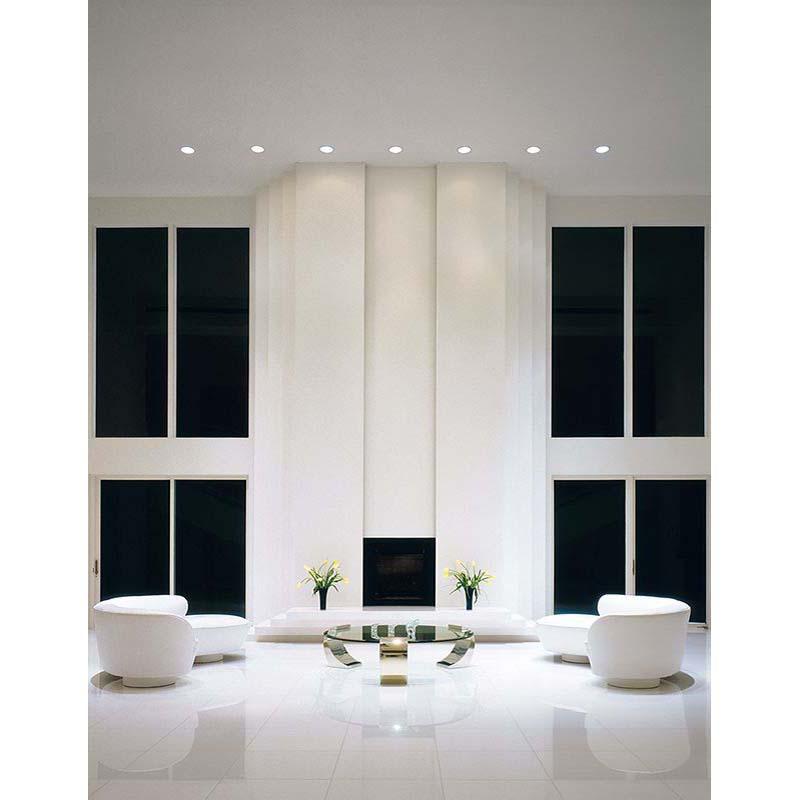

  • Residential

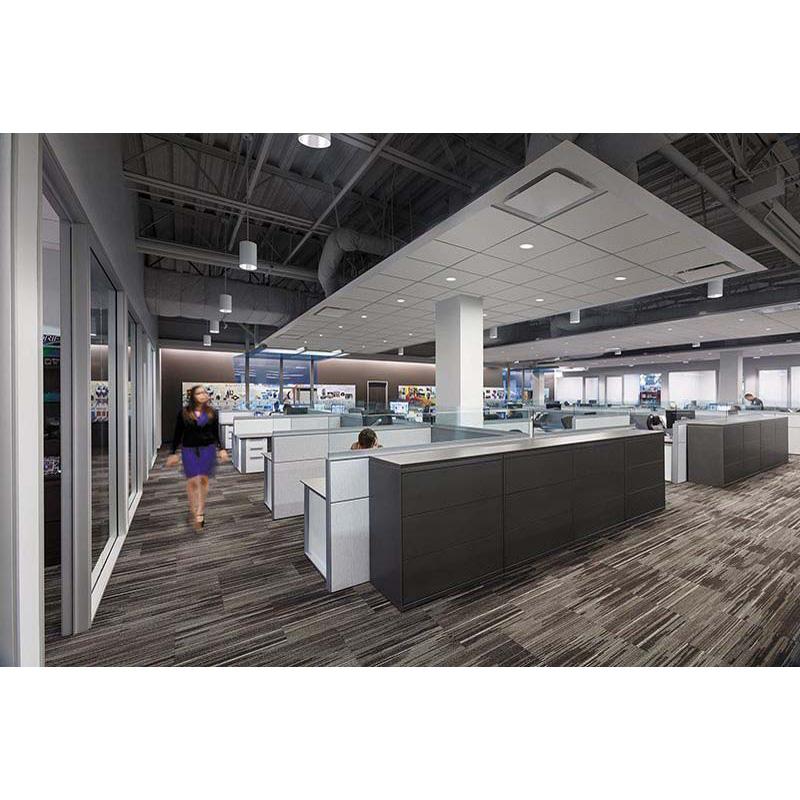

  • Office

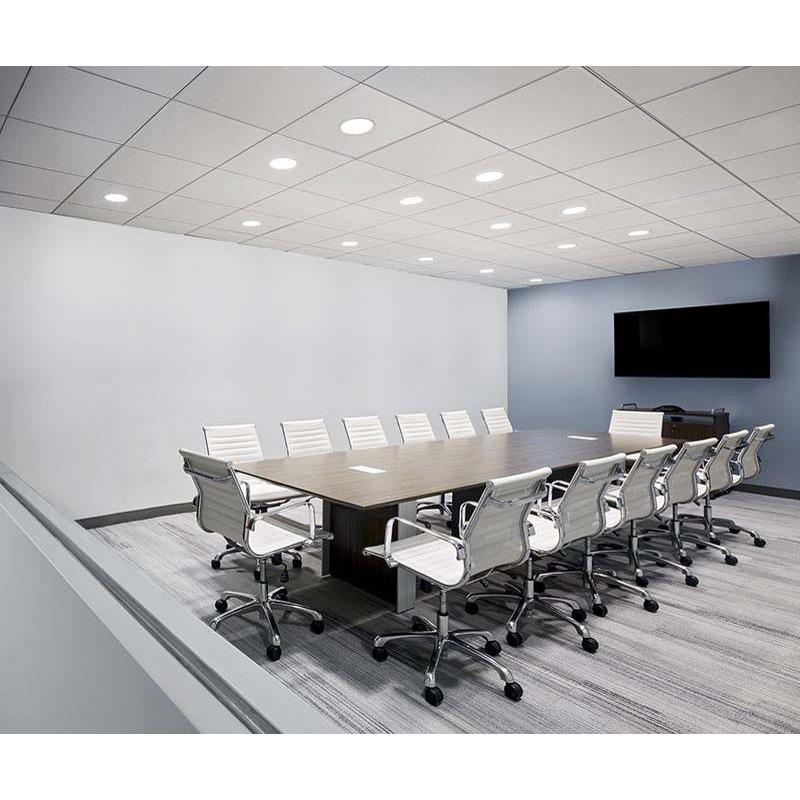

  • Banks

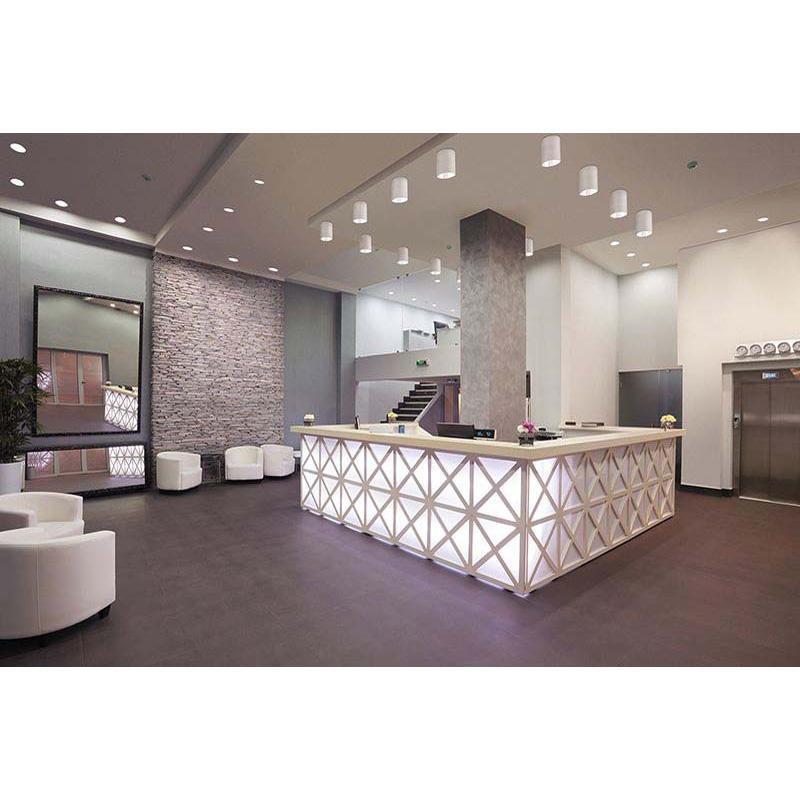

  • Hospitality
  • Airports

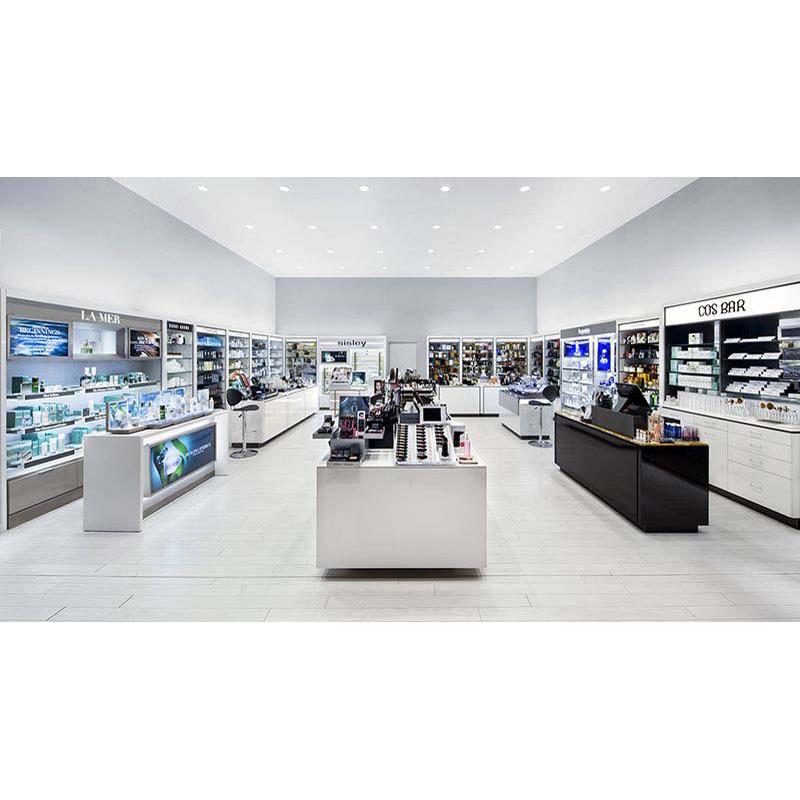

  • Fashion
