Lightolier Calculite LED Tunable White Gen 3

Lightolier LightingSKU: CALCULITE-TUNABLE-WHITE
Price:
$0.00 USD

Fast & Easy Quote Request For Lightolier Lighting (Signify)

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

Lightolier Calculite LED Tunable White Gen 3

Product Name SKU Watts Lumens Kelvin
Calculite 4\" 1000lm 80 CRI Tunable White 65K-27K Medium beam C4L10865MDUTW 10 1000 6500
Calculite 6\" 1000lm 80 CRI Tunable White 65K-27K Medium beam C6L10865MDUTW 21 1000 6500
Calculite 6\" 1000lm 80 CRI Tunable White 65K-27K Wide beam C6L10865WDUTW 21 1000 6500
Calculite 6\" 1500lm 80 CRI Tunable White 65K-27K Medium beam C6L15865MDUTW 21 1500 6500
Calculite 6\" 1500lm 80 CRI Tunable White 65K-27K Wide beam C6L15865WDUTW 21 1500 6500
Calculite 6\" 2000lm 80 CRI Tunable White 65K-27K Medium beam C6L20865MDUTW 21 2000 6500
Calculite 6\" 2000lm 80 CRI Tunable White 65K-27K Wide beam C6L20865WDUTW 21 2000 6500
Calculite 6\" 2500lm 80 CRI Tunable White 65K-27K Medium beam C6L25865MDUTW 21 2500 6500
Calculite 6\" \u0026 7\" 2500lm 80 CRI Tunable White 65K-27K Wide beam C6L25865WDUTW 21 2500 6500

Product Family Details

Lightolier tunable white lighting solutions provide more than illumination. Through a combination of light quality, color, and intensity they help create environments that can be tailored to occupants' needs and preferences. .


Benefits

  • Personal Control: Get more flexibility and easily change LED intensities and correlated color temperature (CCT) from warm white (2700K) to cool white (6500K).
  • Scene Set: Use factory installed presets to a combination of predetermined presets instantly to set the scene for room ambiance that supports a task or spontaneous activity
  • Dynamics: Automatically adjust color temperature and brightness depending on time of day or task

Features

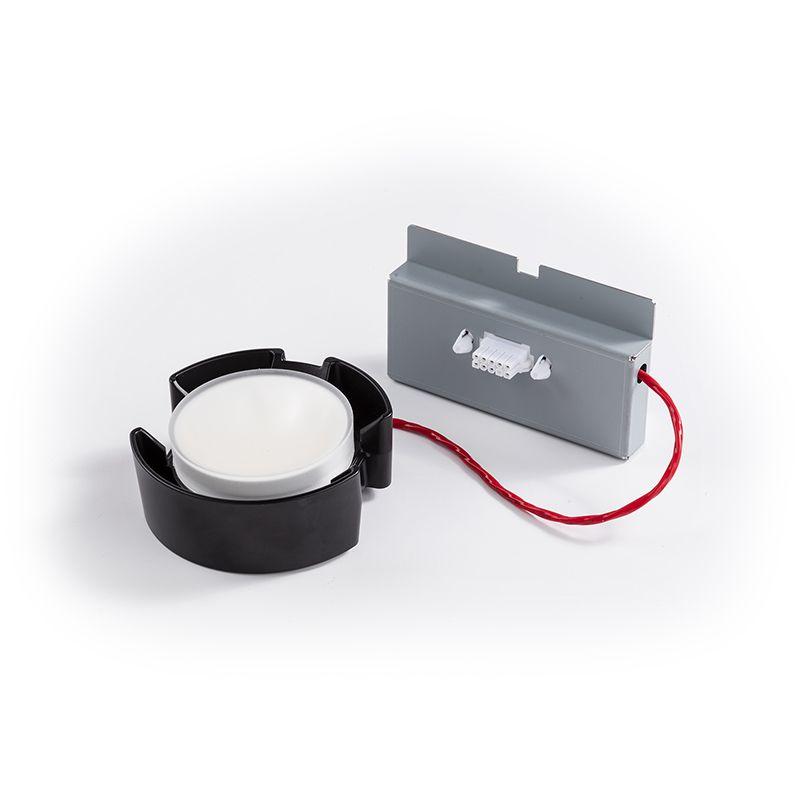

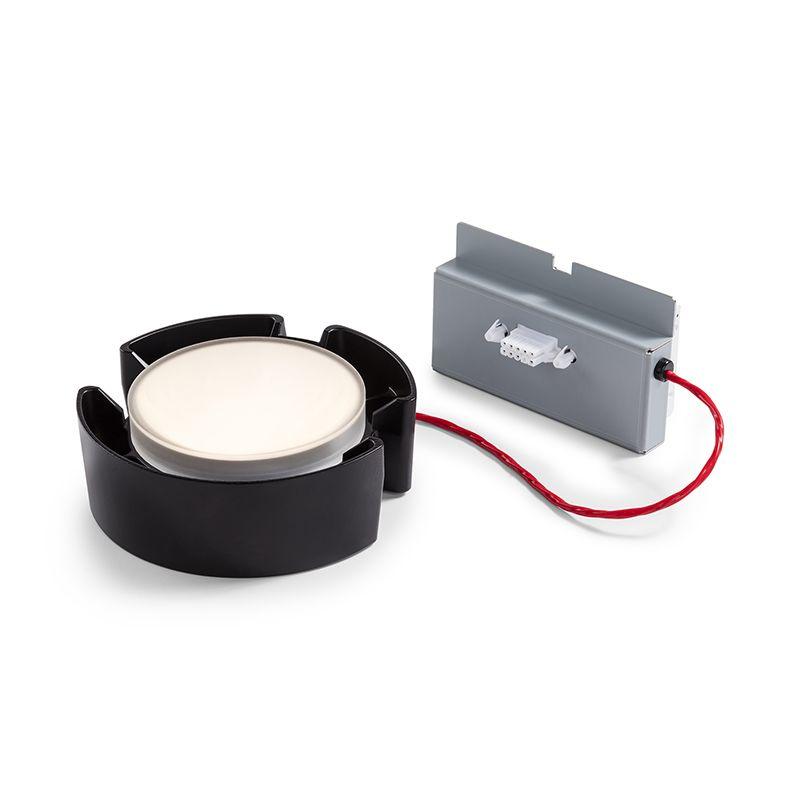

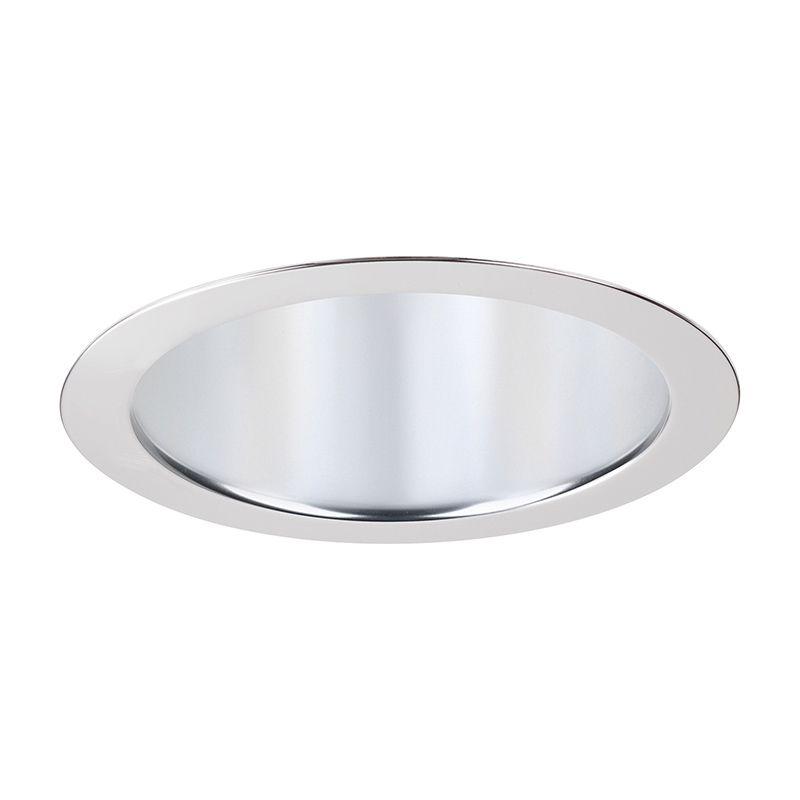

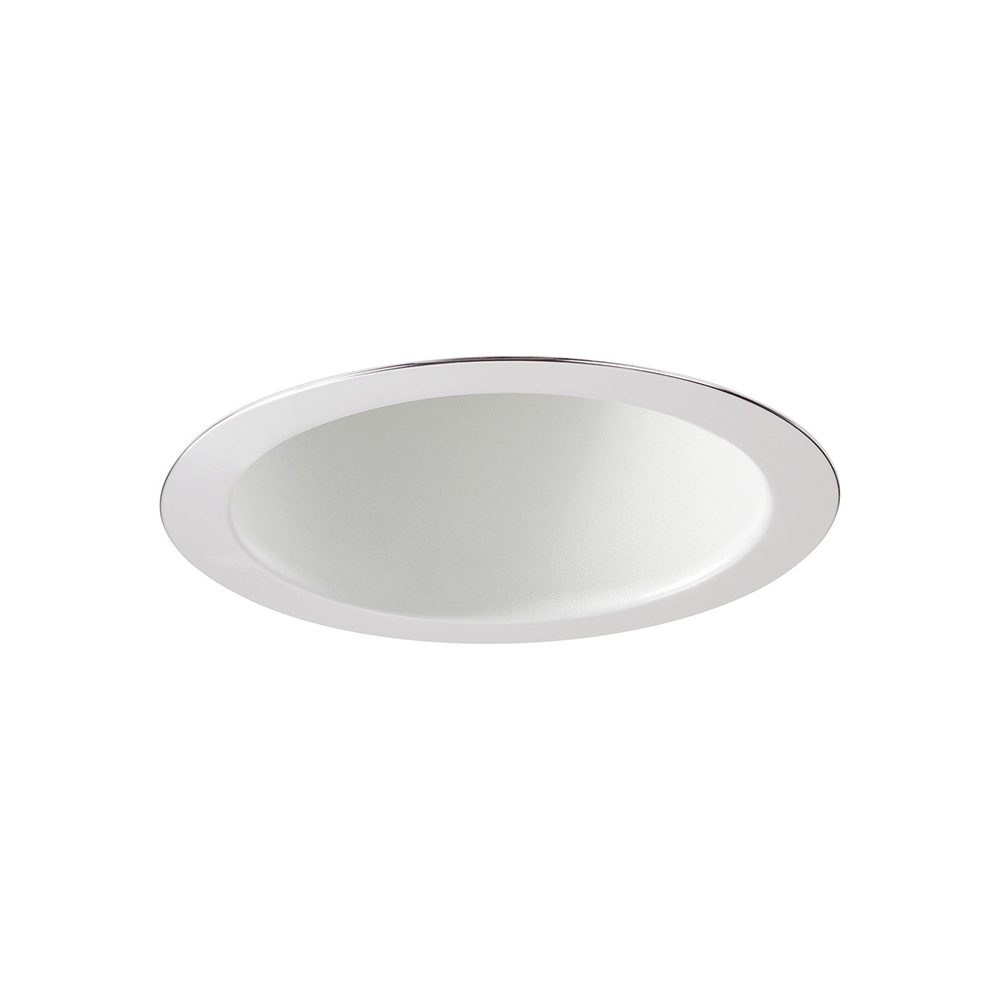

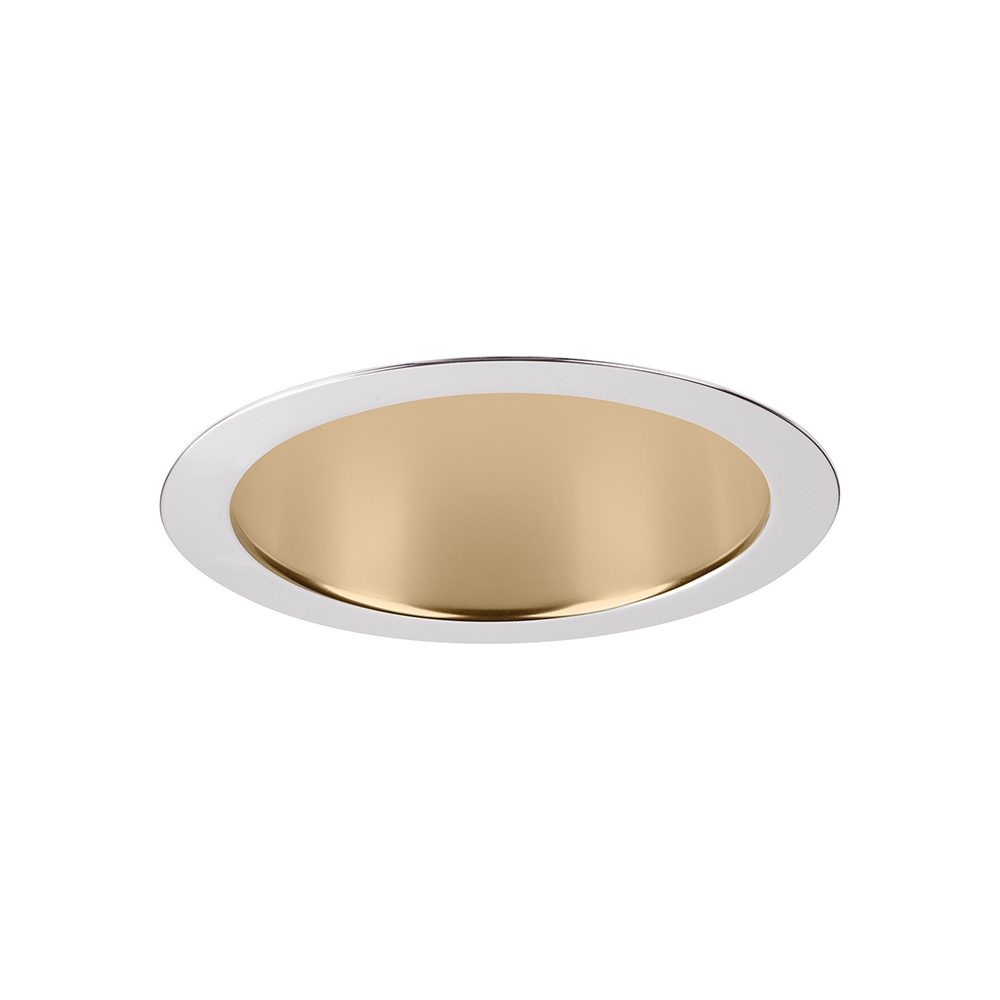

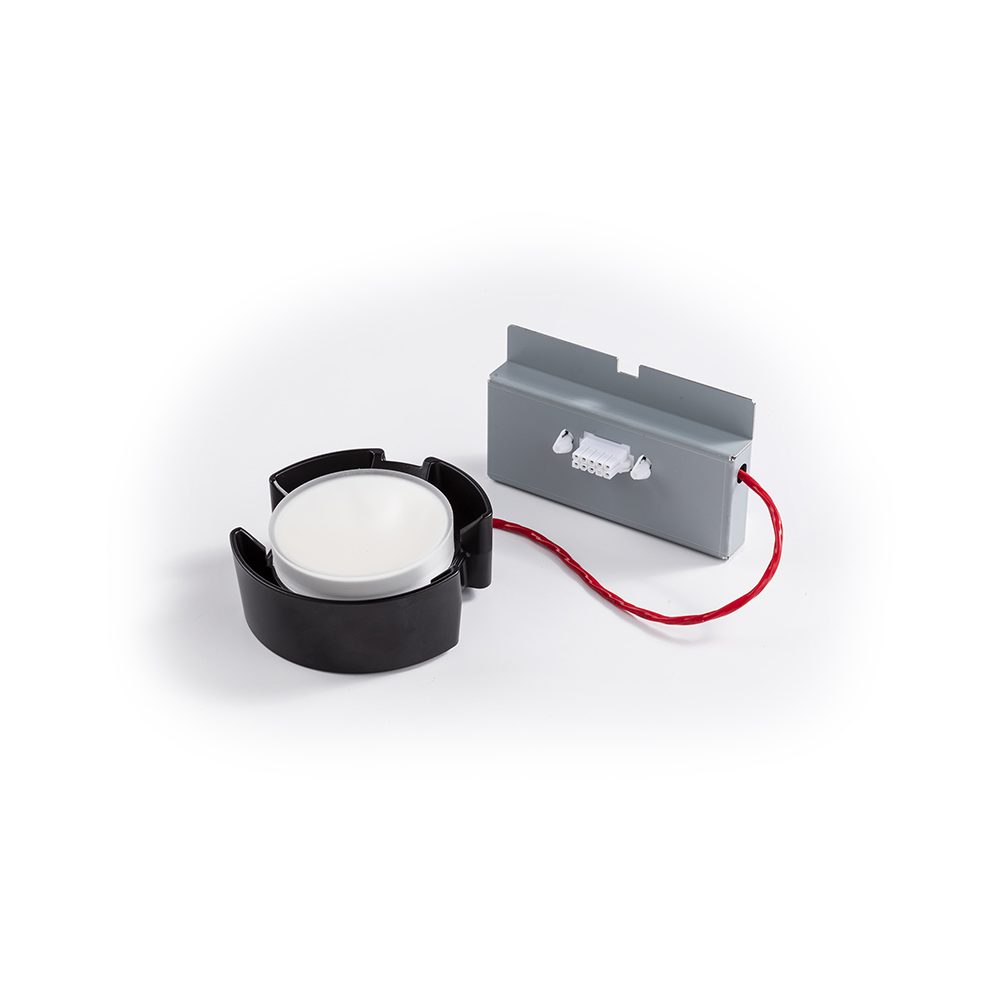

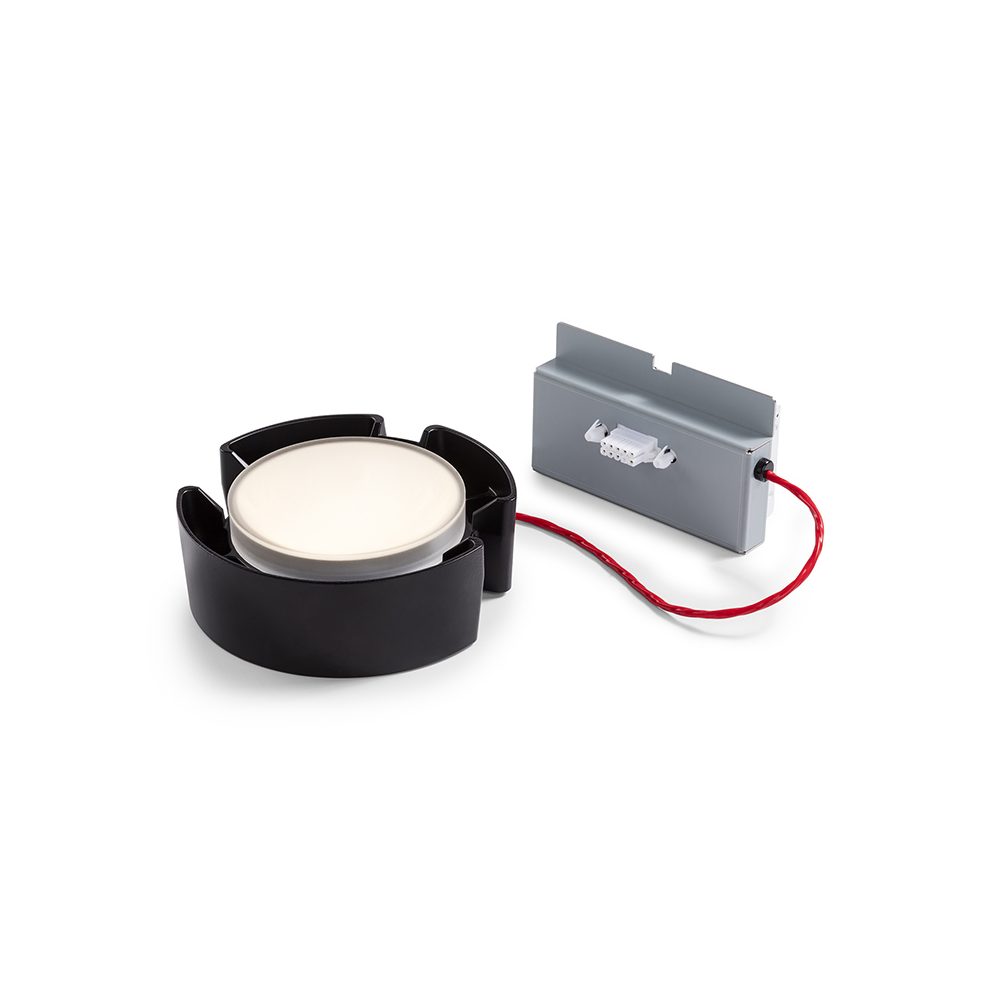

  • Easy specification: use the same Calculite frame and reflector with the tunable white light engine
  • Available in 4", 6", 7", round & square apertures
  • CCT color tunability: 2700K to 6500K

Applications

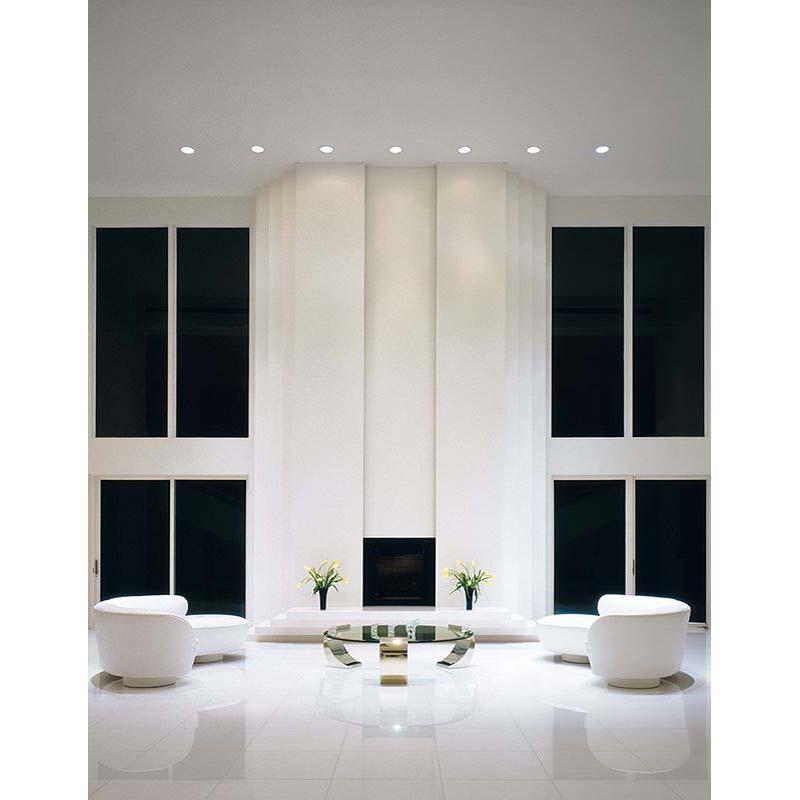

  • Residential

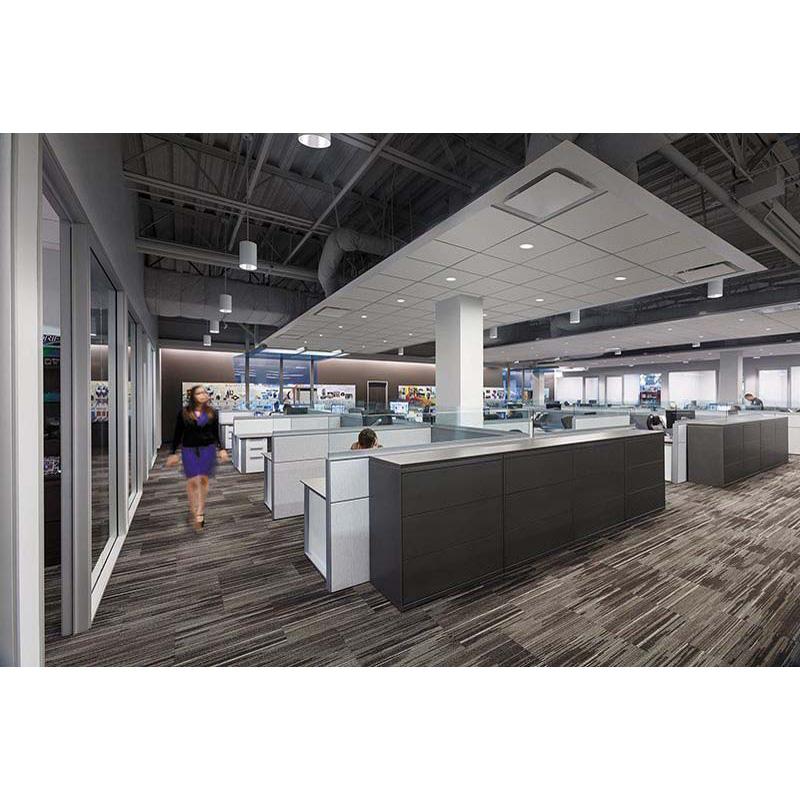

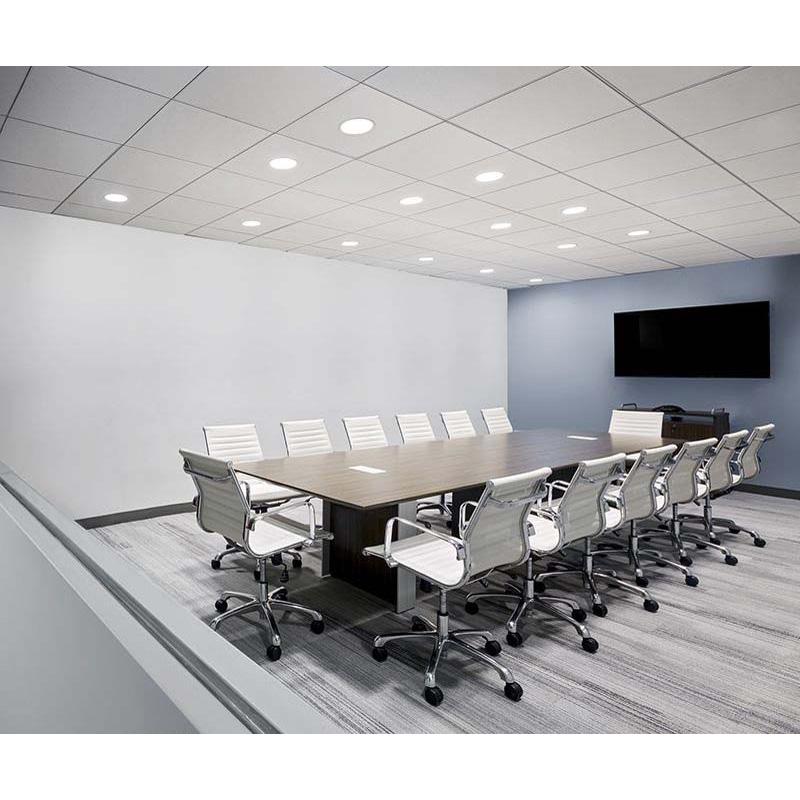

  • Office
  • Banks

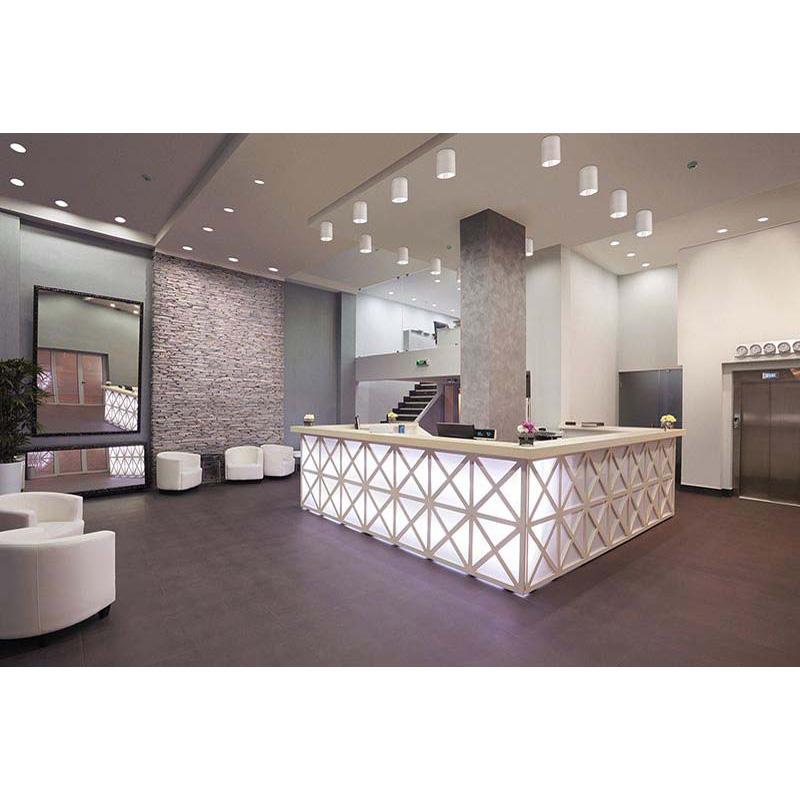

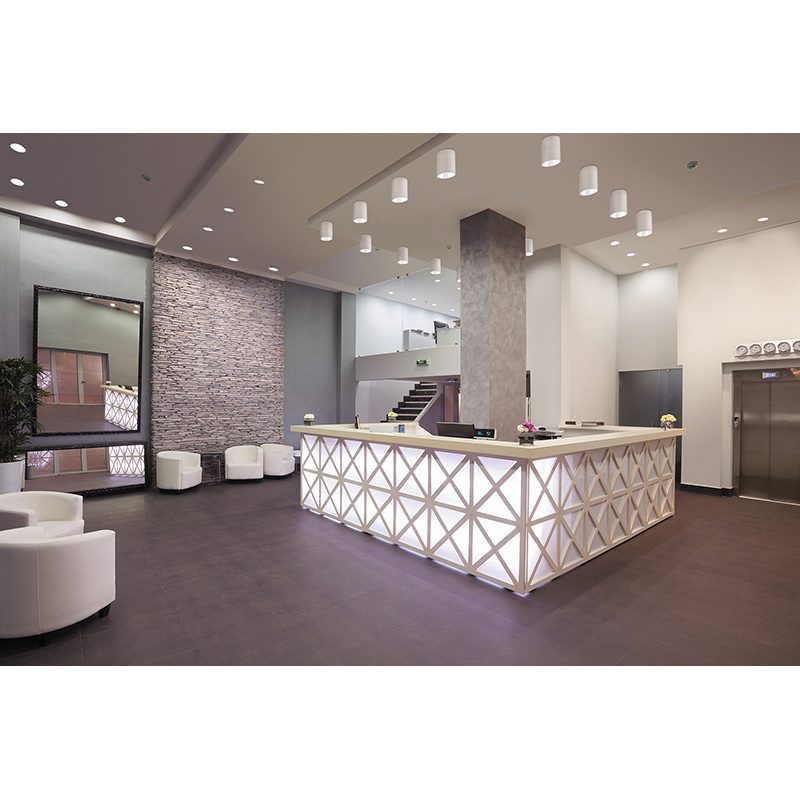

  • Hospitality

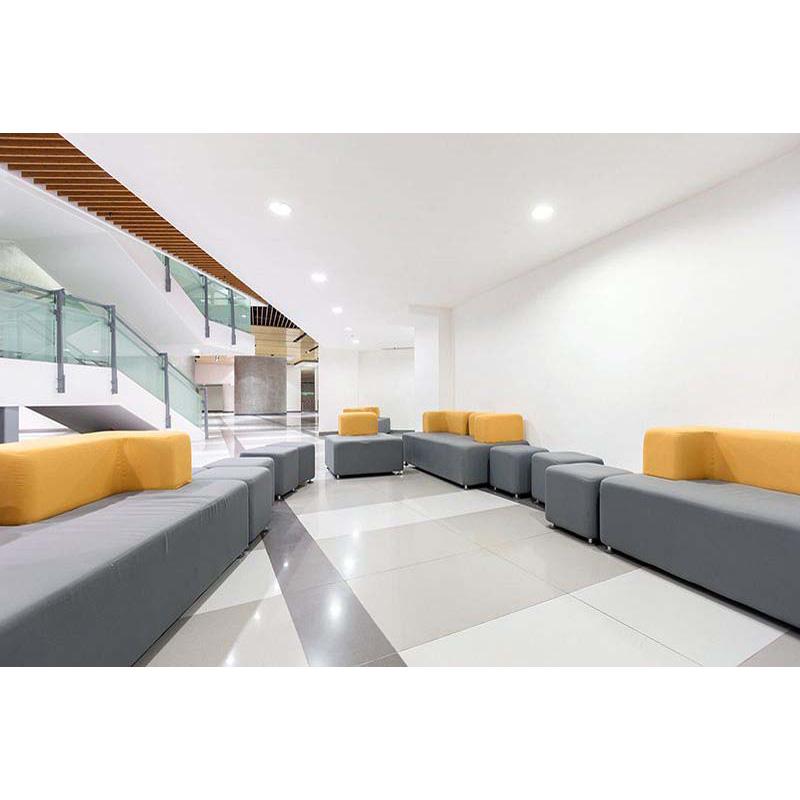

  • Airports

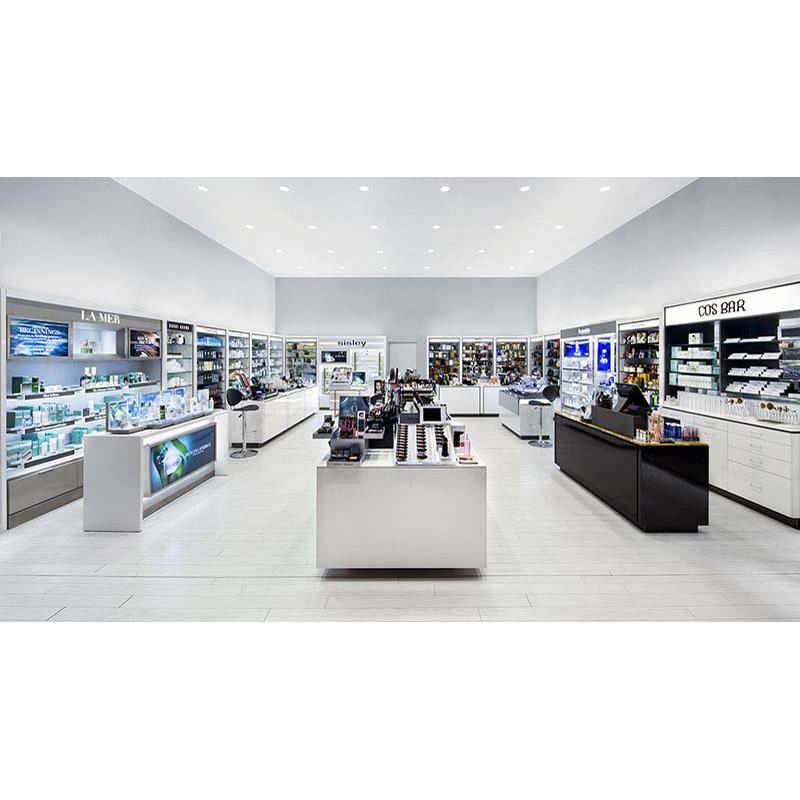

  • Fashion
Product Files

Click for CalculiteLEDgen3_4in_TunableWhite_C4RTW-Spec PDF

Click for CalculiteLEDgen3_4in_TunableWhite_C4STW.pdf

Click for CalculiteLEDgen3_6in_TunableWhite_C6RTW.pdf

Click for Calculite LEDgen3_6in_TunableWhite_C6STW.pdf

Click for LED Downlight Dimming Compatibility

Click for PLi-1637BN-Calculite-family-bulletin

Click for Lightolier Comprehensive Catalog

Click for C4L C6L DUTW Series Calculite LED Gen 3 Tunable White light engines & trims - Install Instructions - English - French

Click for C6L25865WDUTW_Calculite LED tunable white gen 3
