Lightolier Lytecaster LED Accent
Product Name | SKU | Watts | Lumens | Kelvin |
---|---|---|---|---|

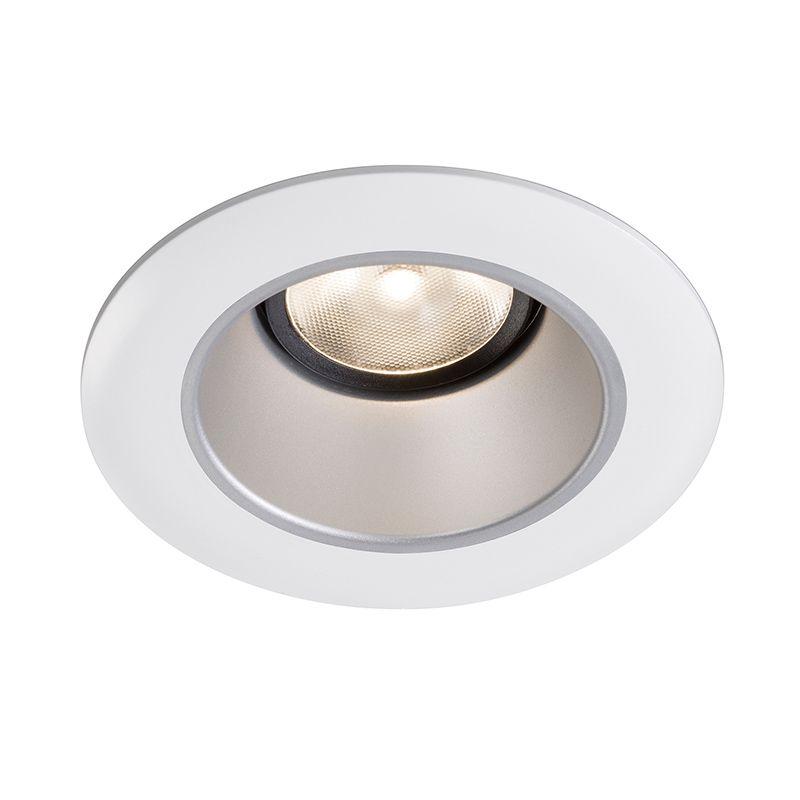

3\" Round Downlight White Baffle White Flange | L3RBW | |||

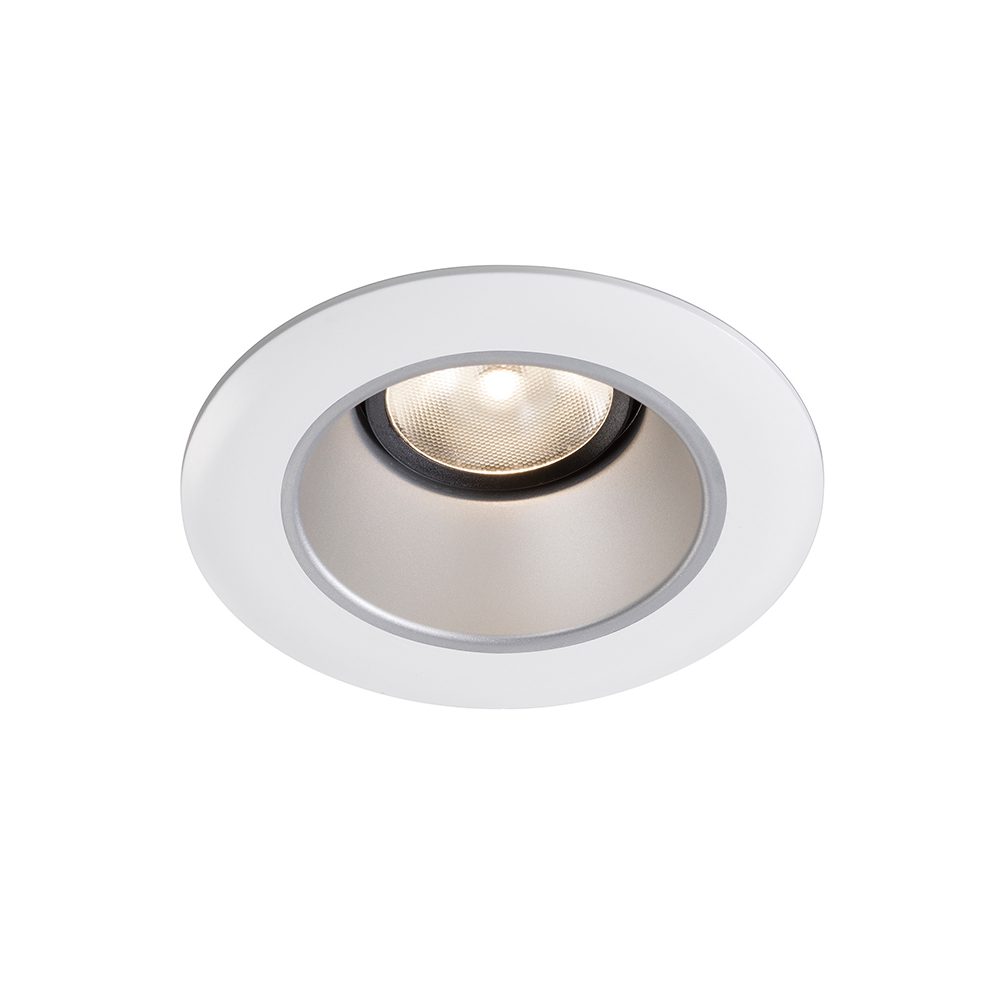

3\" Round Downlight Chrome Cone White Flange | L3RDC | |||

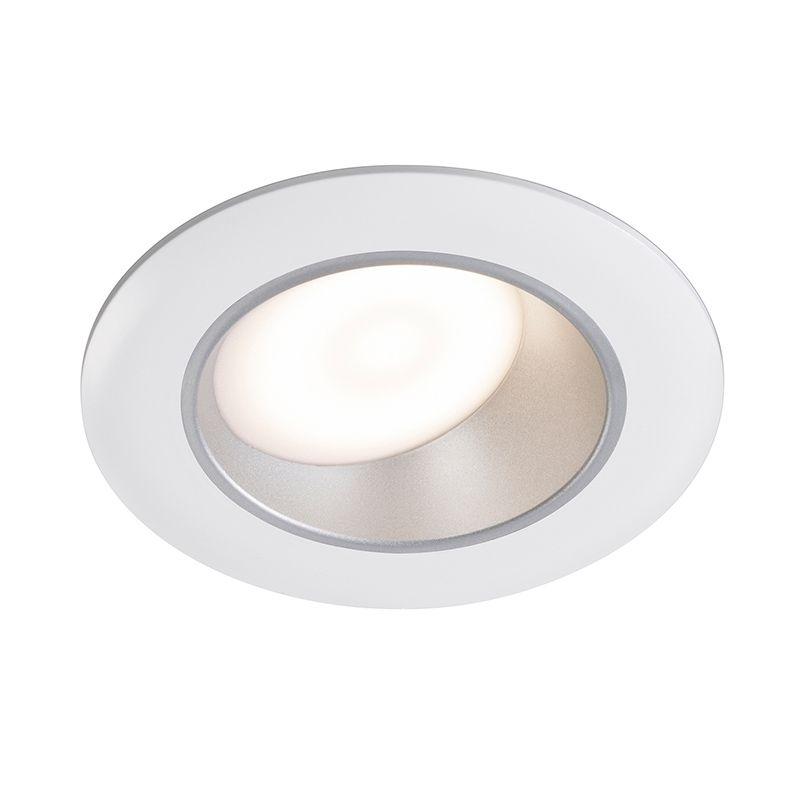

3\" Round Downlight Diffused Cone White Flange | L3RDD | |||

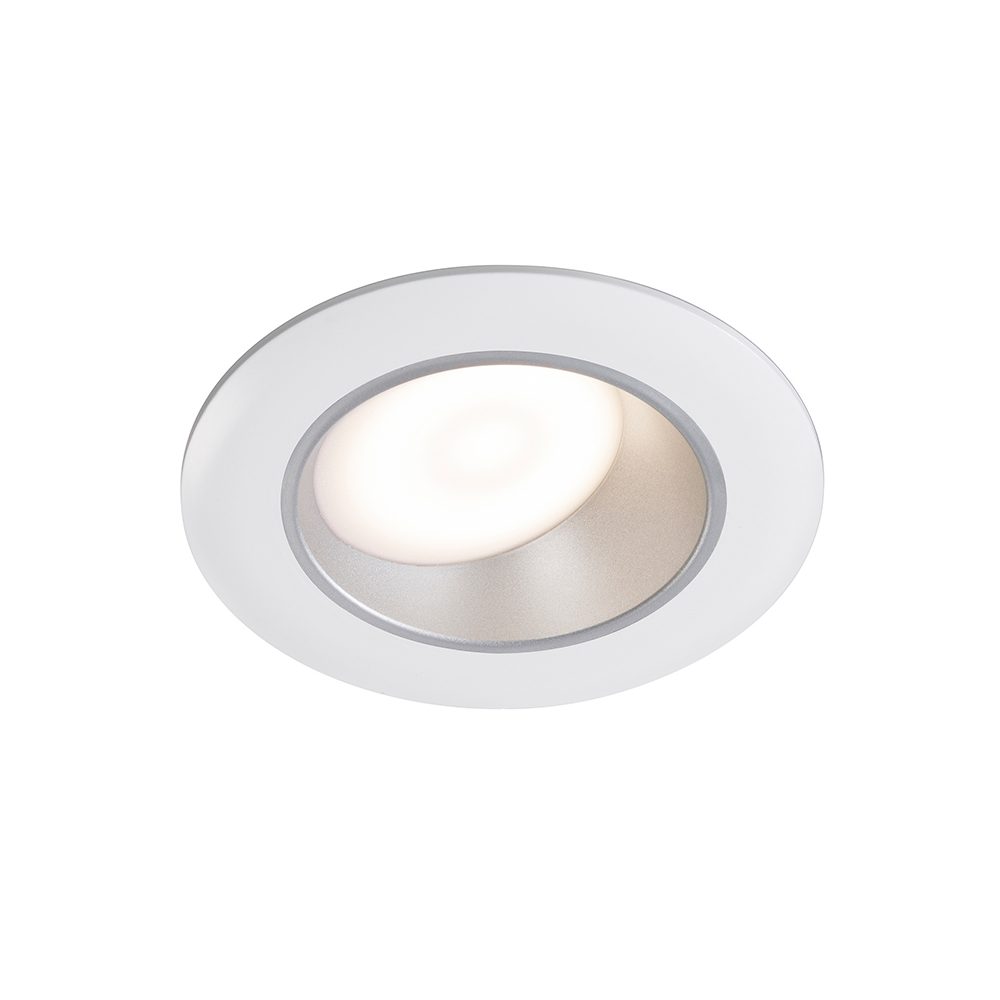

3\" Round Downlight White Cone White Flange | L3RDW | |||

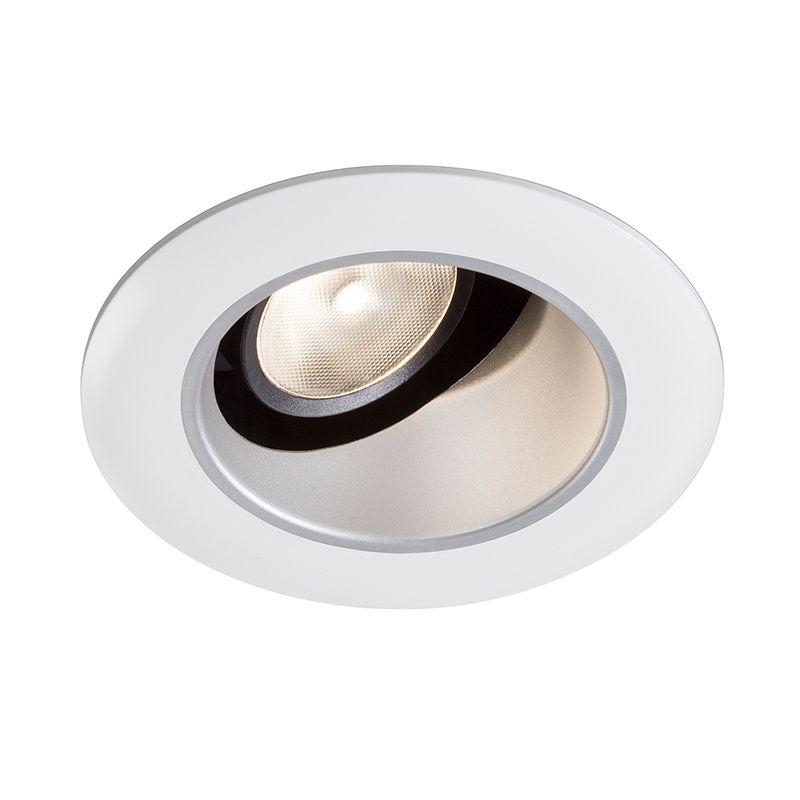

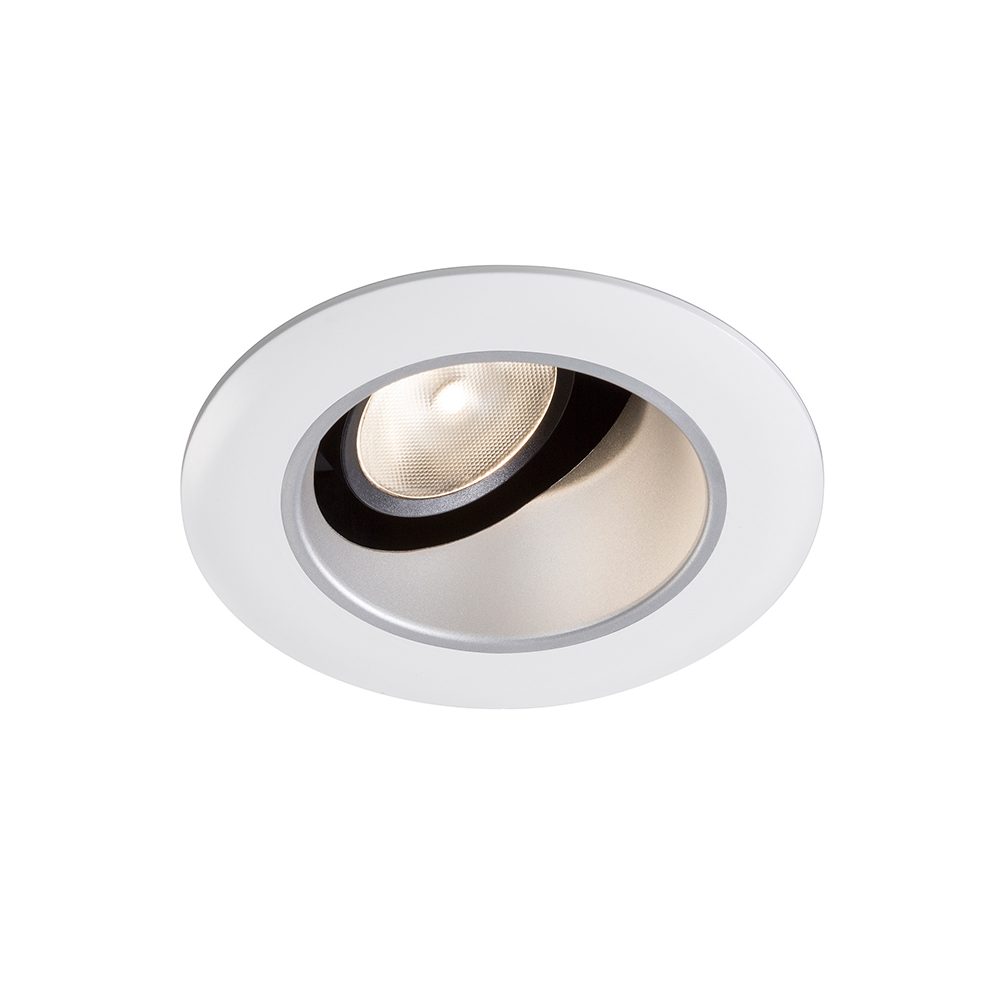

3\" Round Adjustable Accent White Baffle White Flange | L3RABW | |||
3\" Round Adjustable Accent Chrome Cone White Flange | L3RAC | |||
3\" Round Adjustable Accent Diffused Cone White Flange | L3RAD | |||
3\" Round Adjustable Accent White Cone White Flange | L3RAW | |||

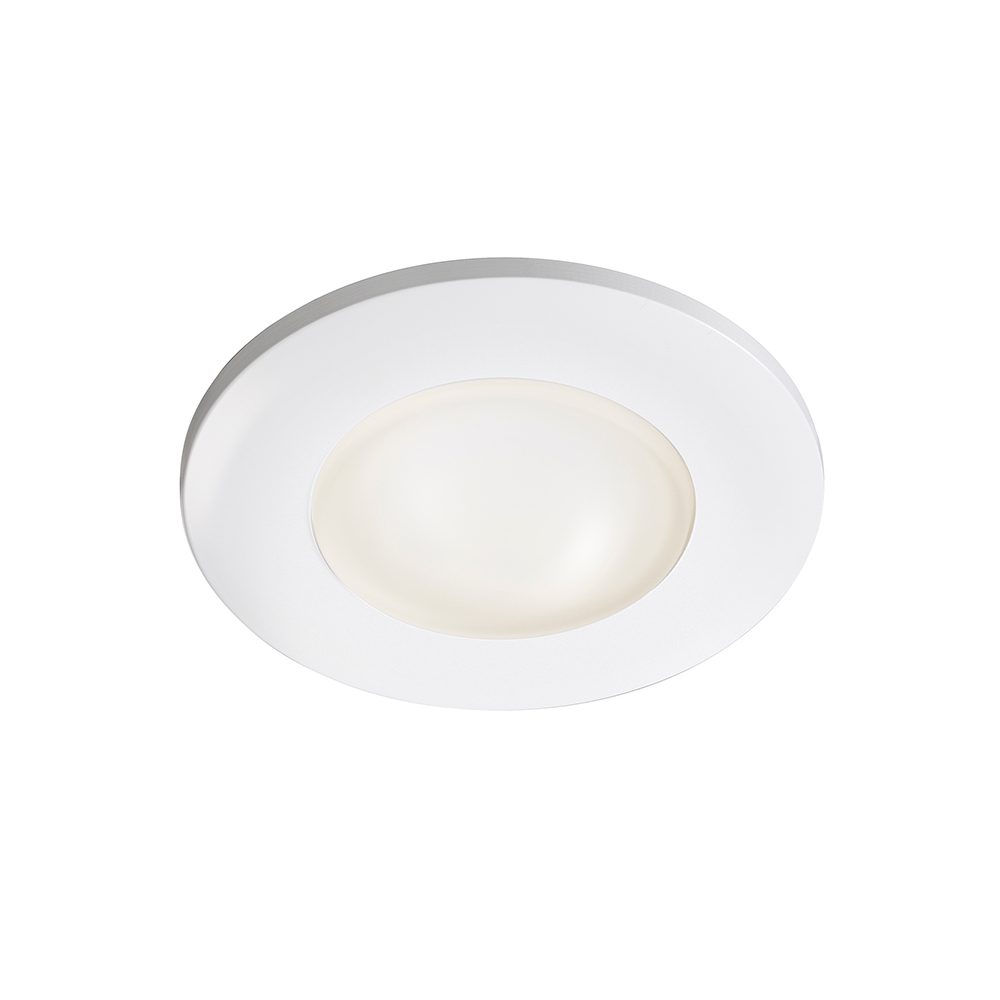

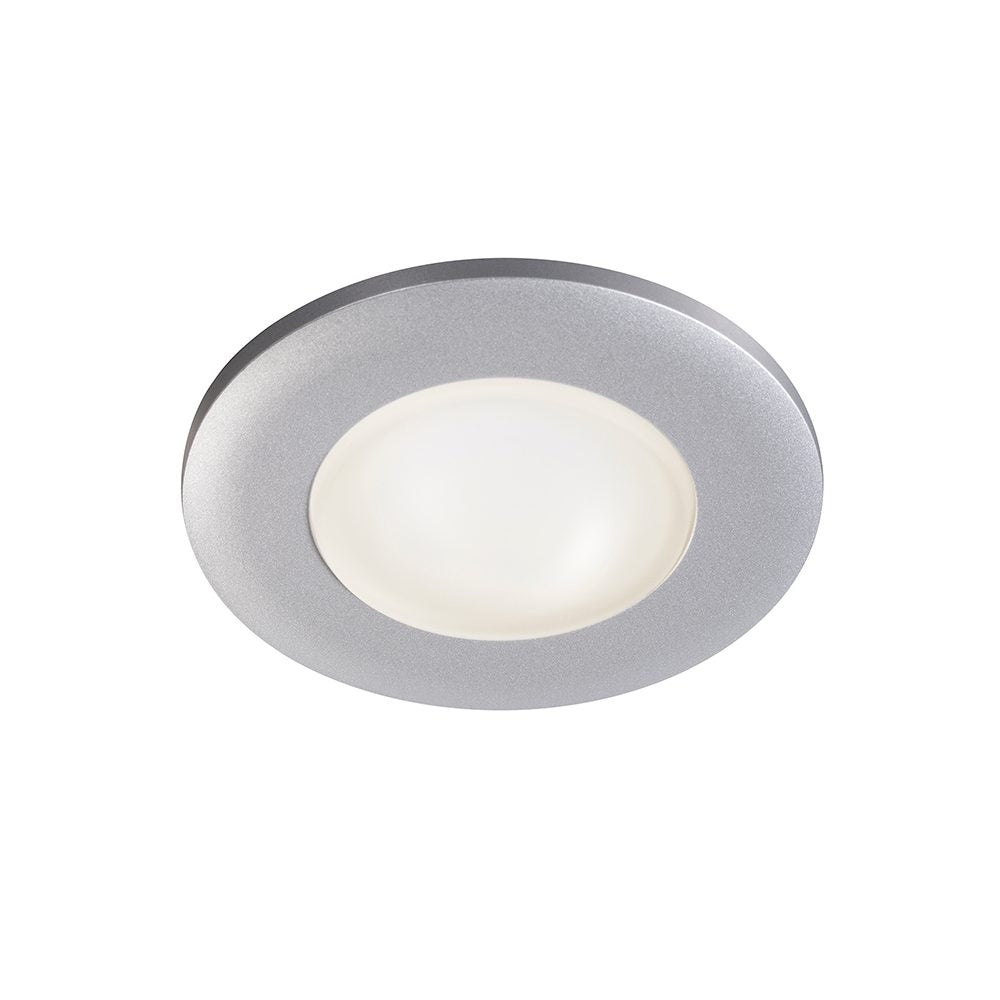

3\" Round Downlight Shower Light Flat Glass White | L3RSW | |||
3\" Round Downlight Shower Light Flat Glass Aluminum | L3RSA | |||
3\" Round Wall Washer Chrome Cone White Flange | L3RLWC | |||
3\" Round Wall Washer Diffused Cone White Flange | L3RLWD | |||
3\" Round Wall Washer White Cone White Flange | L3RLWW | |||

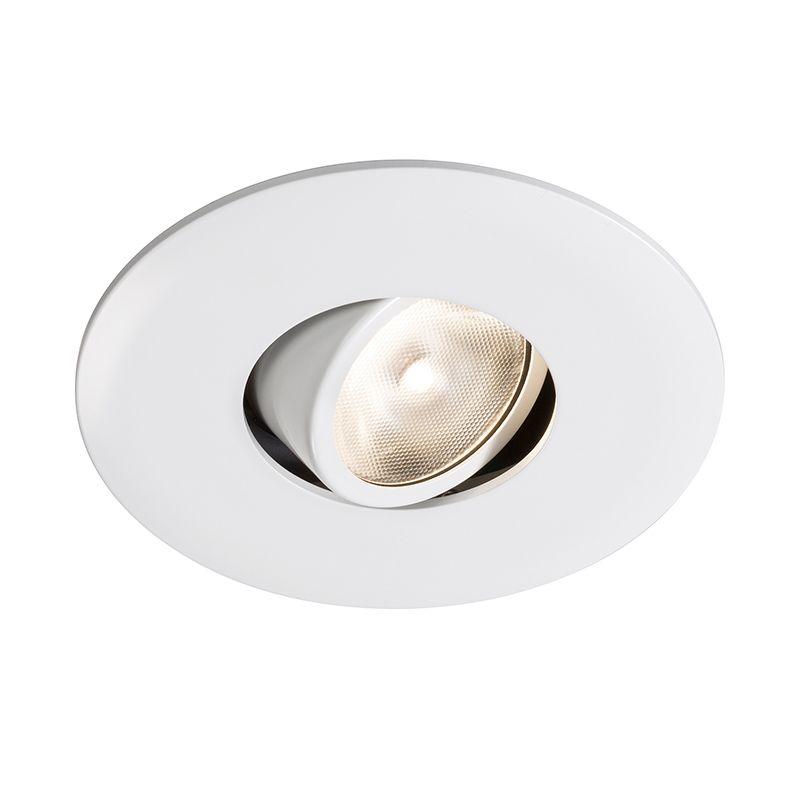

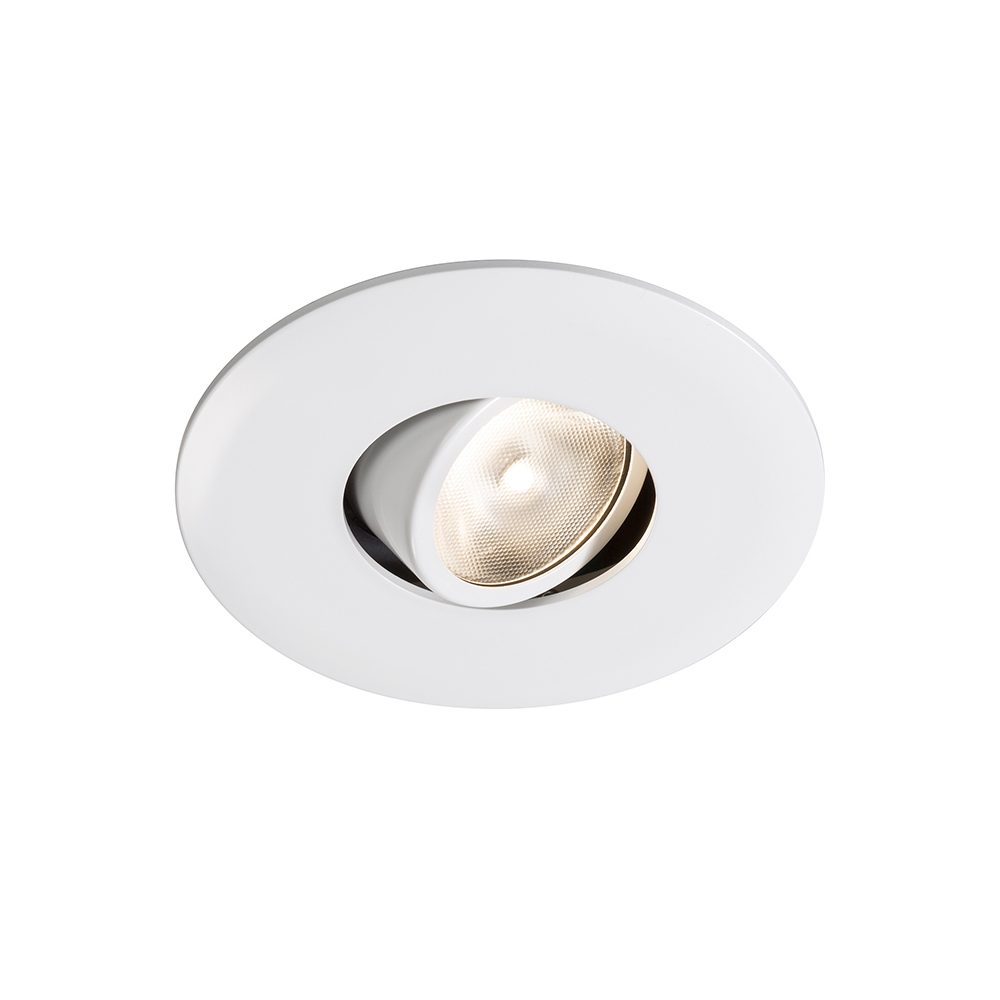

3\" Adjustable Gimbal White | L3RGW | |||
3\" Adjustable Gimbal Black | L3RGB | |||
3\" Adjustable Gimbal Aluminum | L3RGA | |||

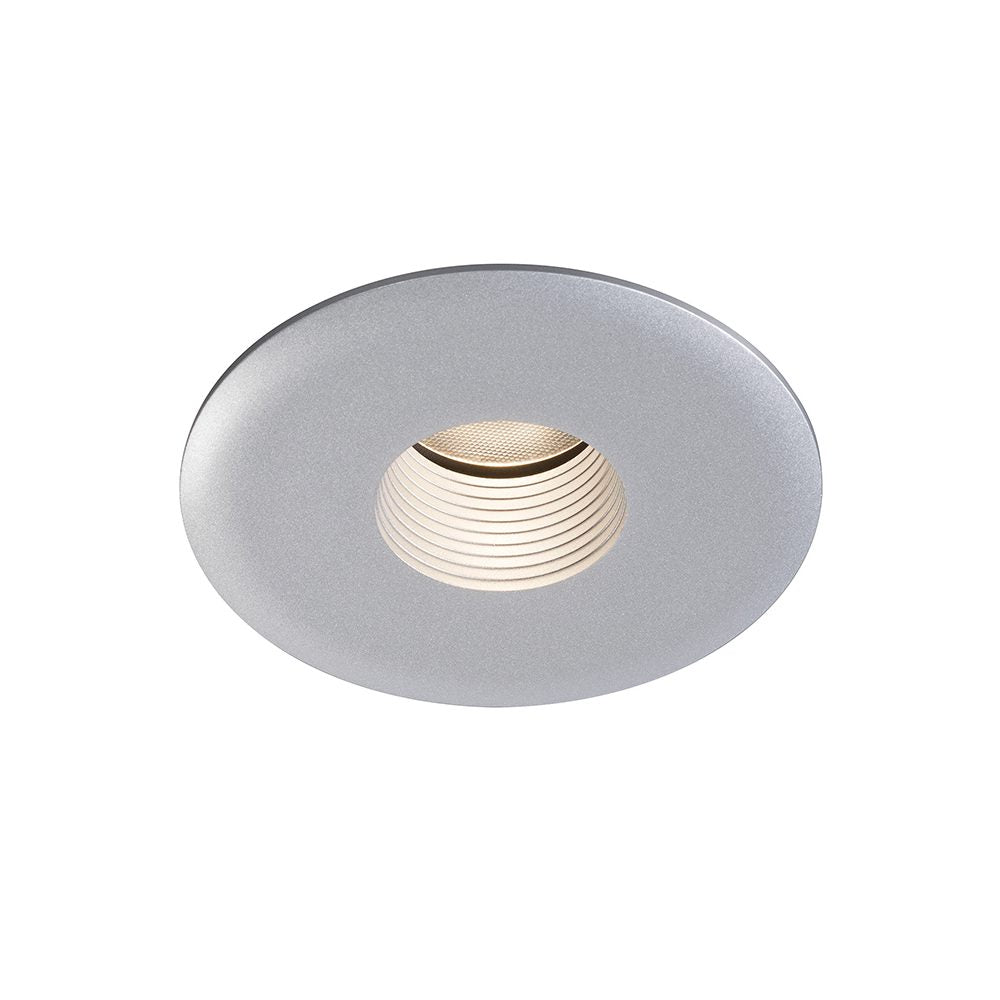

3\" Adjustable Accent Pinhole Baffle White | L3RAPW | |||
3\" Adjustable Accent Pinhole Baffle Aluminum | L3RAPA | |||

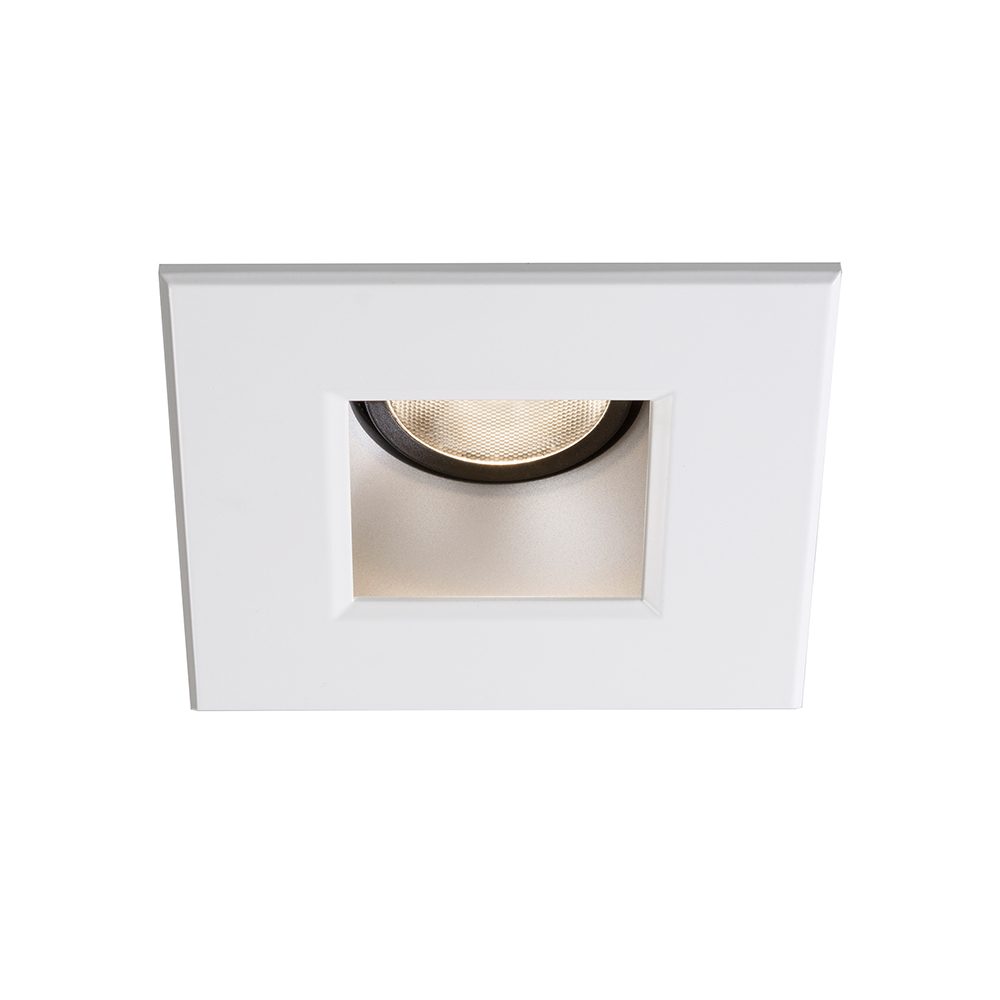

3\" Square Downlight Diffuse Cone White Face Plate | L3SDD | |||
3\" Square Downlight Diffuse Cone Aluminum Face Plate | L3SDDA | |||

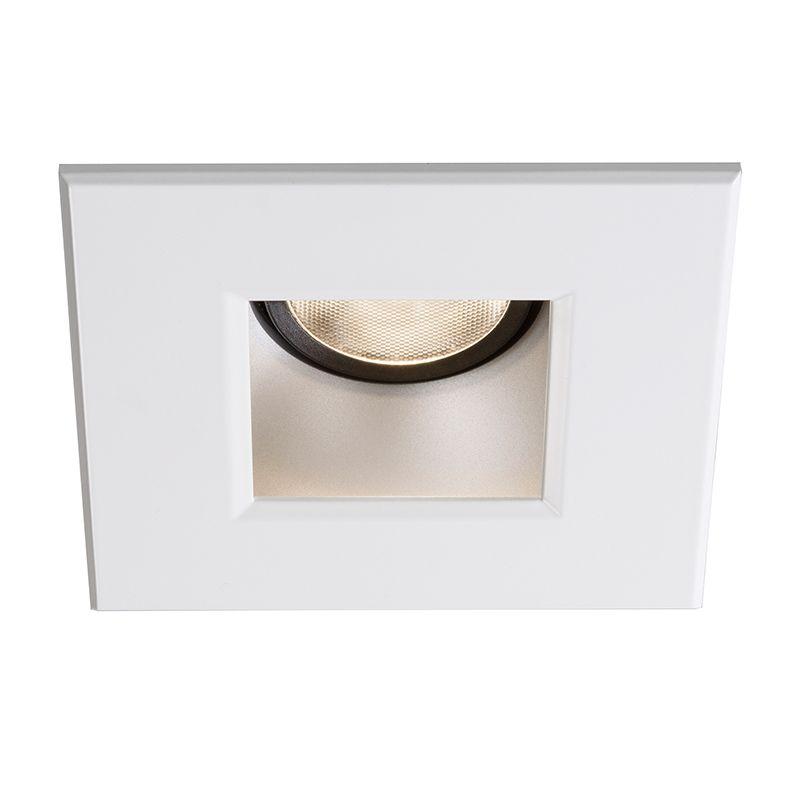

3\" Square Downlight White Cone White Face Plate | L3SDW | |||

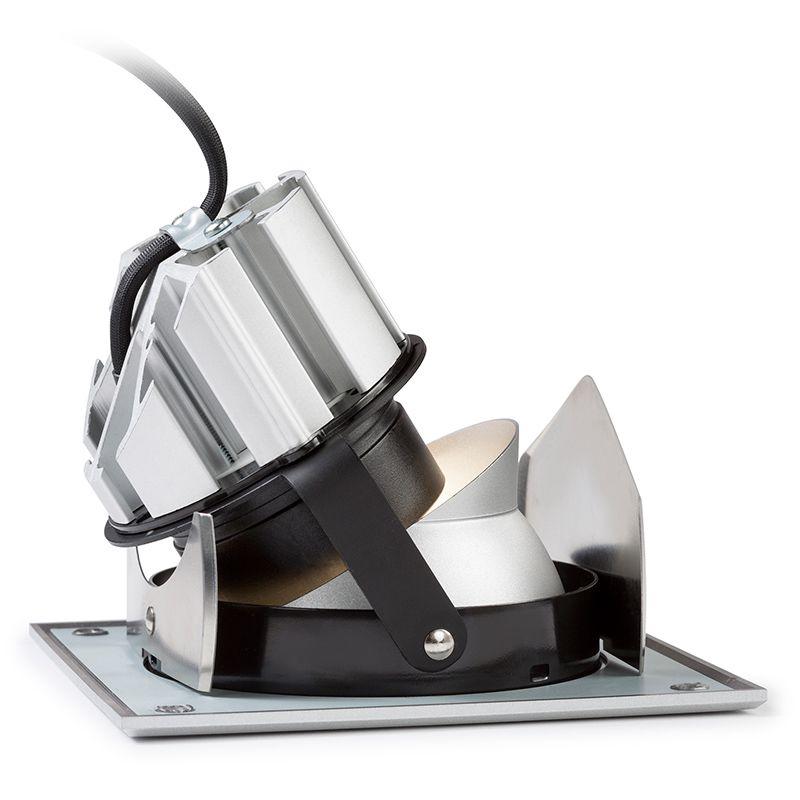

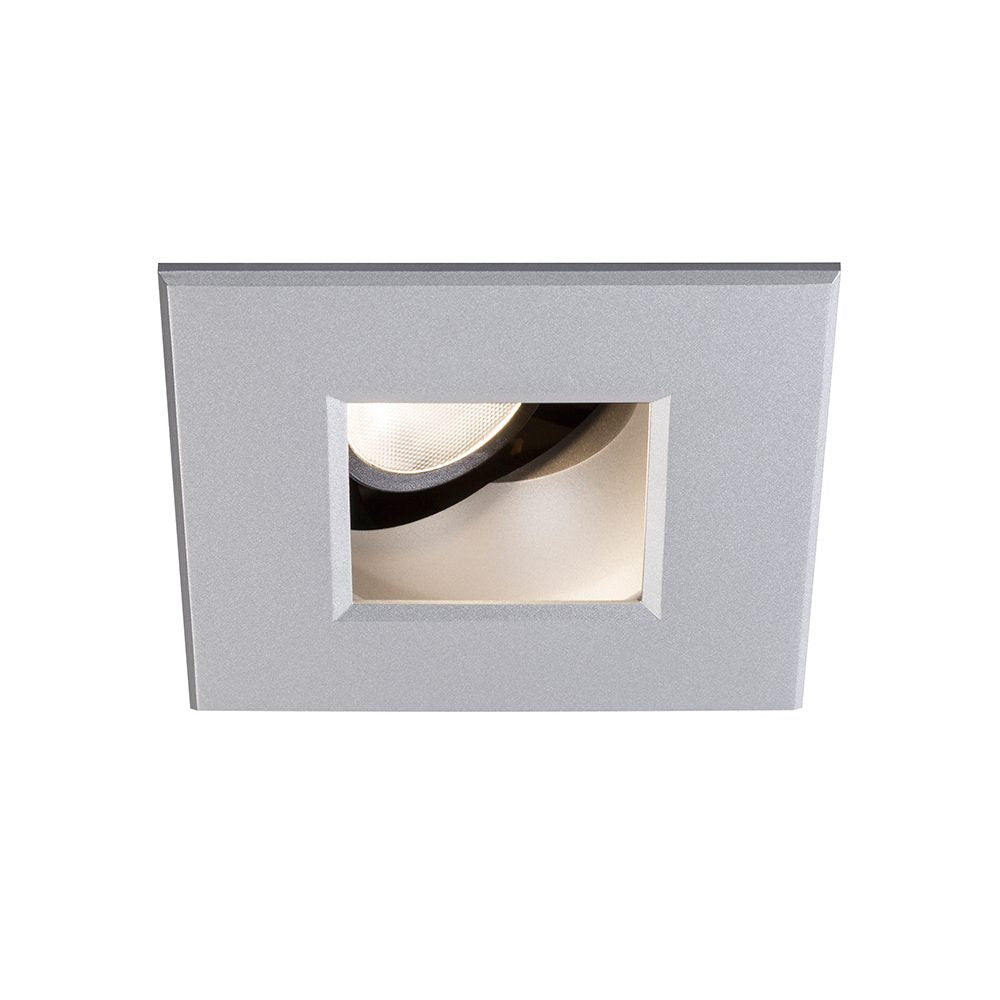

3\" Square Adjustable Diffuse Cone White Face Plate | L3SAD | |||
3\" Square Adjustable Diffuse Cone Aluminum Face Plate | L3SADA | |||

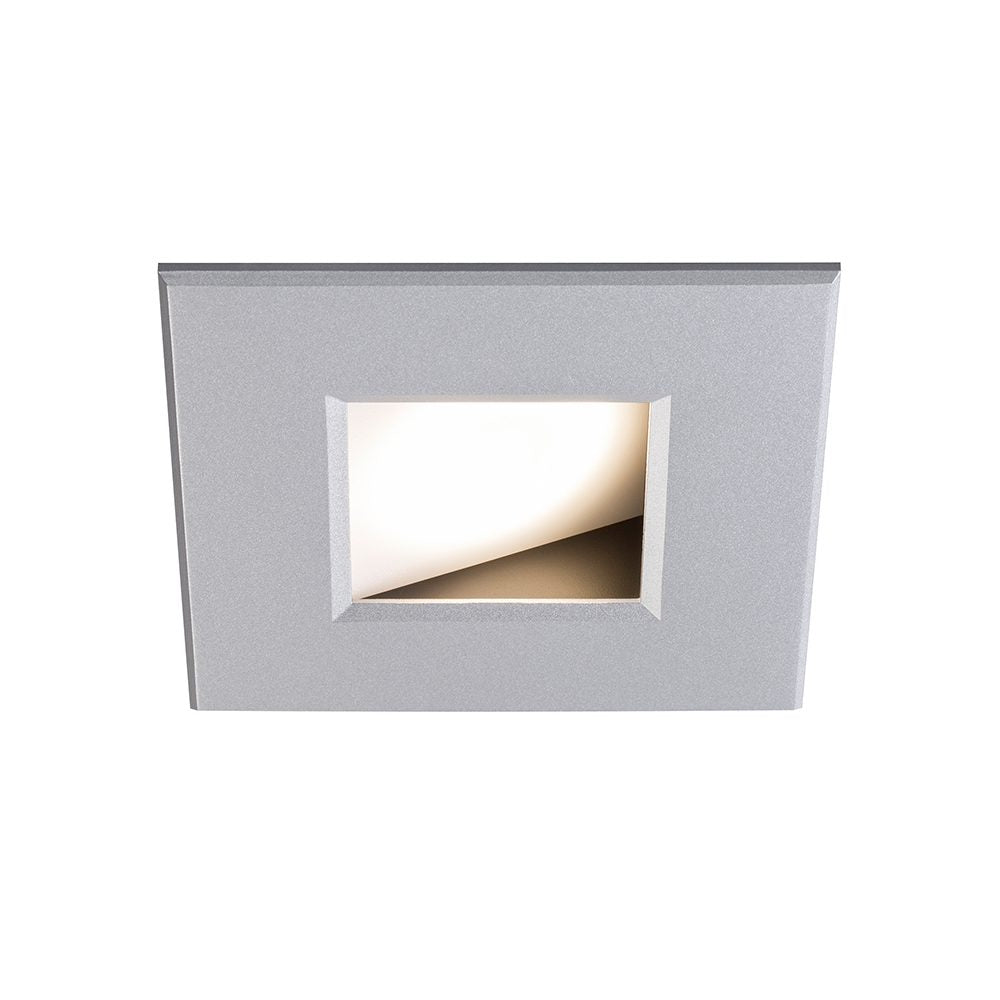

3\" Square Wall Wash White Face Plate | L3SLWW | |||
3\" Square Wall Wash Aluminum Face Plate | L3SLWA | |||

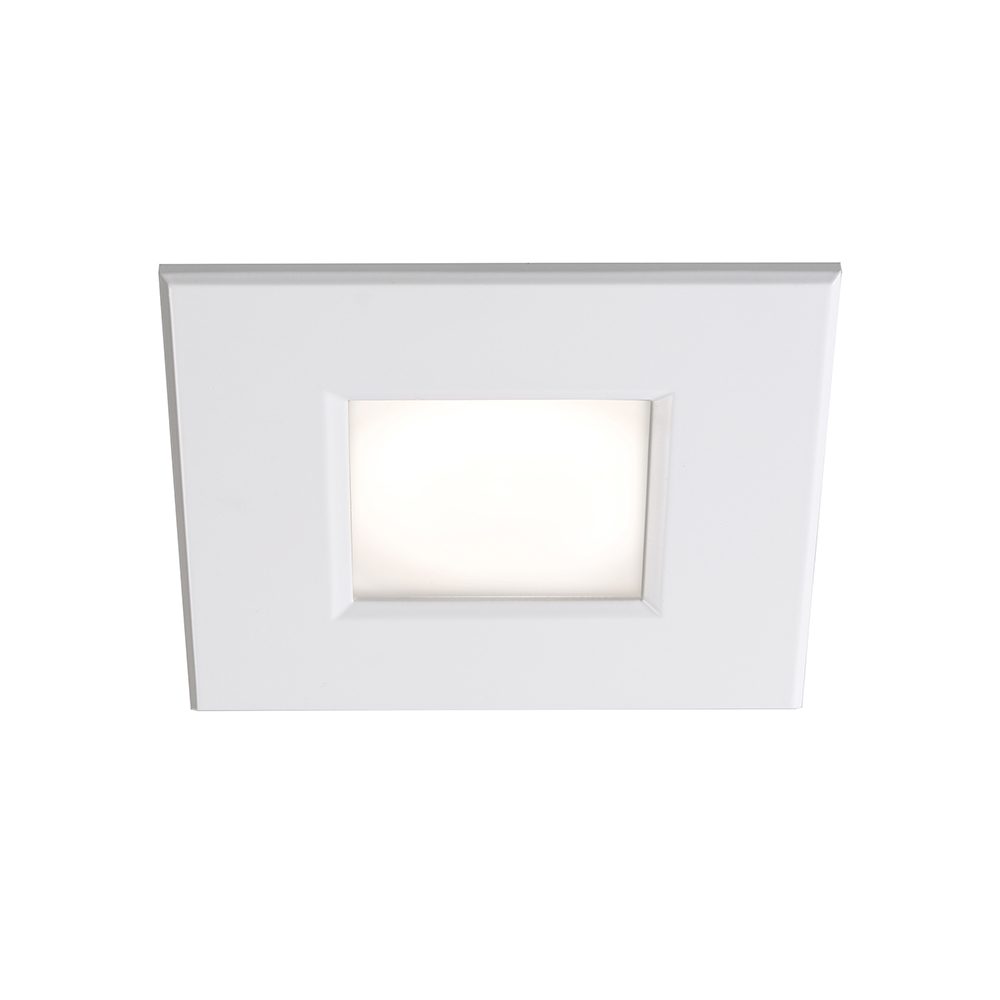

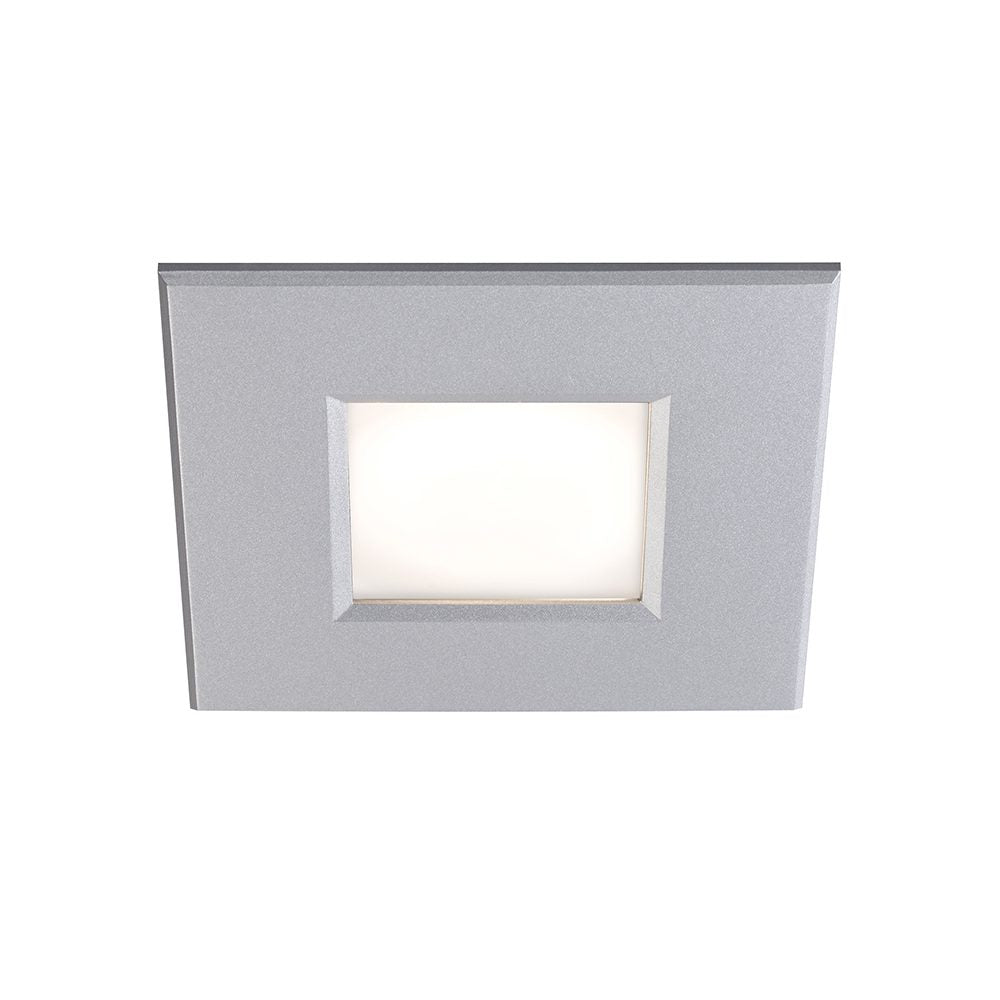

3\" Square Shower Light White Face Plate | L3SSW | |||
3\" Square Shower Light Aluminum Face Plate | L3SSA | |||

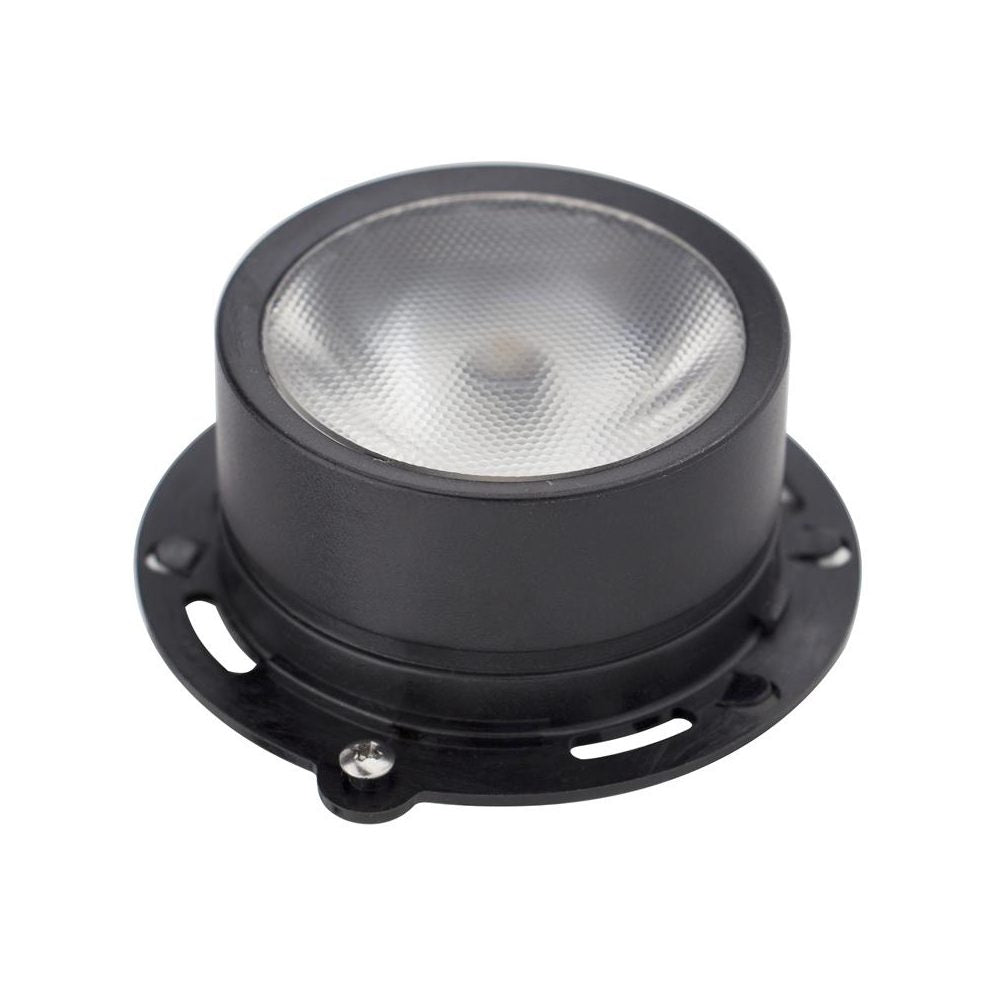

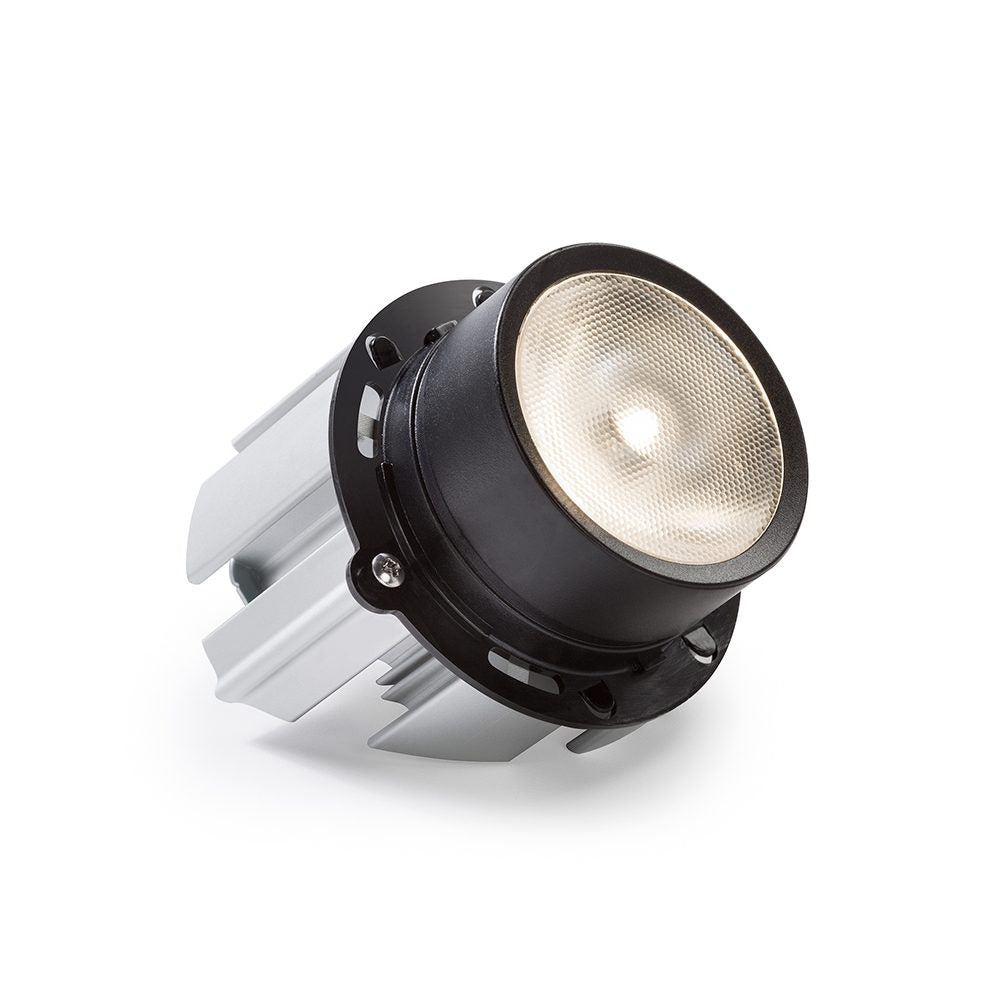

3\" Light Engine 2700K 80 CRI Narrow Flood | L308827NF | 11 | 800 | 2700 |
3\" Light Engine 2700K 90 CRI Narrow Flood | L308927NF | 11 | 800 | 2700 |
3\" Light Engine 2700K 80 CRI Flood | L308827F | 11 | 800 | 2700 |
3\" Light Engine 2700K 90 CRI Flood | L308927F | 11 | 800 | 2700 |
3\" Light Engine 2700K 80 CRI Spot | L308827S | 11 | 800 | 2700 |
3\" Light Engine 2700K 90 CRI Spot | L308927S | 11 | 800 | 2700 |
3\" Light Engine 3000K 80 CRI Narrow Flood | L308830NF | 11 | 800 | 3000 |
3\" Light Engine 3000K 80 CRI Flood | L308830F | 11 | 800 | 3000 |
3\" Light Engine 3000K 80 CRI Spot | L308830S | 11 | 800 | 3000 |
3\" Light Engine 3000K CrispWhite 90 CRI Narrow Flood | L308930NFCW | 11 | 800 | 3000 |
3\" Light Engine 3000K - CrispWhite 90 CRI Flood | L308930FCW | 11 | 800 | 3000 |
3\" Light Engine 3000K CrispWhite 90 CRI Spot | L308930SCW | 11 | 800 | 3000 |
3\" Light Engine 3500K 80 CRI Narrow Flood | L308835NF | 11 | 800 | 3500 |
3\" Light Engine 3500K 80 CRI Flood | L308835F | 11 | 800 | 3500 |
3\" Light Engine 3500K 80 CRI Spot | L308835S | 11 | 800 | 3500 |

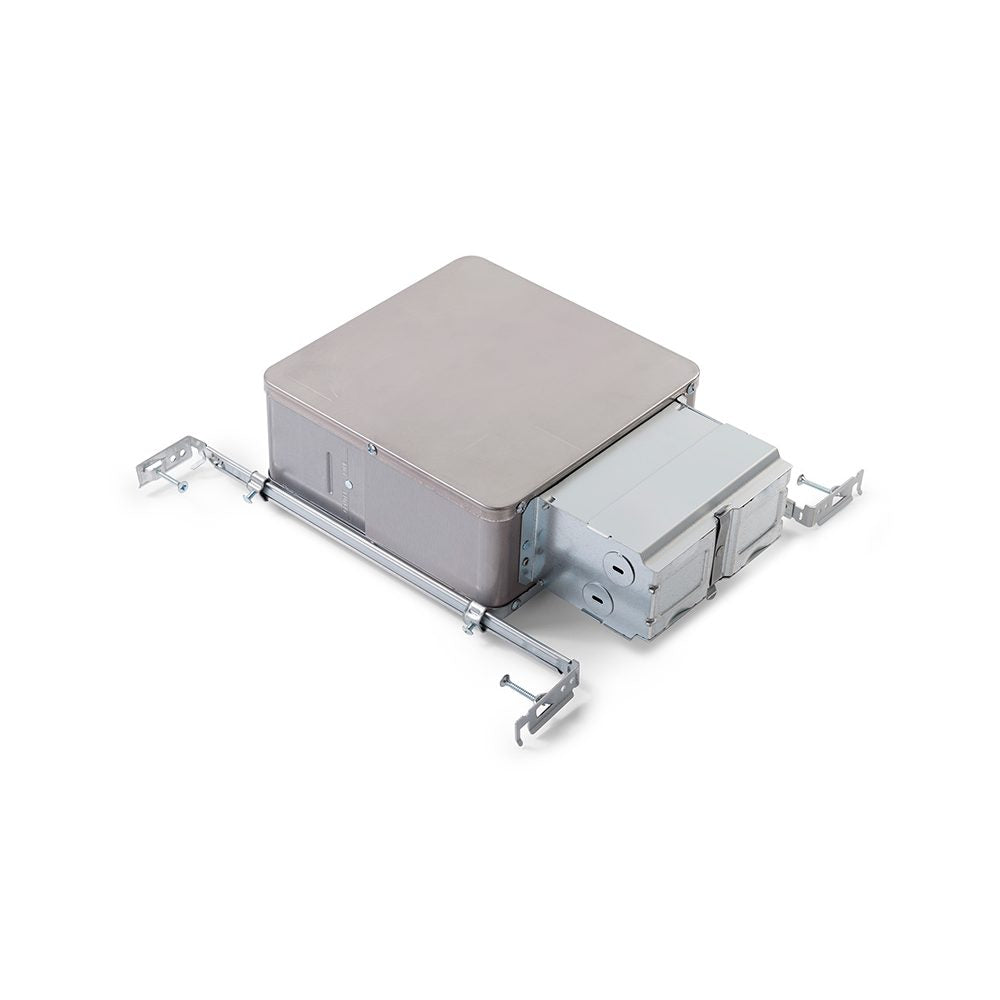

3\" New Construction AirSeal IC 120V ELV Screw | L3AE1 | |||
3\" New Construction AirSeal IC 120V ELV Nail | L3ANE1 | |||

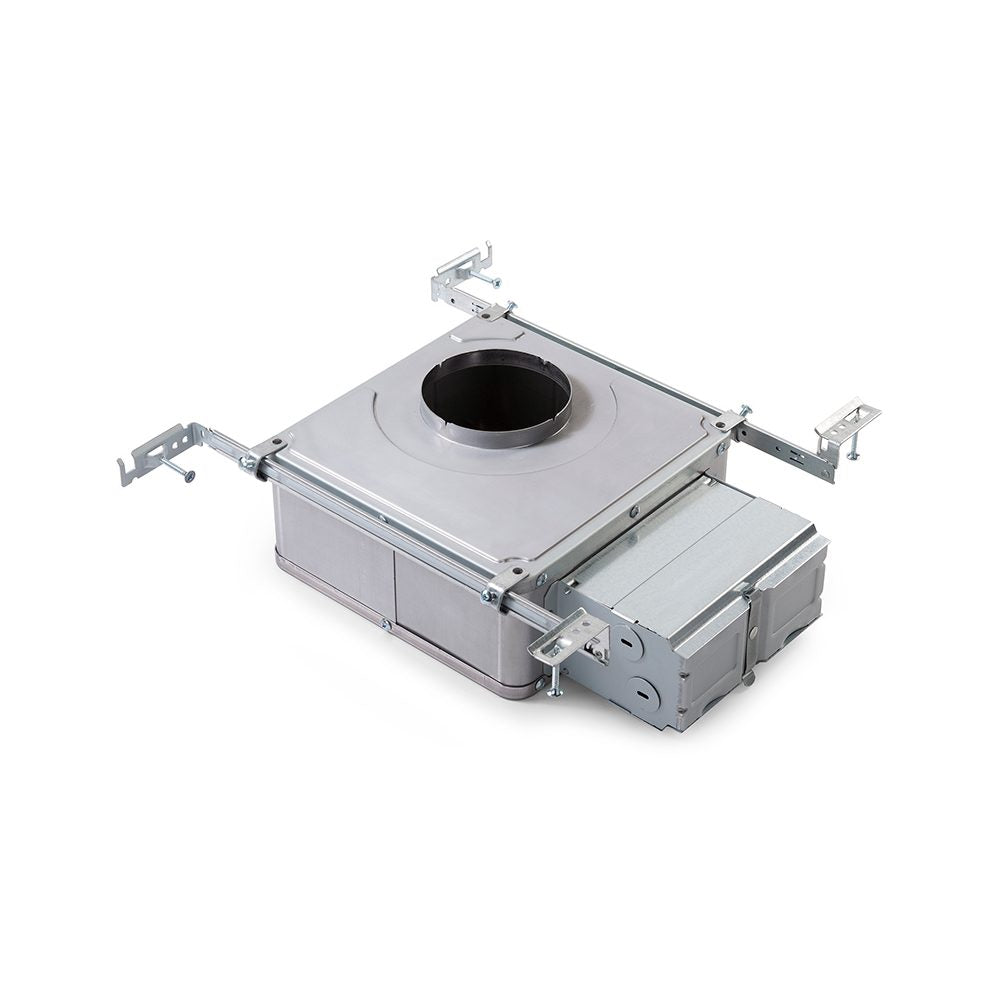

3\" New Construction Non-IC 120V/277 0-10V Screw | L3NZ10U | |||
3\" Remodeler Non-IC 120V ELV | L3CE1 | |||

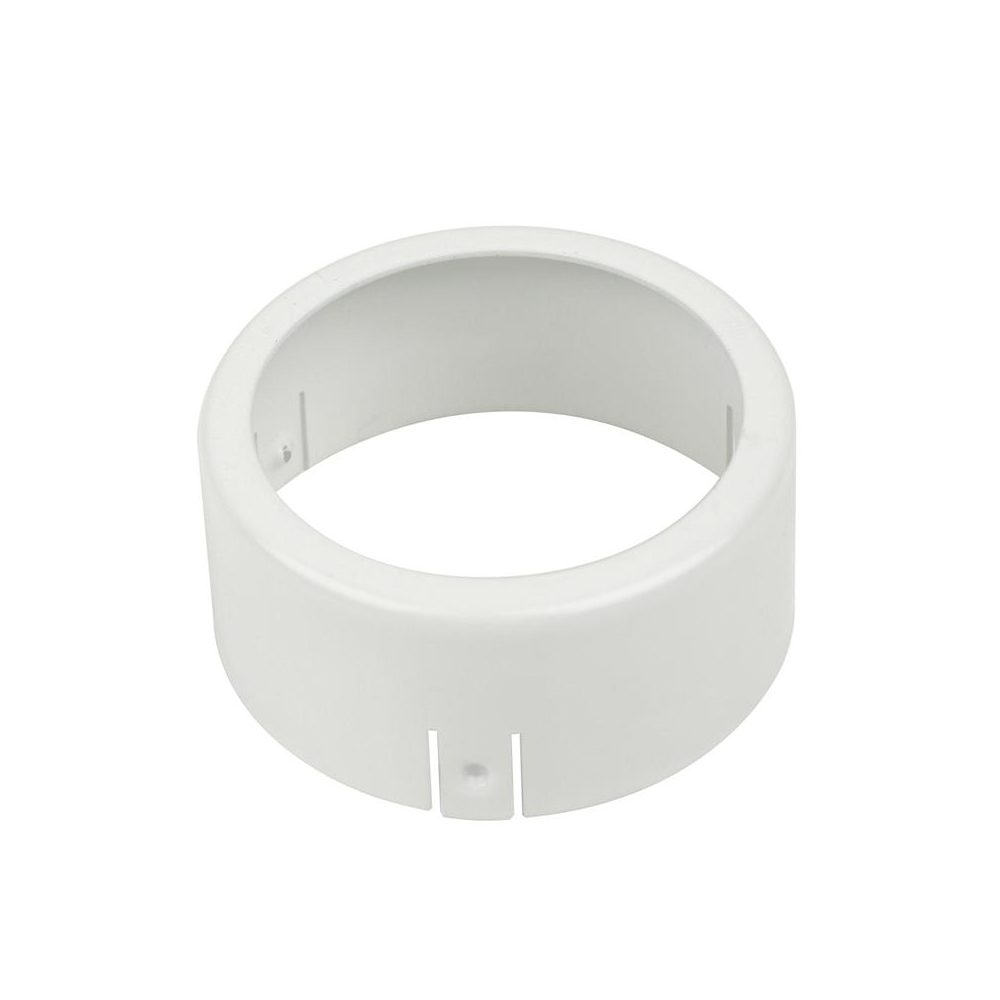

3\" Accessory Holder White | L3AHW | |||
3\" Accessory Holder Black | L3AHB | |||

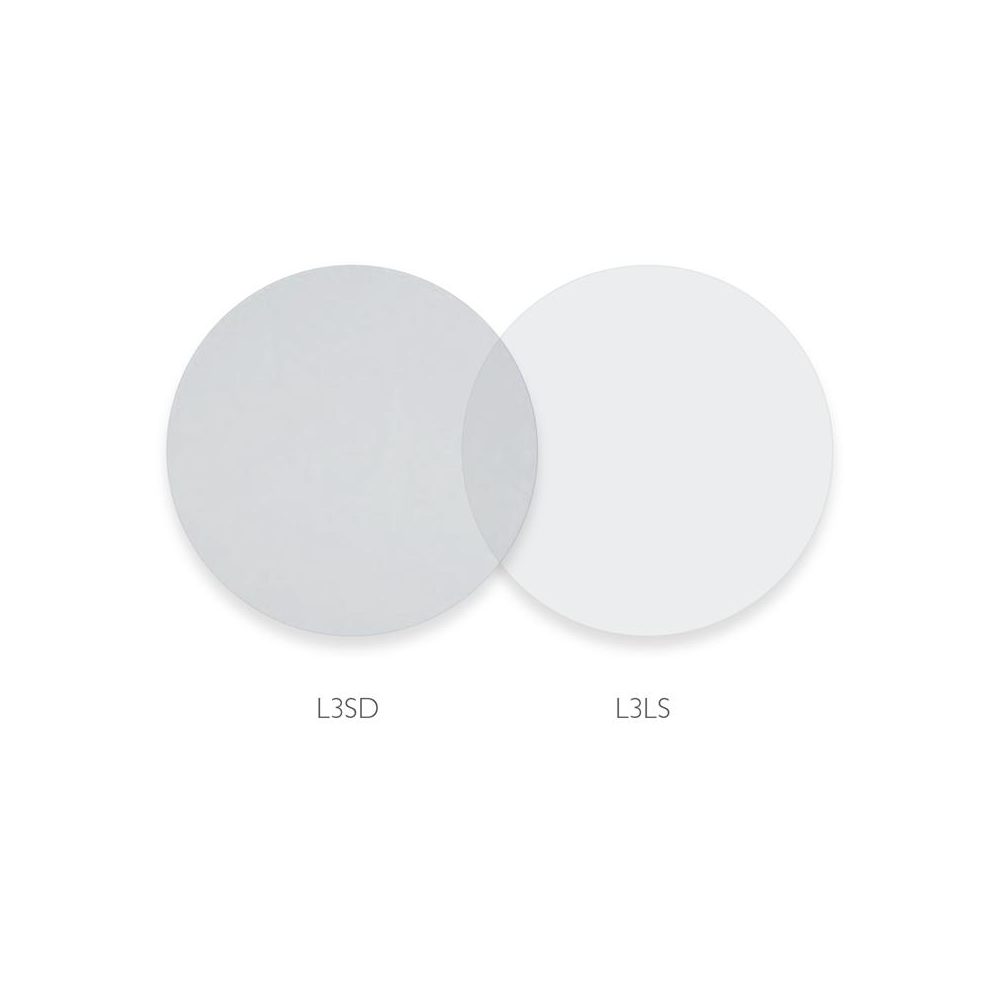

3\" 5 degree diffusion film | L3SD | |||
3\" linear spread film | L3LS | |||
LyteCaster 3\" Replacement Optic Spot | L3RPS | |||
LyteCaster 3\" Replacement Optic Narrow Flood | L3RPNF | |||
LyteCaster 3\" Replacement Optic Spot Flood | L3RPF |
Product Family Details
LyteCaster LED Accent 3" is a versatile family designed for commercial and residential areas in both new construction and remodel applications. LyteCaster's shallow luminaire height and 3 part modular system provides for easy installation and upgradeability in any space.
Benefits
- Modular light engine for for easy future upgrades
- The family is available in a variety of round and square accent styles and finishes with efficacies ranging up to 80 lm/W

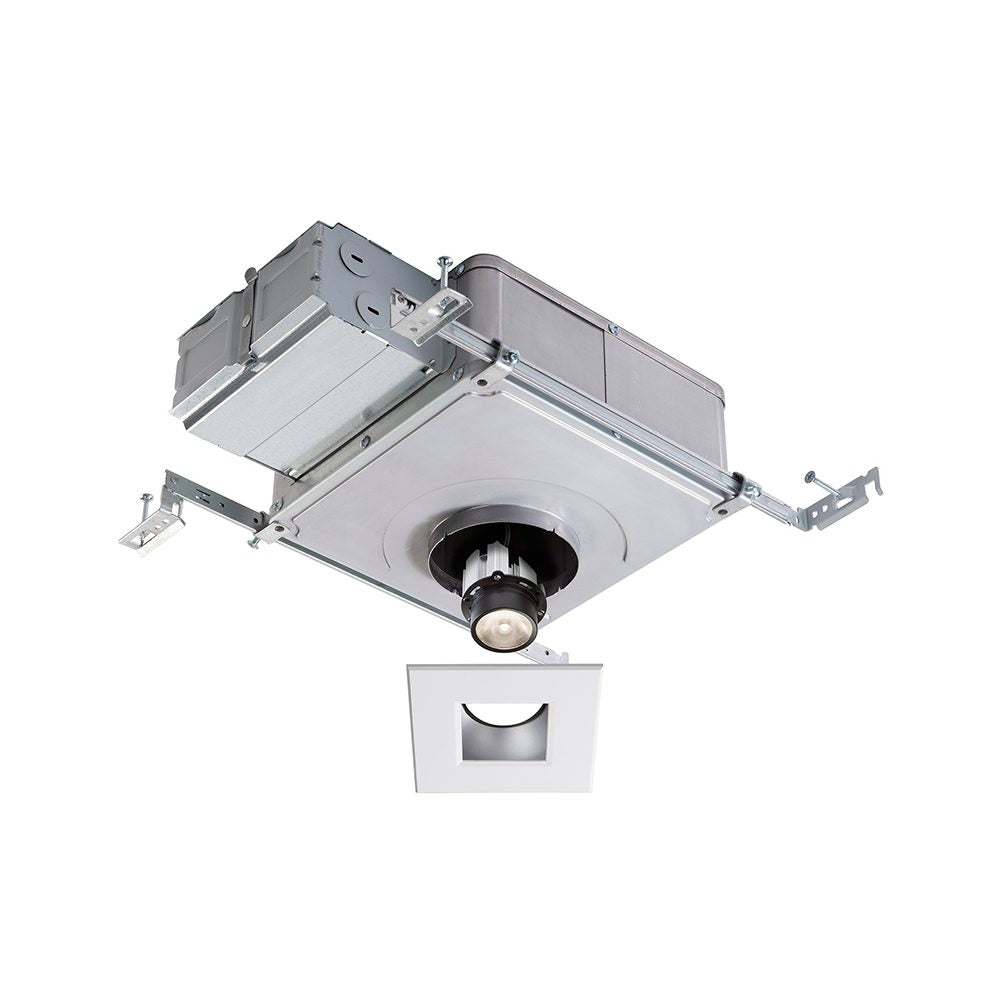

- Shallow luminaire height and 3 part modular system provides for easy installation and upgradeability in any space
- Configurations are Title 24 compliant and Energy Star certified
Features
- The 3 1/2" shallow luminaire height saves plenum space without compromising the 60° physical and reflected cutoff
- CrispWhite is available in the 90 CRI 3000K combination
- 31 different trim options available
Applications
- Residential
- Hospitality
Click for LyteCaster_L3R_Adjustable-Spec PDF
Click for LyteCaster_L3R_Downlight.pdf
Click for LyteCaster_L3R_Gimbal.pdf
Click for LyteCaster_L3R_Pinhole.pdf
Click for LyteCaster_L3R_ShowerLight.pdf
Click for LyteCaster_L3R_WallWash.pdf
Click for LyteCaster_L3S_Adjustable.pdf
Click for LyteCaster_L3S_Downlight.pdf
Click for LyteCaster_L3S_ShowerLight.pdf
Click for LyteCaster_L3S_WallWash.pdf
Click for LED Downlight Dimming Compatibility
Click for Lightolier Comprehensive Catalog
Click for NEW! Lightolier AccuRender Technology Brochure
Click for (L3RP) Lytecaster Accent Replacement Optics - Instructions
Click for Lytecaster 3.75” Accent Trim Install Instructions
Click for Lytecaster Accent 3.75" LED Module Finishing Section
Click for Lytecaster 3” Accessory Holder – Install Instructions
Click for Lytecaster 3.75” New Construction Non IC – Install Instructions
Click for Lytecaster 3.75” Remodeler Non-IC 120V ELV Install Instructions
Click for Lytecaster 3” Square Shower Light Install Instructions
