Description

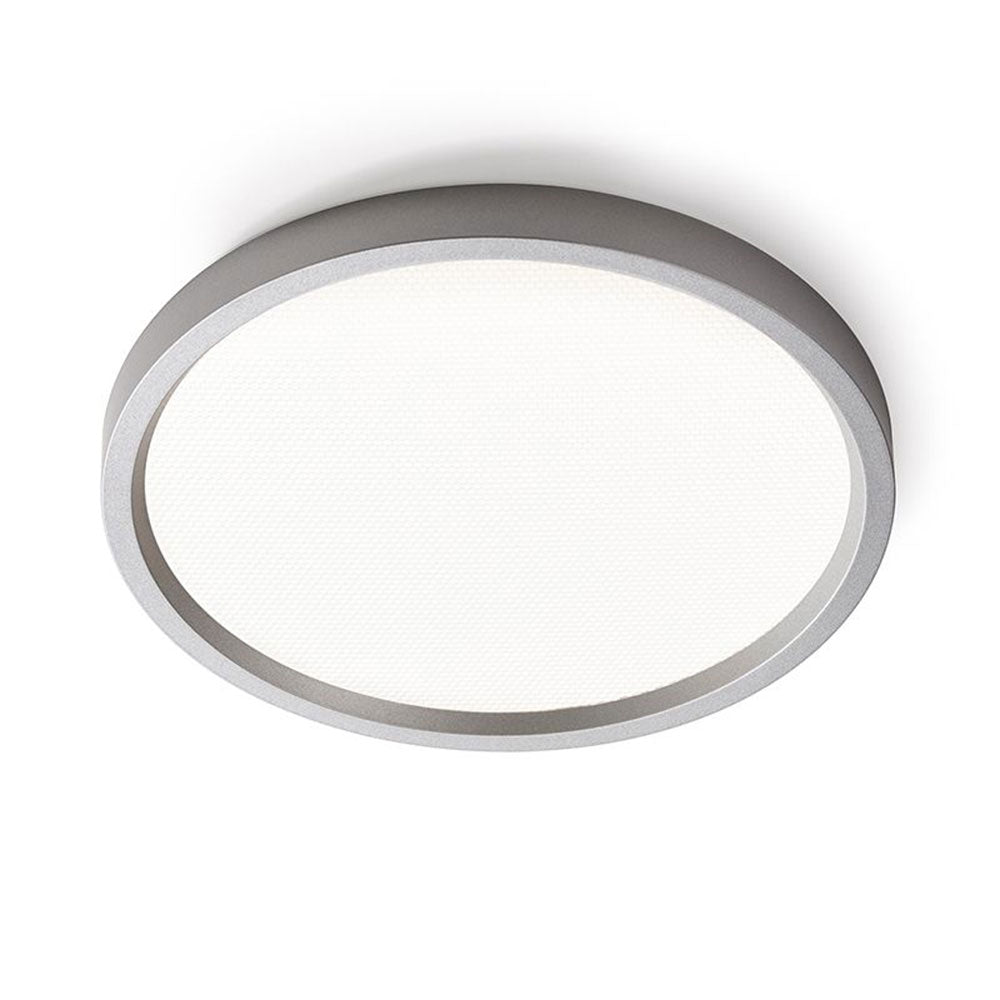

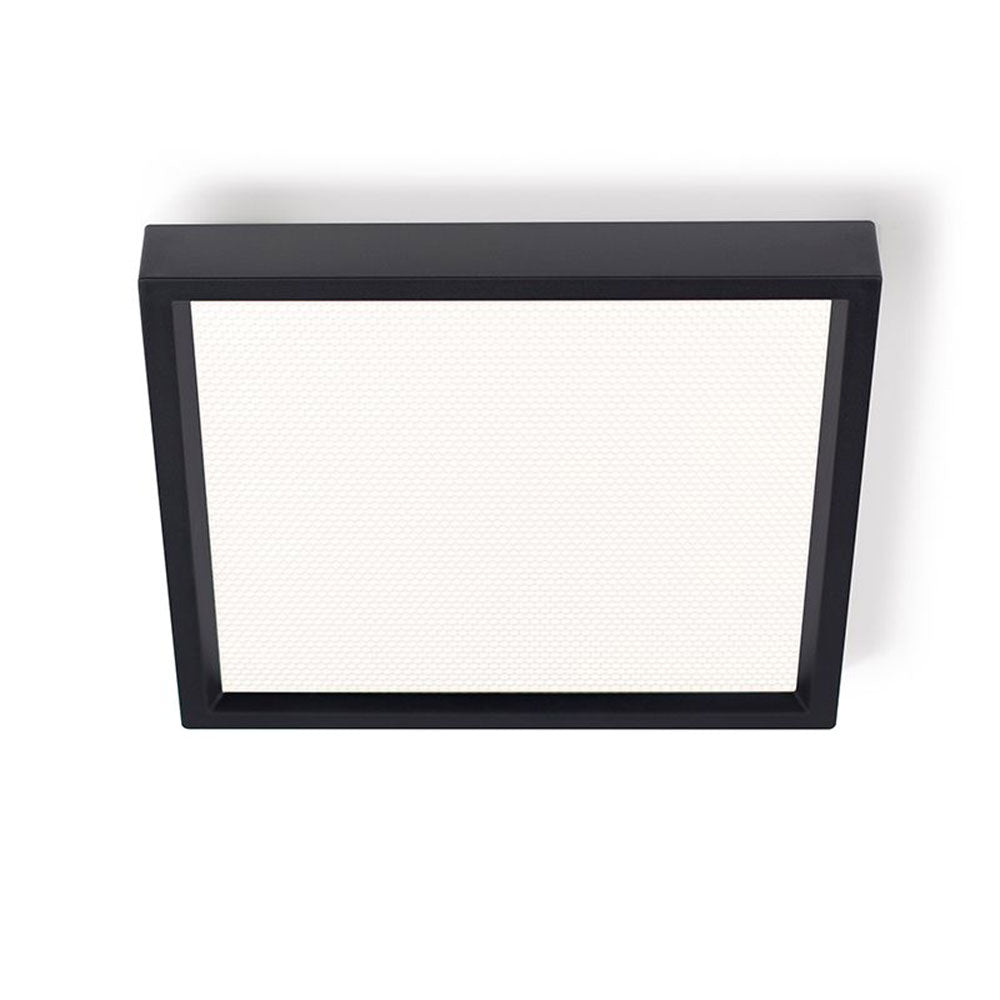

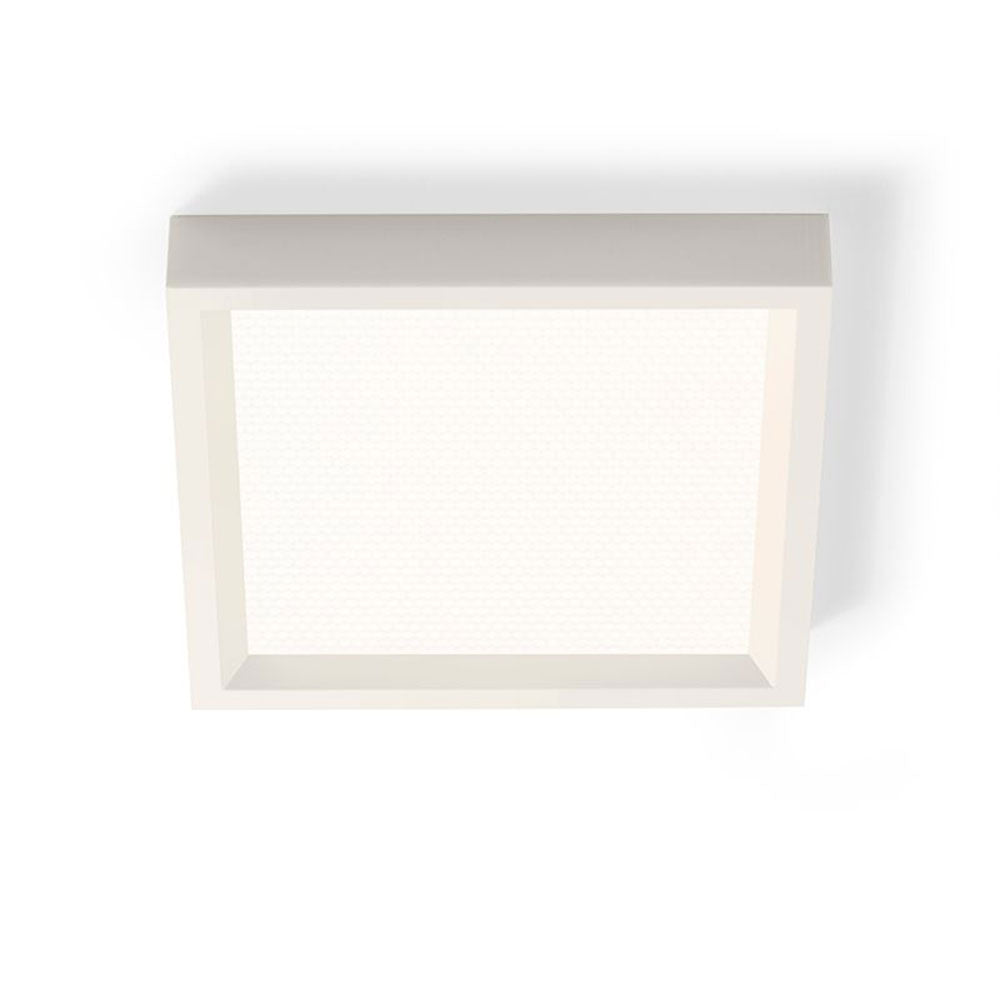

Lightolier SlimSurface LED Downlight Square
Products List
| Name | SKU | Wattage | Lumens | CCT |
| SlimSurface 5" Round 650lm (ELV/TRIAC) | S5RXXXK7X |
9 |
650 |
2700, 3000, 3500, 4000 |
| SlimSurface 5" Round 650lm (0-10V) | S5RXXXK7XZ10U |
9 |
650 |
2700, 3000, 3500, 4000 |
| SlimSurface 7" Round 1000lm (ELV/TRIAC) | S7RXXXK10X |
13 |
1000 |
2700, 3000, 3500, 4000 |
| SlimSurface 7" Round 1000lm (0-10V) | S7RXXXK10XZ10U |
13 |
1000 |
2700, 3000, 3500, 4000 |
| SlimSurface 10" Round 2200lm (ELV/TRIAC) | S10RXXXK22X |
23 |
650 |
2700, 3000, 3500, 4000 |
| SlimSurface 10" Round 2200lm (0-10V) | S10RXXXK22XZ10U |
23 |
650 |
2700, 3000, 3500, 4000 |
| SlimSurface 10" Round 2200lm (0-10V) | S6SXXXK10XZ10U |
13 |
2200 |
2700, 3000, 3500, 4000 |
| SlimSurface 4" Square 650lm (ELV/TRIAC) | S4SXXXK7X |
9 |
1000 |
2700, 3000, 3500, 4000 |
| SlimSurface 4" Square 650lm (0-10V) | S4SXXXK7XZ10U |
9 |
1000 |
2700, 3000, 3500, 4000 |
| SlimSurface LED downlight, 5-inch round, surface mount, 80 CRI, 3000K CCT, 650 lm,120V, Standard | S5R830K7 |
10 |
650 |
3000 |
| SlimSurface LED downlight, 5-inch round, surface mount, 80 CRI, 3500K CCT, 650 lm,120V, Standard | S5R835K7 |
10 |
650 |
3500 |
| SlimSurface LED downlight, 5-inch round, surface mount, 80 CRI, 4000K CCT, 650 lm,120V, Standard | S5R840K7 |
10 |
650 |
4000 |
| SlimSurface LED downlight, 7-inch round, surface mount, 80 CRI, 3500K CCT, 1000 lm,120V, Standard | S7R835K10 |
14 |
1000 |
3500 |
| SlimSurface LED downlight, 5-inch round, surface mount, 90 CRI, 3000K CCT, 650 lm,120V, Standard | S5R930K7 |
10 |
600 |
3000 |
| SlimSurface LED downlight, 7-inch round, surface mount, 90 CRI, 3000K CCT, 1000 lm,120V, Standard | S7R930K10 |
14 |
900 |
3000 |
| SlimSurface LED downlight, 5-inch round, surface mount, 90 CRI, 2700K CCT, 650 lm,120V, Standard | S5R927K7 |
10 |
650 |
2700 |
| SlimSurface LED downlight, 7-inch round, surface mount, 80 CRI, 3000K CCT, 1000 lm,120V, Standard | S7R830K10 |
14 |
1000 |
3000 |
| SlimSurface LED downlight, 4-inch square, surface mount, 80 CRI, 2700K CCT, 650 lm,120V, Standard | S4S827K7 |
10 |
600 |
2700 |
| SlimSurface LED downlight, 4-inch square, surface mount, 80 CRI, 3000K CCT, 650 lm,120V, Standard | S4S830K7 |
10 |
650 |
3000 |
| SlimSurface LED downlight, 6-inch square surface mount, 80 CRI, 2700K CCT, 1000 lm,120V, Standard | S6S827K10 |
14 |
900 |
2700 |
| SlimSurface LED downlight, 6-inch square surface mount, 80 CRI, 3000K CCT, 1000 lm,120V, Standard | S6S830K10 |
14 |
1000 |
3000 |
Leveraging the latest in LED technology and optical enhancements
Product Family Information

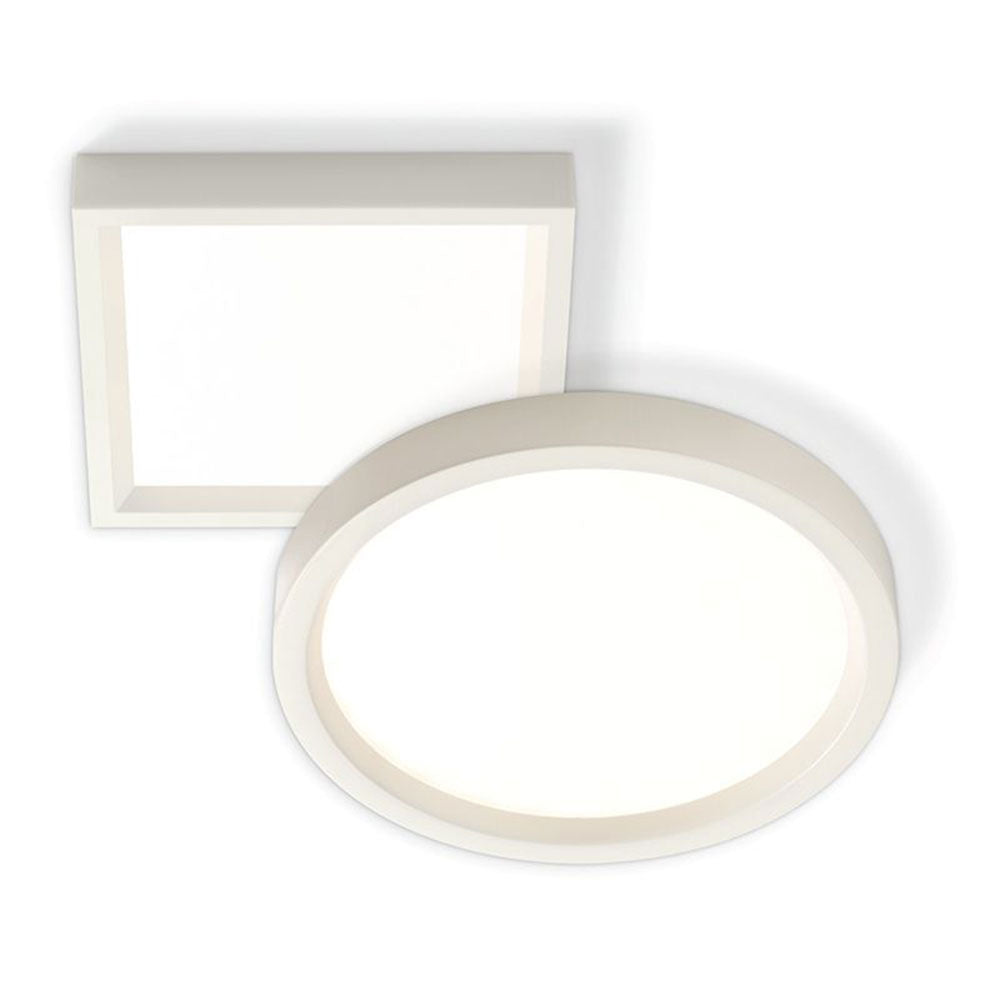

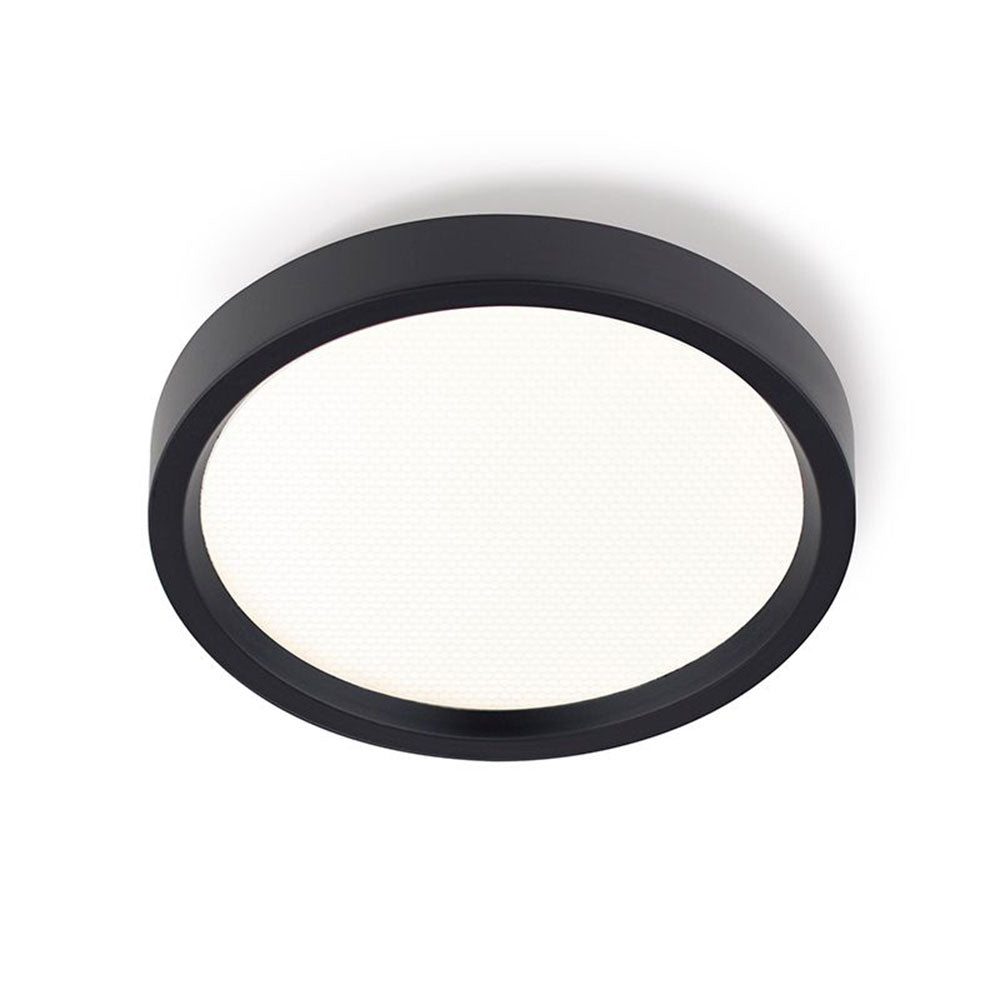

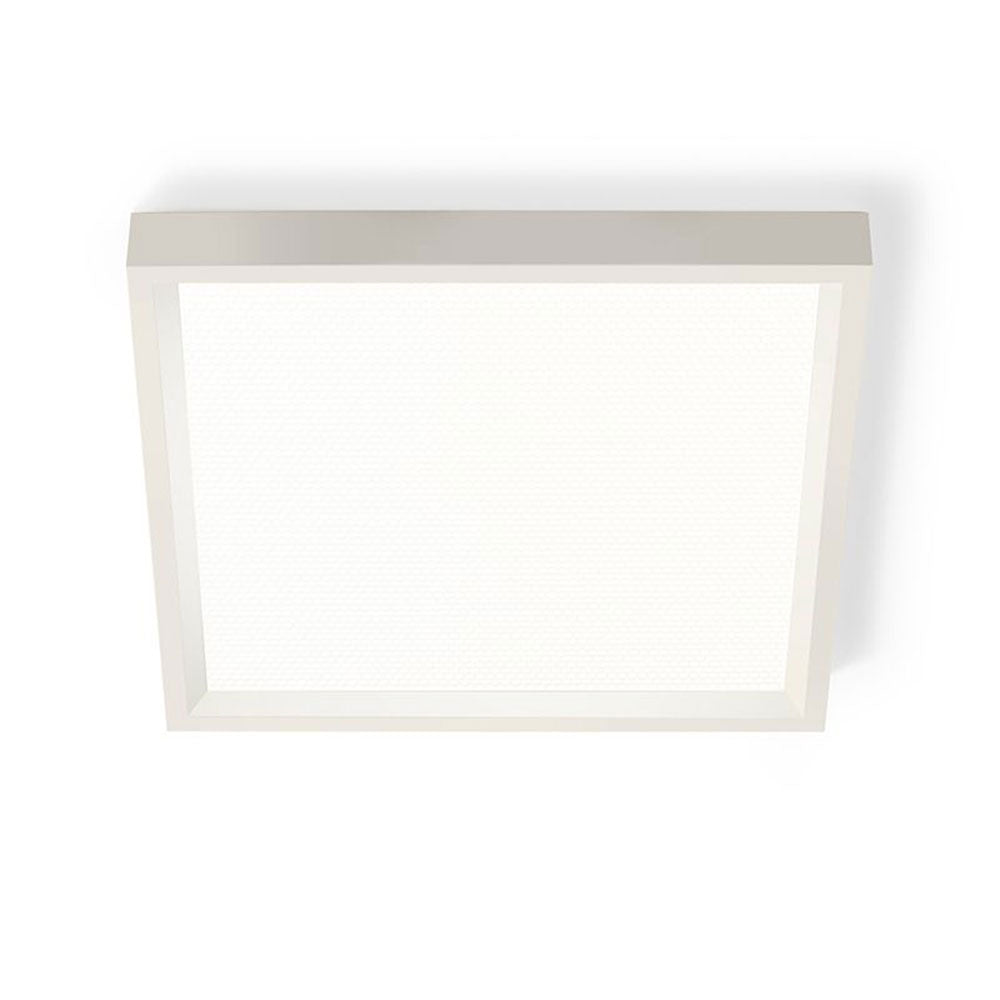

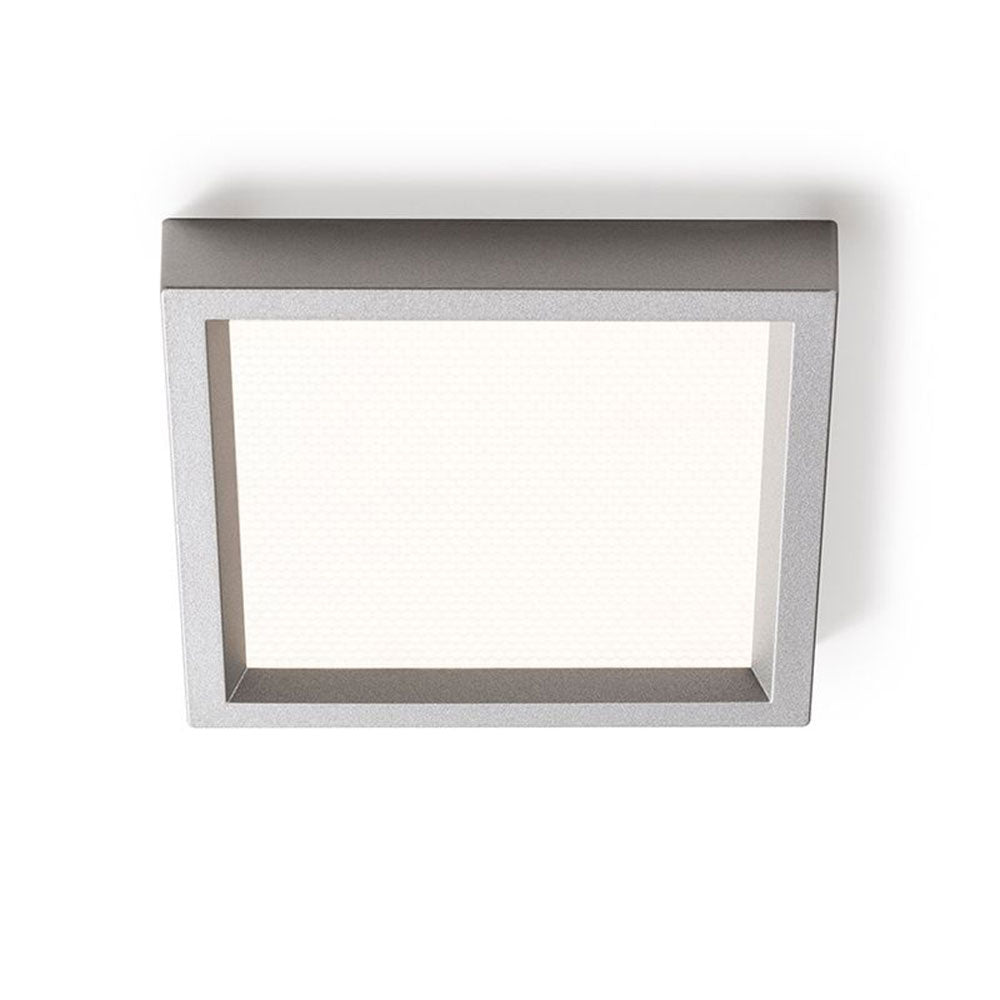

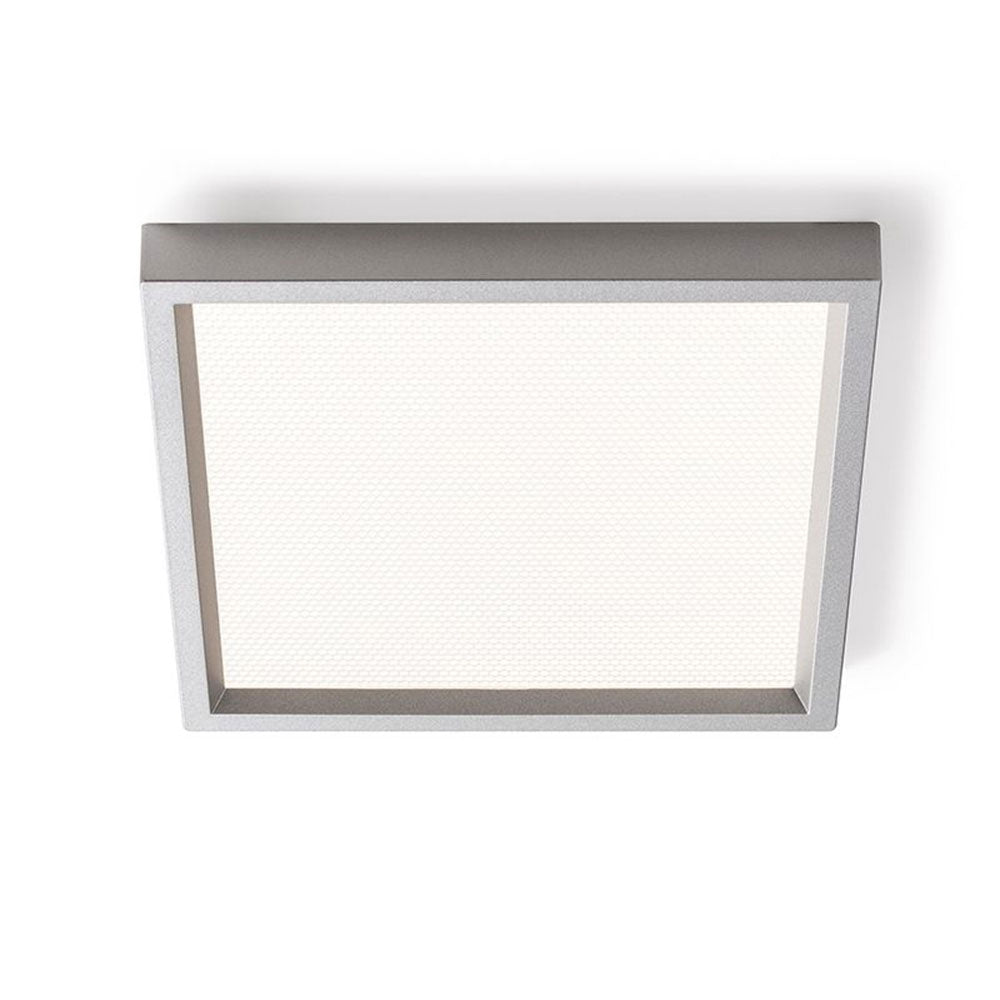

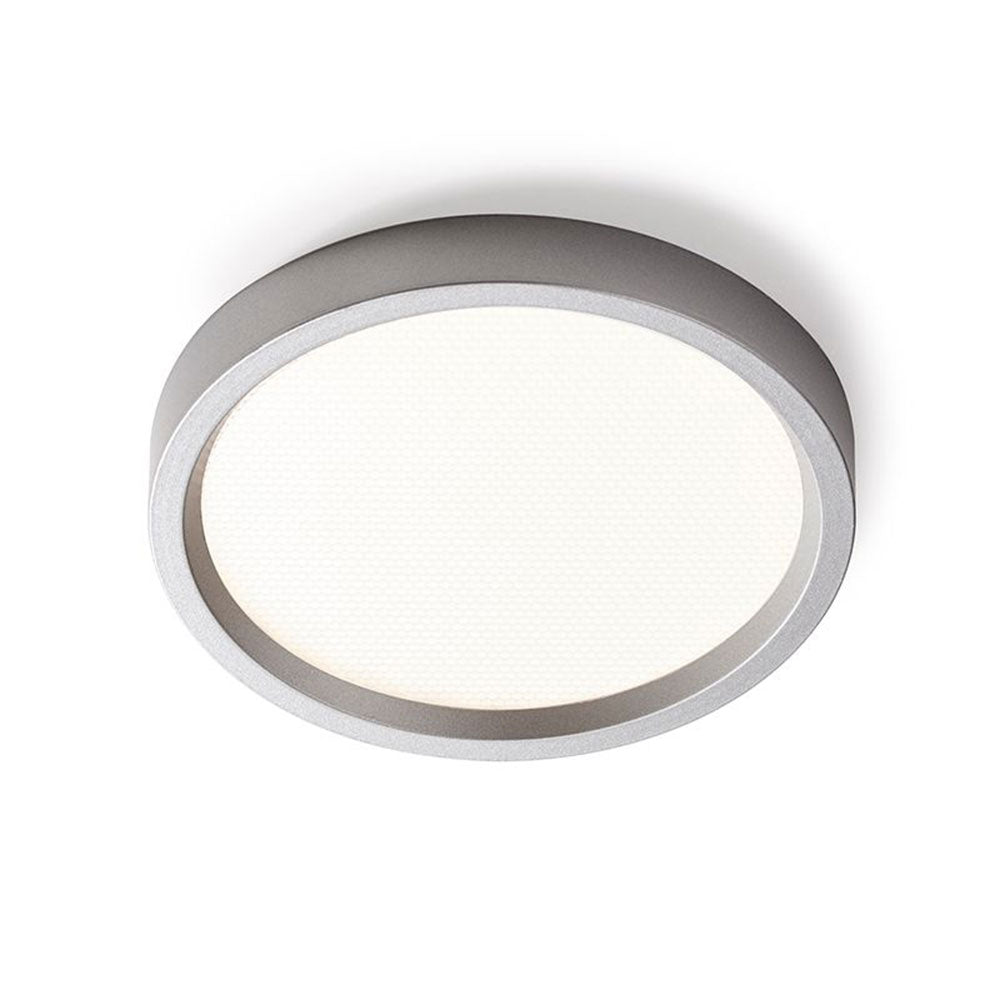

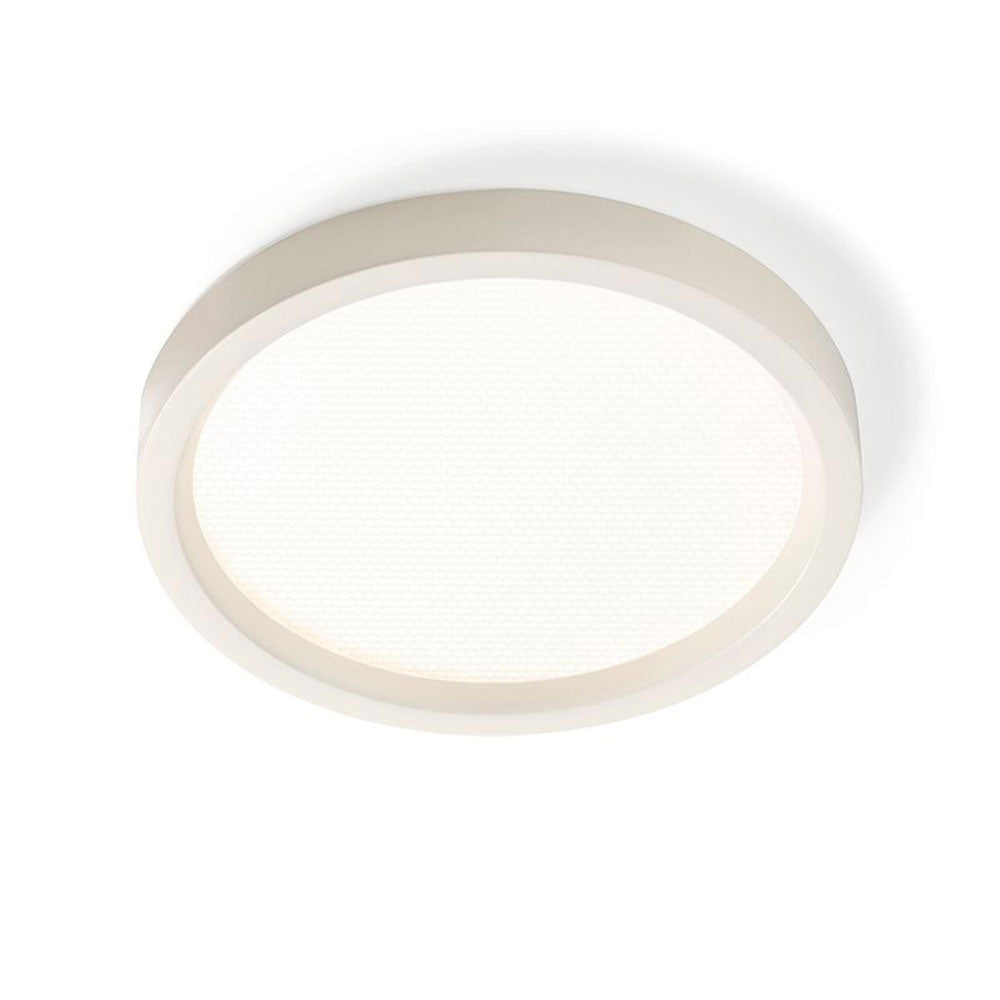

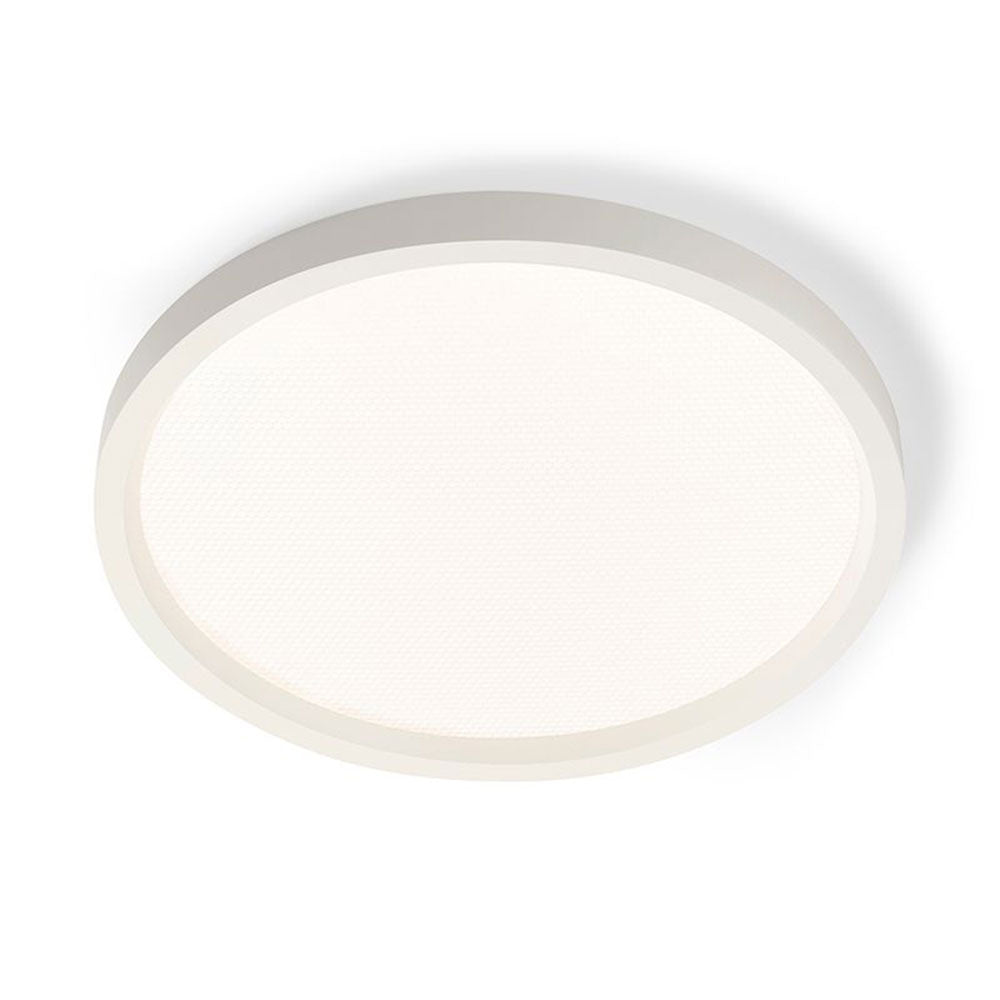

SlimSurface LED is a low profile downlight intended for ceiling or wall mount applications. This 0.625" thick luminaire offers the appearance of a recessed downlight but is actually surface mounted.
Benefits
- The thinnest available solution with an integral driver for existing J-boxes or new construction
- Provides an affordable alternative to Air-Seal IC recessed housings or Fire-Rated boxes
- Glare controlling lens for comfortable light distribution
Features
- Choice of design with square and round apertures
- Efficacy: 42-70 lm/w
- 50,000 hour rated life
- Dimming: Triac (10%), 0-10V
Product Files
Click for SlimSurfaceLED-4in-6in-Square-S4S-S6S PDF
Click for SlimSurfaceLED-5in-7in-10in-Round-S5R-S7R-S10R PDF
Click for LED Downlight Dimming Compatibility
Click for SlimSurface Brochure
Click for SlimSurface Product Bulletin
