Description

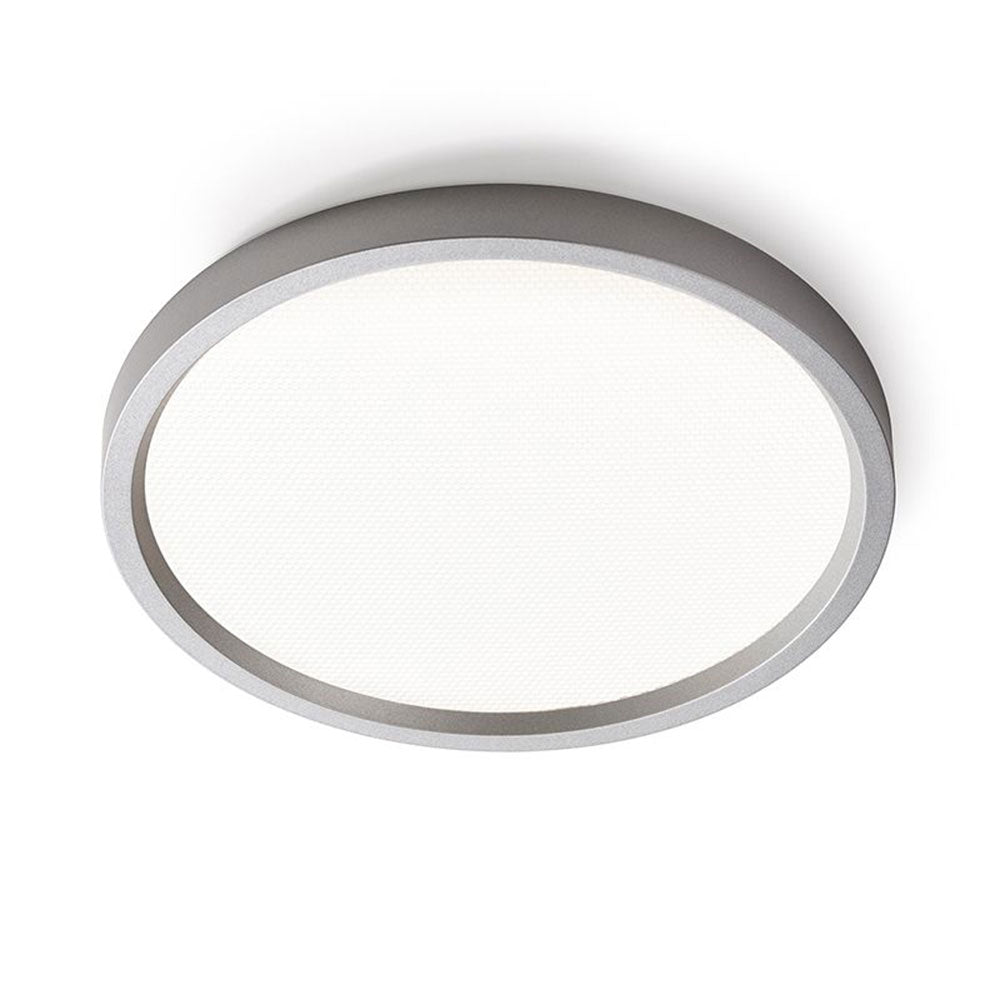

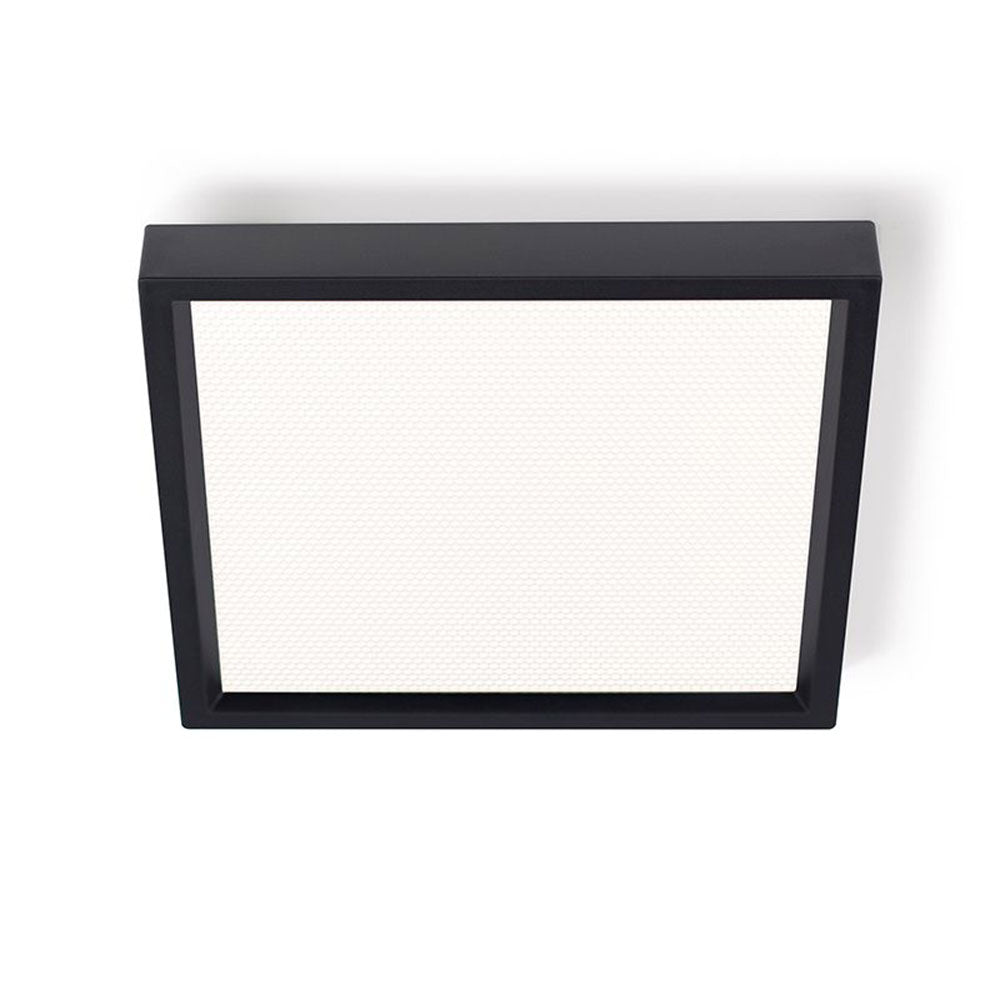

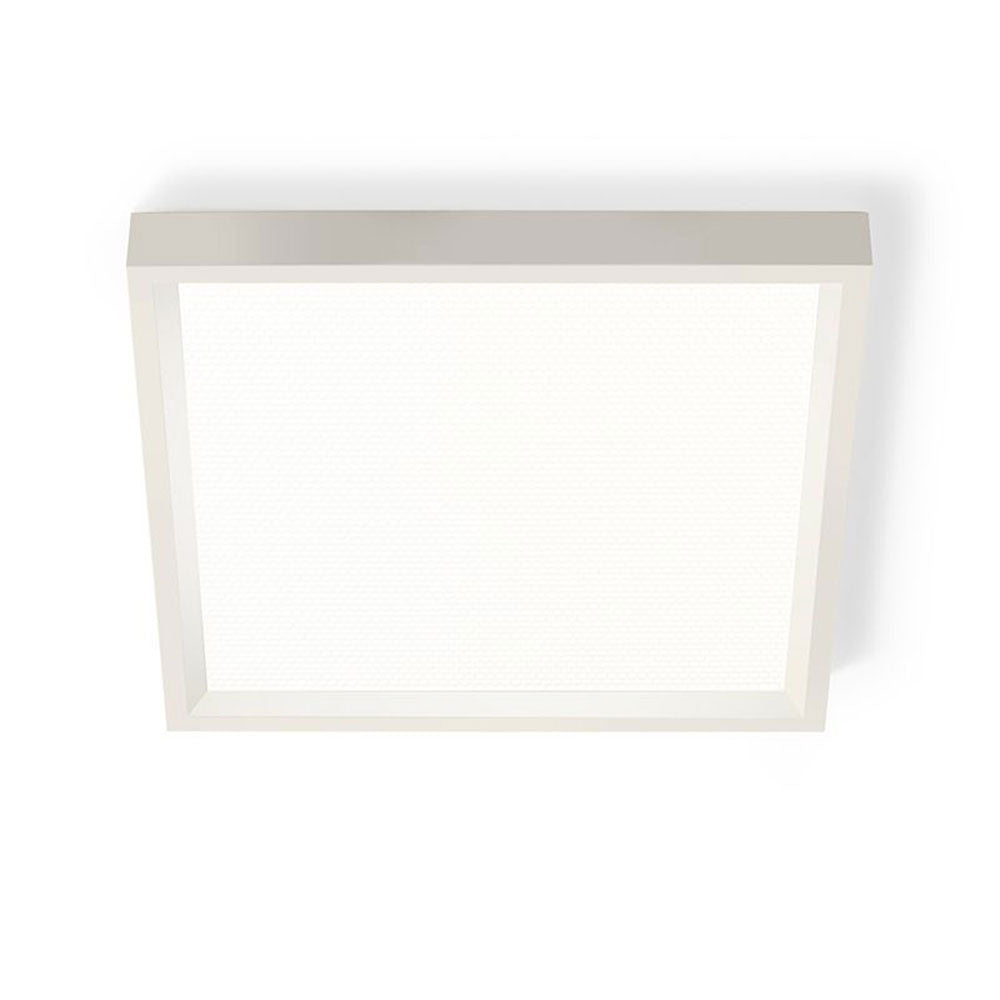

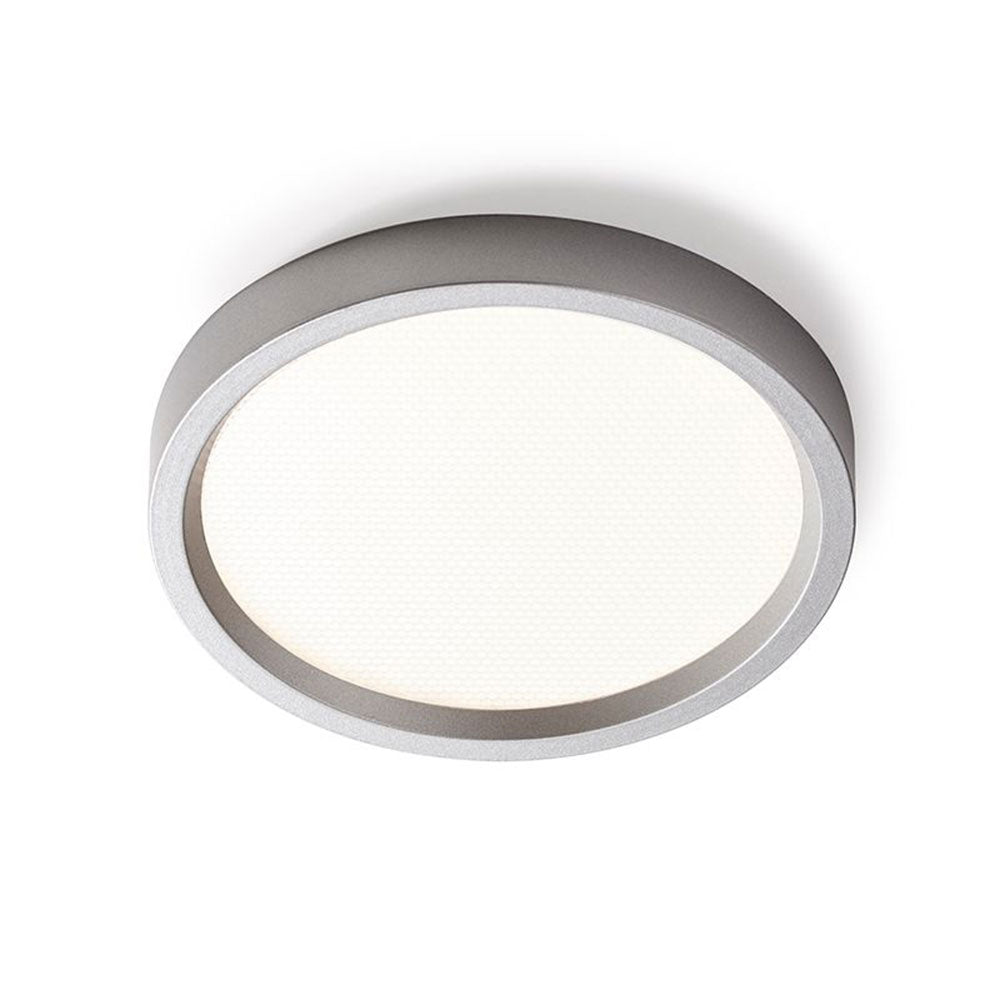

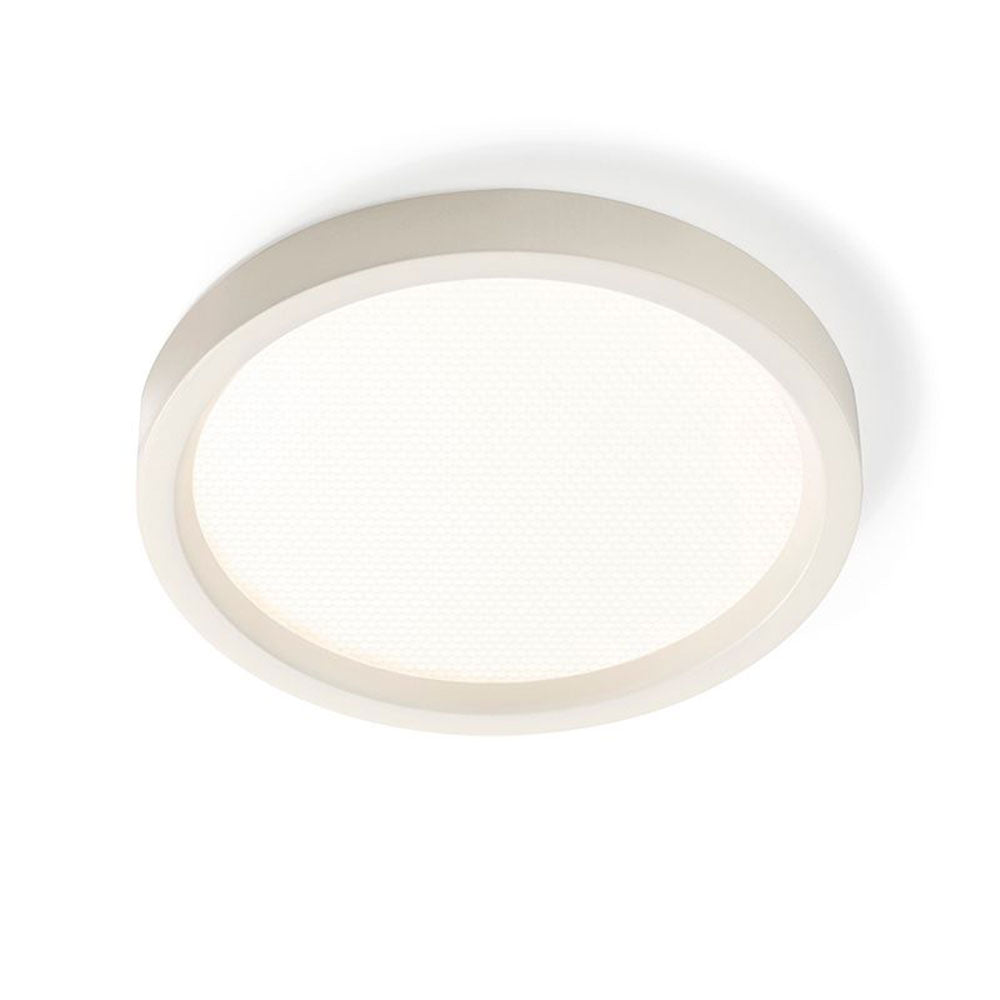

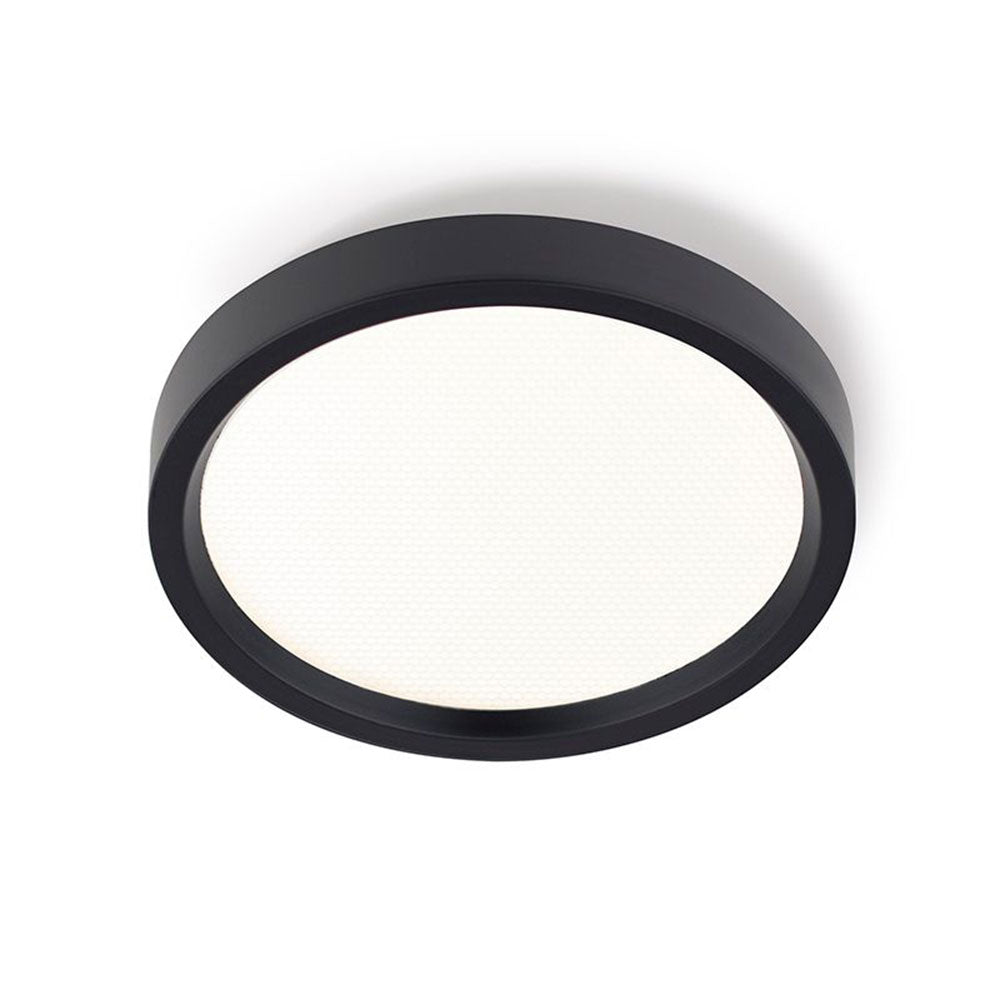

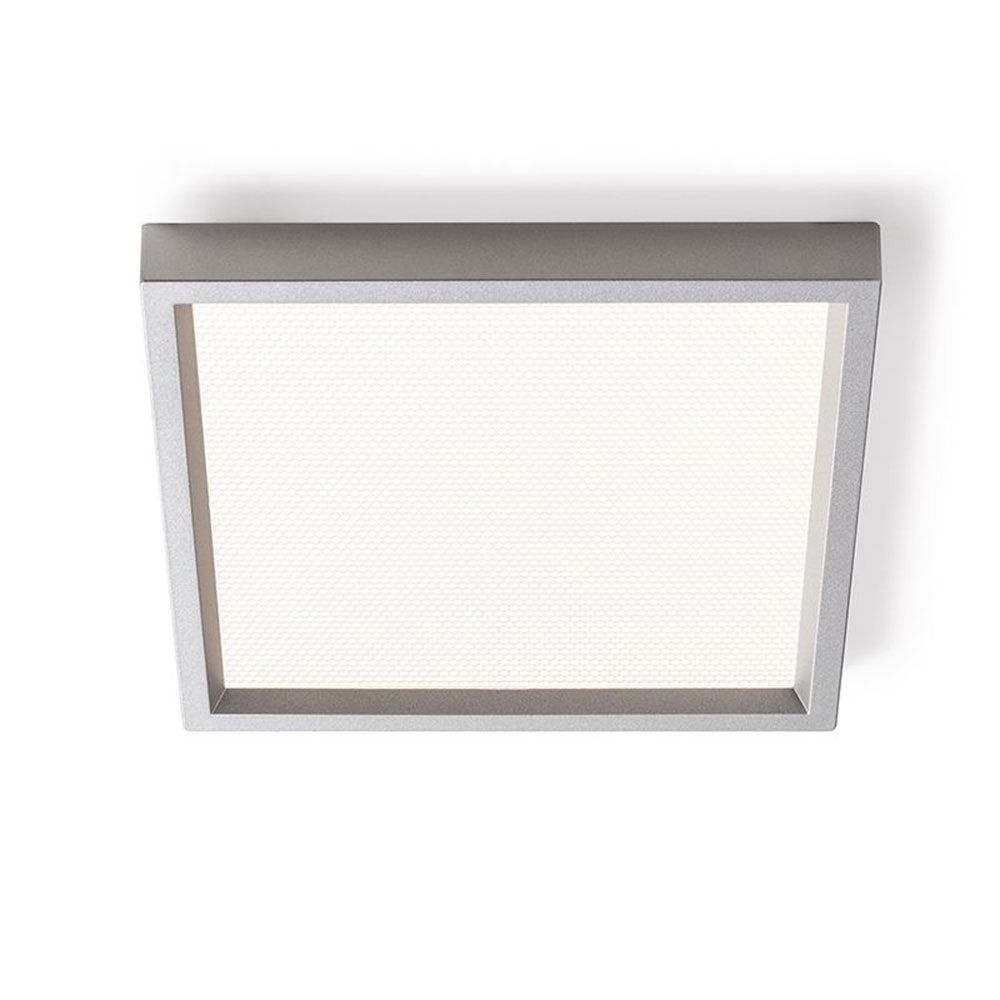

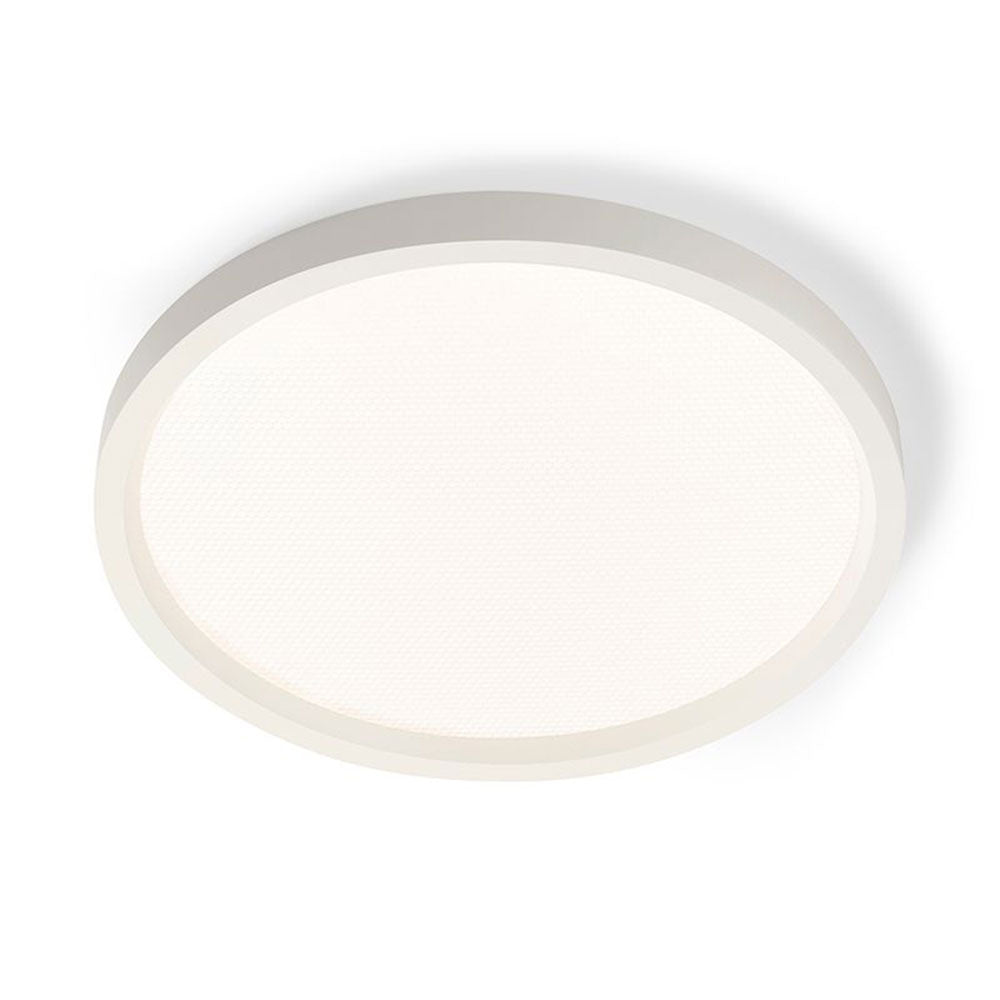

Lightolier SlimSurface LED Downlight Square
Products List
| Name | SKU | Wattage | Lumens | CCT |
| SlimSurface 5" Round 650lm (ELV/TRIAC) | S5RXXXK7X |
9 |
650 |
2700, 3000, 3500, 4000 |
| SlimSurface 5" Round 650lm (0-10V) | S5RXXXK7XZ10U |
9 |
650 |
2700, 3000, 3500, 4000 |
| SlimSurface 7" Round 1000lm (ELV/TRIAC) | S7RXXXK10X |
13 |
1000 |
2700, 3000, 3500, 4000 |
| SlimSurface 7" Round 1000lm (0-10V) | S7RXXXK10XZ10U |
13 |
1000 |
2700, 3000, 3500, 4000 |
| SlimSurface 10" Round 2200lm (ELV/TRIAC) | S10RXXXK22X |
23 |
650 |
2700, 3000, 3500, 4000 |
| SlimSurface 10" Round 2200lm (0-10V) | S10RXXXK22XZ10U |
23 |
650 |
2700, 3000, 3500, 4000 |
| SlimSurface 10" Round 2200lm (0-10V) | S6SXXXK10XZ10U |
13 |
2200 |
2700, 3000, 3500, 4000 |
| SlimSurface 4" Square 650lm (ELV/TRIAC) | S4SXXXK7X |
9 |
1000 |
2700, 3000, 3500, 4000 |
| SlimSurface 4" Square 650lm (0-10V) | S4SXXXK7XZ10U |
9 |
1000 |
2700, 3000, 3500, 4000 |
| SlimSurface LED downlight, 5-inch round, surface mount, 80 CRI, 3000K CCT, 650 lm,120V, Standard | S5R830K7 |
10 |
650 |
3000 |
| SlimSurface LED downlight, 5-inch round, surface mount, 80 CRI, 3500K CCT, 650 lm,120V, Standard | S5R835K7 |
10 |
650 |
3500 |
| SlimSurface LED downlight, 5-inch round, surface mount, 80 CRI, 4000K CCT, 650 lm,120V, Standard | S5R840K7 |
10 |
650 |
4000 |
| SlimSurface LED downlight, 7-inch round, surface mount, 80 CRI, 3500K CCT, 1000 lm,120V, Standard | S7R835K10 |
14 |
1000 |
3500 |
| SlimSurface LED downlight, 5-inch round, surface mount, 90 CRI, 3000K CCT, 650 lm,120V, Standard | S5R930K7 |
10 |
600 |
3000 |
| SlimSurface LED downlight, 7-inch round, surface mount, 90 CRI, 3000K CCT, 1000 lm,120V, Standard | S7R930K10 |
14 |
900 |
3000 |
| SlimSurface LED downlight, 5-inch round, surface mount, 90 CRI, 2700K CCT, 650 lm,120V, Standard | S5R927K7 |
10 |
650 |
2700 |
| SlimSurface LED downlight, 7-inch round, surface mount, 80 CRI, 3000K CCT, 1000 lm,120V, Standard | S7R830K10 |
14 |
1000 |
3000 |
| SlimSurface LED downlight, 4-inch square, surface mount, 80 CRI, 2700K CCT, 650 lm,120V, Standard | S4S827K7 |
10 |
600 |
2700 |
| SlimSurface LED downlight, 4-inch square, surface mount, 80 CRI, 3000K CCT, 650 lm,120V, Standard | S4S830K7 |
10 |
650 |
3000 |
| SlimSurface LED downlight, 6-inch square surface mount, 80 CRI, 2700K CCT, 1000 lm,120V, Standard | S6S827K10 |
14 |
900 |
2700 |
| SlimSurface LED downlight, 6-inch square surface mount, 80 CRI, 3000K CCT, 1000 lm,120V, Standard | S6S830K10 |
14 |
1000 |
3000 |
Leveraging the latest in LED technology and optical enhancements
Product Family Information
SlimSurface LED is a low profile downlight intended for ceiling or wall mount applications. This 0.625" thick luminaire offers the appearance of a recessed downlight but is actually surface mounted.
Benefits
- The thinnest available solution with an integral driver for existing J-boxes or new construction
- Provides an affordable alternative to Air-Seal IC recessed housings or Fire-Rated boxes
- Glare controlling lens for comfortable light distribution
Features

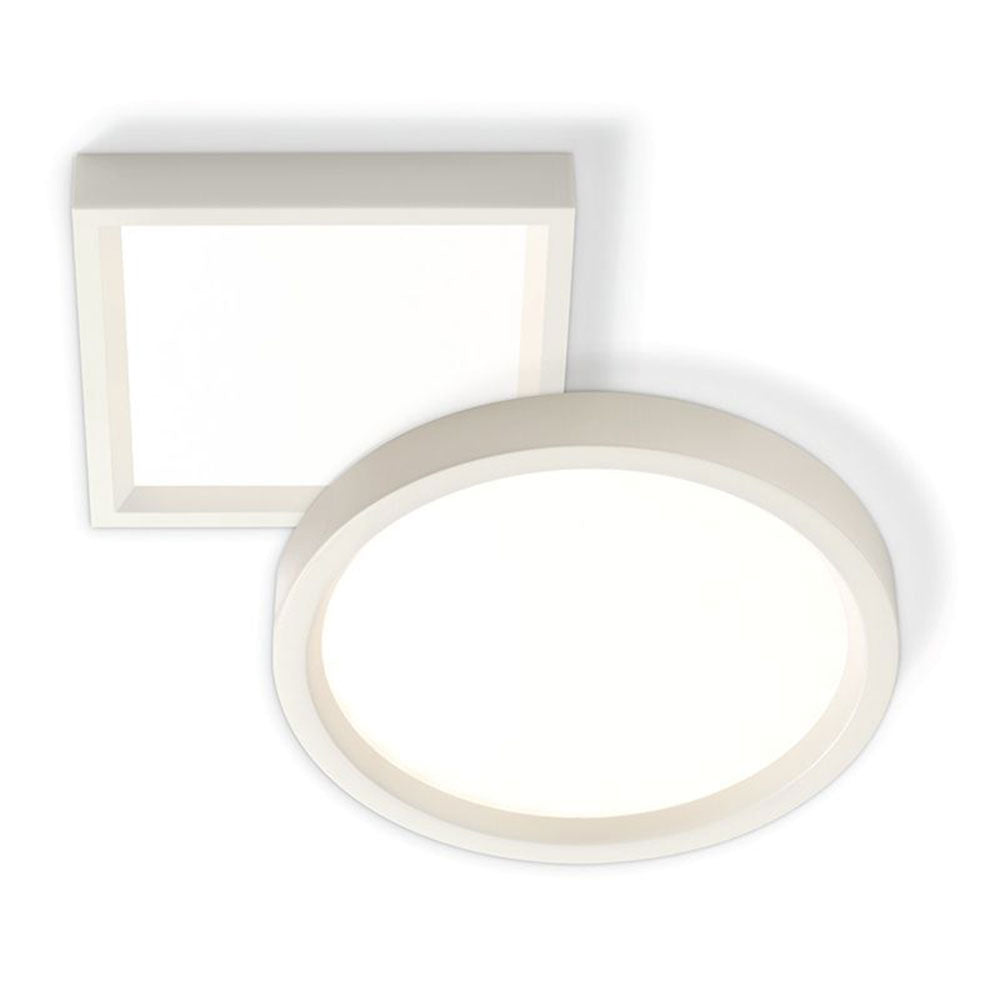

- Choice of design with square and round apertures
- Efficacy: 42-70 lm/w
- 50,000 hour rated life
- Dimming: Triac (10%), 0-10V
Product Variations
| Image | Title | SKU |
|---|---|---|
 |
SLIM 5" ROUND 600LM 30K 80CRI 120V WHT | S5R830K7 |
|
SLIM 5" ROUND 600 LM 35K 80CRI 120V WH | S5R835K7 |
|
SLIM 5" ROUND 600 LM 40K 80CRI 120V WH | S5R840K7 |
|
SLIM 6" SQUARE 900 LM 40K 80CRI 120V WH | S6S840K10 |
|
SLIM 7" ROUND 900 LM 35K 80CRI 120V WH | S7R835K10 |
 |
SLIM 10" R 80CRI 40K Z10V AL | S6SXXXK10XZ10U |
|
SLIM 5" ROUND 600 LM 90-30K 120V WHT TRI | S5R930K7 |
|
SLIM 7" ROUND 900 LM 90-30K 120V WHT TRI | S7R930K10 |
|
SLIM 5" ROUND 600 LM 27K 90CRI 120V WHT | S5R927K7 |
|
SLIM 7" ROUND 900 LM 30K 80CRI 120V WHT | S7R830K10 |
|
SLIM 4" SQUARE 600 LM 27K 80CRI 120V WHT | S4S827K7 |
|
SLIM 4" SQUARE 600 LM 30K 80CRI 120V WHT | S4S830K7 |
|
SLIM 6" SQUARE 900 LM 27K 80CRI 120V WHT | S6S827K10 |
|
SLIM 6" SQUARE 900 LM 30K 80CRI 120V WHT | S6S830K10 |
 |
SlimSurface LED downlight, 5-inch round, surface mount, 80 CRI, 2700K CCT, 650 lm,120V, Standard (TRIAC) dimming, wet location, Matte White finish | S5RXXXK7X |
|
SlimSurface LED downlight, 5-inch round, surface mount, 80 CRI, 2700K CCT, 650 lm,120V, Standard (TRIAC) dimming, wet location, Aluminum Finish | S5RXXXK7XZ10U |
|
SlimSurface LED downlight, 7-inch round, surface mount, 80 CRI, 2700K CCT, 1000 lm,120V, Standard (TRIAC) dimming, wet location, Matte White Finish | S7RXXXK10X |
|
SlimSurface LED downlight, 7-inch round, surface mount, 80 CRI, 2700K CCT, 1000 lm,120V, Standard (TRIAC) dimming, wet location, Aluminum Finish | S7RXXXK10XZ10U |
|
SlimSurface LED downlight, 4-inch square, surface mount, 80 CRI, 2700K CCT, 650 lm,120V, Standard (TRIAC) dimming, wet location, Matte White Finish | S10RXXXK22X |
|
SlimSurface LED downlight, 4-inch square, surface mount, 80 CRI, 2700K CCT, 650 lm,120V, Standard (TRIAC) dimming, wet location, Aluminum Finish | S10RXXXK22XZ10U |
|
SlimSurface LED downlight, 6-inch square surface mount, 80 CRI, 2700K CCT, 1000 lm,120V, Standard (TRIAC) dimming, wet location, Matte White Finish | S4SXXXK7X |
|
SlimSurface LED downlight, 6-inch square surface mount, 80 CRI, 2700K CCT, 1000 lm,120V, Standard (TRIAC) dimming, wet location, Aluminum Finish | S4SXXXK7XZ10U |
