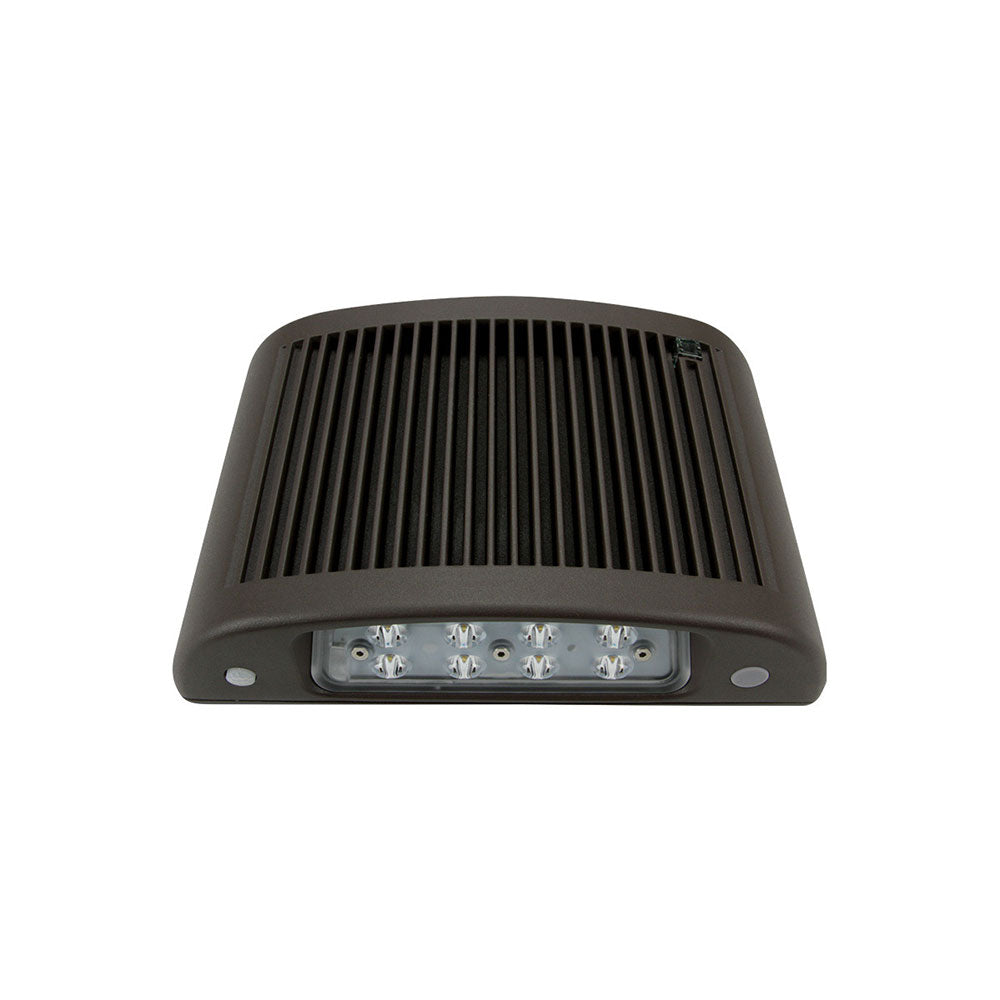

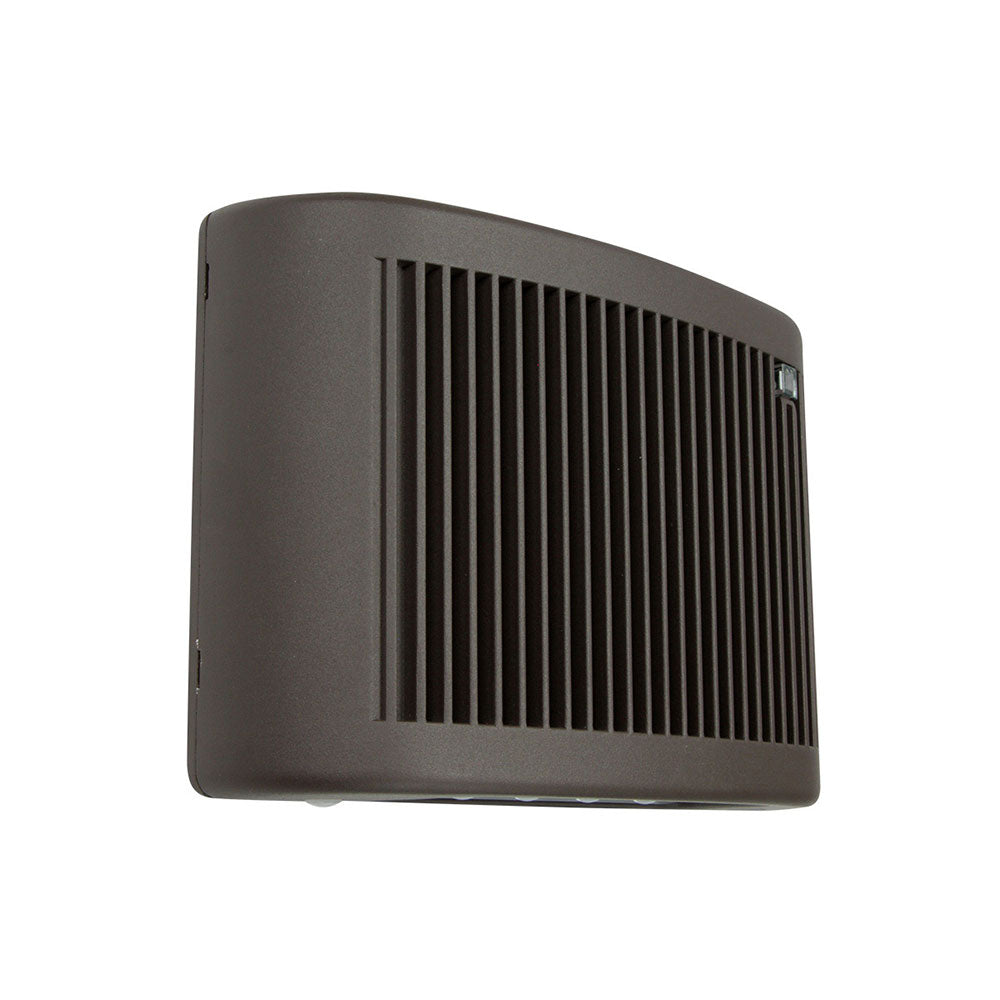

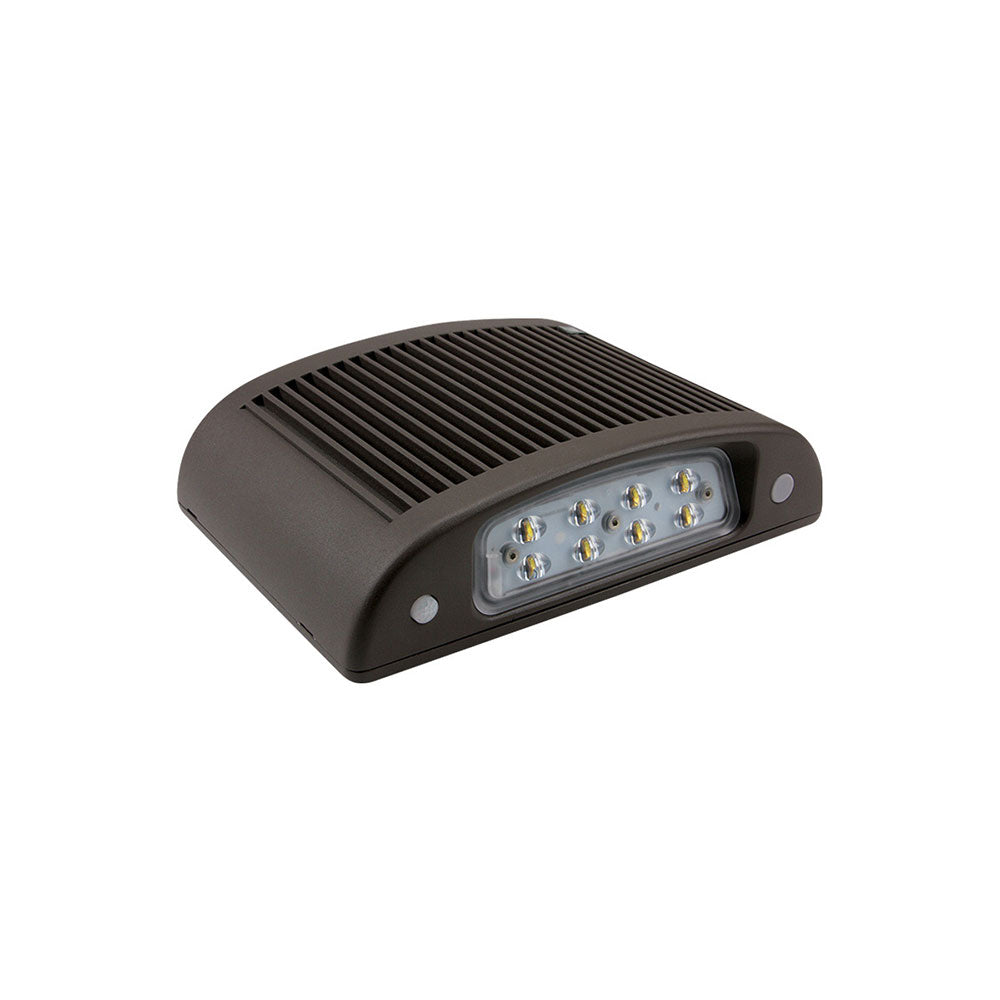

LSI Industries All-Weather Low Profile Wall Pack AWL

LSI Industries | SKU: AWL
No reviews

Sale price$0.00 USD


LSI Industries All-Weather Low Profile Wall Pack AWL

The AWL wallpack features a fully gasketed, die-cast enclosure that is IP65 rated and UL Listed for Wet Locations. Optional PIR integral motion detection or photocontrol only offering "normally on" and UL 924 Listed emergency egress modes.

Features & Specifications

  • Die-cast aluminum housing
  • UV-resistant, high-impact polycarbonate lens
  • Standard Universal Voltage - 120/277VAC dual primary at 60Hz
  • Maintenance-free NiCad Battery
  • Universal pattern backplate provides 3" or 4" J-box mounting pattern with keyhole slots
  • 5 year warranty on all electronics and housing


  • UL 924
  • cULus Listed for Wet Locations
  • IP65 rated
  • State of California Title 24
  • NFPA 101
  • NFPA 70
  • NEC
  • UL Listed 90 minute emergency run time, 24 hour recharge time

Max Lumens

  • 1,500

Life Safety Features

  • Battery Backup Cold
  • Weather Battery Backup


  • Photocell
  • Standalone Motion

Color Temperatures

  • 4000

Additional Options

QuickShip EligibleTitle 24 CompliantIP65UL ListedUL Listed Damp LocationUL Listed Wet Location
