LSI Industries High Output Parking Garage HPG


Price:
Sale price$0.00 USD

Description

LSI Industries High Output Parking Garage HPG

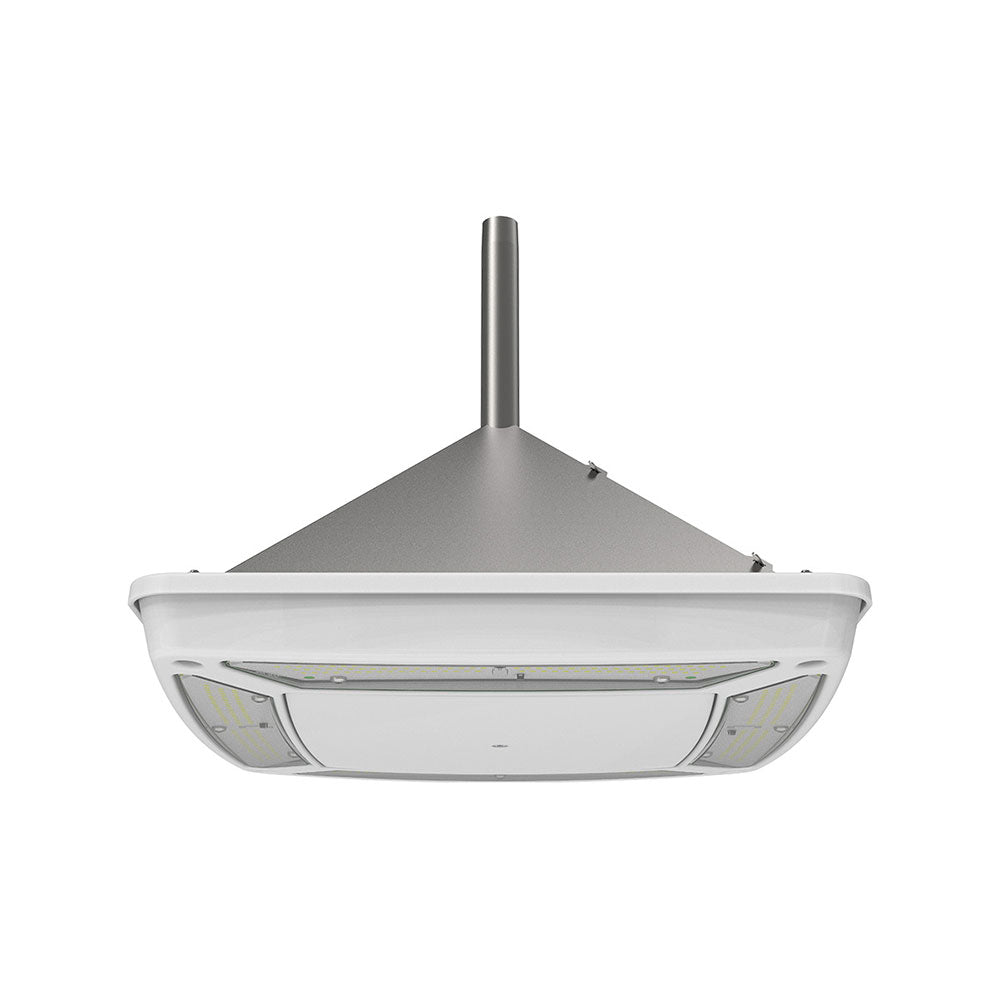

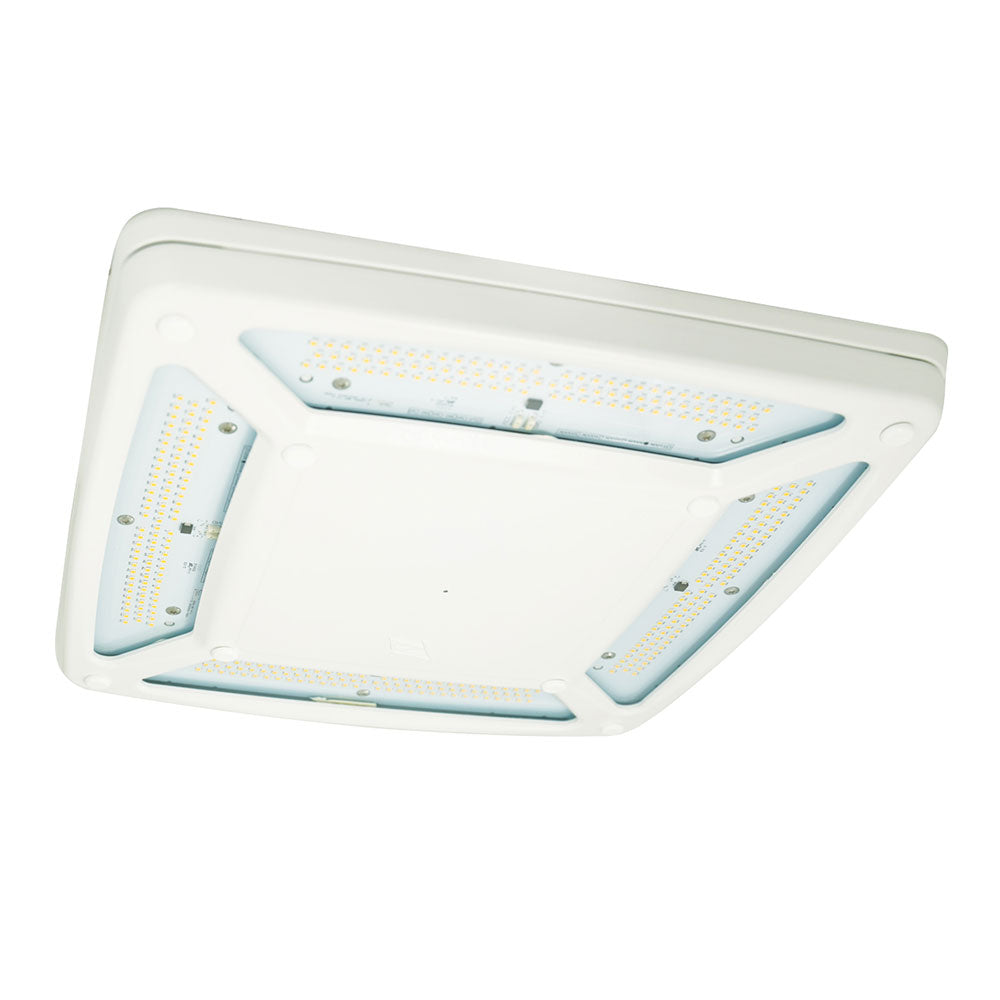

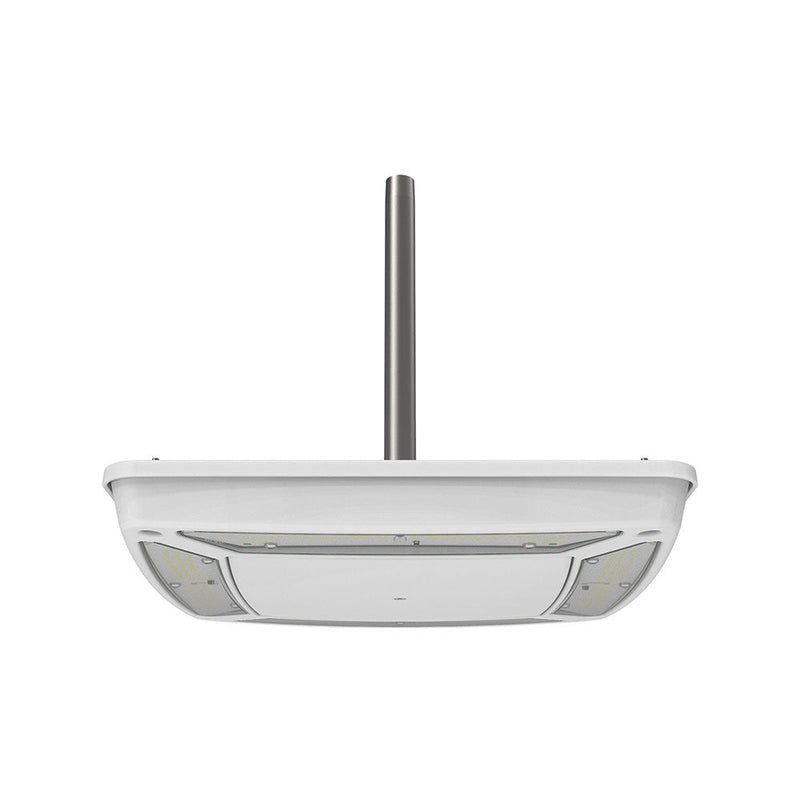

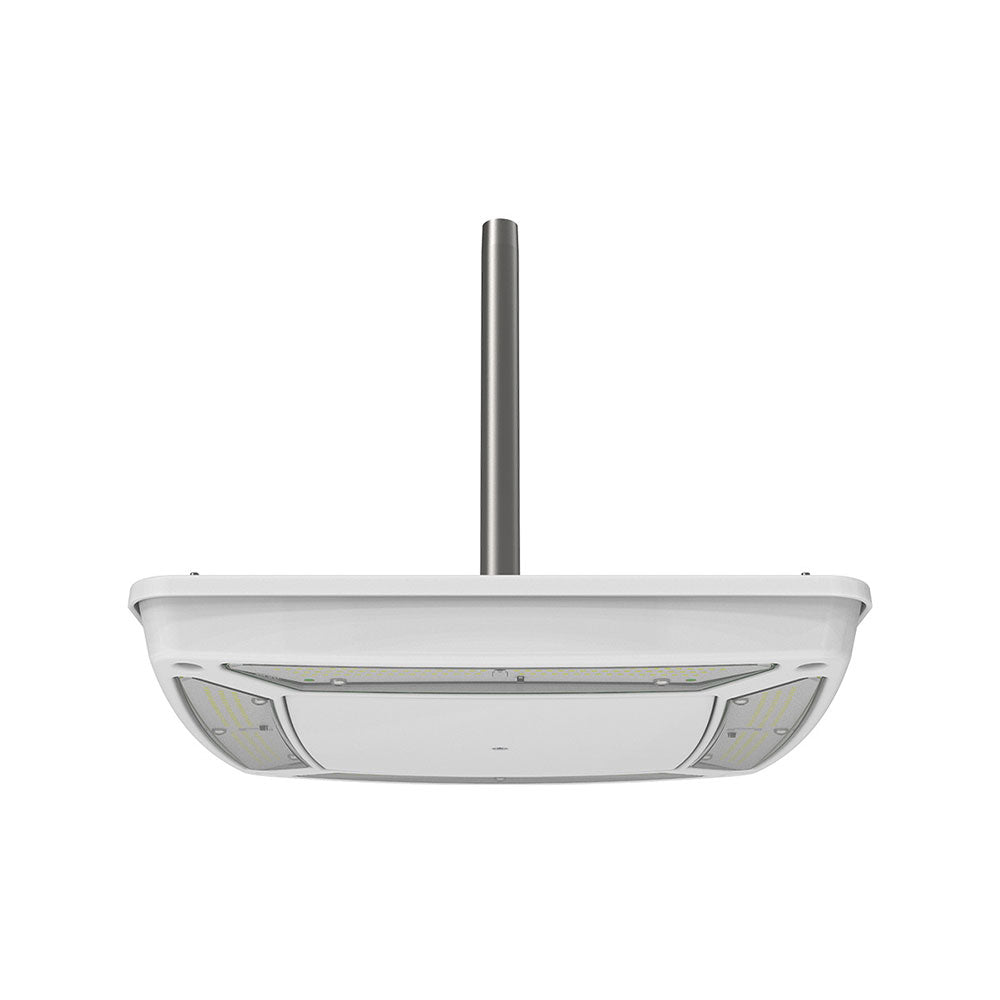

The HPG, with up to 23,000 lumens, is the ideal parking garage solution for higher mounting height and/or higher light level applications. 4 distinct photometric distributions provide the ideal optic for each area of the parking deck including one way and two way drive lanes and entry ways. Pendant versions mount to a 3/4" rigid stem. Surface/Direct mount versions are provided with a hinged 16ga galvanized mounting bracket for ease of installation and maintenance and mounts directly to a horizontal surface or 4" junction box.

Features & Specifications

  • Low profile housing with no visible heat sink or exposed hardware.
  • Precision die-cast aluminum construction for durability and long life.
  • Choice of four high performance distributions: Type 5 Square, Type 5 Concentrated, Type 5 Rectangular and Forward Throw.
  • 3 Standard CCTs @ 80 CRI.
  • Finished with LSIs DuraGrip® polyester powder coat finishing process to withstand extreme weather changes without cracking or peeling.
  • Operating temperature: -40°C to +50°C (-40°F to +122°F).
  • Integrated Sensors and Controls.
  • Meets Buy American Act requirements.

Max Lumens

  • 23,000

Min Lumens

  • 10,000

Sensors

  • Standalone Motion/Photocell
  • Wireless Motion/Photocell

Color Temperatures

  • 5000
  • 4000
  • 3000

Additional Options

QuickShip EligibleBluetoothTitle 24 CompliantBAA Compliant (Buy American Act)ROHS CompliantIP65IP66UL Listed Wet LocationIDA - Dark Sky Approved

LSI industries finish chart

LSI DuraGrip Protection System

Click for LSI DuraGrip Protection System
