LSI Industries Square Straight Steel Poles 4SQ/5SQ/6SQ

LSI IndustriesSKU: 5SQ BO S07G15 S BRZ - SDP

Model #: 5SQ BO S07G15 S BRZ - SDP
Price:
Sale price$1,958.96 USD

Fast & Easy Quote Request For LSI Industries Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

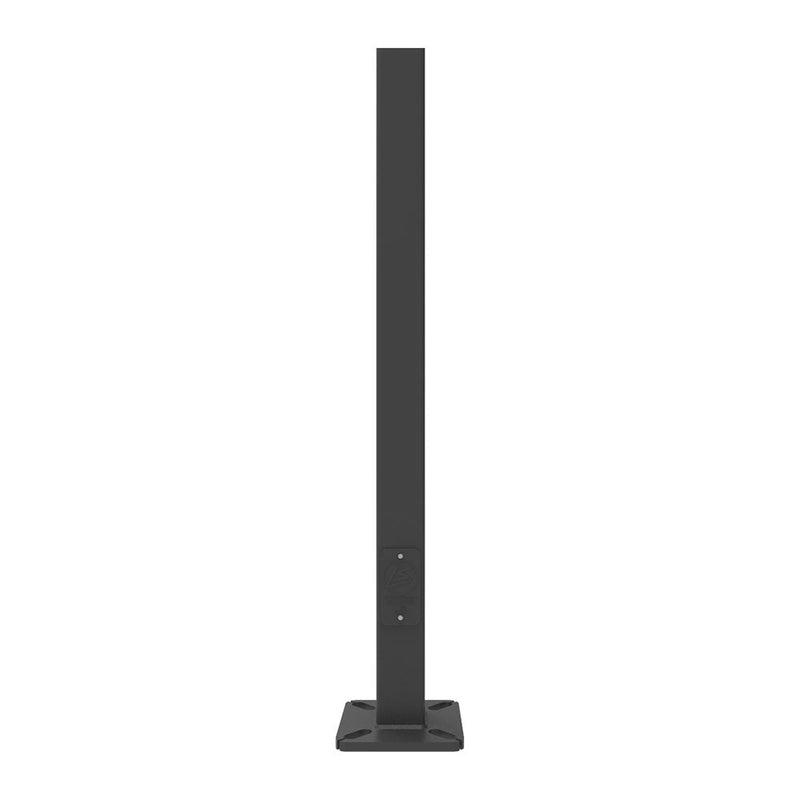

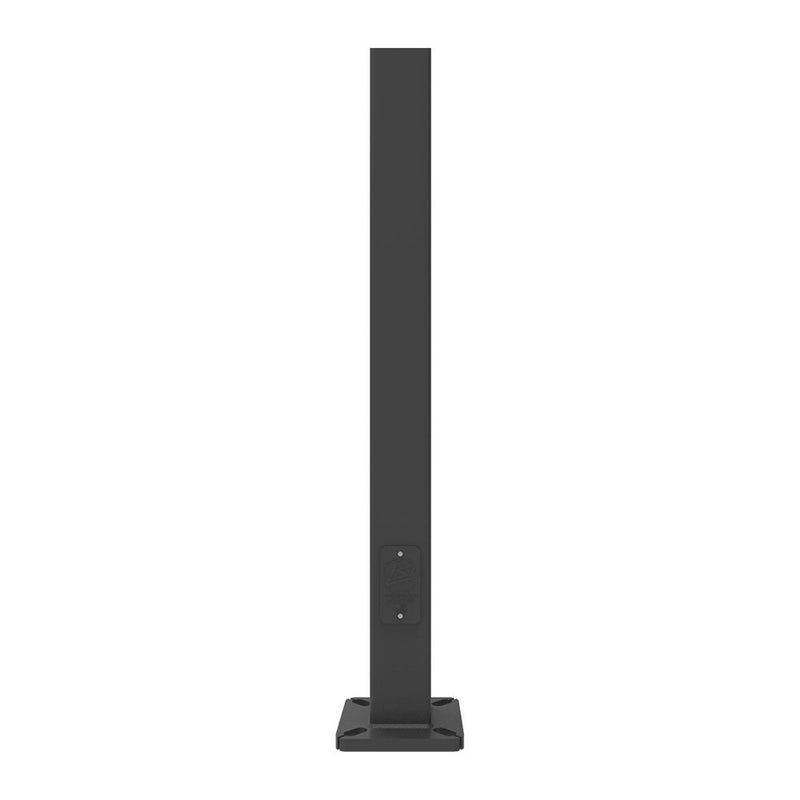

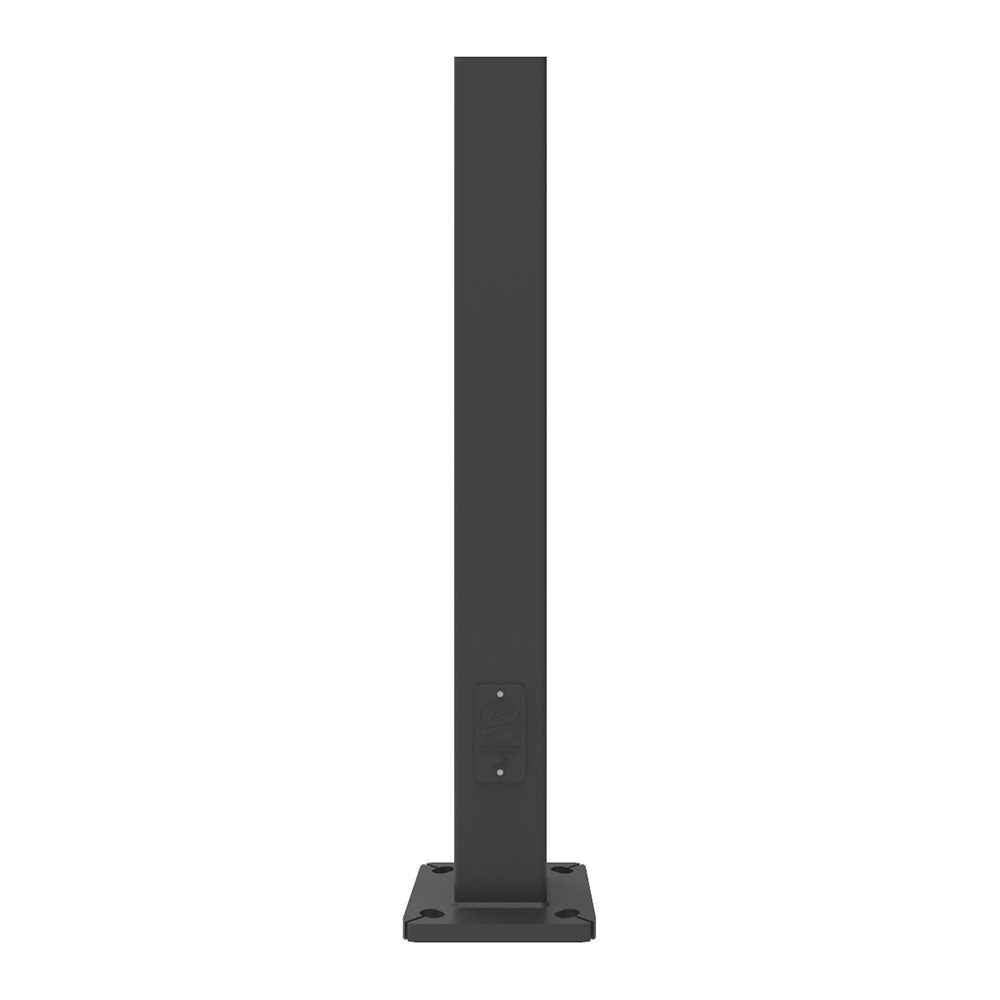

LSI Industries Square Straight Steel Poles 4SQ/5SQ/6SQ

LSI Lighting Solutions offers a full line of poles and brackets to complete your lighting assembly. We apply the same high-quality standards to our outdoor lighting poles and brackets as we do our lighting fixtures.

Features & Specifications

  • Square straight steel poles available in 4", 5", and 6".
  • Pole shaft is electro-welded ASTM-A500 Grade C steel tubing with a minimum yield strength of 50,000 psi.
  • Pole base is ASTM-A36 hot-rolled steel plate with a minimum yield strength of 36,000 psi.
  • Multiple high-strength pipe tenon mount steel poles available.
  • Standard hand-hole location is 12" above pole base.
  • Every pole is provided with the DuraGrip® Protection System and a 5-year limited warranty.
  • When the top-of-the line DuraGrip® Plus Protection System is selected, in addition to the DuraGrip® Protection System, a non-porous, automotive grade corrosion coating is applied to the lower portion of the pole interior, sealing and further protecting it from corrosion. This option extends the limited warranty to 7 years.

Additional Options

QuickShip EligibleBAA Compliant (Buy American Act)UL Listed
Product Files

Click for Poles Brochure

Click for DuraGrip Protection System

Click for square-straight-specsheet

Click for Updated Windspeed Map Data Sheet

Click for Pole Basics

Click for Pole Vibration Application Guidelines
