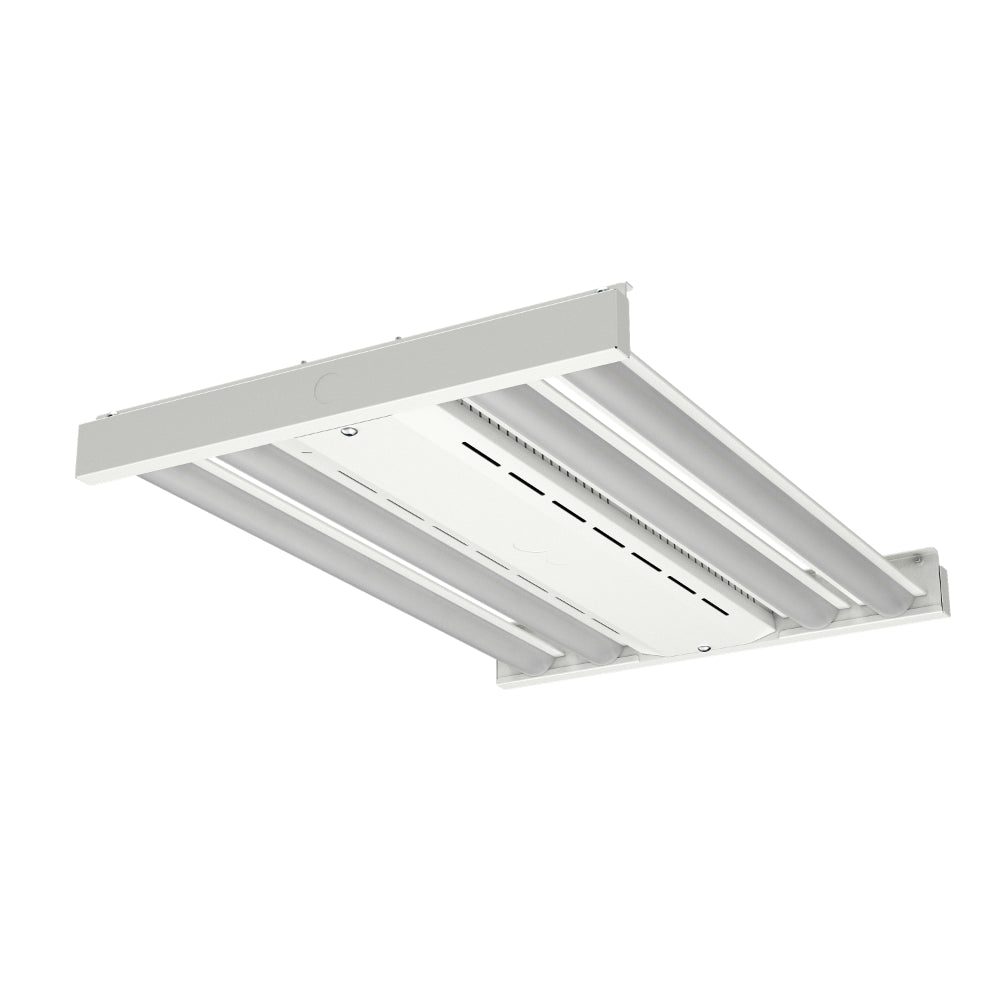

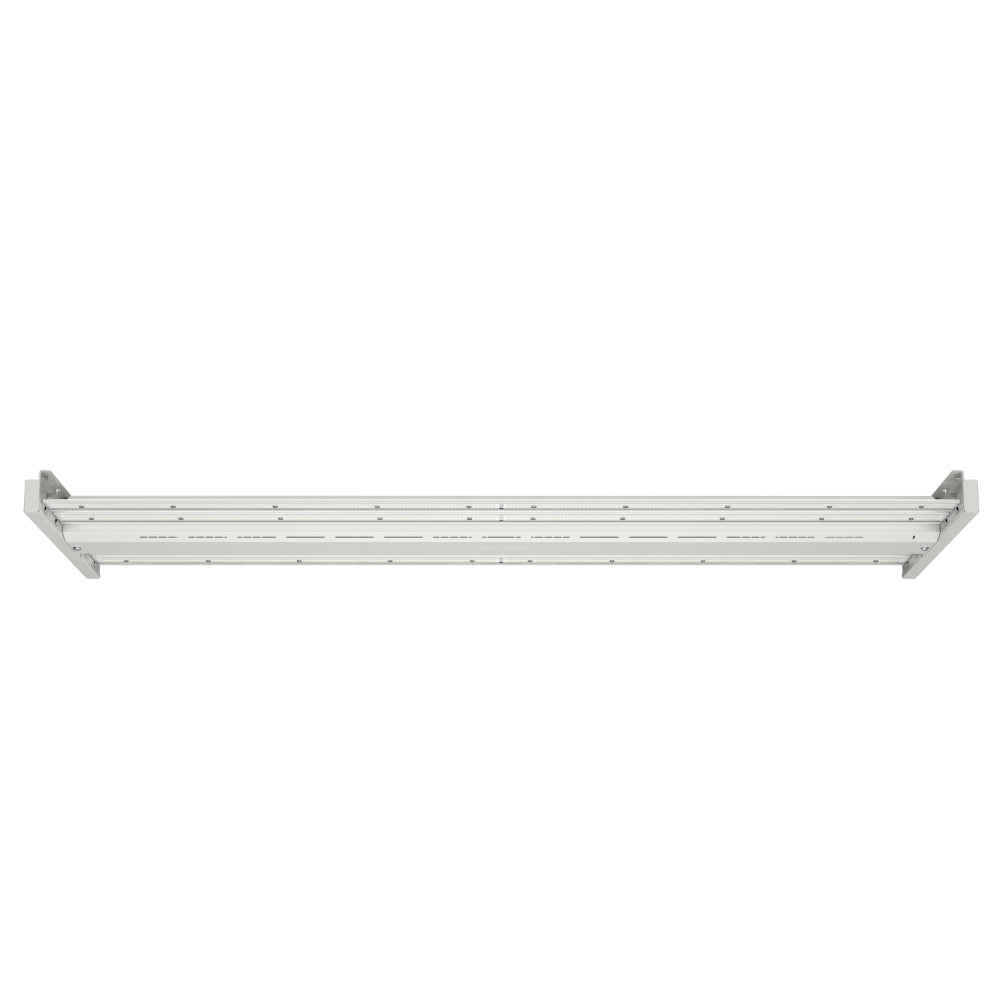

LSI Industries Zone Court Linear ZCL, ZCL LG

LSI IndustriesSKU: ZCL-ZCL-LG

Price:
Sale price$0.00 USD

Description

LSI Industries Zone Court Linear ZCL, ZCL LG

Video

The Zone Court Linear is a versatile fixture in the sports vertical that has standard options with up to 189 lumens per watt or a low glare version with UGRs as low as 8.  The ability to rotate optics allows you to customize our standard unit for direct illumination or indirect for specific zero glare applications.  Where indirect lighting is not practical, the low glare unit lets you utilize a direct lighting fixture with visual discomfort ratings far below industry competitors, maximizing output and minimizing impact to our eyes.

These high mounting fixture options provide our customers with the ultimate solution for their specific lighting needs.

Ideal Applications: Tennis facilities, pickle ball courts, gymnasiums, and practice facilities.

Features & Specifications

All variations feature the following:

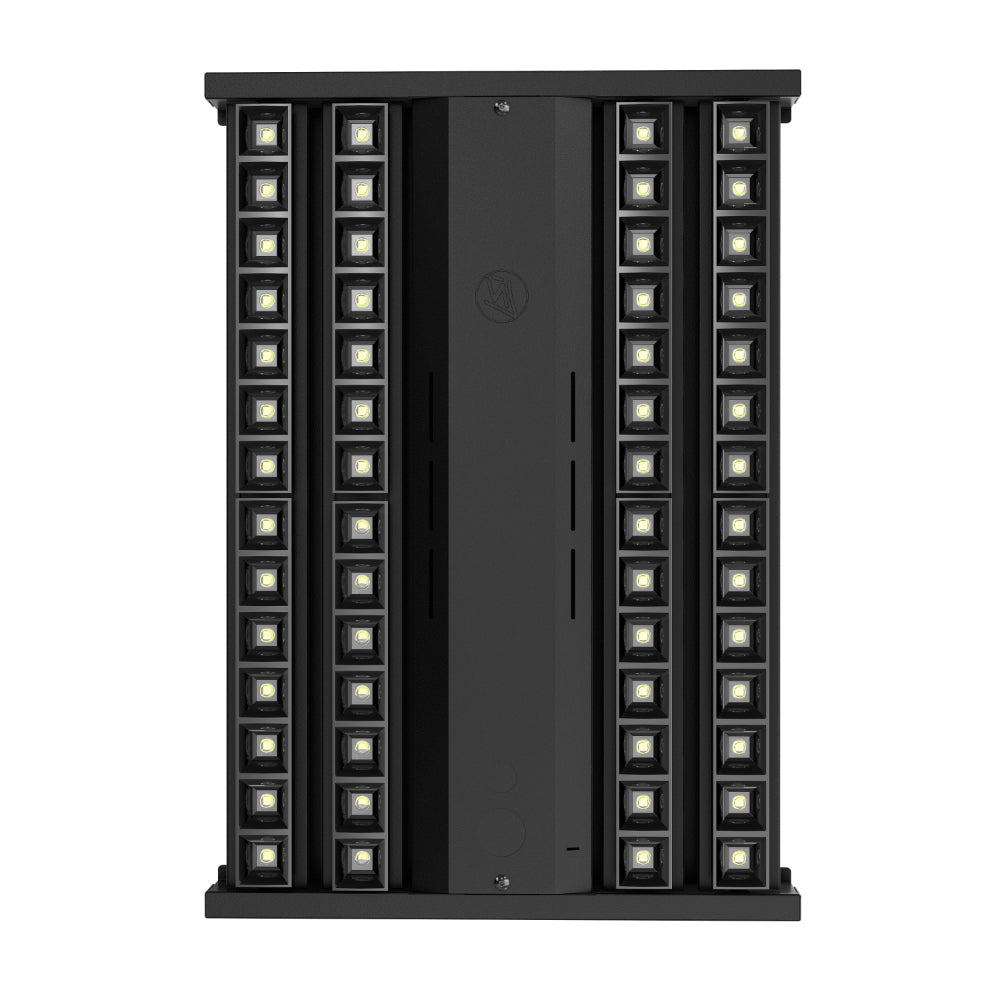

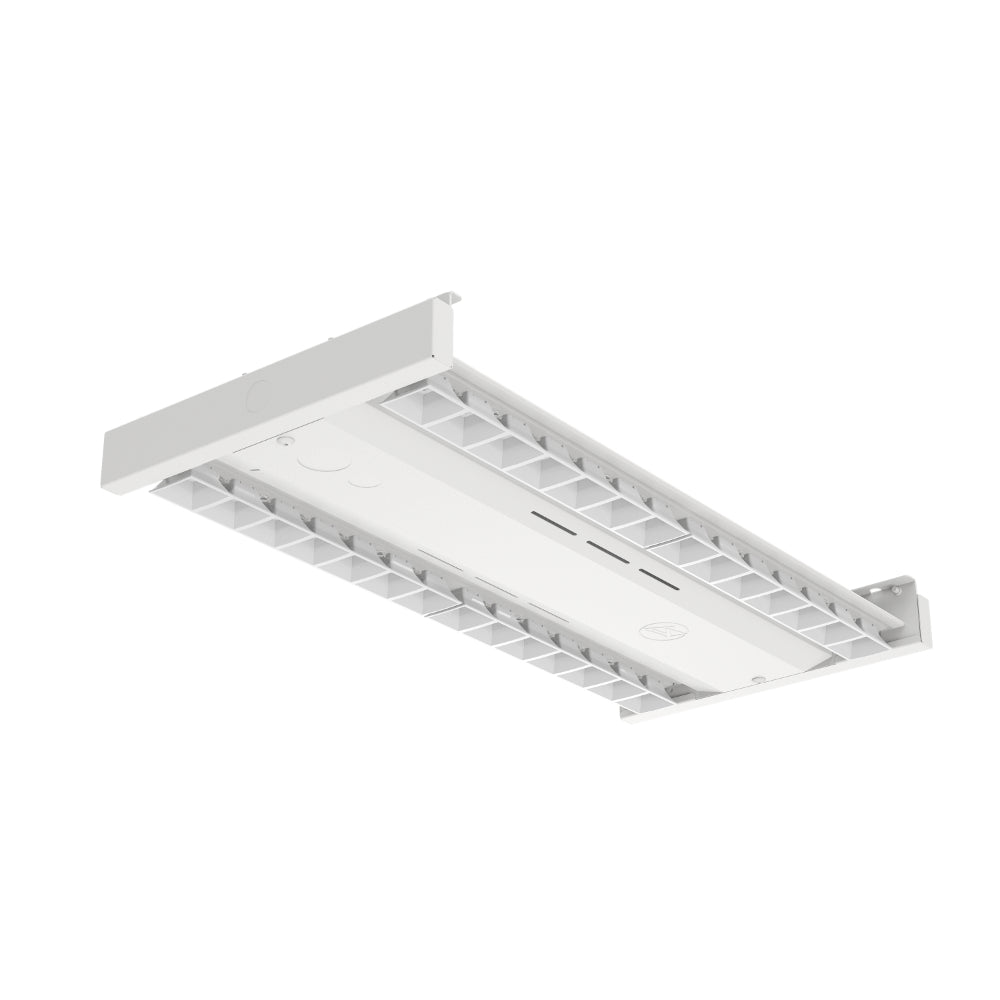

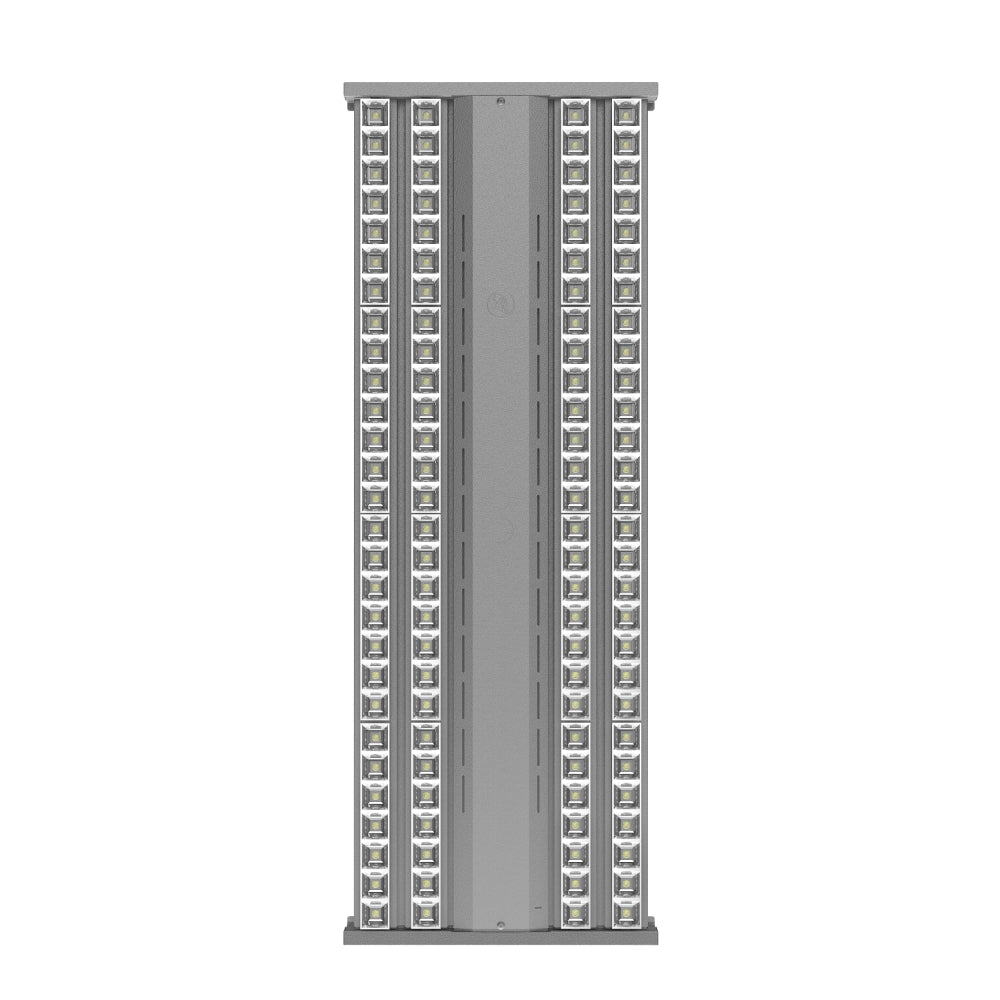

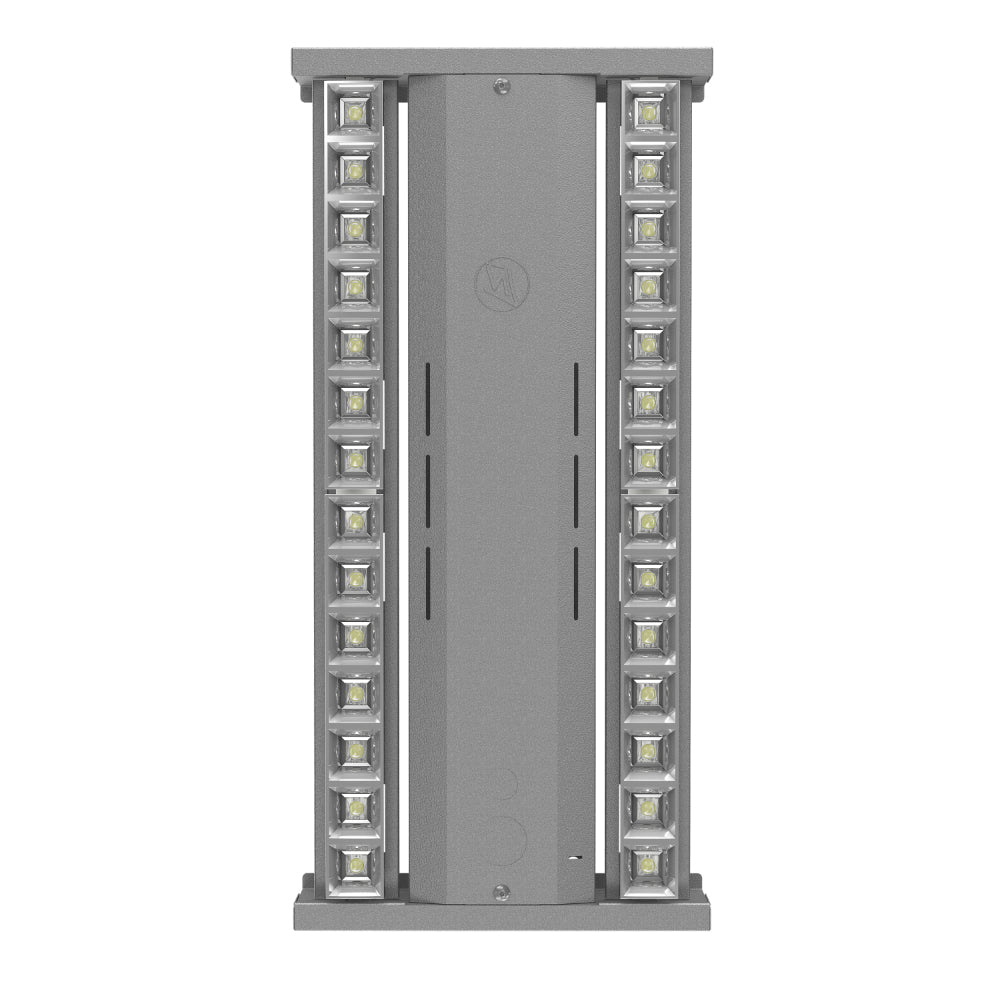

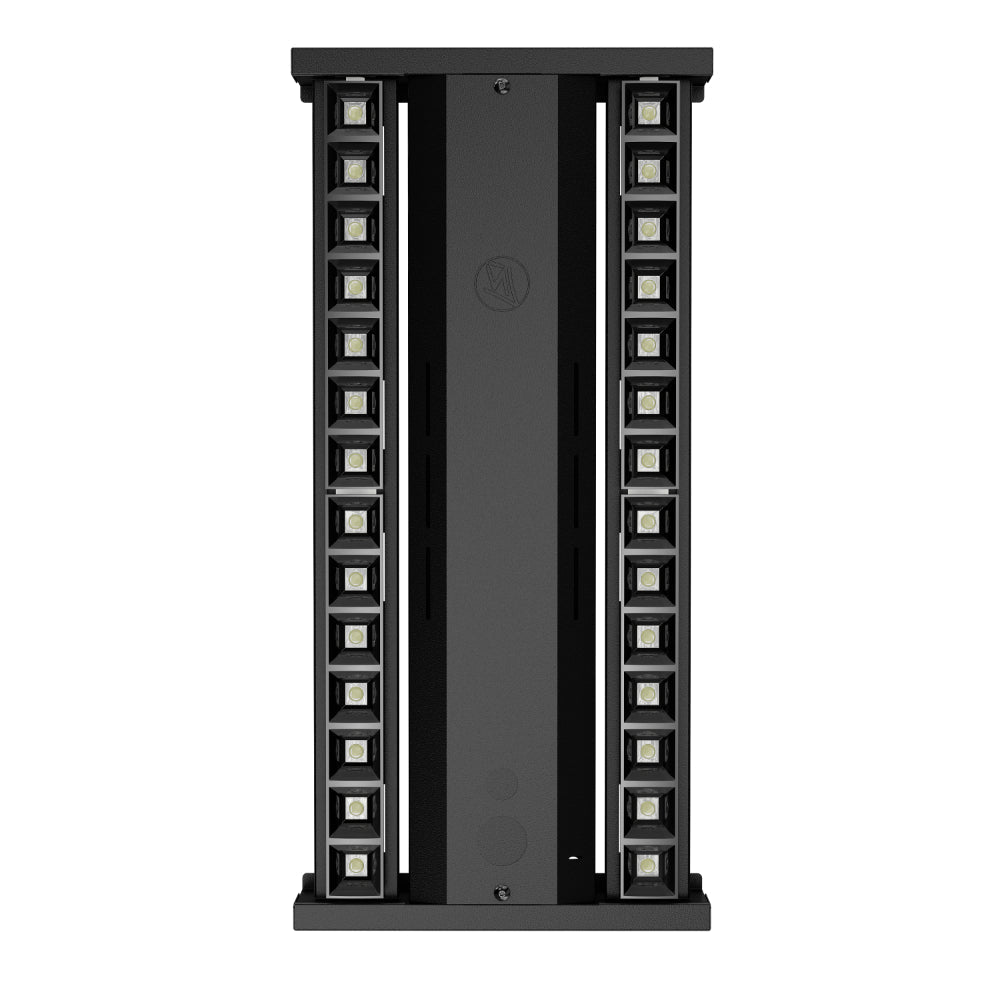

  • 3 standard finishes (Gloss White, Black, or Metallic Silver)
  • Field rotatable optics in 30 degree increments from 0 to 180 (or request the factory to do it for you)

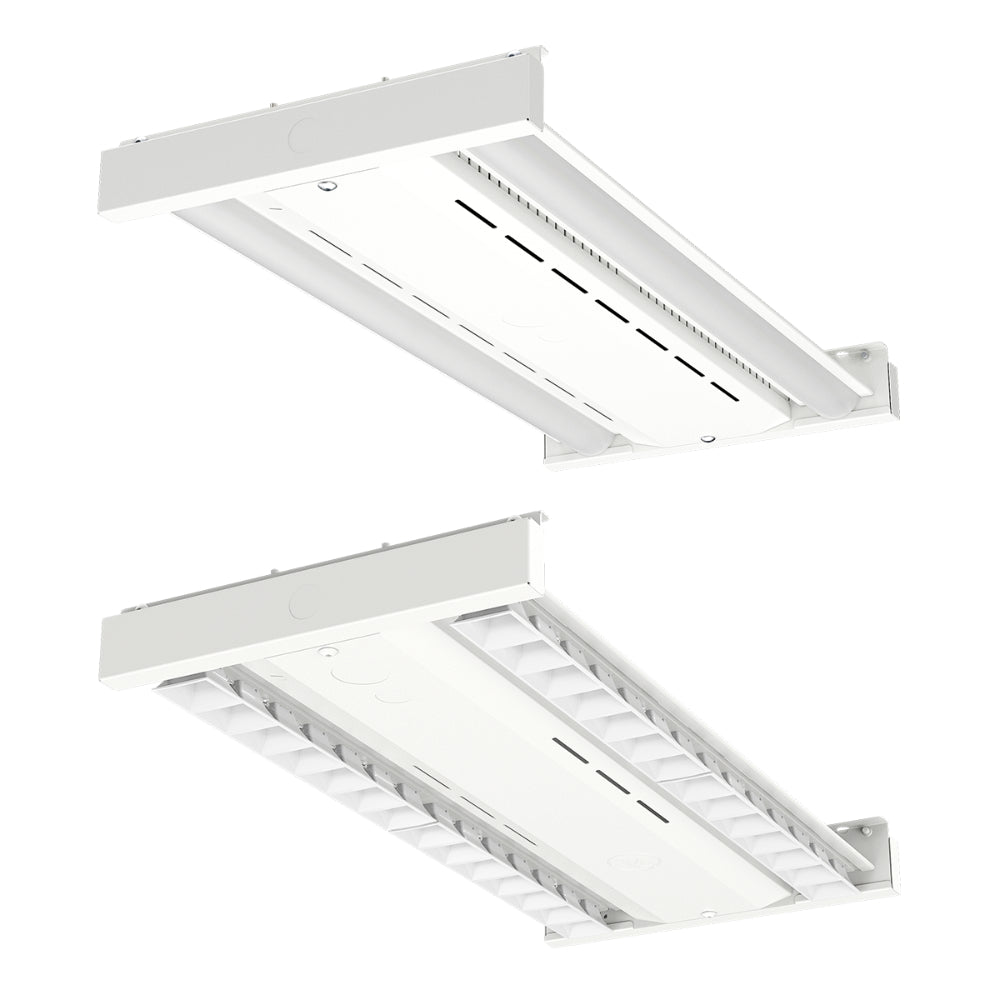

ZCL standard units feature the following:

  • Efficacy up to 189 lumens per watt
  • Choose from 8 different lens options, including no lens, clear, diffuse, narrow, or high impact

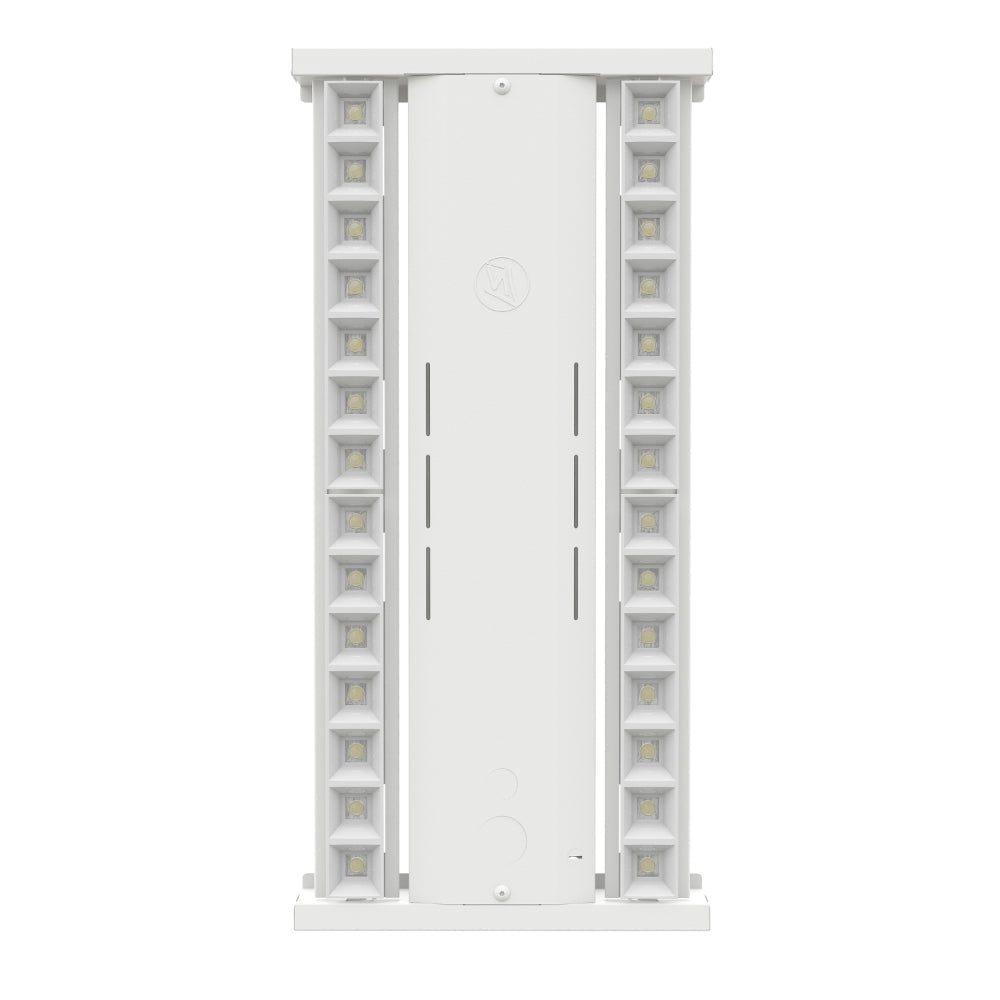

ZCL Low Glare units feature the following:

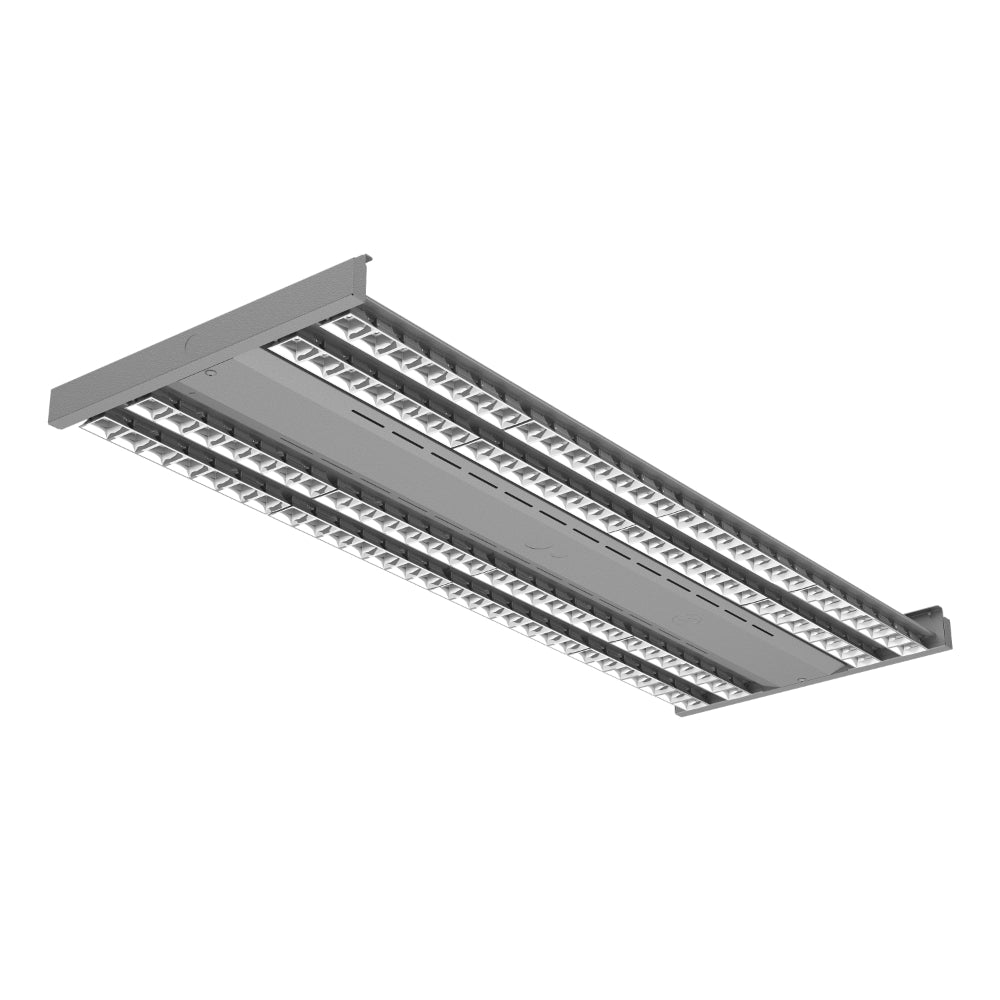

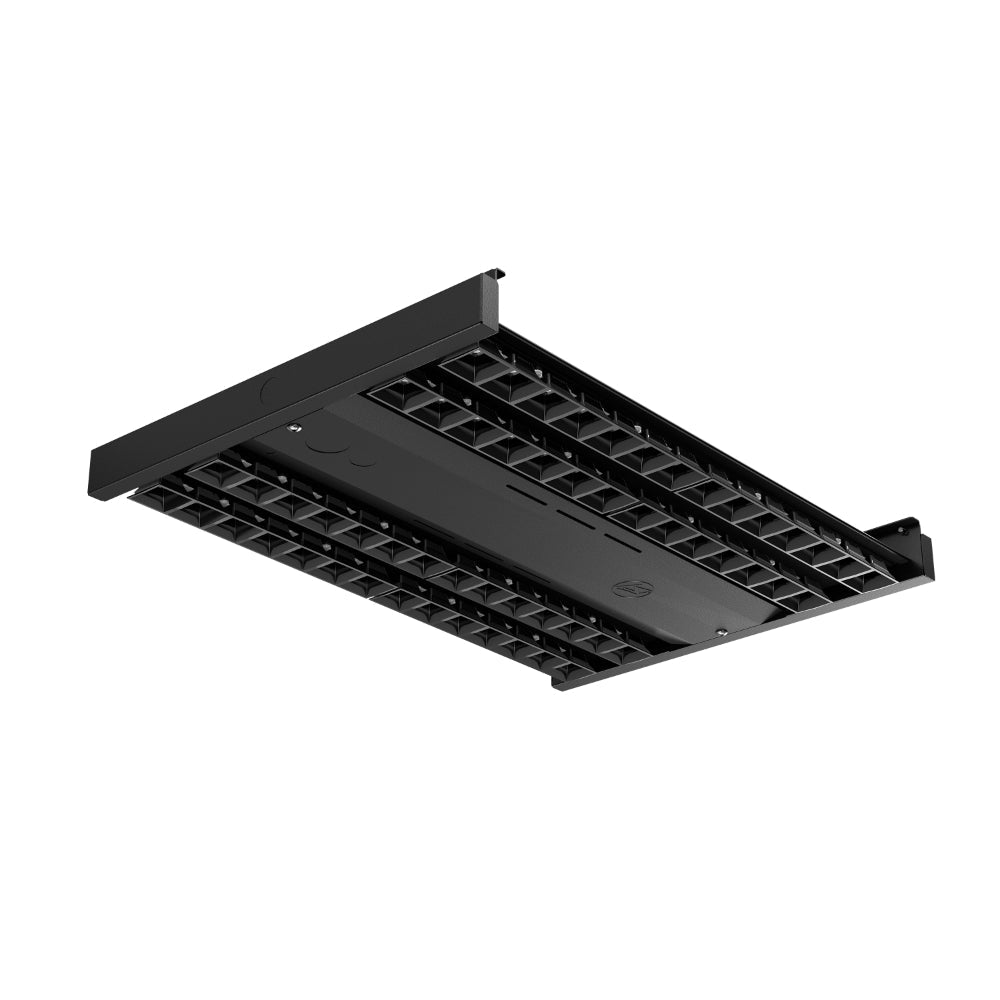

  • 6 different baffle choices for balance of performance and aesthetics and UGRs as low as 8
  • High impact optics with retention mechanisms to keep everything in place

Listings

  • List for UL 1598 and UL 8750
  • Suitable for damp locations
  • Meets Buy American Act and Build America, Buy America Requirements
  • State of California Title 24 compliant

Max Lumens

  • 72,000

Min Lumens

  • 12,000

Sensors

  • OMSx
  • IMSBTxL
  • ALBC(S)
  • ALSC(S)

Color Temperatures

  • 4000, 5000
Product Files

Click forLSI Industries Zone Court Linear (ZCL) Spec Sheet

Click forLSI Industries Zone Court Linear Low Glare (ZCL LG) Specsheet

Click forLSI Industries Zone Court External Motion Sensor (OMS) Spec Sheet

Click forLSI Industries Zone Court Integral Motion and Photocell Sensor (IMSBTxL) Spec Sheet

Click forLSI Industries Zone Court ZCL/ZCL LG Instructions

Click forLSI Industries Zone Court Highbay Position Guide

Click forLSI Industries Zone Court Industrial Comparison Guide

Click forLSI Industries Zone Court Indoor Sports Positioning Guide

Click forLSI Industries Zone Court UGR FAQ
