Fast & Easy Quote Request For Signify Lumec Lighting
Lumec Lighting
Description

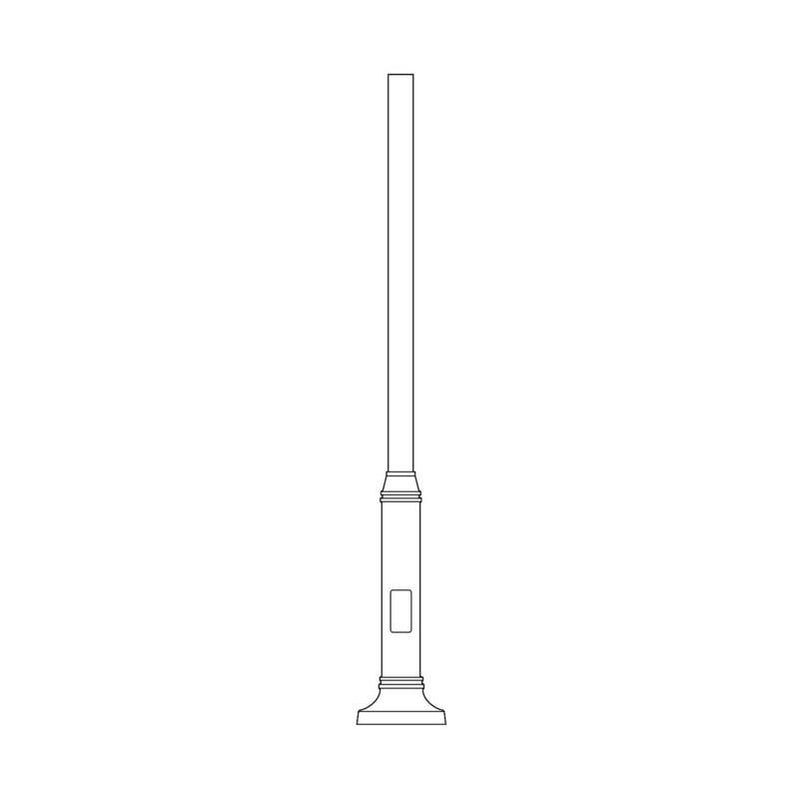

Lumec Lighting Contemporary Large Bottleneck Poles (SAM8, SSM8)
Enhancing your project's unique style
Product Family Information
Made from a one-piece, seamless 5 9/16" round (141 mm) tube of extruded aluminum welded over and in a 8 5/8" round (219 mm) extruded-aluminum pole base. The assembly is welded to both the top and bottom of a cast aluminum anchor plate. A 4 1/2" by 10" (114 by 254 mm) maintenance opening is complete. with cover and copper ground lug.
Benefits
- Built to withstand harsh environmental conditions
- Superior corrosion resistance
- Optimal strength and durability
Features
- Round
- Steel or Aluminum
- Available in various heights ranging from 12' to 28'
Applications
- Bridges, Monuments, Facades
- Road and Street
Product Variations
| Image | Title | SKU |
|---|---|---|
 |
ROUND ALUMINUM BOTTLENECK POLE | SAM8 |
|
ROUND STEEL BOTTLENECK POLE | SSM8 |
Product Files
Click for Lumec-SAM8 Pole - Spec Sheet-SAM8V-20-DRI-GNTX
Click for Lumec-Philips-SSM8_Pole (SSM8) - Spec Sheet-SAM8V-20-DRI-GNTX
Click for Lumec Aluminum Poles Product Selection Guide-SAM8V-20-DRI-GNTX
Click for Lumec Poles & Brackets Guide-SAM8V-20-DRI-GNTX
Click for Lumec Steel Poles Product Selection Guide-SAM8V-20-DRI-GNTX
