Lumec Lighting
Description
Lumec Lighting Extended Reach Brackets
Adding a touch of originality to any project
Product Family Information

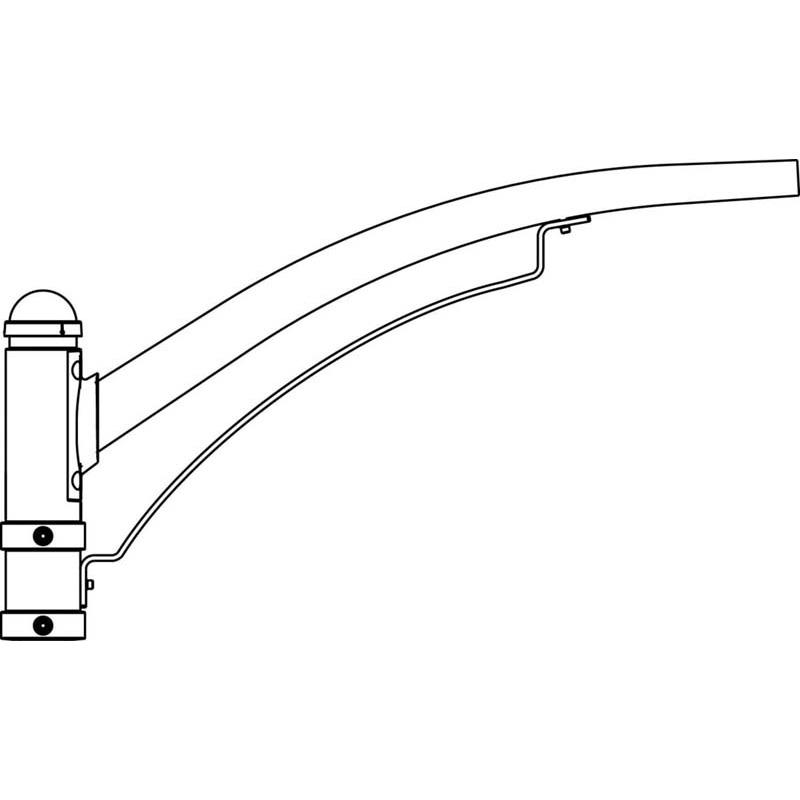

The AC4 / AC6 / AC8 mounting arms feature a tapered spun aluminum arm of 4" by 2 7/8" (102 by 73 mm) to 2 3/8" (60 mm) O.D. at the luminaire end, mechanically assembled to the central housing. The mounting arms include a decorative curved flat piece of aluminum, mechanically assembled to the central pole adaptor and to the arm using stainless steel. hardware. The central pole adaptor is complete with a cast-aluminum cap, slip-fits 9" (229 mm) over a 4" (102 mm), 5" (127 mm) or 5 9/16" (141 mm) O.D. pole or tenon.
Benefits
- Decorative, yet durable
- Extended reach
Features
- Available in a variety of mounting configurations
Applications
- Bridges, Monuments, Facades
- Road and Street

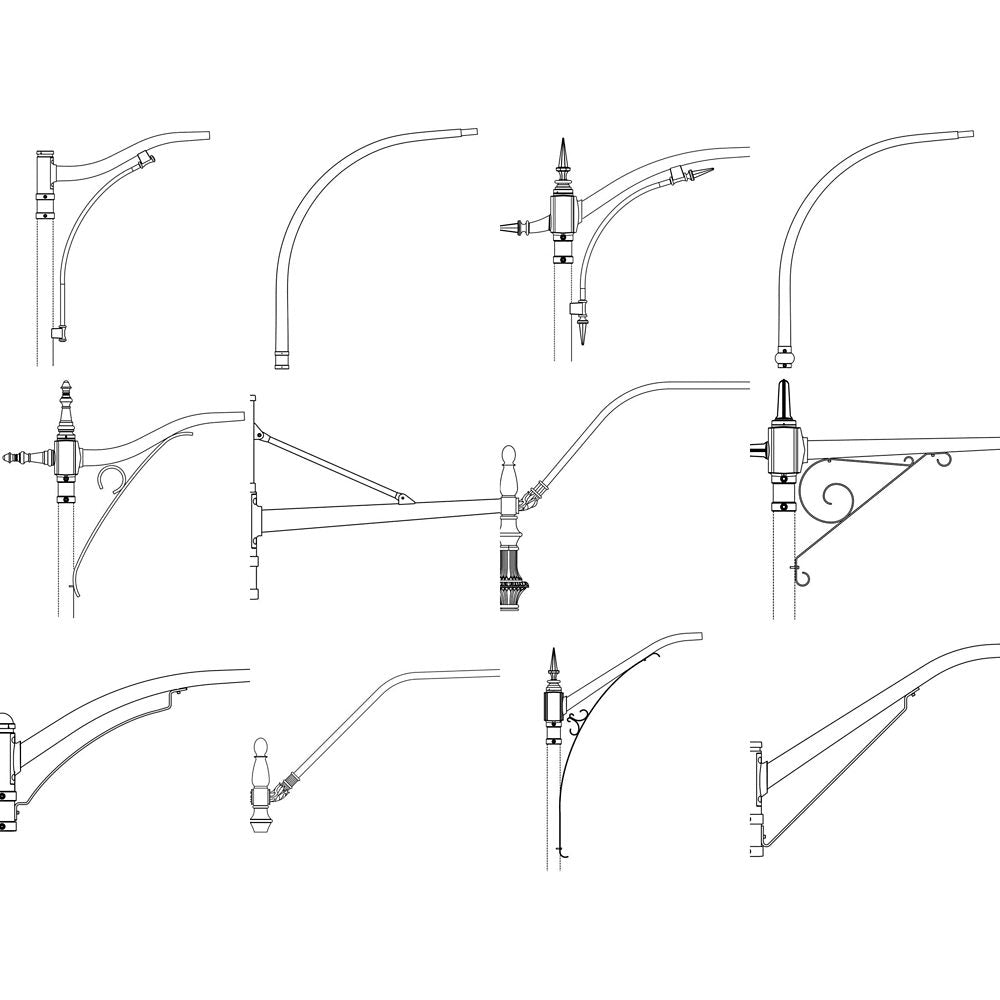

Product Variations
| Image | Title | SKU |
|---|---|---|
 |
AC style mounting arm with 4, 6, and 8ft reach options | AC4/AC6/AC8 |
 |
AR style mounting arm with 4, 6, and 8ft reach options | AR4/AR6/AR8 |
 |
CJL style mounting arm with 4, 5.5, 6, and 8ft reach options | CJL4/CJL5.5/CJL6/CJL8 |
 |
CRM style mounting arm with 4, 6, and 8ft reach options | CRM4/CRM6/CRM8 |
 |
DC style mounting arm with 6 and 8ft reach options | DC6/DC8 |
 |
DR style mounting arm with 6 and 8ft reach options | DR6/DR8 |
 |
PC style mounting arm with 4, 6, and 8ft reach options | PC4/PC6/PC8 |
 |
PR style mounting arm with 4, 6, and 8ft reach options | PR4/PR6/PR8 |
 |
VC style mounting arm with 4, 6, and 8ft reach options | VC4/VC6/VC8 |
 |
VR style mounting arm with 4, 6, and 8ft reach options | VR4/VR6/VR8 |
 |
YC style mounting arm with 4, 6, and 8ft reach options | YC4/YC6/YC8 |
 |
YR style mounting arm with 4, 6, and 8ft reach options | YR4/YR6/YR8 |
Product Files
Click for Lumec-Extended Reach Brackets Spec Sheet-ER-BRACKETS
