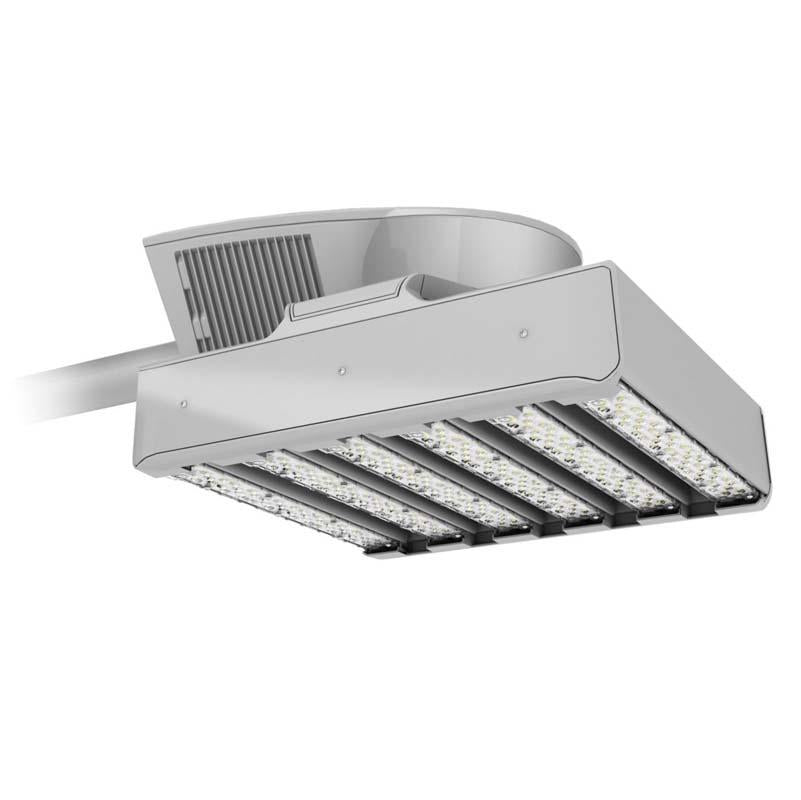

Lumec Lighting HighFocus LED High Mast (HFL)
Product List
| Product Name | SKU | Watts | Lumens | Kelvin |
|---|---|---|---|---|
| HighFocus, 92 LED, Type II - 101 lm/W | HFL-92L-1050-NW-G1-2 | 320 | 32361 | 4000 |
| HighFocus, 92 LED, Internal house side shield, Type II - 82 lm/W | HFL-92L-1050-NW-G1-2-HIS | 320 | 26100 | 4000 |
| HighFocus, 92 LED, External house side shield, Type II - 87 lm/W | HFL-92L-1050-NW-G1-2-HS | 320 | 28513 | 4000 |
| HighFocus, 92 LED, Type III - 101 lm/W | HFL-92L-1050-NW-G1-3 | 320 | 32406 | 4000 |
| HighFocus, 92 LED, Internal house side shield, Type III - 79 lm/W | HFL-92L-1050-NW-G1-3-HIS | 320 | 25408 | 4000 |
| HighFocus, 92 LED, External house side shield, Type III - 87 lm/W | HFL-92L-1050-NW-G1-3-HS | 320 | 28391 | 4000 |
| HighFocus, 92 LED, Type V Medium - 103 lm/W | HFL-92L-1050-NW-G1-5M | 320 | 32804 | 4000 |
| HighFocus, 92 LED, Type V Wide - 98 lm/W | HFL-92L-1050-NW-G1-5W | 320 | 31223 | 4000 |
| HighFocus, 92 LED, Internal house side shield, Type IV - 97 lm/W | HFL-92L-1050-NW-G1-T4 | 320 | 30987 | 4000 |
| HighFocus, 184 LED, Type II - 100 lm/W | HFL-184L-1050-NW-G1-2 | 640 | 64232 | 4000 |
| HighFocus, 184 LED, Internal house side shield, Type II - 81 lm/W | HFL-184L-1050-NW-G1-2-HIS | 640 | 51783 | 4000 |
| HighFocus, 184 LED, External house side shield, Type II - 87 lm/W | HFL-184L-1050-NW-G1-2-HS | 640 | 56200 | 4000 |
| HighFocus, 184 LED, Type III - 100 lm/W | HFL-184L-1050-NW-G1-3 | 640 | 64295 | 4000 |
| HighFocus, 184 LED, Internal house side shield, Type III - 79 lm/W | HFL-184L-1050-NW-G1-3-HIS | 640 | 50470 | 4000 |
| HighFocus, 184 LED, External house side shield, Type III - 86 lm/W | HFL-184L-1050-NW-G1-3-HS | 640 | 55958 | 4000 |
| HighFocus, 184 LED, Type V Medium - 102 lm/W | HFL-184L-1050-NW-G1-5M | 640 | 65244 | 4000 |
| HighFocus, 184 LED, Type V Wide - 97 lm/W | HFL-184L-1050-NW-G1-5W | 640 | 61964 | 4000 |
| HighFocus, 184 LED, Type IV - 96 lm/W | HFL-184L-1050-NW-G1-T4 | 640 | 61470 | 4000 |
| HighFocus, 276 LED, Type II - 99 lm/W | HFL-276L-1050-NW-G1-2 | 965 | 95707 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type II - 80 lm/W | HFL-276L-1050-NW-G1-2-HIS | 965 | 77467 | 4000 |
| HighFocus, 276 LED, External house side shield, Type II - 86 lm/W | HFL-276L-1050-NW-G1-2-HS | 965 | 82647 | 4000 |
| HighFocus, 276 LED, Type III - 97 lm/W | HFL-276L-1050-NW-G1-3 | 965 | 93942 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type III - 78 lm/W | HFL-276L-1050-NW-G1-3-HIS | 965 | 75462 | 4000 |
| HighFocus, 276 LED, External house side shield, Type III - 85 lm/W | HFL-276L-1050-NW-G1-3-HS | 965 | 82292 | 4000 |
| HighFocus, 276 LED, Type V Medium - 101 lm/W | HFL-276L-1050-NW-G1-5M | 965 | 97389 | 4000 |
| HighFocus, 276 LED, Type V Wide - 97 lm/W | HFL-276L-1050-NW-G1-5W | 965 | 93482 | 4000 |
| HighFocus, 276 LED, Type IV - 94 lm/W | HFL-276L-1050-NW-G1-T4 | 965 | 90397 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type IV - 94 lm/W | HFL-276L-1050-NW-G1-T4-HIS | 965 | 69675 | 4000 |
| HighFocus, 184 LED, Internal house side shield, Type IV - 96 lm/W | HFL-184L-1050-NW-G1-T4-HIS | 640 | 47379 | 4000 |
| HighFocus, 92 LED, Type IV - 97 lm/W | HFL-92L-1050-NW-G1-T4-HIS | 320 | 24038 | 4000 |
| HighFocus, 184 LED, Type II - 115 lm/W | HFL-184L-700-NW-G1-2 | 428 | 49146 | 4000 |
| HighFocus, 184 LED, Internal house side shield, Type II - 93 lm/W | HFL-184L-700-NW-G1-2-HIS | 428 | 39780 | 4000 |
| HighFocus, 184 LED, External house side shield, Type II - 99 lm/W | HFL-184L-700-NW-G1-2-HS | 428 | 42439 | 4000 |
| HighFocus, 184 LED, Type III - 113 lm/W | HFL-184L-700-NW-G1-3 | 428 | 48239 | 4000 |
| HighFocus, 184 LED, Internal house side shield, Type III - 91 lm/W | HFL-184L-700-NW-G1-3-HIS | 428 | 38750 | 4000 |
| HighFocus, 184 LED, External house side shield, Type III - 99 lm/W | HFL-184L-700-NW-G1-3-HS | 428 | 42257 | 4000 |
| HighFocus, 184 LED, Type V Medium - 117 lm/W | HFL-184L-700-NW-G1-5M | 428 | 50009 | 4000 |
| HighFocus, 184 LED, Type V Wide - 116 lm/W | HFL-184L-700-NW-G1-5W | 428 | 49638 | 4000 |
| HighFocus, 184 LED, Type IV - 108 lm/W | HFL-184L-700-NW-G1-T4 | 428 | 46419 | 4000 |
| HighFocus, 184 LED, Internal house side shield, Type IV - 84 lm/W | HFL-184L-700-NW-G1-T4-HIS | 428 | 35778 | 4000 |
| HighFocus, 276 LED, Type II - 138 lm/W | HFL-276L-200-NW-G1-2 | 167 | 23054 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type II - 112 lm/W | HFL-276L-200-NW-G1-2-HIS | 167 | 18660 | 4000 |
| HighFocus, 276 LED, External house side shield, Type II - 119 lm/W | HFL-276L-200-NW-G1-2-HS | 167 | 19908 | 4000 |
| HighFocus, 276 LED, Type III - 135 lm/W | HFL-276L-200-NW-G1-3 | 167 | 22629 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type III - 109 lm/W | HFL-276L-200-NW-G1-3-HIS | 167 | 18177 | 4000 |
| HighFocus, 276 LED, External house side shield, Type III - 118 lm/W | HFL-276L-200-NW-G1-3-HS | 167 | 19822 | 4000 |
| HighFocus, 276 LED, Type V Medium - 140 lm/W | HFL-276L-200-NW-G1-5M | 167 | 23459 | 4000 |
| HighFocus, 276 LED, Type V Wide - 139 lm/W | HFL-276L-200-NW-G1-5W | 167 | 23285 | 4000 |
| HighFocus, 276 LED, Type IV - 130 lm/W | HFL-276L-200-NW-G1-T4 | 167 | 21775 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type IV - 106 lm/W | HFL-276L-200-NW-G1-T4-HIS | 167 | 16783 | 4000 |
| HighFocus, 276 LED, Type II - 133 lm/W | HFL-276L-350-NW-G1-2 | 303 | 40248 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type II - 108 lm/W | HFL-276L-350-NW-G1-2-HIS | 303 | 32577 | 4000 |
| HighFocus, 276 LED, External house side shield, Type II - 115 lm/W | HFL-276L-350-NW-G1-2-HS | 303 | 34755 | 4000 |
| HighFocus, 276 LED, Type III - 131 lm/W | HFL-276L-350-NW-G1-3 | 303 | 39505 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type III - 105 lm/W | HFL-276L-350-NW-G1-3-HIS | 303 | 31734 | 4000 |
| HighFocus, 276 LED, External house side shield, Type III - 114 lm/W | HFL-276L-350-NW-G1-3-HS | 303 | 34606 | 4000 |
| HighFocus, 276 LED, Type V Medium - 135 lm/W | HFL-276L-350-NW-G1-5M | 303 | 40955 | 4000 |
| HighFocus, 276 LED, Type V Wide - 134 lm/W | HFL-276L-350-NW-G1-5W | 303 | 40651 | 4000 |
| HighFocus, 276 LED, Type IV - 126 lm/W | HFL-276L-350-NW-G1-T4 | 303 | 38015 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type IV - 97 lm/W | HFL-276L-350-NW-G1-T4-HIS | 303 | 29301 | 4000 |
| HighFocus, 276 LED, Type II - 125 lm/W | HFL-276L-530-NW-G1-2 | 468 | 58228 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type II - 101 lm/W | HFL-276L-530-NW-G1-2-HIS | 468 | 47131 | 4000 |
| HighFocus, 276 LED, External house side shield, Type II - 108 lm/W | HFL-276L-530-NW-G1-2-HS | 468 | 50282 | 4000 |
| HighFocus, 276 LED, Type III - 122 lm/W | HFL-276L-530-NW-G1-3 | 468 | 57154 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type III - 98 lm/W | HFL-276L-530-NW-G1-3-HIS | 468 | 45911 | 4000 |
| HighFocus, 276 LED, External house side shield, Type III - 107 lm/W | HFL-276L-530-NW-G1-3-HS | 468 | 50066 | 4000 |
| HighFocus, 276 LED, Type V Medium - 127 lm/W | HFL-276L-530-NW-G1-5M | 468 | 59251 | 4000 |
| HighFocus, 276 LED, Type V Wide - 126 lm/W | HFL-276L-530-NW-G1-5W | 468 | 58811 | 4000 |
| HighFocus, 276 LED, Type IV - 118 lm/W | HFL-276L-530-NW-G1-T4 | 468 | 54997 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type IV - 91 lm/W | HFL-276L-530-NW-G1-T4-HIS | 468 | 42390 | 4000 |
| HighFocus, 276 LED, Type II - 117 lm/W | HFL-276L-700-NW-G1-2 | 628 | 73638 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type II - 95 lm/W | HFL-276L-700-NW-G1-2-HIS | 628 | 59604 | 4000 |
| HighFocus, 276 LED, External house side shield, Type II - 101 lm/W | HFL-276L-700-NW-G1-2-HS | 628 | 63589 | 4000 |
| HighFocus, 276 LED, Type III - 115 lm/W | HFL-276L-700-NW-G1-3 | 628 | 72280 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type III - 93 lm/W | HFL-276L-700-NW-G1-3-HIS | 628 | 58061 | 4000 |
| HighFocus, 276 LED, External house side shield, Type III - 101 lm/W | HFL-276L-700-NW-G1-3-HS | 628 | 63316 | 4000 |
| HighFocus, 276 LED, Type V Medium - 119 lm/W | HFL-276L-700-NW-G1-5M | 628 | 74932 | 4000 |
| HighFocus, 276 LED, Type V Wide - 119 lm/W | HFL-276L-700-NW-G1-5W | 628 | 74636 | 4000 |
| HighFocus, 276 LED, Type IV - 111 lm/W | HFL-276L-700-NW-G1-T4 | 628 | 69552 | 4000 |
| HighFocus, 276 LED, Internal house side shield, Type IV - 85 lm/W | HFL-276L-700-NW-G1-T4-HIS | 628 | 53608 | 4000 |
Product Family Details
Lumec HighFocus LED high mast luminaires provide an energy saving, lowmaintenance solution that provides managers and work crews with the freedom to focus on other tasks. HighFocus LED features scalable lumen packages and offers up to 97,389 lumens.
Benefits
- Provides reliable and uniform LED illumination ranging from 400 to 1000W HID replacement
- Consistent and uniform light levels mean that anyone can confidently navigate the well-lit area with ease
- Three lumen packages available providing up to 97,389 lumens
- Long LED life means that drivers aren't frequently inconvenienced by maintenance-related lane or area closures.
- Includes Service Tag
Features
- LED illumination ranging from 400 to 1000W HID replacement.
- Three lumen packages available providing up to 97,389 lumens
- Entire optical assembly rotatable,
- IP66 Rated light engines
- Optional 5-pin and 7-pin NEMA twist lock receptacles available
Applications

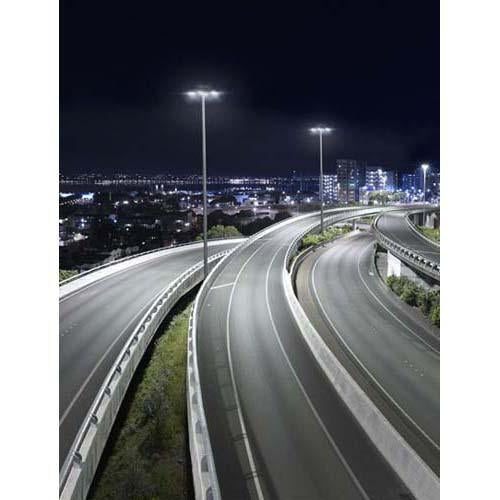

- Road and Street
