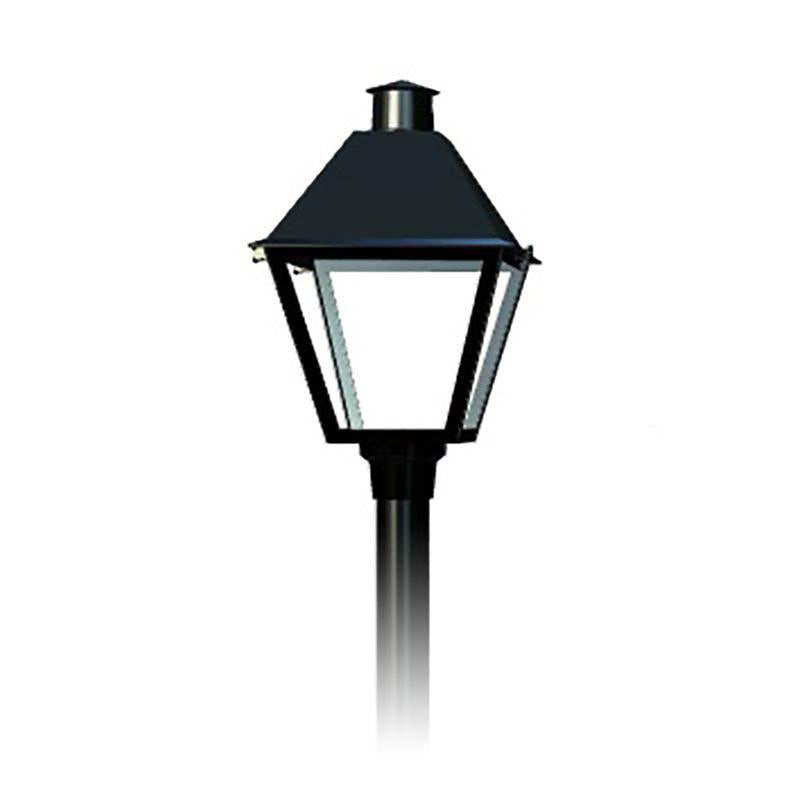

Lumec Lighting L40U LED post top (L40U)
Roll over image to zoom in Click on image to zoom
Lumec Lighting L40U LED post top (L40U)

Lumec Lighting L40U LED Post Top (L40U-LED)

Lumec LightingSKU: L40U-35W32LED4K-G3-PC-C-LE2-120-SRD-SFR-CHM-PHXL-TN3-BKTX
Catalog #: L40U-35W32LED4K-G3-PC-C-LE2-120-SRD-SFR-CHM-PHXL-TN3-BKTX
Price:
$3,180.60 USD

Fast & Easy Quote Request

Click the “Request A Quote” button. Next, in the notes section, please include the complete products catalog numbers and quantity requested. For details see the PDF spec sheet on this page. You may also include your lighting fixtures list and attach files.

Description

Lumec Lighting L40U LED Post Top (L40U-LED)

Product List

Product Name SKU Watts Lumens Kelvin
L40U Post Top LED 32 LED, Type II, 350mA, Clear Globe 3000K - 78 lm/W L40U-35W32LED3K-G2-C-LE2 37 2892 3000
L40U Post Top LED 32 LED, Type II, 530mA, Clear Globe 3000K - 76 lm/W L40U-55W32LED3K-G2-C-LE2 54 4149 3000
L40U Post Top LED 32 LED, Type II, 700mA, Clear Globe 3000K - 71 lm/W L40U-72W32LED3K-G2-C-LE2 73 5232 3000
L40U Post Top LED 48 LED, Type II, 350mA, Clear Globe 3000K - 78 lm/W L40U-55W48LED3K-G2-C-LE2 55 4338 3000
L40U Post Top LED 48 LED, Type II, 530mA, Clear Globe 3000K - 77 lm/W L40U-80W48LED3K-G2-C-LE2 80 6223 3000
L40U Post Top LED 48 LED, Type II, 700mA, Clear Globe 3000K - 74 lm/W L40U-108W48LED3K-G2-C-LE2 106 7848 3000
L40U Post Top LED 32 LED, Type III, 350mA, Clear Globe 3000K - 77 lm/W L40U-35W32LED3K-G2-C-LE3 37 2880 3000
L40U Post Top LED 32 LED, Type III, 530mA, Clear Globe 3000K - 76 lm/W L40U-55W32LED3K-G2-C-LE3 54 4131 3000
L40U Post Top LED 32 LED, Type III, 700mA, Clear Globe 3000K - 71 lm/W L40U-72W32LED3K-G2-C-LE3 73 5210 3000
L40U Post Top LED 48 LED, Type III, 350mA, Clear Globe 3000K - 78 lm/W L40U-55W48LED3K-G2-C-LE3 55 4320 3000
L40U Post Top LED 48 LED, Type III, 530mA, Clear Globe 3000K - 76 lm/W L40U-80W48LED3K-G2-C-LE3 80 6197 3000
L40U Post Top LED 48 LED, Type III, 700mA, Clear Globe 3000K - 73 lm/W L40U-108W48LED3K-G2-C-LE3 106 7816 3000
L40U Post Top LED 32 LED, Type IV, 350mA, Clear Globe 3000K - 76 lm/W L40U-35W32LED3K-G2-C-LE4 37 2812 3000
L40U Post Top LED 32 LED, Type IV, 530mA, Clear Globe 3000K - 74 lm/W L40U-55W32LED3K-G2-C-LE4 54 4034 3000
L40U Post Top LED 32 LED, Type IV, 700mA, Clear Globe 3000K - 69 lm/W L40U-72W32LED3K-G2-C-LE4 73 5088 3000
L40U Post Top LED 48 LED, Type IV, 350mA, Clear Globe 3000K - 76 lm/W L40U-55W48LED3K-G2-C-LE4 55 4219 3000
L40U Post Top LED 48 LED, Type IV, 530mA, Clear Globe 3000K - 75 lm/W L40U-80W48LED3K-G2-C-LE4 80 6051 3000
L40U Post Top LED 48 LED, Type IV, 700mA, Clear Globe 3000K - 72 lm/W L40U-108W48LED3K-G2-C-LE4 106 7632 3000
L40U Post Top LED 32 LED, Type V, 350mA, Clear Globe 3000K - 78 lm/W L40U-35W32LED3K-G2-C-LE5 37 2888 3000
L40U Post Top LED 32 LED, Type V, 530mA, Clear Globe 3000K - 76 lm/W L40U-55W32LED3K-G2-C-LE5 54 4143 3000
L40U Post Top LED 32 LED, Type V, 700mA, Clear Globe 3000K - 71 lm/W L40U-72W32LED3K-G2-C-LE5 73 5225 3000
L40U Post Top LED 48 LED, Type V, 350mA, Clear Globe 3000K - 78 lm/W L40U-55W48LED3K-G2-C-LE5 55 4332 3000
L40U Post Top LED 48 LED, Type V, 530mA, Clear Globe 3000K - 77 lm/W L40U-80W48LED3K-G2-C-LE5 80 6214 3000
L40U Post Top LED 48 LED, Type V, 700mA, Clear Globe 3000K - 73 lm/W L40U-108W48LED3K-G2-C-LE5 106 7837 3000
L40U Post Top LED 32 LED, Type II, 350mA, Clear Globe 3000K - 63 lm/W L40U-35W32LED3K-G2-C-LE2-HS 37 2362 3000
L40U Post Top LED 32 LED, Type II, 530mA, Clear Globe 3000K - 62 lm/W L40U-55W32LED3K-G2-C-LE2-HS 54 3389 3000
L40U Post Top LED 32 LED, Type II, 700mA, Clear Globe 3000K - 58 lm/W L40U-72W32LED3K-G2-C-LE2-HS 73 4275 3000
L40U Post Top LED 48 LED, Type II, 350mA, Clear Globe 3000K - 64 lm/W L40U-55W48LED3K-G2-C-LE2-HS 55 3544 3000
L40U Post Top LED 48 LED, Type II, 530mA, Clear Globe 3000K - 63 lm/W L40U-80W48LED3K-G2-C-LE2-HS 80 5084 3000
L40U Post Top LED 48 LED, Type II, 700mA, Clear Globe 3000K - 60 lm/W L40U-108W48LED3K-G2-C-LE2-HS 106 6412 3000
L40U Post Top LED 32 LED, Type III, 350mA, Clear Globe 3000K - 63 lm/W L40U-35W32LED3K-G2-C-LE3-HS 37 2362 3000
L40U Post Top LED 32 LED, Type III, 530mA, Clear Globe 3000K - 62 lm/W L40U-55W32LED3K-G2-C-LE3-HS 54 3389 3000
L40U Post Top LED 32 LED, Type III, 700mA, Clear Globe 3000K - 58 lm/W L40U-72W32LED3K-G2-C-LE3-HS 73 4274 3000
L40U Post Top LED 48 LED, Type III, 350mA, Clear Globe 3000K - 64 lm/W L40U-55W48LED3K-G2-C-LE3-HS 55 3544 3000
L40U Post Top LED 48 LED, Type III, 530mA, Clear Globe 3000K - 63 lm/W L40U-80W48LED3K-G2-C-LE3-HS 80 5083 3000
L40U Post Top LED 48 LED, Type III, 700mA, Clear Globe 3000K - 60 lm/W L40U-108W48LED3K-G2-C-LE3-HS 106 6411 3000
L40U Post Top LED 32 LED, Type IV, 350mA, Clear Globe 3000K - 62 lm/W L40U-35W32LED3K-G2-C-LE4-HS 37 2323 3000
L40U Post Top LED 32 LED, Type IV, 530mA, Clear Globe 3000K - 61 lm/W L40U-55W32LED3K-G2-C-LE4-HS 54 3333 3000
L40U Post Top LED 32 LED, Type IV, 700mA, Clear Globe 3000K - 57 lm/W L40U-72W32LED3K-G2-C-LE4-HS 73 4204 3000
L40U Post Top LED 48 LED, Type IV, 350mA, Clear Globe 3000K - 63 lm/W L40U-55W48LED3K-G2-C-LE4-HS 55 3486 3000
L40U Post Top LED 48 LED, Type IV, 530mA, Clear Globe 3000K - 62 lm/W L40U-80W48LED3K-G2-C-LE4-HS 80 5000 3000
L40U Post Top LED 48 LED, Type IV, 700mA, Clear Globe 3000K - 59 lm/W L40U-108W48LED3K-G2-C-LE4-HS 106 6306 3000
L40U Post Top LED 32 LED, Type II, 350mA, Clear Globe 4000K - 86 lm/W L40U-35W32LED4K-G2-C-LE2 37 3210 4000
L40U Post Top LED 32 LED, Type II, 530mA, Clear Globe 4000K - 85 lm/W L40U-55W32LED4K-G2-C-LE2 54 4605 4000
L40U Post Top LED 32 LED, Type II, 700mA, Clear Globe 4000K - 79 lm/W L40U-72W32LED4K-G2-C-LE2 73 5808 4000
L40U Post Top LED 48 LED, Type II, 350mA, Clear Globe 4000K - 87 lm/W L40U-55W48LED4K-G2-C-LE2 55 4816 4000
L40U Post Top LED 48 LED, Type II, 530mA, Clear Globe 4000K - 85 lm/W L40U-80W48LED4K-G2-C-LE2 80 6907 4000
L40U Post Top LED 48 LED, Type II, 700mA, Clear Globe 4000K - 82 lm/W L40U-108W48LED4K-G2-C-LE2 106 8712 4000
L40U Post Top LED 32 LED, Type III, 350mA, Clear Globe 4000K - 86 lm/W L40U-35W32LED4K-G2-C-LE3 37 3197 4000
L40U Post Top LED 32 LED, Type III, 530mA, Clear Globe 4000K - 84 lm/W L40U-55W32LED4K-G2-C-LE3 54 4586 4000
L40U Post Top LED 32 LED, Type III, 700mA, Clear Globe 4000K - 79 lm/W L40U-72W32LED4K-G2-C-LE3 73 5783 4000
L40U Post Top LED 48 LED, Type III, 350mA, Clear Globe 4000K - 87 lm/W L40U-55W48LED4K-G2-C-LE3 55 4796 4000
L40U Post Top LED 48 LED, Type III, 530mA, Clear Globe 4000K - 85 lm/W L40U-80W48LED4K-G2-C-LE3 80 6879 4000
L40U Post Top LED 48 LED, Type III, 700mA, Clear Globe 4000K - 81 lm/W L40U-108W48LED4K-G2-C-LE3 106 8675 4000
L40U Post Top LED 32 LED, Type IV, 350mA, Clear Globe 4000K - 84 lm/W L40U-35W32LED4K-G2-C-LE4 37 3122 4000
L40U Post Top LED 32 LED, Type IV, 530mA, Clear Globe 4000K - 82 lm/W L40U-55W32LED4K-G2-C-LE4 54 4478 4000
L40U Post Top LED 32 LED, Type IV, 700mA, Clear Globe 4000K - 77 lm/W L40U-72W32LED4K-G2-C-LE4 73 5648 4000
L40U Post Top LED 48 LED, Type IV, 350mA, Clear Globe 4000K - 84 lm/W L40U-55W48LED4K-G2-C-LE4 55 4683 4000
L40U Post Top LED 48 LED, Type IV, 530mA, Clear Globe 4000K - 83 lm/W L40U-80W48LED4K-G2-C-LE4 80 6717 4000
L40U Post Top LED 48 LED, Type IV, 700mA, Clear Globe 4000K - 79 lm/W L40U-108W48LED4K-G2-C-LE4 106 8471 4000
L40U Post Top LED 32 LED, Type V, 350mA, Clear Globe 4000K - 86 lm/W L40U-35W32LED4K-G2-C-LE5 37 3206 4000
L40U Post Top LED 32 LED, Type V, 530mA, Clear Globe 4000K - 85 lm/W L40U-55W32LED4K-G2-C-LE5 54 4598 4000
L40U Post Top LED 32 LED, Type V, 700mA, Clear Globe 4000K - 79 lm/W L40U-72W32LED4K-G2-C-LE5 73 5799 4000
L40U Post Top LED 48 LED, Type V, 350mA, Clear Globe 4000K - 87 lm/W L40U-55W48LED4K-G2-C-LE5 55 4809 4000
L40U Post Top LED 48 LED, Type V, 530mA, Clear Globe 4000K - 85 lm/W L40U-80W48LED4K-G2-C-LE5 80 6897 4000
L40U Post Top LED 48 LED, Type V, 700mA, Clear Globe 4000K - 82 lm/W L40U-108W48LED4K-G2-C-LE5 106 8699 4000
L40U Post Top LED 32 LED, Type II, 350mA, Clear Globe 4000K - 70 lm/W L40U-35W32LED4K-G2-C-LE2-HS 37 2623 4000
L40U Post Top LED 32 LED, Type II, 530mA, Clear Globe 4000K - 69 lm/W L40U-55W32LED4K-G2-C-LE2-HS 54 3762 4000
L40U Post Top LED 32 LED, Type II, 700mA, Clear Globe 4000K - 65 lm/W L40U-72W32LED4K-G2-C-LE2-HS 73 4745 4000
L40U Post Top LED 48 LED, Type II, 350mA, Clear Globe 4000K - 71 lm/W L40U-55W48LED4K-G2-C-LE2-HS 55 3934 4000
L40U Post Top LED 48 LED, Type II, 530mA, Clear Globe 4000K - 70 lm/W L40U-80W48LED4K-G2-C-LE2-HS 80 5643 4000
L40U Post Top LED 48 LED, Type II, 700mA, Clear Globe 4000K - 67 lm/W L40U-108W48LED4K-G2-C-LE2-HS 106 7117 4000
L40U Post Top LED 32 LED, Type III, 350mA, Clear Globe 4000K - 70 lm/W L40U-35W32LED4K-G2-C-LE3-HS 37 2622 4000
L40U Post Top LED 32 LED, Type III, 530mA, Clear Globe 4000K - 69 lm/W L40U-55W32LED4K-G2-C-LE3-HS 54 3762 4000
L40U Post Top LED 32 LED, Type III, 700mA, Clear Globe 4000K - 64 lm/W L40U-72W32LED4K-G2-C-LE3-HS 73 4744 4000
L40U Post Top LED 48 LED, Type III, 350mA, Clear Globe 4000K - 71 lm/W L40U-55W48LED4K-G2-C-LE3-HS 55 3934 4000
L40U Post Top LED 48 LED, Type III, 530mA, Clear Globe 4000K - 70 lm/W L40U-80W48LED4K-G2-C-LE3-HS 80 5642 4000
L40U Post Top LED 48 LED, Type III, 700mA, Clear Globe 4000K - 67 lm/W L40U-108W48LED4K-G2-C-LE3-HS 106 7116 4000
L40U Post Top LED 32 LED, Type IV, 350mA, Clear Globe 4000K - 69 lm/W L40U-35W32LED4K-G2-C-LE4-HS 37 2579 4000
L40U Post Top LED 32 LED, Type IV, 530mA, Clear Globe 4000K - 68 lm/W L40U-55W32LED4K-G2-C-LE4-HS 54 3700 4000
L40U Post Top LED 32 LED, Type IV, 700mA, Clear Globe 4000K - 63 lm/W L40U-72W32LED4K-G2-C-LE4-HS 73 4666 4000
L40U Post Top LED 48 LED, Type IV, 350mA, Clear Globe 4000K - 70 lm/W L40U-55W48LED4K-G2-C-LE4-HS 55 3869 4000
L40U Post Top LED 48 LED, Type IV, 530mA, Clear Globe 4000K - 68 lm/W L40U-80W48LED4K-G2-C-LE4-HS 80 5550 4000
L40U Post Top LED 48 LED, Type IV, 700mA, Clear Globe 4000K - 66 lm/W L40U-108W48LED4K-G2-C-LE4-HS 106 6999 4000

Product Family Details

The L40U luminaires feature a one-piece square tapered cast aluminum housing, with a sealed optical system. The cast-aluminum hood includes a photoelectrical hiding decorative finial, assembled on the housing using two built-in hood hinges.


Benefits

  • Protected against moisture, dust and insects
  • Quick and easy maintenance
  • Suitable for a variety of applications

Features

  • IP66 rated optical system
  • Toolless access to internal components
  • Various optics available

Applications

  • Road and Street

Click for L40U LED Post Top (L40U) - Spec Sheet (G3)

Click for L40U LED pendant (L40U-STM) - Instructions

Click for L40U LED (L40U) - Instructions

Click for the Lumec Color Chart
