Lumec Lighting
Description
Lumec Lighting Medium Reach Brackets
Adding a touch of originality to any project
Product Family Information

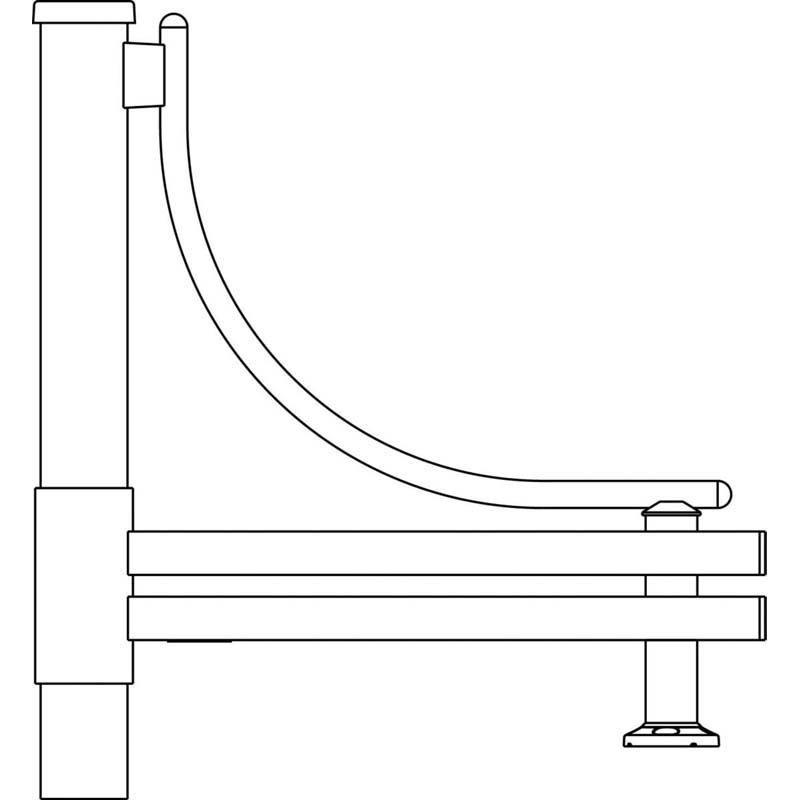

The CN1 mounting arm features two 2" by 3" (51 x 76 mm) rectangular extrudedaluminum arms welded to the central pole adaptor. The mounting arm includes a cast-aluminum decorative curved section welded to the central pole adaptor and the arm. The luminaire adaptor will accept a luminaire equipped with Lumec's four-bolt mounting system. The central pole adaptor slip-fits 12" (305 mm) into a 4" (102 mm), 5" (127 mm) or 5 9/16" (141 mm) O.D. pole or tenon. The CN1 is available with the OV option that can accommodate up to two 175W ballasts. For pole supplied by others, we strongly recommend the OV option.
Benefits
- Decorative, yet durable
Features
- Available in a variety of mounting configurations
- EPA of 2.62
Applications
- Bridges, Monuments, Facades
- Road and Street
Product Variations
| Image | Title | SKU |
|---|---|---|
 |
CN1 style mounting arm | CN1 |
 |
CN1S style mounting arm | CN1S |
 |
CN3 style mounting arm | CN3 |
 |
CNB-M style mounting arm | CNB-M |
 |
CRH style mounting arm (compatible with optional RCD7 receptacle) | CRH |
 |
CRI style mounting arm | CRI |
 |
MM style mounting arm | MM |
 |
MR style mounting arm | MR |
 |
MT style mounting arm (compatible with optional RCD7 receptacle) | MT |
 |
OM style mounting arm | OM |
 |
PM style mounting arm | PM |
 |
UM style mounting arm | UM |
Product Files
Click for Lumec-Medium Reach Brackets Spec Sheet-MR-BRACKETS
