Description

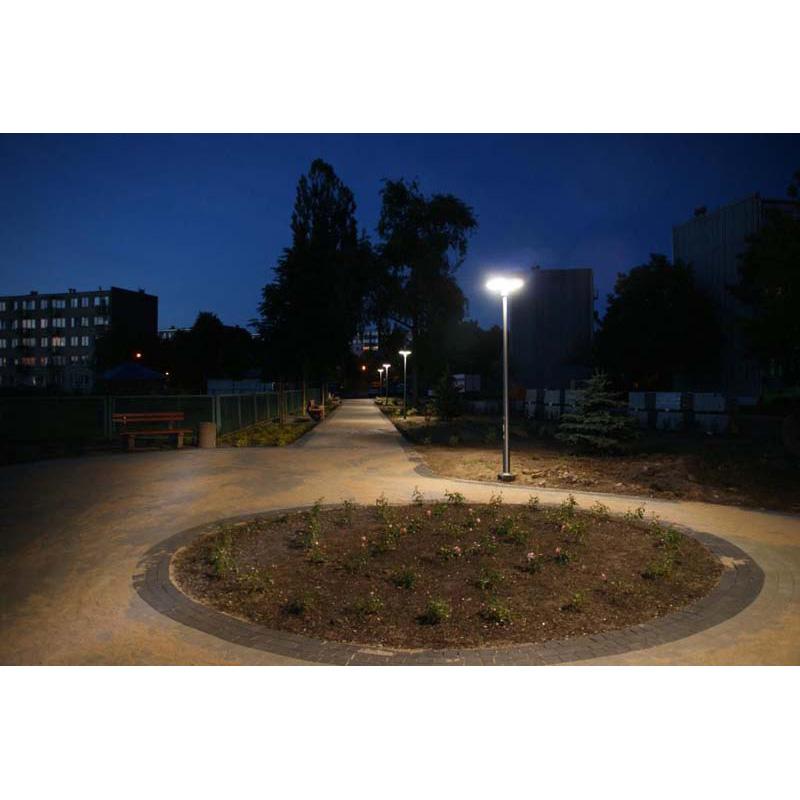

Lumec Lighting TownGuide LED Flat Cone Post Top (PBDP100)
Product List
| Product Name | SKU | Watts | Lumens | Kelvin |
|---|---|---|---|---|
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, Type II - 95 lm/W | PBDP100-50W64LED4K-MP-PC-C-LE2 | 50 | 4700 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, Type III - 98 lm/W | PBDP100-50W64LED4K-MP-PC-C-LE3 | 50 | 4890 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, Type V - 95 lm/W | PBDP100-50W64LED4K-MP-PC-C-LE5 | 50 | 4720 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, Type II - 90 lm/W | PBDP100-61W64LED4K-MP-PC-C-LE2 | 61 | 5480 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, Type III - 94 lm/W | PBDP100-61W64LED4K-MP-PC-C-LE3 | 61 | 5700 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, Type V - 91 lm/W | PBDP100-61W64LED4K-MP-PC-C-LE5 | 61 | 5500 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 96 LED, Type II - 98 lm/W | PBDP100-75W96LED4K-MP-PC-C-LE2 | 75 | 7280 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 96 LED, Type III - 95 lm/W | PBDP100-75W96LED4K-MP-PC-C-LE3 | 75 | 7020 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 96 LED, Type V - 95 lm/W | PBDP100-75W96LED4K-MP-PC-C-LE5 | 75 | 7000 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, Type II - 98 lm/W | PBDP100-95W128LED4K-MP-PC-C-LE2 | 95 | 9370 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, Type III - 102 lm/W | PBDP100-95W128LED4K-MP-PC-C-LE3 | 95 | 9750 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, Type V - 99 lm/W | PBDP100-95W128LED4K-MP-PC-C-LE5 | 95 | 9410 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, Type II - 94 lm/W | PBDP100-101W128LED4K-MP-PC-C-LE2 | 102 | 9560 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, Type III - 98 lm/W | PBDP100-101W128LED4K-MP-PC-C-LE3 | 102 | 9940 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, Type V - 94 lm/W | PBDP100-101W128LED4K-MP-PC-C-LE5 | 102 | 9590 | 4000 |
| TownGuide LED Flat Cone Post-Top, Frosted, 64 LED, Type V - 67 lm/W | PBDP100-50W64LED4K-MP-PC-FO-LE5 | 50 | 3340 | 4000 |
| TownGuide LED Flat Cone Post-Top, Frosted, 64 LED, Type V - 64 lm/W | PBDP100-61W64LED4K-MP-PC-FO-LE5 | 61 | 3890 | 4000 |
| TownGuide LED Flat Cone Post-Top, Frosted, 96 LED, Type V - 67 lm/W | PBDP100-75W96LED4K-MP-PC-FO-LE5 | 75 | 4970 | 4000 |
| TownGuide LED Flat Cone Post-Top, Frosted, 128 LED, Type V - 70 lm/W | PBDP100-95W128LED4K-MP-PC-FO-LE5 | 95 | 6660 | 4000 |
| TownGuide LED Flat Cone Post-Top, Frosted, 128 LED, Type V - 72 lm/W | PBDP100-101W128LED4K-MP-PC-FO-LE5 | 102 | 7310 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 3000K, Type II - 83 lm/W | PBDP100-50W64LED3K-MP-PC-C-LE2 | 50.5 | 4204 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 3000K, Type II - 78 lm/W | PBDP100-61W64LED3K-MP-PC-C-LE2 | 61.8 | 4843 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 96 LED, 3000K, Type II - 82 lm/W | PBDP100-75W96LED3K-MP-PC-C-LE2 | 75.5 | 6271 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 3000K, Type II - 84 lm/W | PBDP100-95W128LED3K-MP-PC-C-LE2 | 95.8 | 8131 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 3000K, Type II - 83 lm/W | PBDP100-101W128LED3K-MP-PC-C-LE2 | 101.5 | 8471 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 3000K, Type III - 83 lm/W | PBDP100-50W64LED3K-MP-PC-C-LE3 | 50.5 | 4238 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 3000K, Type III - 78 lm/W | PBDP100-61W64LED3K-MP-PC-C-LE3 | 61.8 | 4882 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 96 LED, 3000K, Type III - 83 lm/W | PBDP100-75W96LED3K-MP-PC-C-LE3 | 75.5 | 6321 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 3000K, Type III - 85 lm/W | PBDP100-95W128LED3K-MP-PC-C-LE3 | 95.8 | 8197 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 3000K, Type III - 84 lm/W | PBDP100-101W128LED3K-MP-PC-C-LE3 | 101.5 | 8539 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 3000K, Type V - 86 lm/W | PBDP100-50W64LED3K-MP-PC-C-LE5 | 50.5 | 4393 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 3000K, Type V - 81 lm/W | PBDP100-61W64LED3K-MP-PC-C-LE5 | 61.8 | 5060 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 96 LED, 3000K, Type V - 86 lm/W | PBDP100-75W96LED3K-MP-PC-C-LE5 | 75.5 | 6552 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 3000K, Type V - 88 lm/W | PBDP100-95W128LED3K-MP-PC-C-LE5 | 95.8 | 8496 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 3000K, Type V - 87 lm/W | PBDP100-101W128LED3K-MP-PC-C-LE5 | 101.5 | 8851 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 3000K, Type II, House Side Shield - 64 lm/W | PBDP100-50W64LED3K-MP-PC-C-LE2-HS | 50.5 | 3252 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 3000K, Type II, House Side Shield - 60 lm/W | PBDP100-61W64LED3K-MP-PC-C-LE2-HS | 61.8 | 3746 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 96 LED, 3000K, Type II, House Side Shield - 64 lm/W | PBDP100-75W96LED3K-MP-PC-C-LE2-HS | 75.5 | 4851 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 3000K, Type II, House Side Shield - 65 lm/W | PBDP100-95W128LED3K-MP-PC-C-LE2-HS | 95.8 | 6290 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 3000K, Type II, House Side Shield - 64 lm/W | PBDP100-101W128LED3K-MP-PC-C-LE2-HS | 101.5 | 6553 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 4000K, Type II, House Side Shield - 67 lm/W | PBDP100-50W64LED4K-MP-PC-C-LE2-HS | 50.5 | 3393 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 4000K, Type II, House Side Shield - 63 lm/W | PBDP100-61W64LED4K-MP-PC-C-LE2-HS | 61.8 | 3909 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 96 LED, 4000K, Type II, House Side Shield - 66 lm/W | PBDP100-75W96LED4K-MP-PC-C-LE2-HS | 75.5 | 5061 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 4000K, Type II, House Side Shield - 68 lm/W | PBDP100-95W128LED4K-MP-PC-C-LE2-HS | 95.8 | 6561 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 4000K, Type II, House Side Shield - 67 lm/W | PBDP100-101W128LED4K-MP-PC-C-LE2-HS | 101.5 | 6836 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 3000K, Type III, House Side Shield - 65 lm/W | PBDP100-50W64LED3K-MP-PC-C-LE3-HS | 50.5 | 3285 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 3000K, Type III, House Side Shield - 61 lm/W | PBDP100-61W64LED3K-MP-PC-C-LE3-HS | 61.8 | 3784 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 96 LED, 3000K, Type III, House Side Shield - 64 lm/W | PBDP100-75W96LED3K-MP-PC-C-LE3-HS | 75.5 | 4899 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 3000K, Type III, House Side Shield - 66 lm/W | PBDP100-95W128LED3K-MP-PC-C-LE3-HS | 95.8 | 6352 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 3000K, Type III, House Side Shield - 65 lm/W | PBDP100-101W128LED3K-MP-PC-C-LE3-HS | 101.5 | 6618 | 3000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 4000K, Type III, House Side Shield - 67 lm/W | PBDP100-50W64LED4K-MP-PC-C-LE3-HS | 50.5 | 3427 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 64 LED, 4000K, Type III, House Side Shield - 63 lm/W | PBDP100-61W64LED4K-MP-PC-C-LE3-HS | 61.8 | 3948 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 96 LED, 4000K, Type III, House Side Shield - 67 lm/W | PBDP100-75W96LED4K-MP-PC-C-LE3-HS | 75.5 | 5111 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 4000K, Type III, House Side Shield - 69 lm/W | PBDP100-95W128LED4K-MP-PC-C-LE3-HS | 95.8 | 6627 | 4000 |
| TownGuide LED Flat Cone Post-Top, Clear, 128 LED, 4000K, Type III, House Side Shield - 68 lm/W | PBDP100-101W128LED4K-MP-PC-C-LE3-HS | 101.5 | 6904 | 4000 |
Product Family Details
Lumec TownGuide LED Post-Top luminaires meet specifications without compromising your budget. With a wide choice of designs and unbeatable value, TownGuide is ideal for any urban project. TownGuide is available in three modern shapes: Flat Cone, Classic Cone and Classic T. Each offers configuration options including clear or frosted bowls, and a range of lumen packages, so it's easy to select the right solution to suit new lighting applications or seamlessly blend into existing areas. In addition to style options, TownGuide helps to minimize wasted light and energy, and also maximizes total cost of ownership, to reduce overall costs while complying with applicable lighting requirements.
Benefits
- Increased visual comfort
- Design flexibility
- Suitable for new installations or one-to-one replacements
- Protected against moisture, dust and insects
- Maximizes total cost of ownership
Features
- State-of-the-art mid-power LEDs
- Modular solution
- Available with a frosted or clear globe
- IP66 rated
- Compatible with a range of control solutions
Applications
- Bridges, Monuments, Facades
- Road and Street
