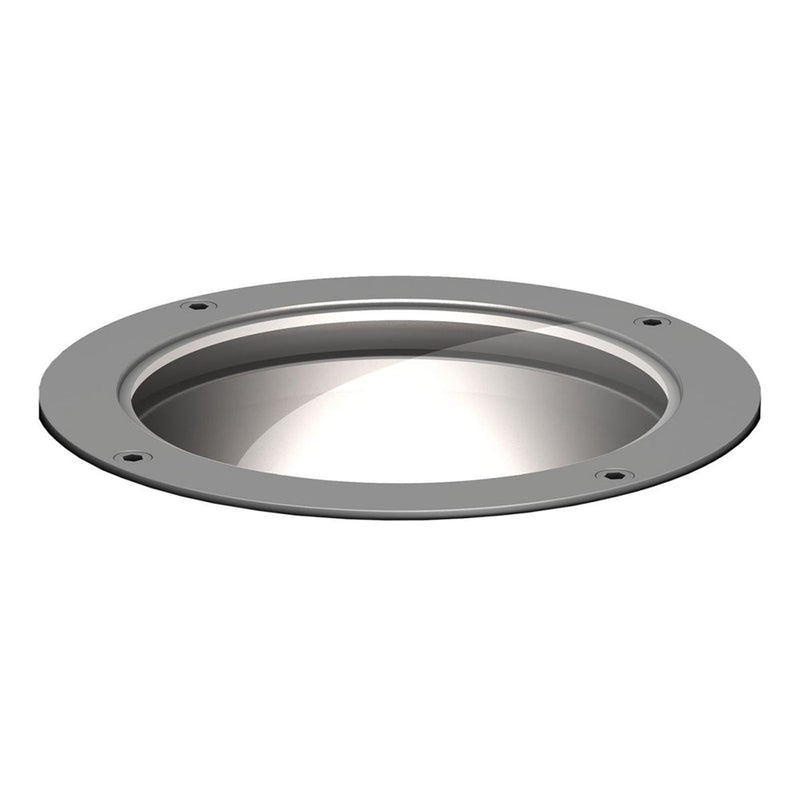

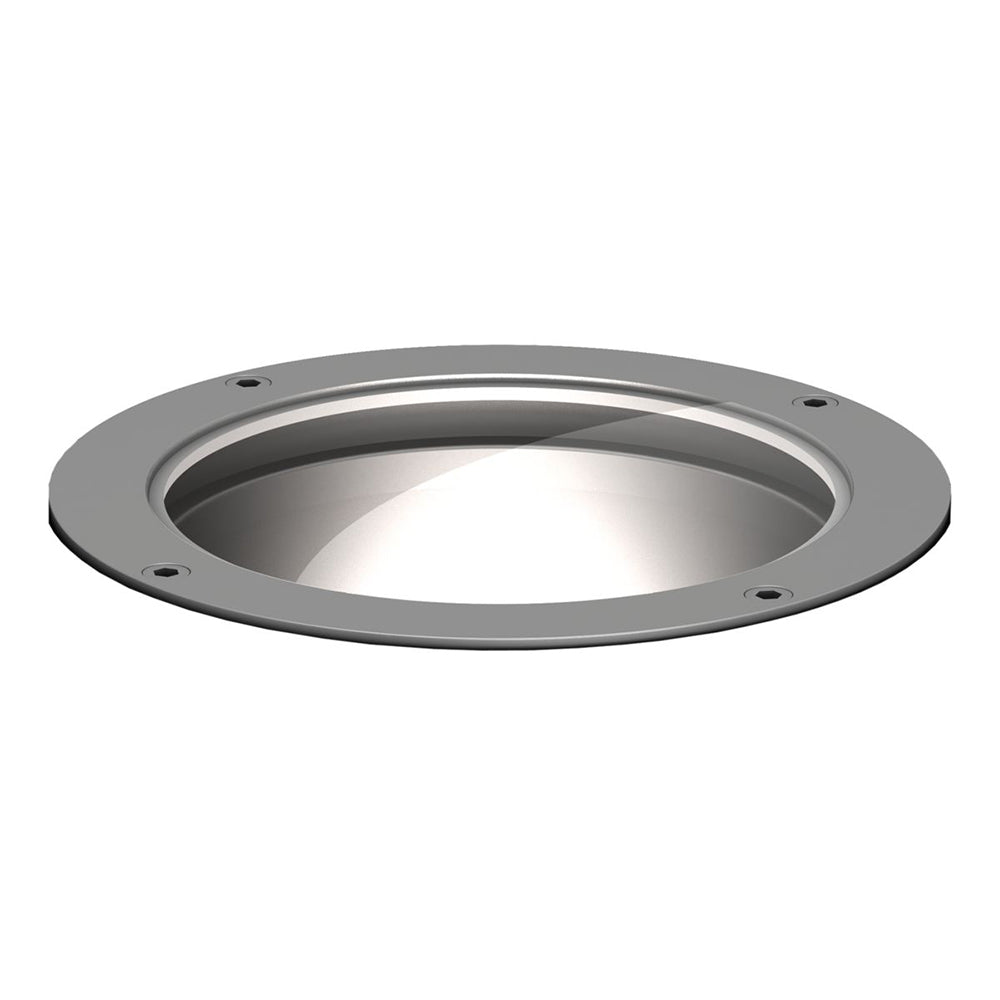

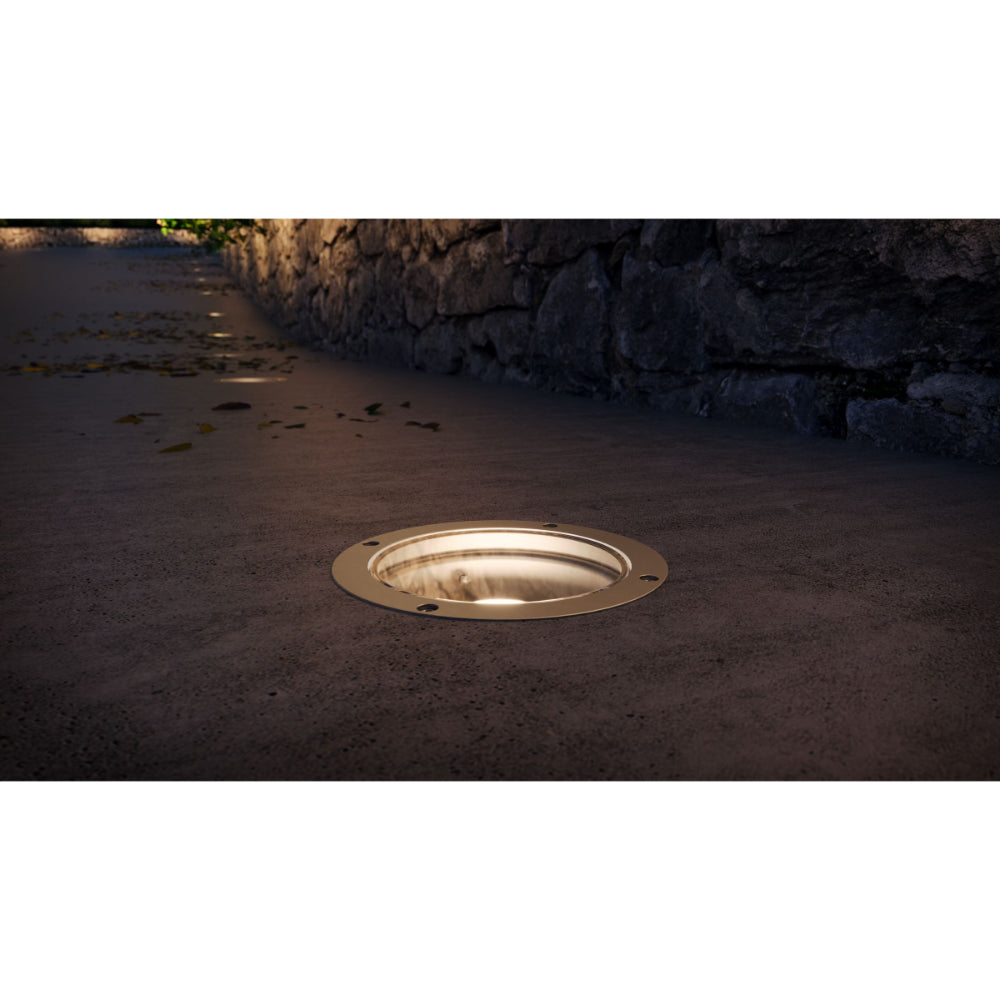

Boca 696 is a compact 6-1/4” diameter by 9.25” deep in-ground LED luminaire. It comes standard with either a line voltage option (integral 12V magnetic step down transformer) or a low voltage option (remote low voltage transformer is required). The integral transformer allows the fixture to be connected directly to 120V, 230V, 240V or 277V line voltage (specify). The adjustable lamp assembly provides +/- 22° vertical tilt and 360° horizontal rotation for precision uplighting, wall washing or general illumination in constricted areas. Designed for recessed mounting in concrete, brick, stone or dirt, it is suitable for drive-over applications. Fixture is also suitable for recessed mounting in indoor or outdoor wood flooring. Various lenses, louvers and color or dichroic filters can be combined – up to three at once – to create multiple lighting effects. The Boca 696 includes Lumiere’s exclusive Siphon Protection System (S.P.S.) which prevents water from siphoning into the fixture through its own lead wires.Features of Lumiere Boca 696
- Adjustable beam: 22° tilt, 360° rotation
- 12°, 21° and 41° beam spread options
- 2700K, 3000K, 4000K, 5700K and Amber, dimmable
- Line and low voltage options
- IP67 thermoplastic compression molded recessed housing
- Machined trim
- Suitable for indoor or outdoor use
- Low lens temperature
- Wet location listed
- Three-year warranty
Cooper Lighting Outdoor LED Products.
Addendum to Standard Terms and Conditions of Sale.
Subject to all of the limitations set forth in Cooper Lighting’s Terms and Conditions of Sale, for Cooper Lighting Outdoor Light Emitting Diode (LED) luminaires only, Cooper Lighting warrants to the original purchaser that the factory-installed electrical system will be free from defects in material and workmanship for 5 years from the date of shipment of the products. If 10% of the individual LEDs (light sources) should fail within 5 years of shipment, Cooper will, at its sole option, ship a repaired or replacement fixture EXW (Incoterms 2000) Cooper’s factory. The warranty does not cover failures due to abnormal site conditions. These abnormal conditions include, but are not limited to, under/over voltage, under/over current, excessive switching and excessive ambient temperatures.
Subject to all of the limitations set forth in Cooper Lighting’s Terms and Conditions of Sale, for Cooper Lighting Outdoor Light Emitting Diode (LED) luminaires only, Cooper Lighting warrants to the original purchaser finish for a period of 5 years from date of shipment. Cooper will, at its sole option, repair or replace the defective finish if it exhibits cracking, peeling, excessive fading or corrosion defects during the warranty period. During the warranty period some fading, staining or chalking may occur. This is normal aging for the finish used, is not a manufacturing defect, and is not covered by our warranty.
