Description

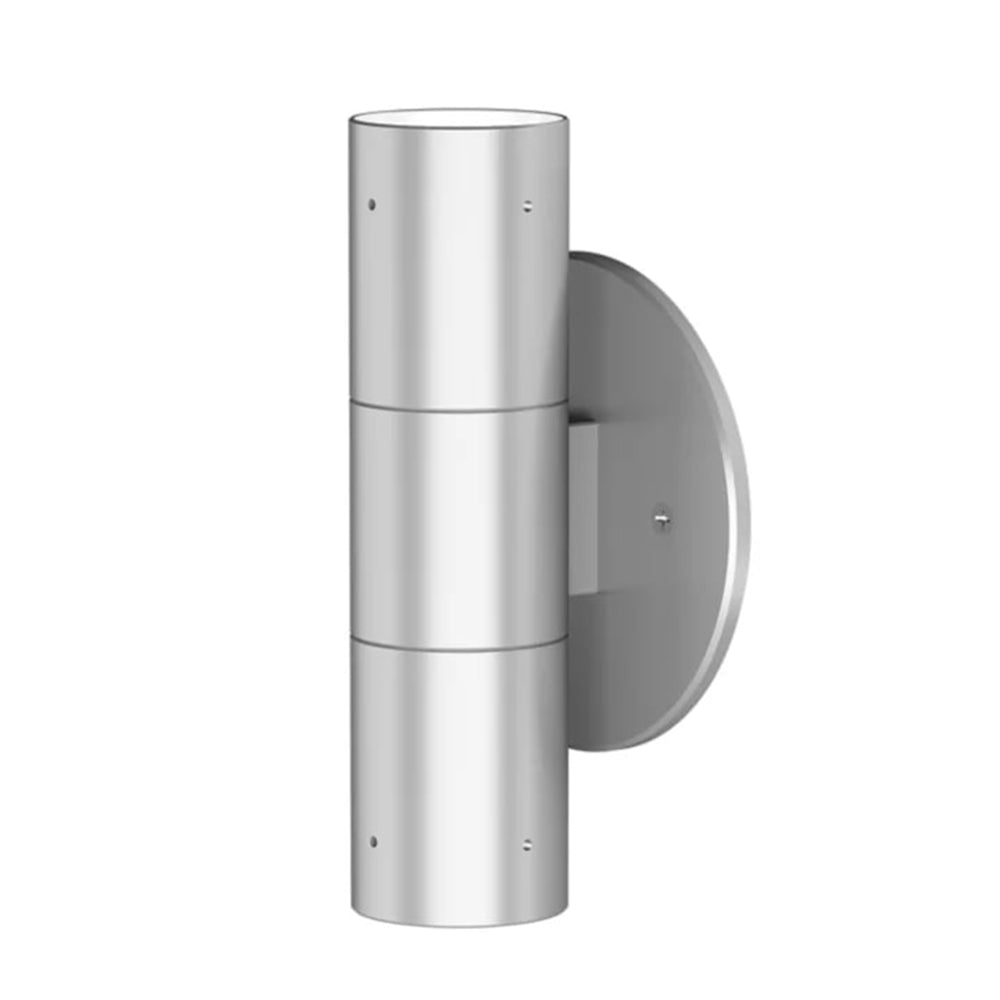

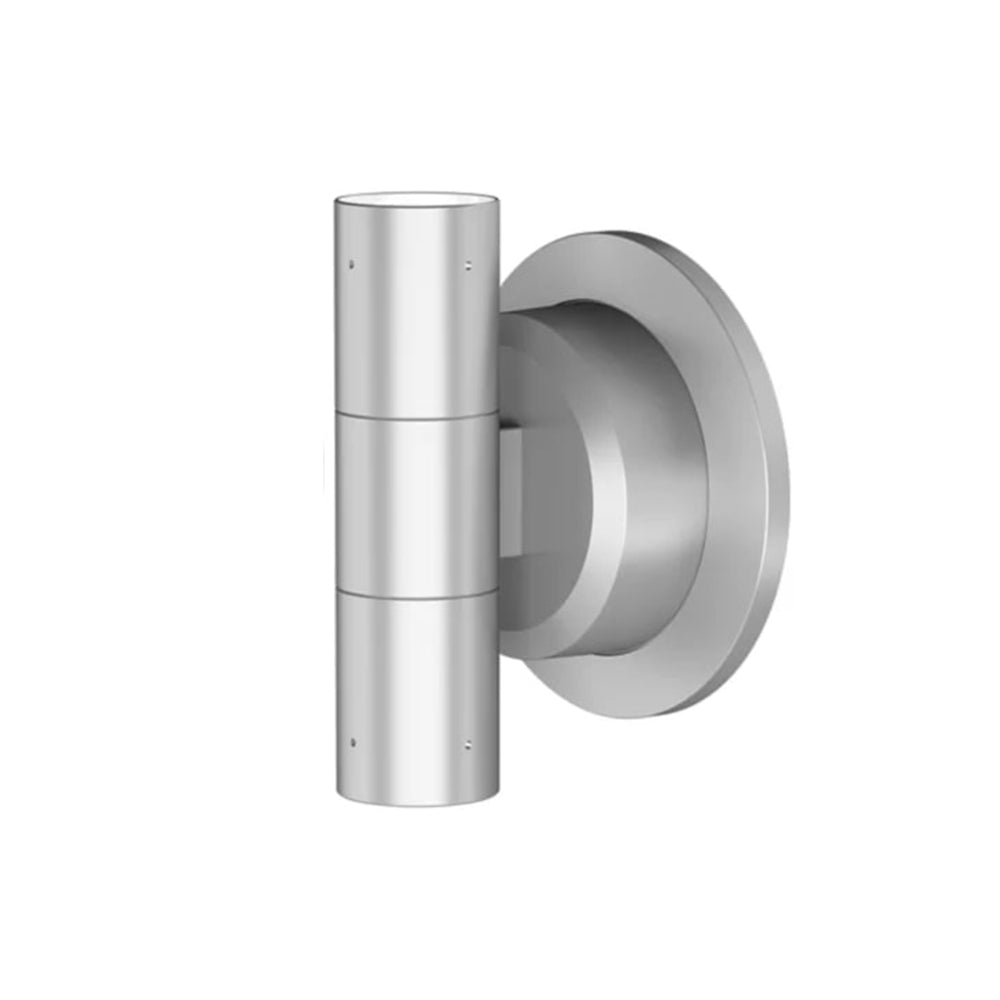

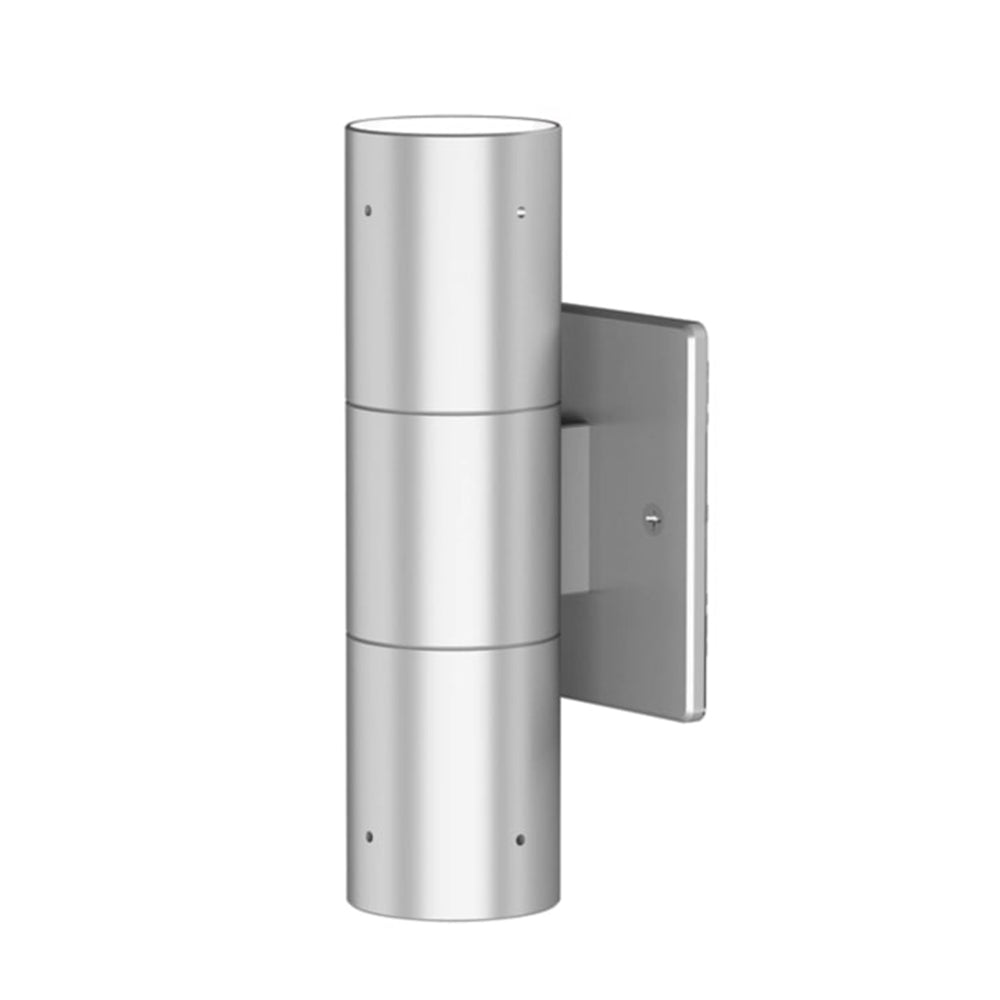

Lumiere Lanterra 9002 - W2 (Up and Down) LED Wall Cylinder Light
Lanterra 9002-W2 (Up and Down) is small 2.5" O.D., line voltage cylinder fixtures with dimmable LED. The luminaire comes in various mountings, surface mount with integral driver in the housing, remote driver mount with round and square wall plates and square wall integral driver, all of which can be mounted over standard 4 inch j-box. The luminaire also comes with various beam optics. It also comes with various lens, louvers and colors or dichroic filters can be combined up to two at once to create multiple lighting effects. The fixture may be used indoors or outdoors and carries IP66 rating
Features
- Uplight, Downlight or combination of up and downlight
- Up to 1100 delivered lumens and 110 Lm/W
- Spot, Medium, Flood and Wide optics, Field interchangeable
- Premium machined aluminum, brass, bronze, copper or stainless steel
- Line voltage. ELV, Triac and 0-10V std. dimming
- Holds up to 2 accessories (lens, louver, filters)
- Integral and remote driver mounting options. Stainless steel hardware
- Stand-alone integral sensor option
Product Files
Click forLumiere Lanterra 9002 specification sheet
Click forLumiere Lanterra Brochure
Click forLumiere Lanterra MB Installation Instructions (Ground Mount Recessed Box)
Click forLumiere Lanterra RSM Installation Instructions (Round Surface Mount)
