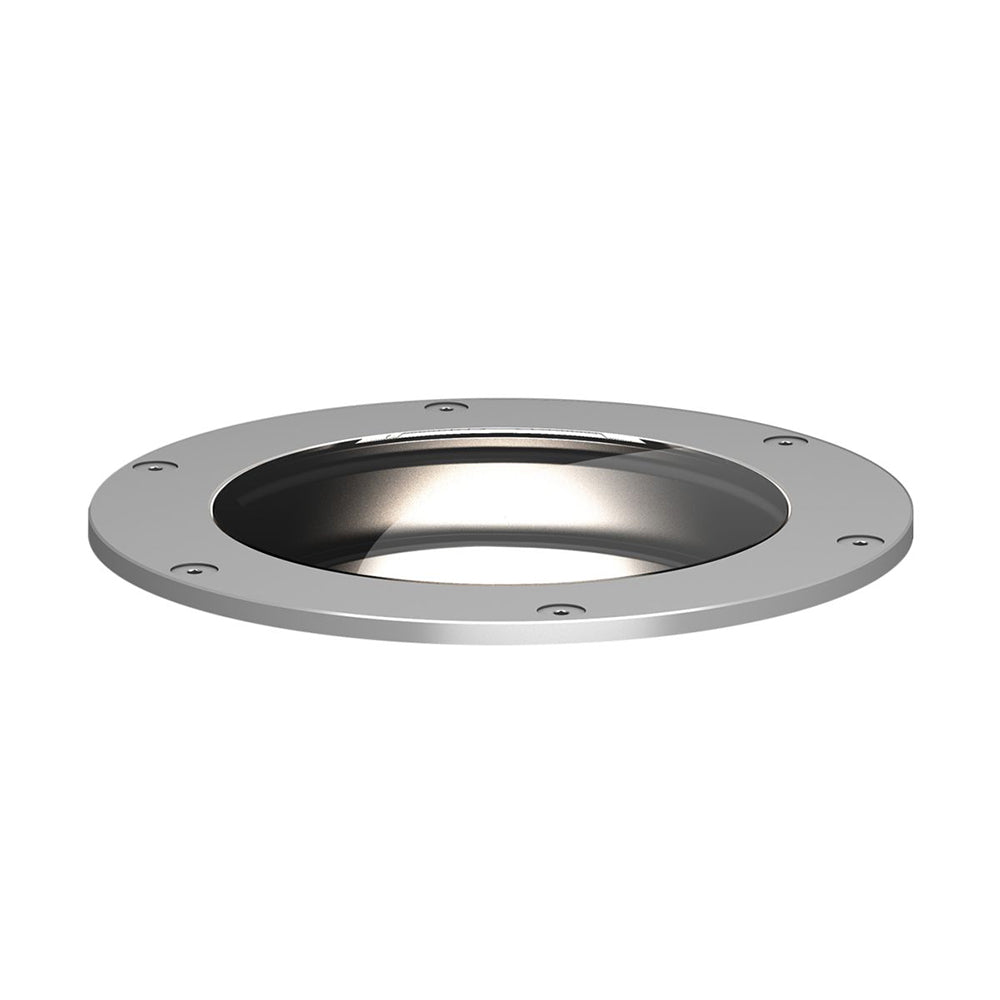

Lumiere Monaco 3002 LED Non-Adjustable Round Inground 120V-277V
The Monaco 3002 is a small scale, versatile, ingrade luminaire utilizing 7 LEDs with a large variety of beam angles to choose from between 9° and 35°. The adjustable version, 3002A, provides up to 25° tilt and 360° rotation of the lamp beam allowing for precision, lockable aiming. The non-adjustable version, 3002N, provides a fixed uplight with reduced cost. The LED source is ideal for pedestrian areas as it provides powerful lighting without high lens temperatures. The housing is IP68 rated and is available to ship in advance. The housing material is an injection molded thermoplastic and contains both an integral LED driver and an independently sealed wire box, ensuring that the electrical components will remain safe and dry. Quick connects are provided on all wires to provide easy installation and maintenance. The Monaco luminaire will accept up to three optical accessories (lenses, louvers and filters) and offers three external accessories: a rock guard, glare shield and a pour/debris cover. The Monaco 3002 is part of a family that includes HID sources (Monaco 3000) and halogen sources (Monaco 3001).
- 25° Tilt, 360° Rotation - lockable, fixed beam option also available
- 9°, 14°, 21°, 35° Optics - LED included
- Brass or Stainless Steel trim w/ optional temperature reduction lens
- IP68 corrosion-proof composite housing available to ship in advance
- Independently sealed wire box protects LEDs and integral LED driver
- Quick wire connectors for easy installation and maintenance
- Accepts up to three optical accessories (lenses, louvers & filters)
- Accessories include Rock Guard, Glare Shield & Pour/Debris Cover
- 3 year warranty
Cooper Lighting Outdoor LED Products.
Addendum to Standard Terms and Conditions of Sale.
Subject to all of the limitations set forth in Cooper Lighting’s Terms and Conditions of Sale, for Cooper Lighting Outdoor Light Emitting Diode (LED) luminaires only, Cooper Lighting warrants to the original purchaser that the factory-installed electrical system will be free from defects in material and workmanship for 5 years from the date of shipment of the products. If 10% of the individual LEDs (light sources) should fail within 5 years of shipment, Cooper will, at its sole option, ship a repaired or replacement fixture EXW (Incoterms 2000) Cooper’s factory. The warranty does not cover failures due to abnormal site conditions. These abnormal conditions include, but are not limited to, under/over voltage, under/over current, excessive switching and excessive ambient temperatures.
Subject to all of the limitations set forth in Cooper Lighting’s Terms and Conditions of Sale, for Cooper Lighting Outdoor Light Emitting Diode (LED) luminaires only, Cooper Lighting warrants to the original purchaser finish for a period of 5 years from date of shipment. Cooper will, at its sole option, repair or replace the defective finish if it exhibits cracking, peeling, excessive fading or corrosion defects during the warranty period. During the warranty period some fading, staining or chalking may occur. This is normal aging for the finish used, is not a manufacturing defect, and is not covered by our warranty.
