Description
LUX Luminaire FLKs.4 Direct or Indirect Pendant
Video
OPTIC AVAILABLE COMBINATIONS
Direct: Lambertian / Indirect: Extreme Batwing
Direct: Lambertian / Indirect: Batwing
Direct: Batwing / Indirect: Batwing
OVERVIEW
4.1-inch aperture
Up to 119 lm/W
Power Over Cable suspension
Multiple standard outputs from 400 up to 1600 lm/ft
Individual luminaires, continuous row lengths, or multi-arm patterns
1% 0-10v Dimming is standard
Extruded aluminum housing with die-cast end caps
L80 calculated at 80,000 hours
5 Year limited warranty

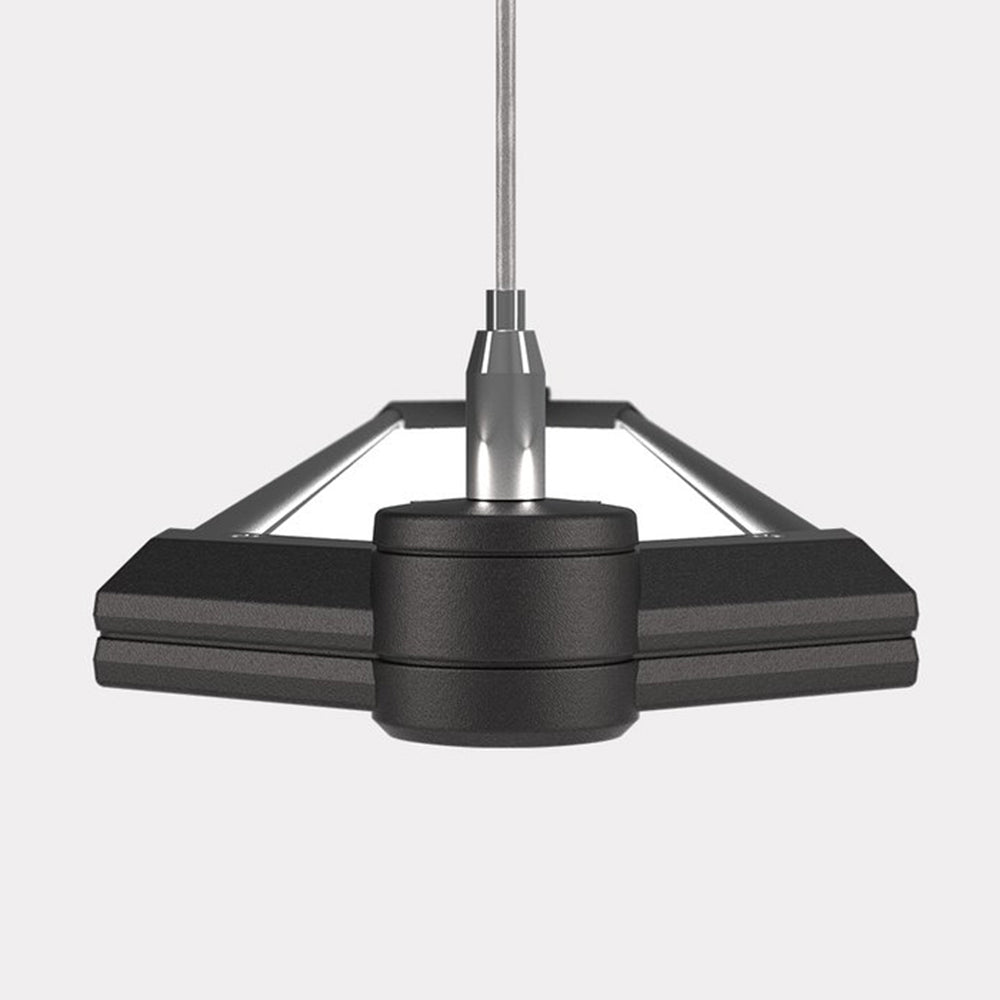

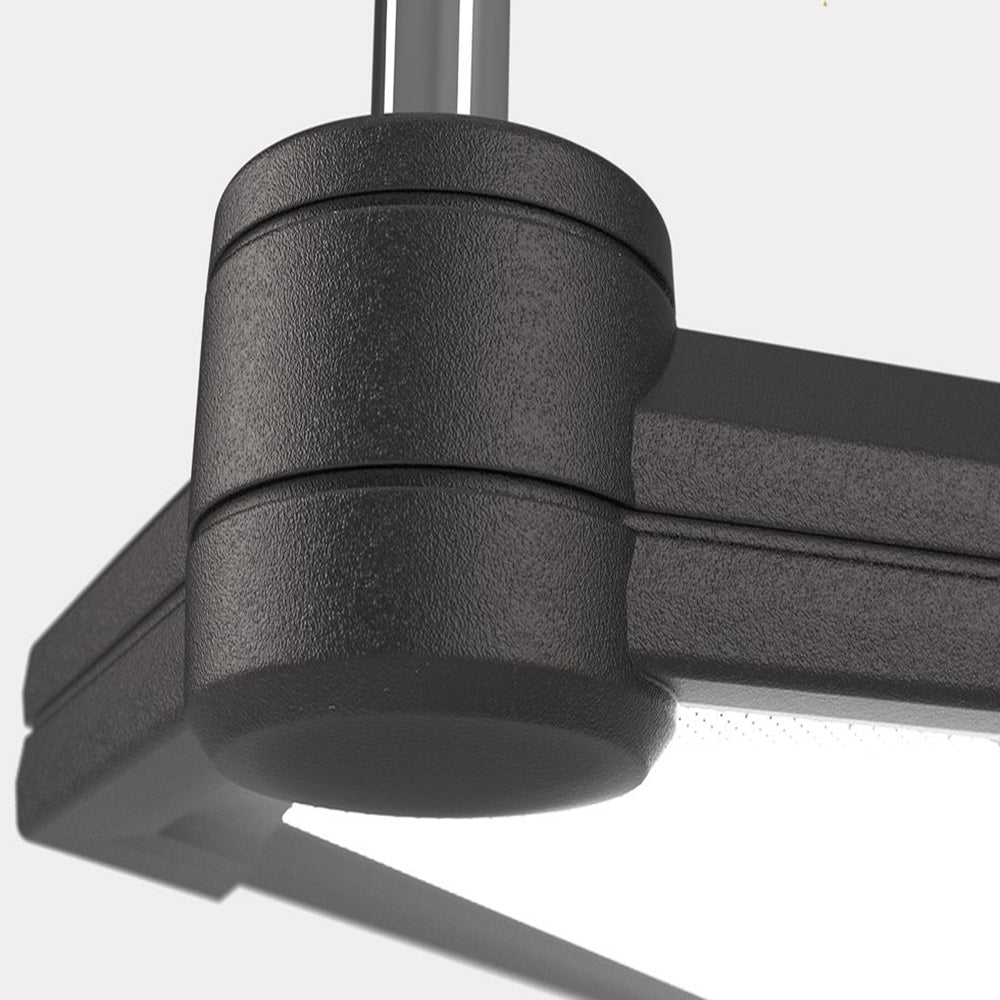

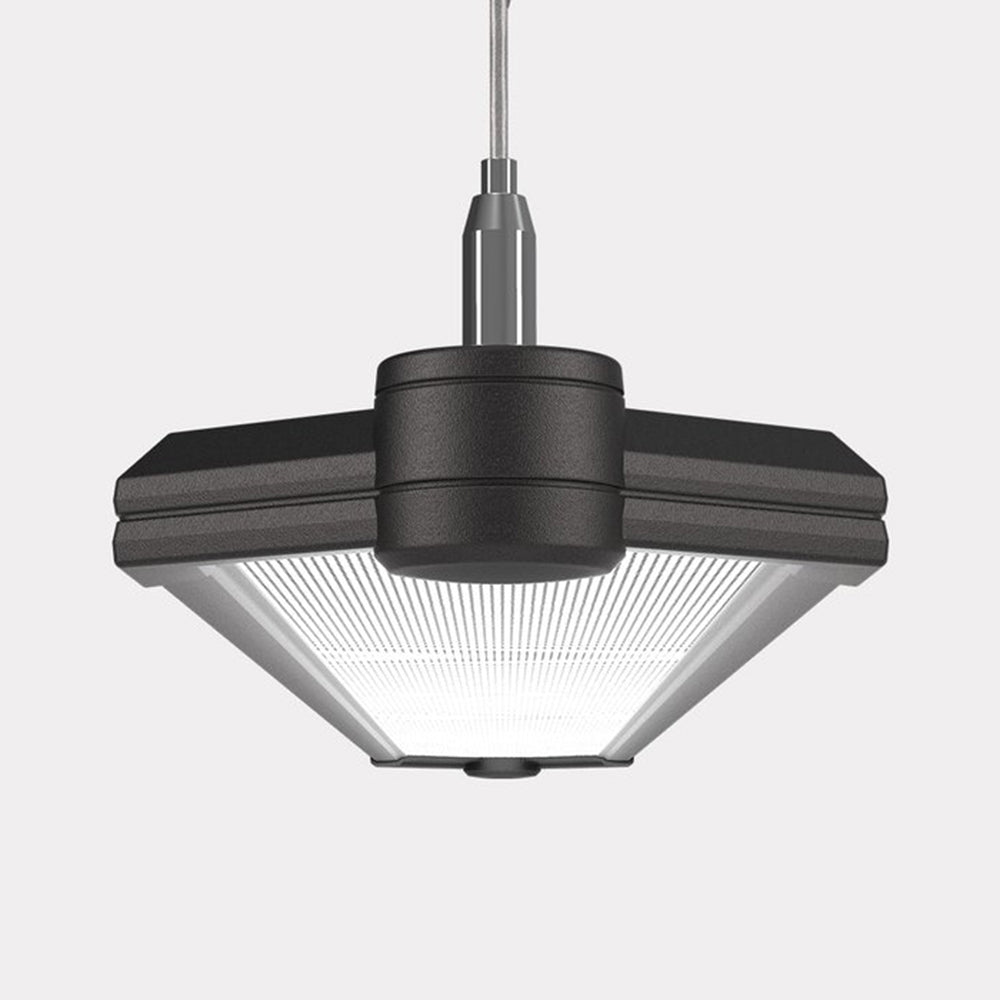

FLKs.4 HUB
The FLKs.4 rotational hub is adjustable in 15 degree increments up to 180 degrees. The hub allows for the connection of two, three, and four luminaires at one intersection allowing the ability to create standard and custom patterns, and continuous runs.

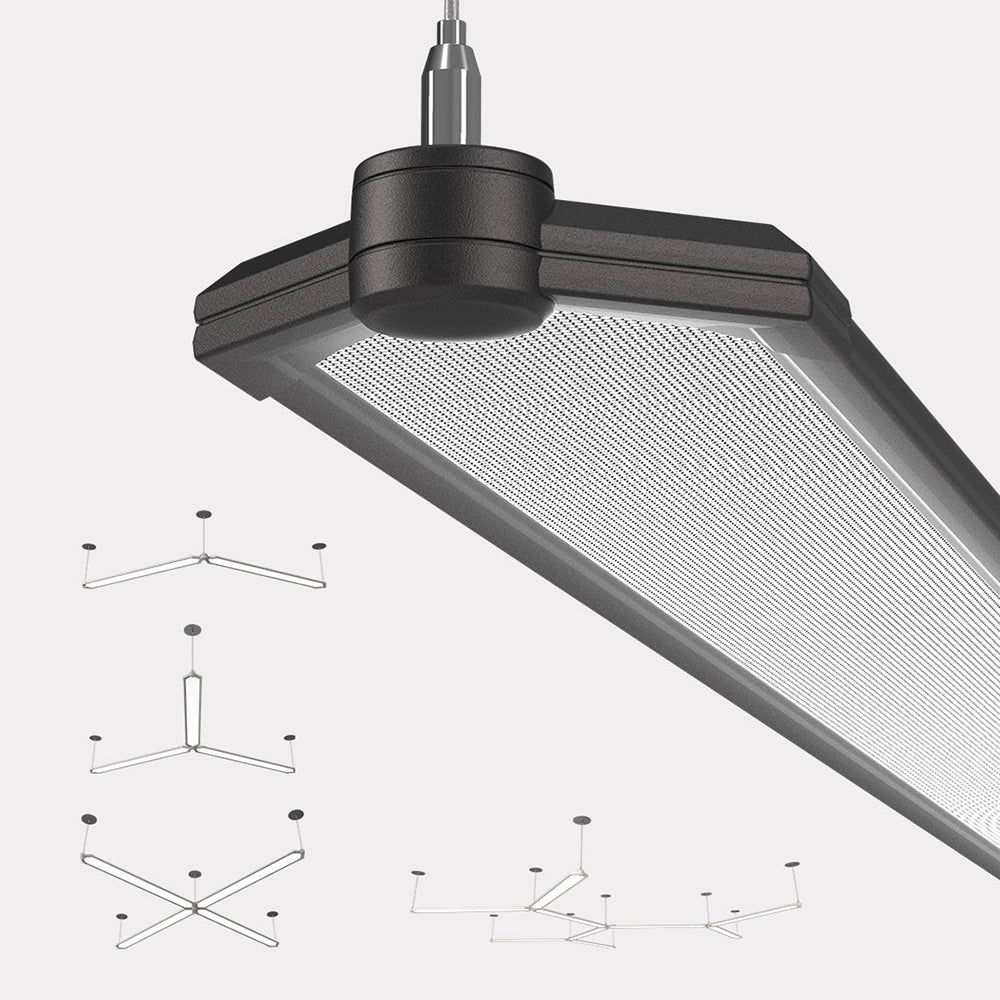

STANDARD PATTERNS
By utilizing our innovative hub system, the FLKs.4 offers unique flexibility to construct standard patterns and continuous runs. These two ideas can, also, be combined to create one-of-a-kind custom patterns inspired by your space and limited to your imagination.

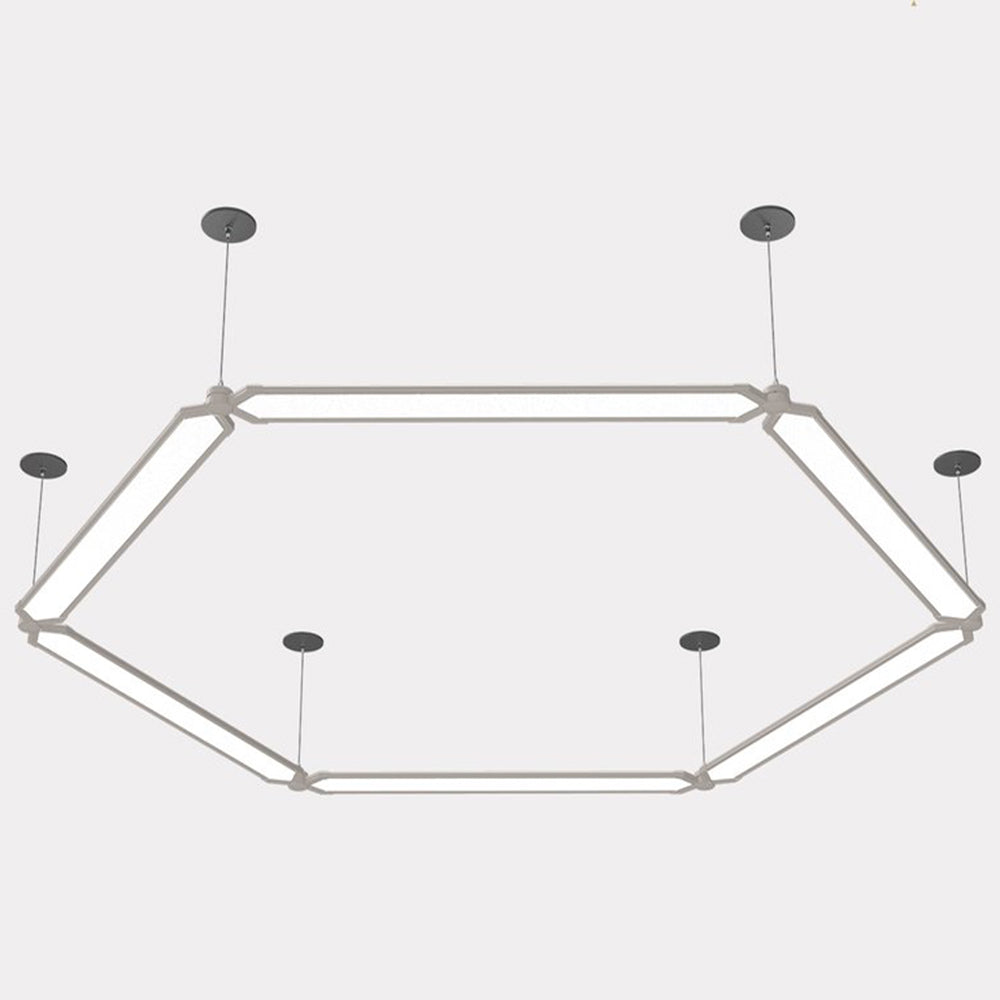

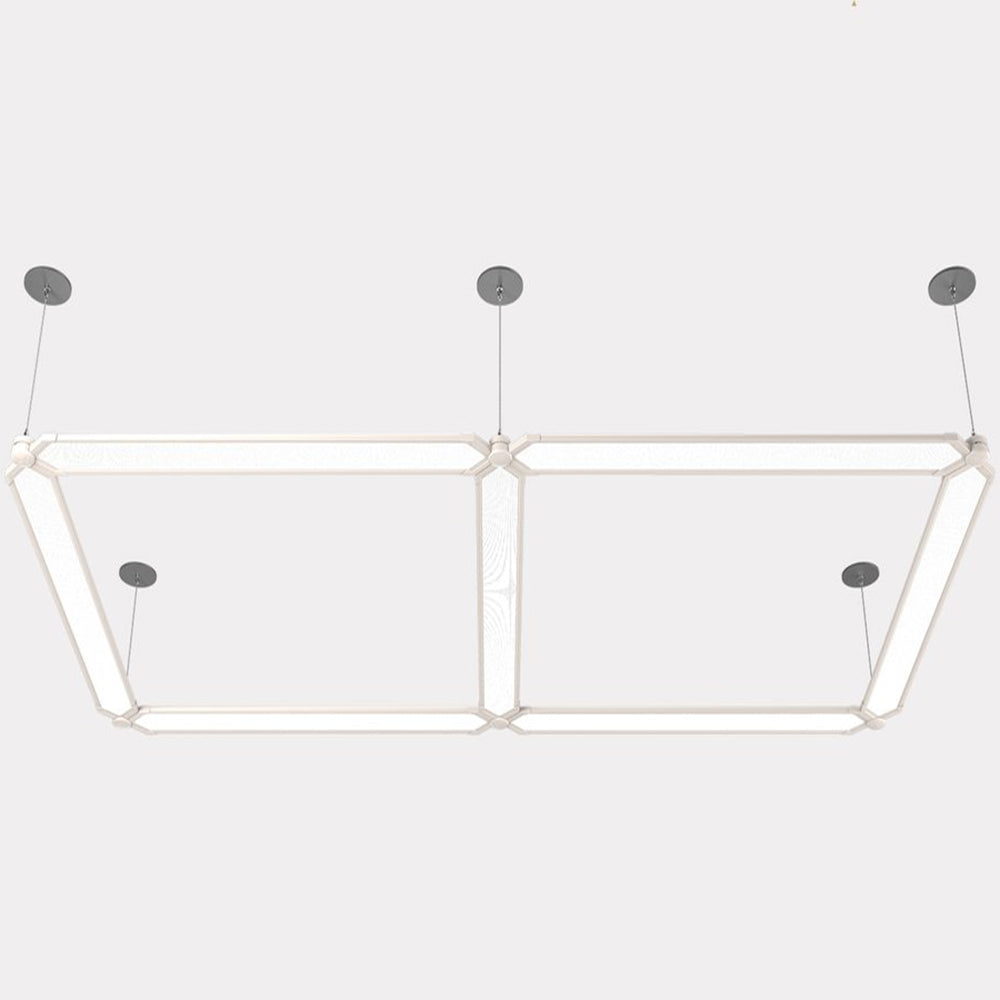

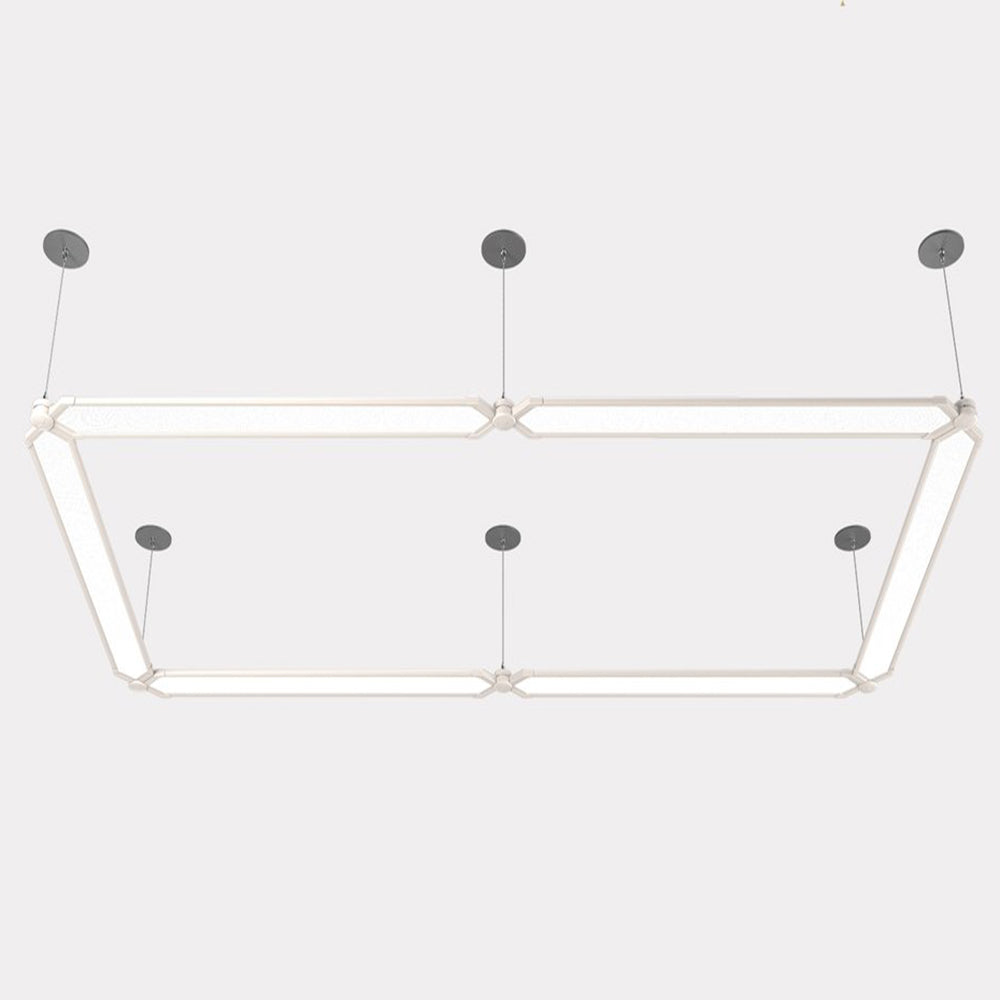

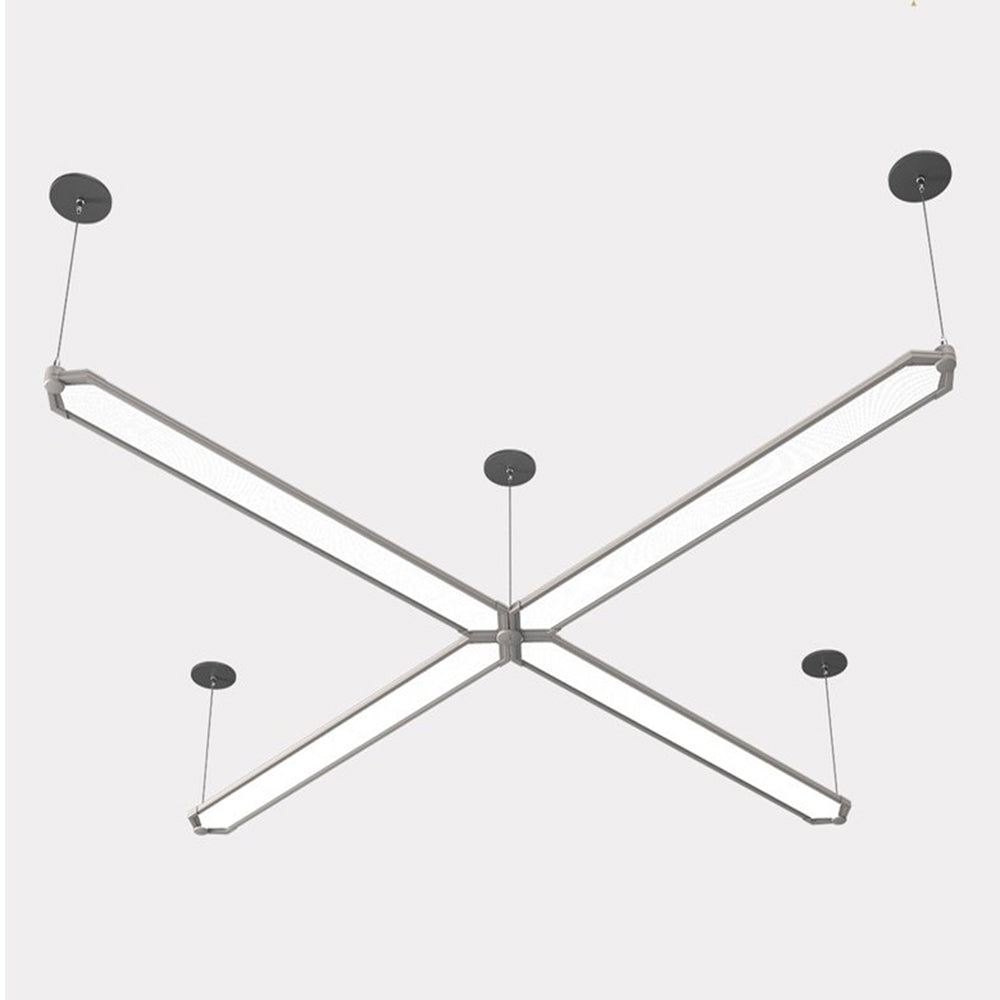

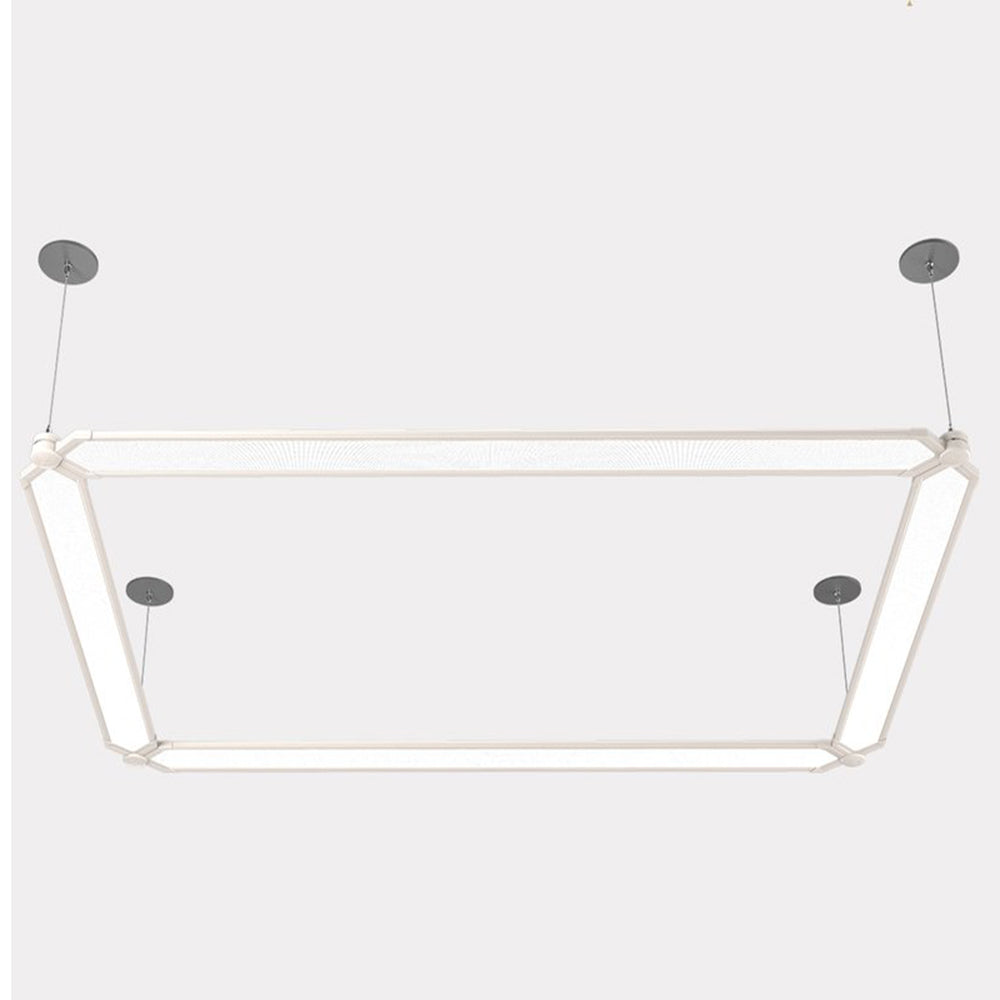

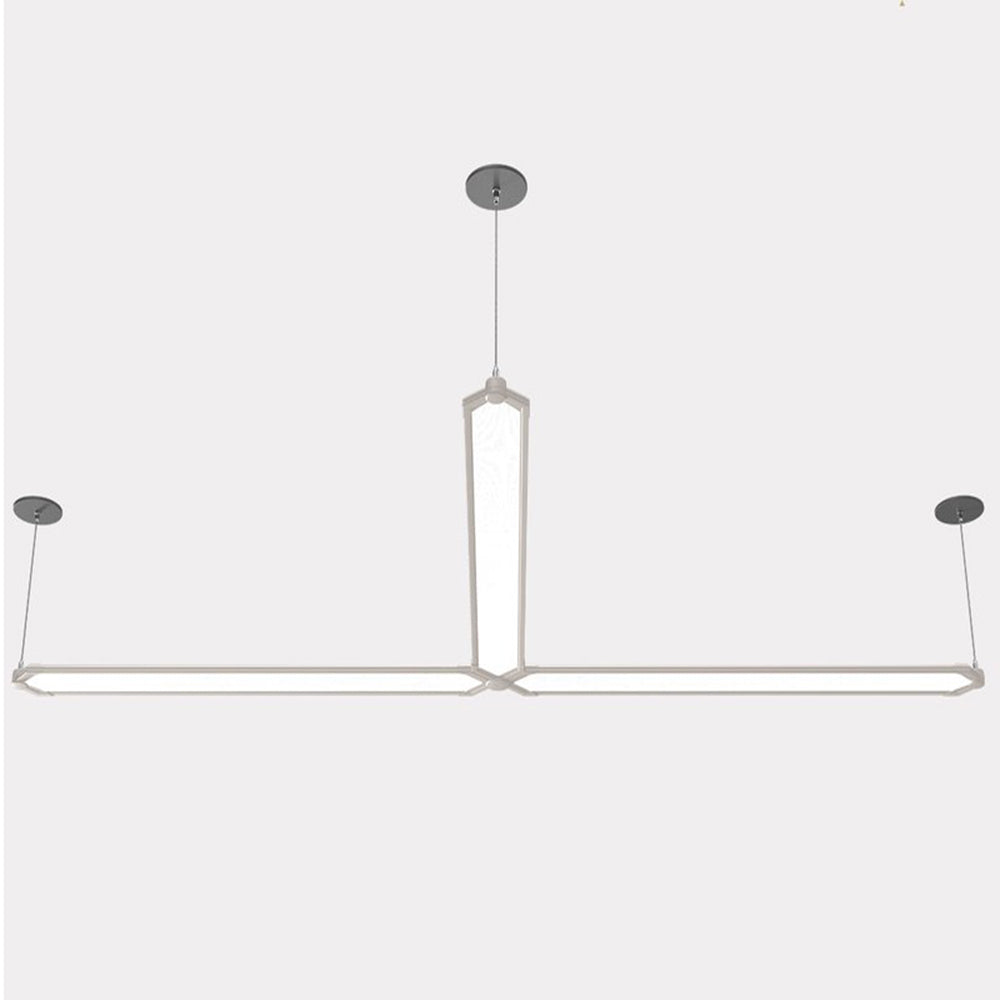

Example Patterns:
FLKs.4

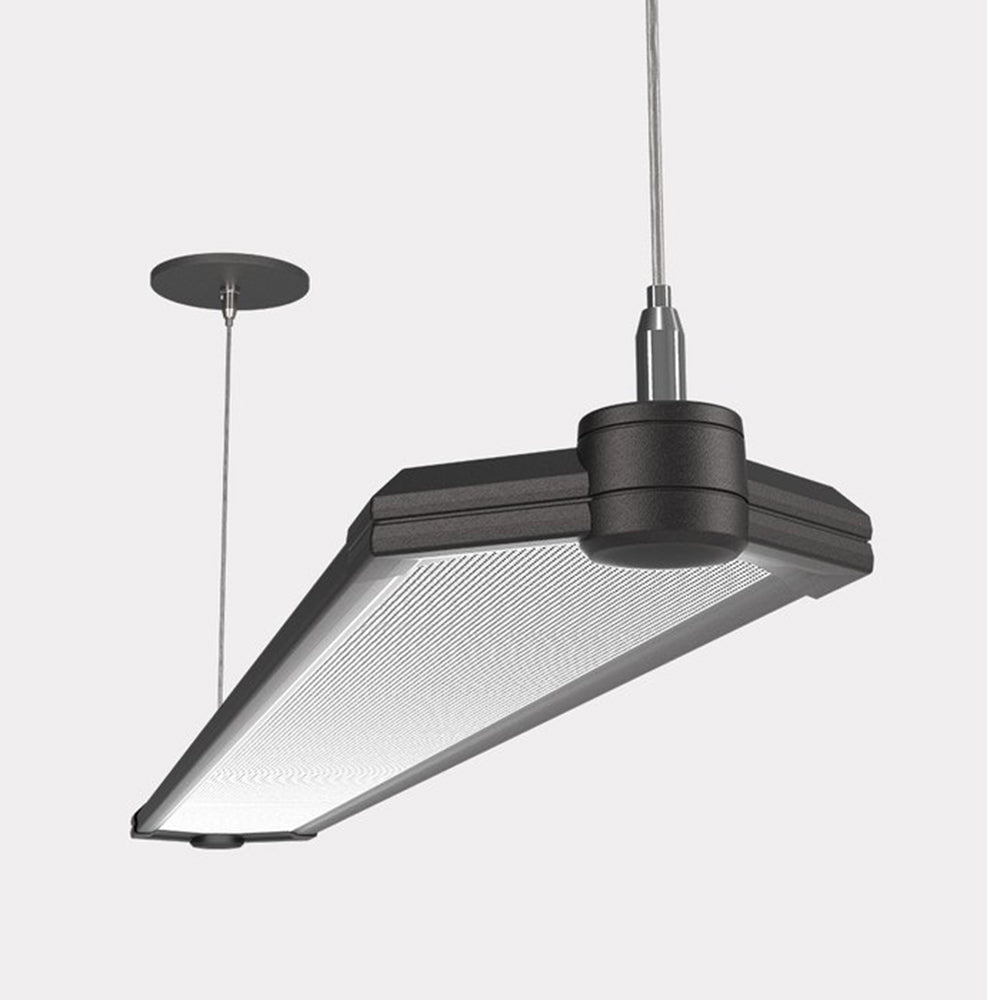

The FLKS.4 features a sleek, low profile with a 4-inch aperture. Designed with versatility in mind, an optional in-field rotational hub allows the connection of up to four FLKS.4 luminaires for maximum flexibility. The FLKS.4 utilizes side-fire technology, minimizing light glare for optimal performance.
STANDARD FINISHES
Our finishes are durable polyester powder, low gloss textured paint applied after a multi-stage pretreatment. Standard luminaire finishes include white, silver, and black.
CUSTOM COLOR FINISHES
The FLKs.4 is customizable down to every detail. Hub, end caps, and housing can be ordered in any RAL color sample configuration.
Multiple standard outputs from 400 up to 1600 lm/ft
Individual luminaires, continuous row lengths, or multi-arm patterns
1% 0-10v Dimming is standard
Extruded aluminum housing with die-cast end caps
L80 calculated at 80,000 hours
5 Year limited warranty
