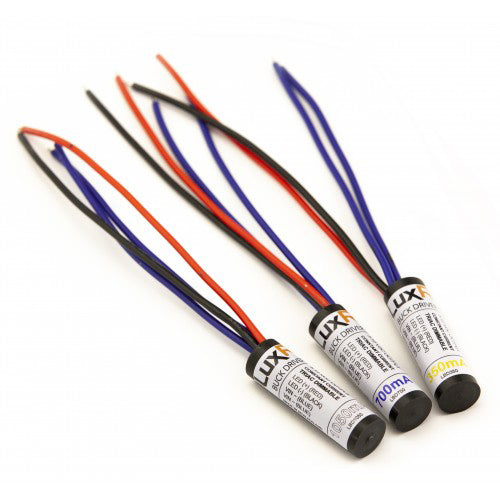

LuxR Lighting LuxR 12V Buck Driver

LuxR Lighting | SKU: LuxR-12V-BD
No reviews

Price:
Sale price$0.00 USD

Description

LuxR Lighting LuxR 12V Buck Driver

The LuxR Buck Driver is a constant current device that operates from a 9-15 vac input. The LuxR Buck Driver has a forward voltage output range of 3-12 vdc. One of the main features of this product is that it is Triac/Phase dimmable. The second feature is it is available in a 1050mA variant. With a water resistant rating of IP66, the LuxR Buck Driver is suited for use in both landscape lighting and interior lighting applications. This product should only be used with a magnetic transformer for best performance and results.

TYPICAL APPLICATIONS:
  • Landscape and Garden Lighting
  • General Lighting
  • Architectural Lighting
  • Sign Lighting

Specifications

  • Input Voltage: 9-15 VAC Input
  • Output Voltage: 3-12 VDC Output
  • Output Current: 350mA / 700mA / 1050mA
  • Dimming Triac/Phase Dimmable
  • Dimensions: 15mm (19/32") Diameter 52mm (2") Height
  • IP Rating: IP66
  • Temperature range: -20 - +50°C Ambient
  • Compatibility: MM, M1, M2 or M4 products. Other manufacturers products that require a 12VAC input and a 3-12VDC forward voltage.
  • Warranty: Warranty 5 years
  • Manufactured: Made in New Zealand
  • Ordering Code: 350mA - LBD350 700mA - LBD700 1050mA - LBD1050
