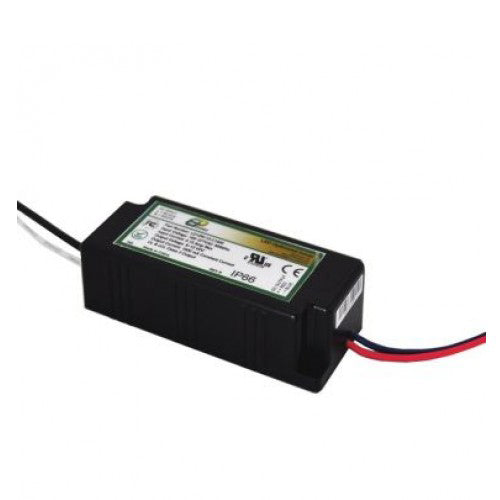

LuxR Lighting LuxR LD-12W-36-CO350 Driver

The LuxR LD-12W-36-CO350 is a 12 Watt electronic, constant current, Remote driver available to power LuxR series version fixtures in the USA market. It is non-dimmable.

For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from LuxR. The PC-17-02 weatherproof box is a requirement for UL compliance.

When this driver is used as a Remote power supply, SERIES WIRING is required to connect the fixtures. Please refer to the wiring diagram overleaf.

Specifications

• Input Voltage: 100 to 277VAC
• Output Voltage: 18V-36VDC
• Output Current: 350mA
• Wattage: 12.6W max
• Temperature range: -25...+60C
• Dimensions: 23x36x124mm (7/8" x 1 7/16" x 3 3/8" )
• Standards: IP66, EN, CE, CSA, UL Recognized
• Ordering Code: LD-12W-36-CO350
• Ingress Protection Rating: IP66
• Compatibility: Modux: Micro, 1, 2 or 4 products
• Warranty: Warranty 5 years
