LuxR Lighting LuxR-LD-20W-28-CO700 Driver

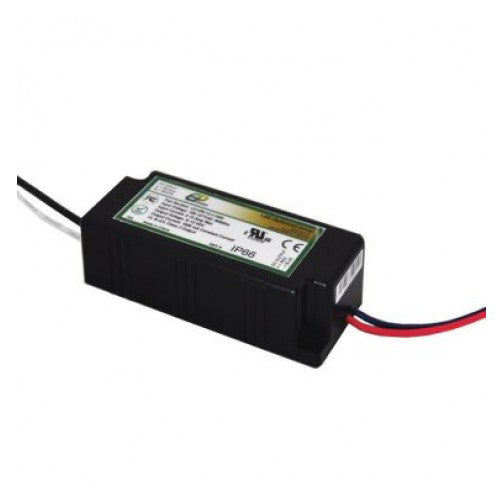

The EPTronics LD-20W-28-CO700 is a 20 Watt electronic, constant current, Remote driver available to power LuxR series version fixtures in the USA market. It is designed to be used with Triac (-LE model) or ELV (-TE model) phase-cut dimmers.

For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from LuxR. The PC-17-02 weatherproof box is a requirement for UL compliance.

When this driver is used as a Remote power supply, SERIES WIRING is required to connect the fixtures. Please refer to the wiring diagram overleaf.

Specifications

• Input Voltage: 120VAC/230VAC with dimmer, 100-277VAC without dimmer. 50/60Hz
• Output Voltage: 14-28VDC
• Output Current: 700mA
• Wattage: 20W
• Temperature range: -30...+60C
• Dimensions: 25x41x95mm (1" x 1 5/8" x 3 3/4" )
• Standards: IP66, EN, CE, CSA, UL Recognized
• Ordering Code: LD-20W-28-CO700-LE, LD-20W-28-CO700-TE
• Compatibility: Modux 2 and 4 products
• Warranty: Warranty 5 years

Click for LuxR LD20W-28-C0700.pdf
