Description

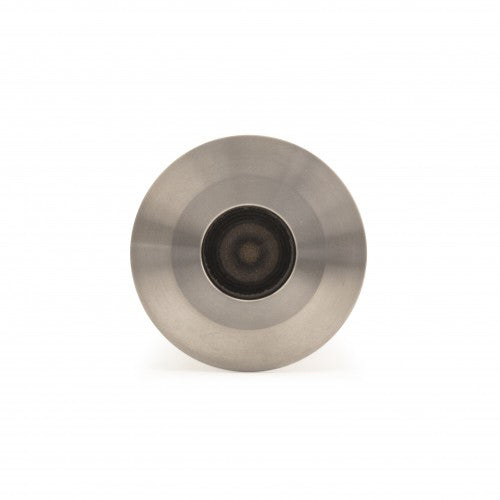

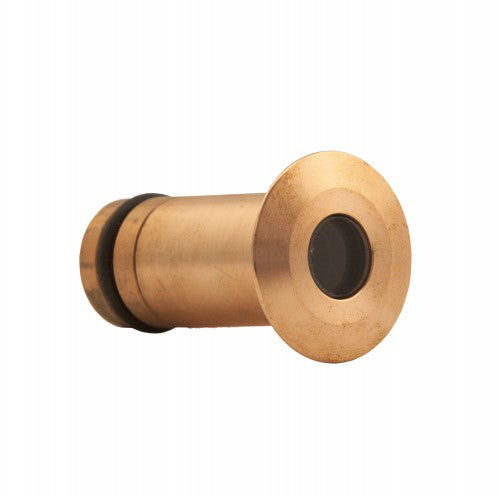

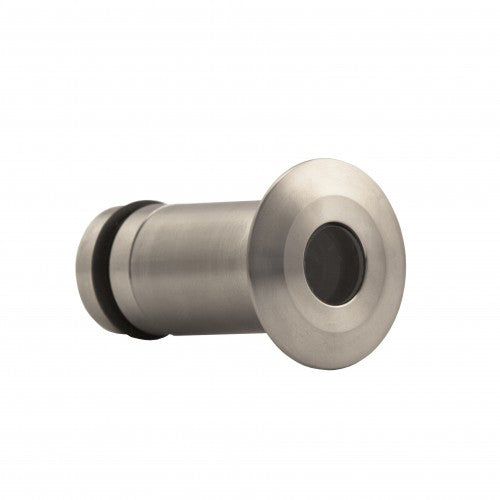

LuxR Lighting Micro Darklighter
The LuxR Micro Darklighter is a miniature low-voltage dimmable outdoor washer, with optional canister. Illumination is directed through a 16 Degree beam angle and a narrow baffled neck within the flange. Ideal for marking boundaries, crosslighting paths and uplighting columns and walls.
Precision machined in marine grade 316 stainless steel or from copper the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.
Flange diameter: 31.5mm (1 1/4")
Fitting depth: 46mm (1 13/16")
Specifications
- Forward Voltage: 3Vf
- Input Current: 60mA - 350mA max
- Power: 1 Watt max
- Efficacy: 70 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, 4000°K, Red, Green, Blue, Amber
- CRI (2700°K, 3000°K): Ra 90
- Recessed Spot Beam: 16°
- Standards: IP68, LM79, CE, UL1838
- Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
- Driver: Remote constant current driver required
Product Files
Click for LuxR Modux Micro Darklighter Spec Sheet V5.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
