LuxR Lighting Micro Steplight

The LuxR Micro Recessed Steplight is a miniature low-voltage dimmable outdoor washer, with optional canister. The fixture is designed to be mounted either in the ground or wall to illuminate paths, or wash walls and steps. Illumination is directed through the single facet 180° flange which projects light outwards and downwards to create an even wash across any surface.

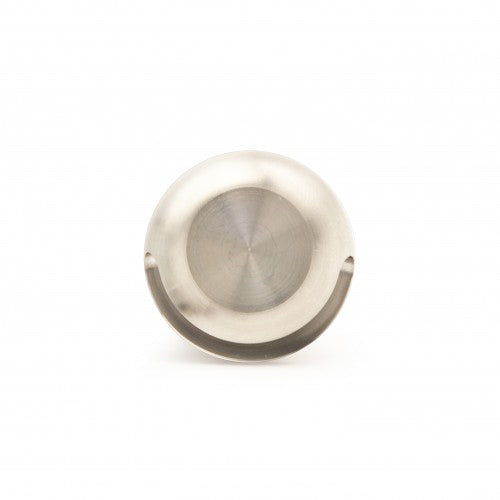

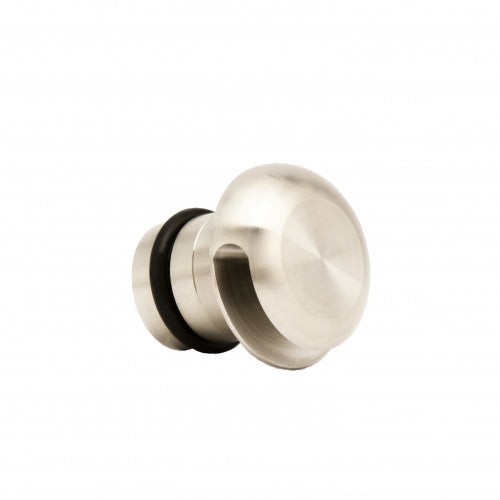

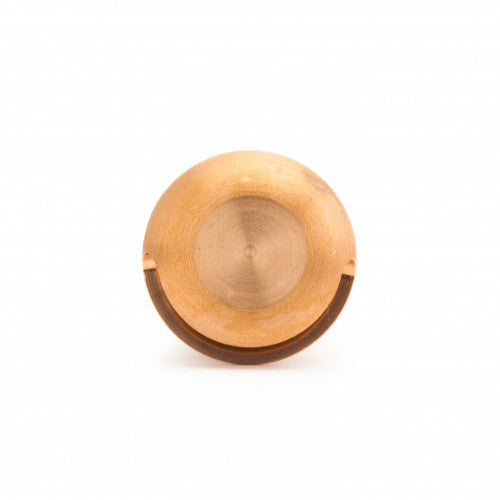

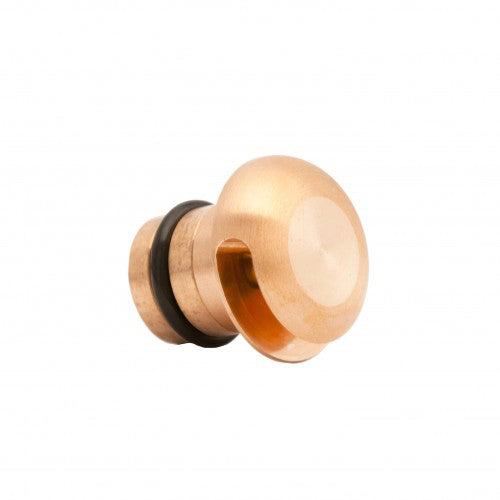

Precision machined in marine grade 316 stainless steel or from copper the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.

Flange diameter: 31.5mm (1 1/4")

Fitting depth: 21.5mm (7/8")

Available Power Supply Chart

Specifications

• Forward Voltage: 3Vf
• Input Current: 60mA - 350
• Power: 1 Watt
• Efficacy: 70 Lm/W - Delivered from luminaire with unobstructed beam
• Colours: 2700°K, 3000°K, 4000°K, Red, Green, Blue, Amber
• CRI (2700°K, 3000°K): Ra 90
• Recessed Steplight Beam: 180°
• Standards: IP68, LM79, CE, UL1838
• Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
• Driver: Remote Constant current driver or Integral driver fitted in an anti-siphon
