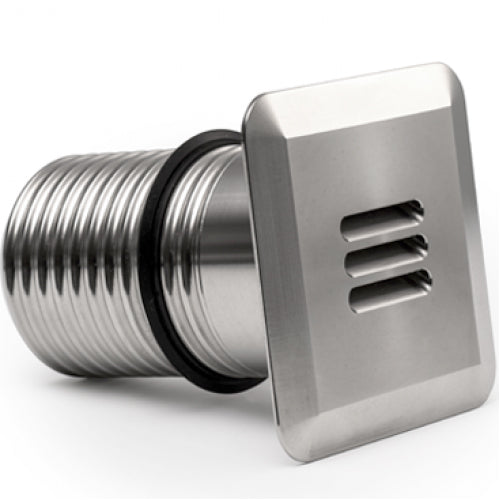

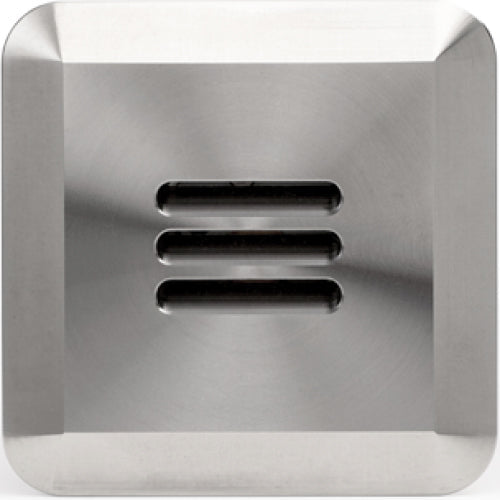

LuxR Lighting Modux Four Large Louvre
LuxR Lighting Modux Four Large Louvre
Roll over image to zoom in Click on image to zoom
LuxR Lighting Modux Four Large LouvreLuxR Lighting Modux Four Large Louvre

LuxR Lighting Modux Four Louvre

LuxR LightingSKU: LuxR-M4-LL
Price:
$0.00 USD

Fast & Easy Quote Request For LuxR Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Luxr Lighting Finishes

Description

LuxR Lighting Modux Four Louvre

Available in two louver sizes.

This is particularly useful when the mounting hole is generous or hole coverage is a priority.

Distance across the flats = 61mm

Specifications

  • Input Current: 700mA
  • Forward Voltage: 6Vf
  • Power: 4 Watt
  • Efficacy: 90 Lm/W - Delivered from luminaire with unobstructed beam
  • Colours: 2700°K, 3000°K, 4000°K
  • CRI [3000°K]: Ra 90
  • Beam: Asymmetric wash
  • Optic: Frosted
  • Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
  • Light Engine: Plug-in dimmable module equipped with Cree XHP-50 LED
  • Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
Product Files

Click for LuxR Modux Four Louvre Spec Sheet.pdf

Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
