Description

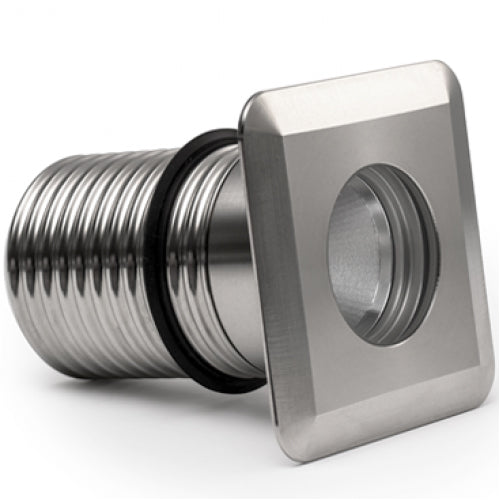

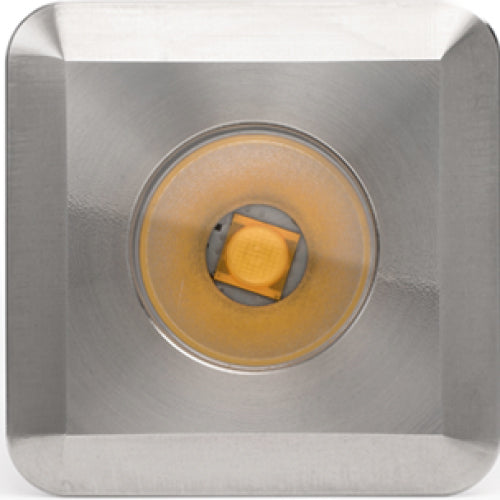

LuxR Lighting Modux Four Large Square Uplighter
A larger version of the Modux Four Square.
This is particularly useful when the mounting hole is generous or hole coverage is a priority.
Distance across the flats = 61mm
Specifications
- Input Current: 700mA
- Forward Voltage: 6Vf
- Power: 4 Watt
- Efficacy: 90 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, 4000°K
- CRI [3000°K]: Ra 90
- Beam [FWHM]: 26°, 36°, 74°
- Glass lenses: Clear, Frosted
- Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
- Light Engine: Plug-in dimmable module equipped with Cree XHP-50 LED
- Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
Product Files
Click for LuxR Modux Four Uplighter.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
