LuxR Lighting Modux Four Pool Light (USA ONLY)

Approved for use in the USA only

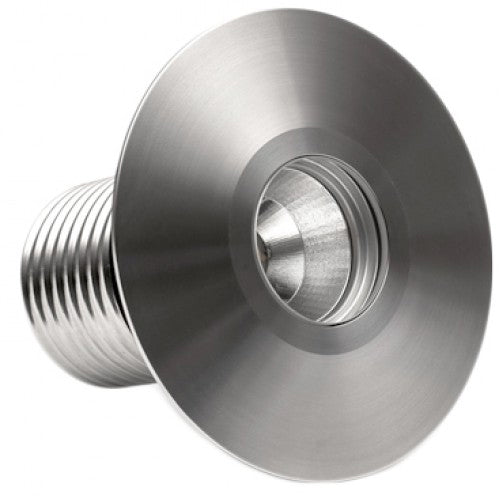

The Modux Four Pool light is a low-voltage dimmable pool light producing 360 lumens.

The fixture is supplied with the LuxR Large Round flange and the LuxR PVC Pool canister.

Precision machined in marine grade 316 stainless steel. The Cree 4 watt LED can be easily replaced if required. The optic is also simple to change if you wish to alter the beam width (see specifications).

Hexcell louvre baffle also is available.

Available Power Supply Chart

Specifications

• Input Current: 700mA
• Forward Voltage: 6Vf
• Power: 4 Watt
• Efficacy: 90 Lm/W - Delivered from luminaire with unobstructed beam
• Colours: 2700°K, 3000°K, 4000°K
• CRI [3000°K]: Ra 90
• Beam [FWHM]: 26°, 36°, 74°
• Glass lenses: Clear, Frosted, Hexcell louvre baffle
• Standards: UL 676
• Light Engine: Plug-in dimmable module equipped with Cree XHP-50 LED
• Driver: LuxR Integral 12V AC driver

Click for LuxR Modux Four USA POOL.pdf

Click for Installation Instructions.pdf
