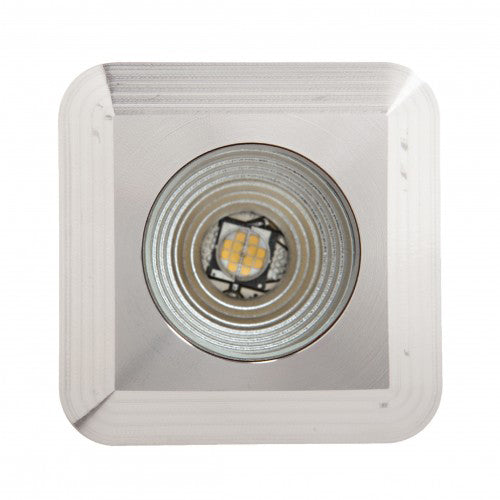

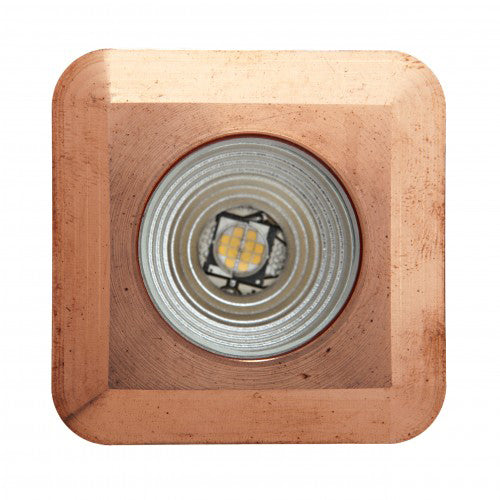

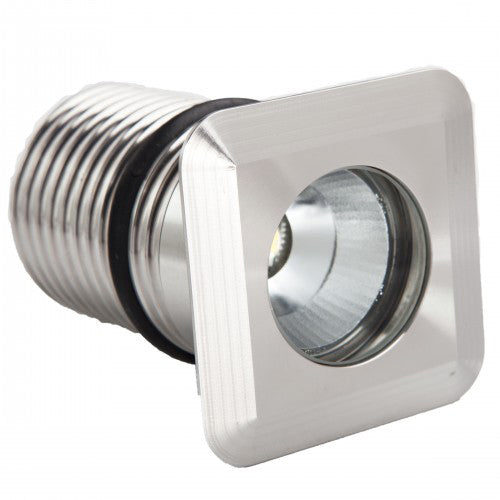

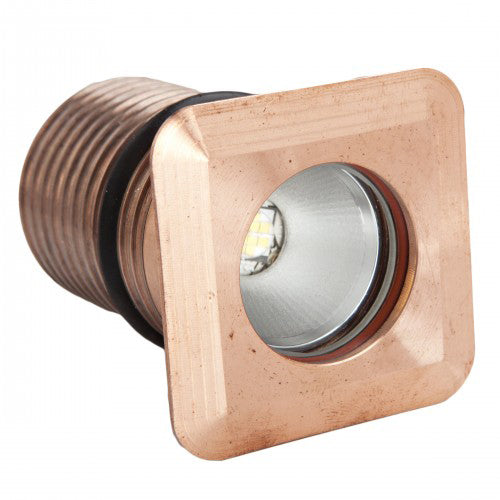

LuxR Lighting Modux Four Square Outdoor Uplighter
The Modux Four Square is a low-voltage dimmable outdoor uplighter typically producing 400 lumens.
Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 4 watt LED can be easily replaced if required. The optic is also simple to change if you wish to alter the beam width (see specifications).
Hexcell louvre baffle also is available.
- Input Current: 700mA
- Forward Voltage: 6Vf
- Power: 4 Watt
- Efficacy: 90 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, 4000°K, Red, Green, Blue, Amber
- CRI [3000°K]: Ra 90
- Beam [FWHM]: 12°, 26°, 36°, 74°
- Glass lenses: Clear, Frosted
- Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
- Light Engine: Plug-in dimmable module equipped with Cree XHP-50 LED
- Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
