LuxR Lighting Modux Four Steplight with Slot

The Modux Four Steplight with additional slot is a low-voltage dimmable outdoor step light that produces a wash distribution 5 degrees below the flange lip, and 10 degrees above. In addition the narrow slot opposite the main beam produces a fine decorative accent. Can be used to illuminate the wall surface adjacent to the step treads, step treads themselves, above a doorway, or as a path light wayfinder among other applications.

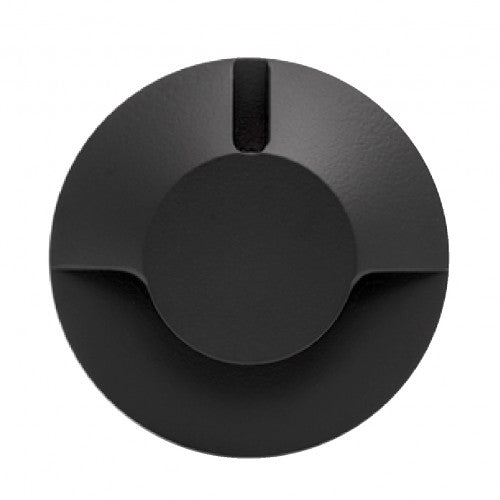

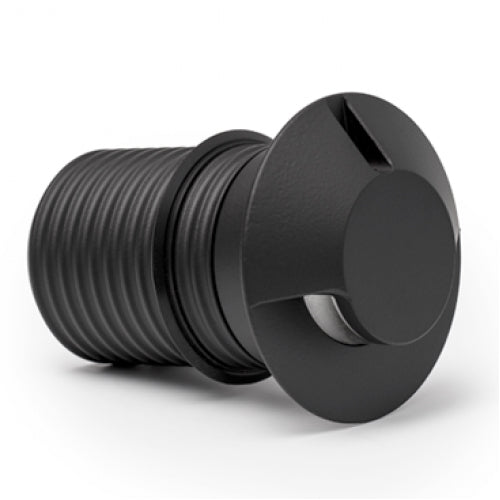

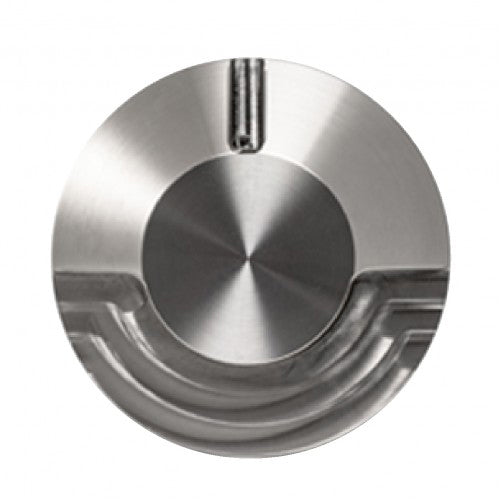

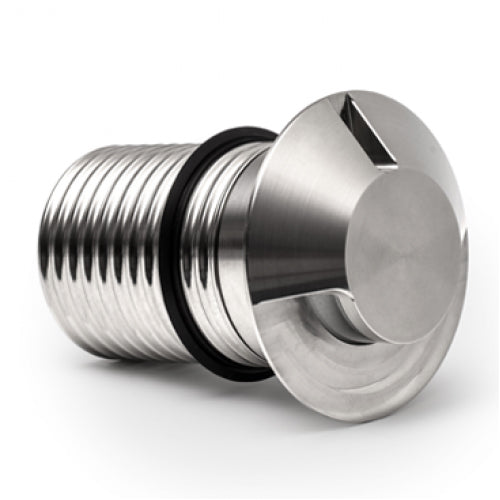

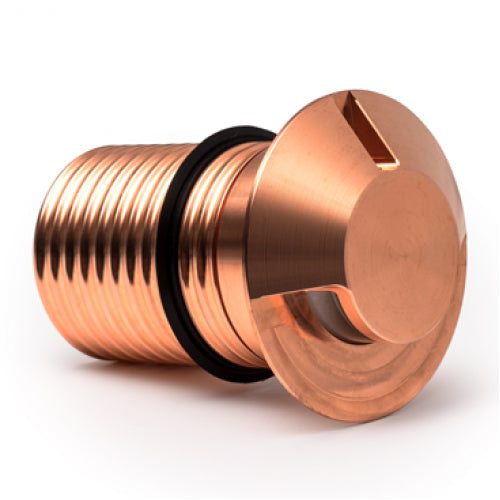

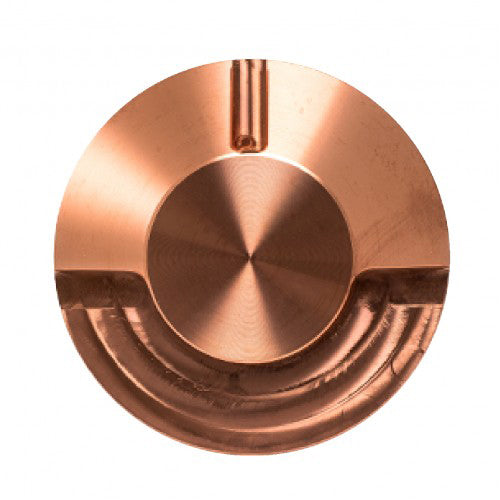

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 4 watt LED can be easily replaced if required or substituted for a colour LED. The optic is glass.

Specifications

• Input Current: 700mA
• Forward Voltage: 6Vf
• Power: 4 Watt
• Efficacy: 90 Lm/W - Delivered from luminaire with unobstructed beam
• Colours: 2700°K, 3000°K, 4000°K
• CRI [3000°K]: Ra 90
• Step Beam: -5°, +10°
• Optic: Glass
• Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
• Light Engine: Plug-in dimmable module equipped with Cree XHP-50 LED
• Driver: Remote constant current driver required, or LuxR Integral 12V AC driver

Click for LuxR Modux Four Steplight Spec Sheet.pdf

Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
