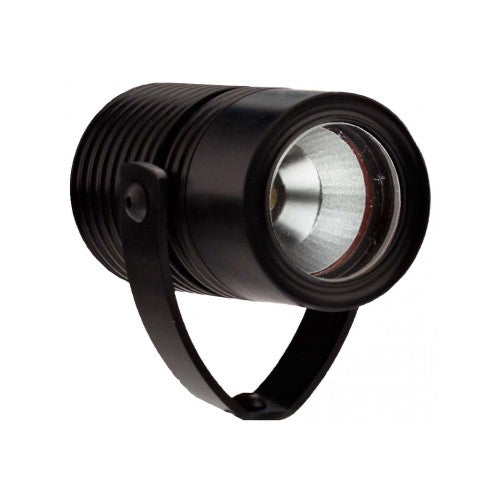

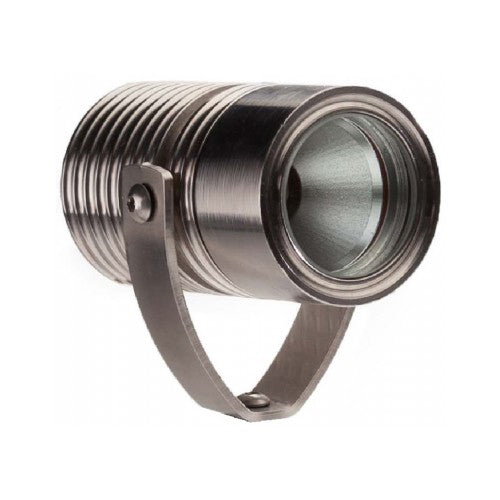

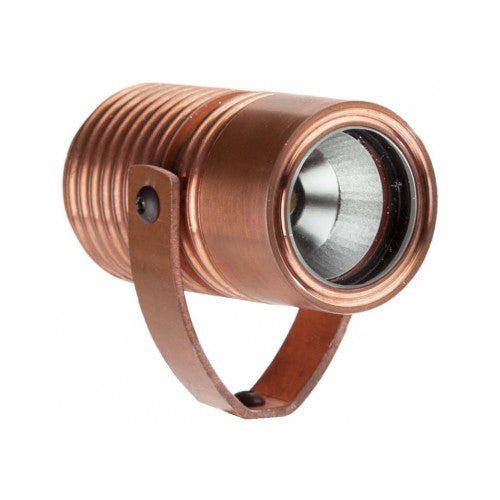

LuxR Lighting Modux Four Surface Mount Spot Light

The Modux Four Surface Mount Spot is a very small low-voltage dimmable outdoor spot light on a stiff metal bracket for installing onto any surface with a <4mm diameter screw. The fully adjustable spot light typically produces 400 lumens. Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 4 watt LED can be easily replaced if required. The optic is also simple to change if you wish to alter the beam width (see specifications). Hexcell louvre baffle is also available.

Available Power Supply Chart

Specifications

• Input Current: 700mA
• Forward Voltage: 6Vf
• Power: 4 Watt
• Efficacy: 90 Lm/W - Delivered from luminaire with unobstructed beam
• Colours: 2700°K, 3000°K, 4000°K
• CRI [3000°K]: Ra 90
• Beam [FWHM]: 26°, 36°, 74°
• Glass lenses: Clear, Frosted
• Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
• Light Engine: Plug-in dimmable module equipped with Cree XHP-50 LED
• Driver: Remote constant current driver LuxR Integral 12V AC driver 24V DC driver

Click for LuxR Modux Four Spot Light Range.pdf

Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
