Fast & Easy Quote Request For LuxR Lighting
Luxr Lighting Finishes
Description

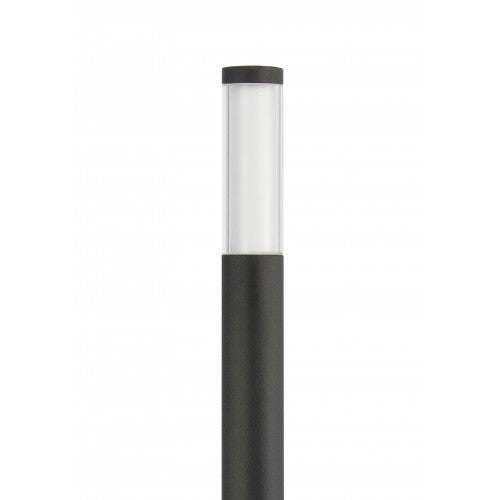

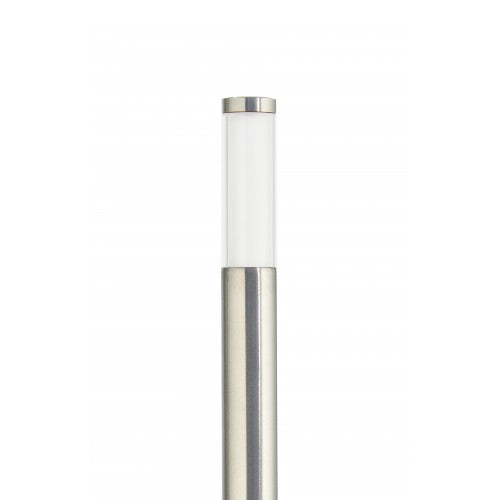

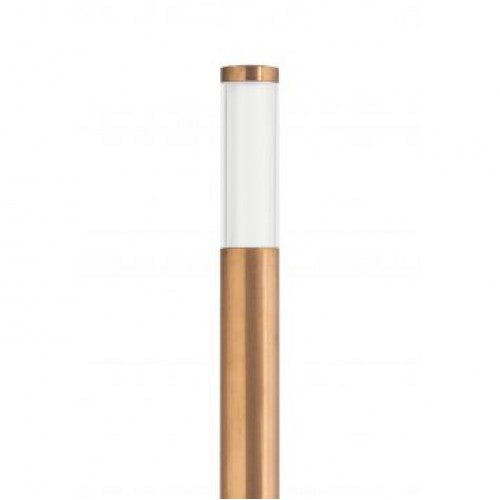

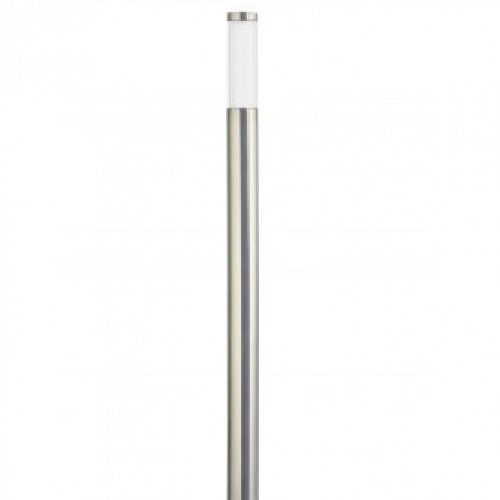

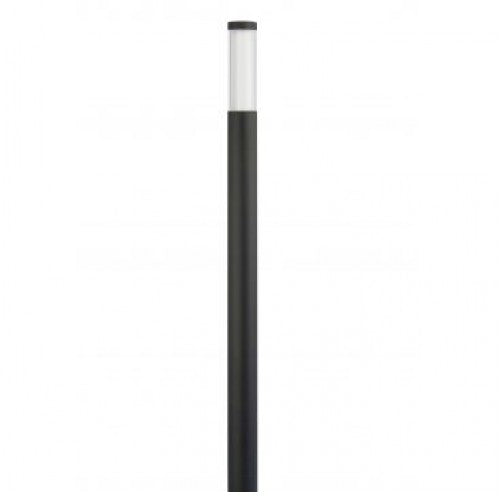

LuxR Lighting Modux One Saber Pole Mount
This 1 inch diameter miniature pole marker light produces plenty of light creating a 360 degree wash without any glare.
Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.
Regular pole length = 700mm
Custom length available on request.
Specifications
- Input Current: 350mA
- Forward Voltage: 3Vf
- Power: 1 Watt
- Efficacy: 35 Lm/W
- Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
- CRI [3000°K]: Ra 90
- Beam: 360 Degree Wash
- Lens: Acrylic
- Standards: IP68, LM79, CE, UL.
- Light Engine: Replacable dimmable module equipped with Cree XPG-3 LED
- Driver: Remote constant current driver required
Product Files
Click for LuxR Modux One Saber Spec Sheet.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
