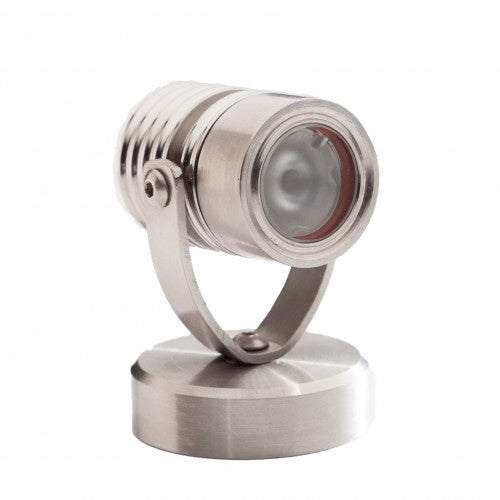

LuxR Lighting Modux One Weighted Base Spot Light

The Modux One Weighted Base Spot is a very small low-voltage dimmable outdoor spot light with a solid metal base. The fully adjustable spot light typically produces 80 lumens.

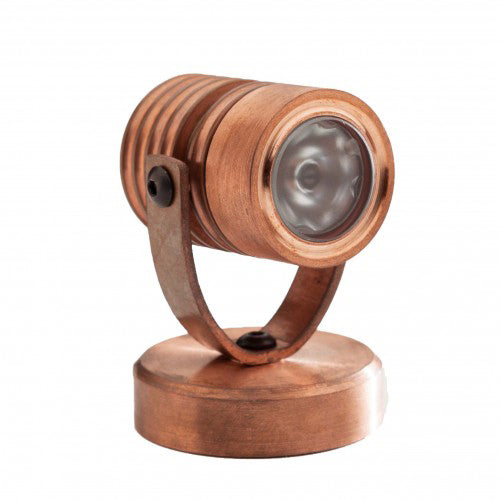

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width (see specifications).

Available Power Supply Chart

Specifications

• Input Current: 350mA
• Forward Voltage: 3Vf
• Power: 1 Watt
• Efficacy: 80 Lm/W - Delivered from luminaire with unobstructed beam
• Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
• CRI [3000°K]: Ra 90
• Beam [FWHM]: 30°, 53°, 50+17°
• Glass lenses: Clear, Frosted
• Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
• Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
• Driver: Remote constant current driver required

Click for LuxR Modux One Spike Spot Spec Sheet V5.pdf

Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
