LuxR Lighting Modux Two Darklighter

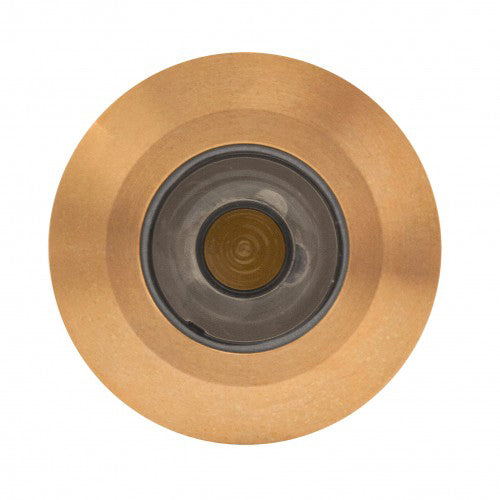

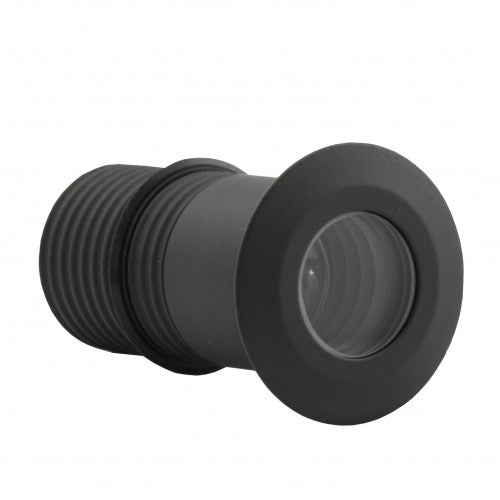

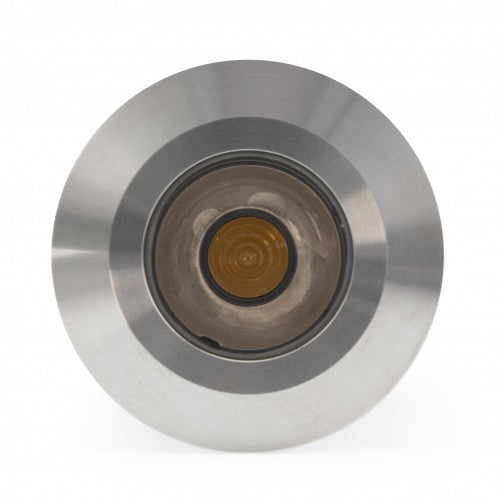

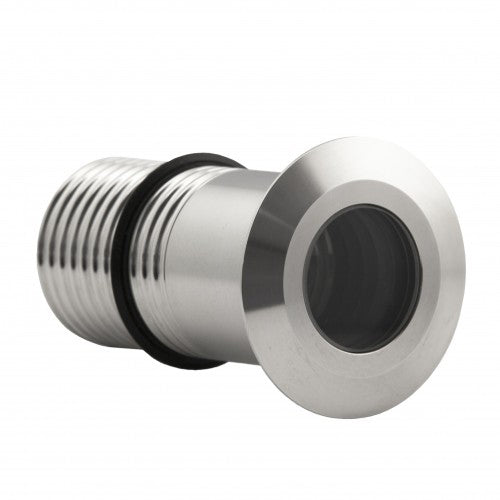

The Modux Two Darklighter is a low-voltage dimmable outdoor uplighter typically producing 170 lumens. Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED.

Available Power Supply Chart

Specifications

• Input Current: 700mA
• Forward Voltage: 3Vf
• Power: 2 Watt
• Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
• Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
• CRI [3000°K]: Ra 90
• Beam [FWHM]: 26°
• Glass lenses: Clear
• Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
• Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
• Driver: Remote constant current driver required, or LuxR Integral 12V AC driver

Click for LuxR Modux Two Darklighter Spec Sheet.pdf

Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
