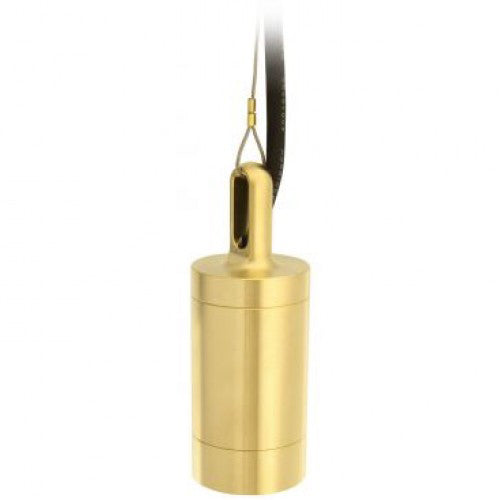

LuxR Lighting Modux Two Hanging Light

The Modux Two Hanging Light is designed to be suspended from a ceiling or trees to provide downwards illumination or a dynamic moon lighting effect. Includes a stainless steel cable at 1m or 3m lengths.

Accessories:

• 700mA constant current Remote driver
• Plug-In 12 Volt AC Integral driver
• Hexcell louvre available

Specifications

• Input Current: 700mA
• Forward Voltage: 3Vf
• Power: 2 Watt
• Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
• Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
• CRI [3000°K]: Ra 90
• Beam [FWHM]: 26°, 36°, 74°
• Glass lenses: Clear, Frosted Glass
• Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
• Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
• Driver: Remote constant current driver required, or LuxR Integral 12V AC driver

Available Power Supply Chart

Click for LuxR Modux Two Hanging Light Spec Sheet.pdf

Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
