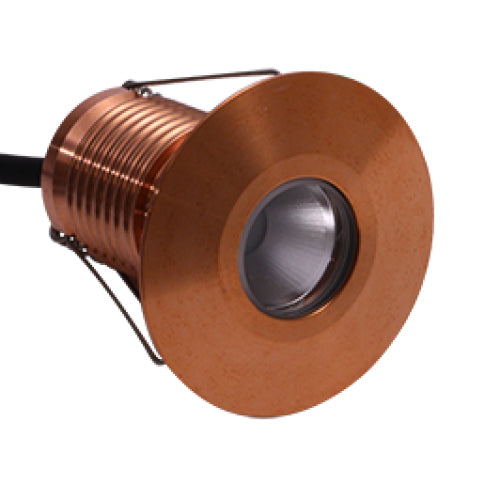

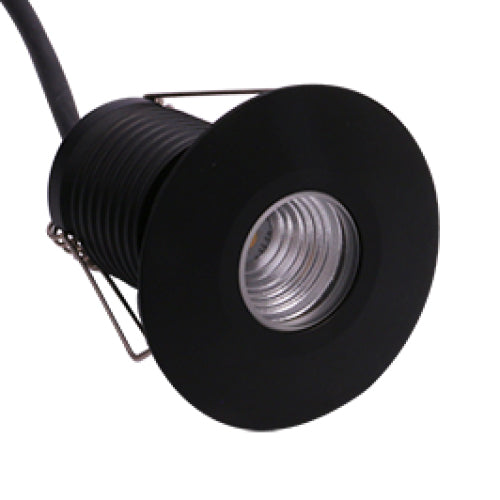

LuxR Lighting Modux Two Large Round Recessed Plug

LuxR LightingSKU: LuxR-M2-LR-RP

Price:
Sale price$0.00 USD

Description

LuxR Lighting Modux Two Large Round Recessed Plug

The Modux Two Large Round Recessed Plug is easily installed. Mark out the luminaire position and have the wiring terminated at the location ready to receive the fixture with suitable connectors. Using a 41mm or 15/8" holesaw, cut a neat hole accurately in the surface where the fixture is to be mounted. Route the wiring out of the hole and electrically terminate the product. Fold the spring wings back against the body and inset into the hole. The flange will sit flush with the wall when fully inserted.

Available Power Supply Chart

Specifications

  • Input Current: 700mA
  • Forward Voltage: 3Vf
  • Power: 2 Watt
  • Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
  • Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
  • CRI [3000°K]: Ra 90
  • Beam [FWHM]: 26°, 36°, 74°
  • Glass lenses: Clear, Frosted, Hexcell louvre baffle
  • Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
  • Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
  • Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
