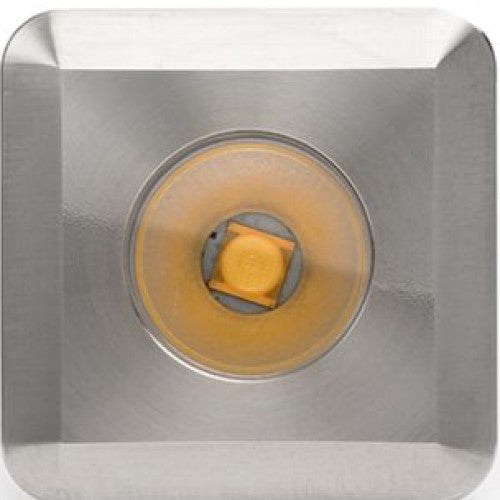

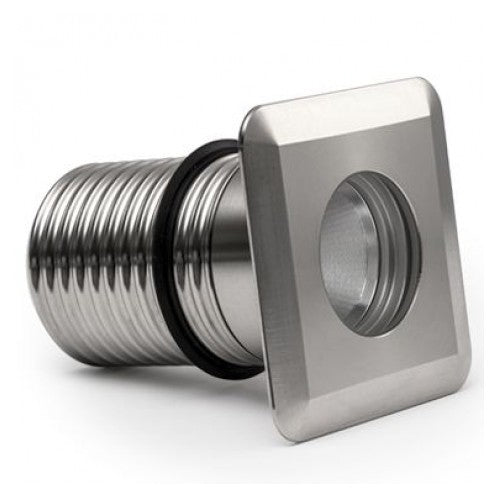

LuxR Lighting Modux Two Large Square Uplighter

A larger version of the Modux Two Square.

This is particularly useful when the mounting hole is generous or hole coverage is a priority.

Distance across the flats = 61mm

Available Power Supply Chart

Specifications

  • Input Current: 700mA
  • Forward Voltage: 3Vf
  • Power: 2 Watt
  • Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
  • Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
  • CRI [3000°K]: Ra 90
  • Beam [FWHM]: 26°, 36°, 74°
  • Glass lenses: Clear, Frosted, Hexcell louvre baffle
  • Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
  • Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
  • Driver: Remote constant current driver required, or LuxR Integral 12V AC driver+
Product Files

Click for LuxR Modux Two Uplighter Spec Sheet.pdf

Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
