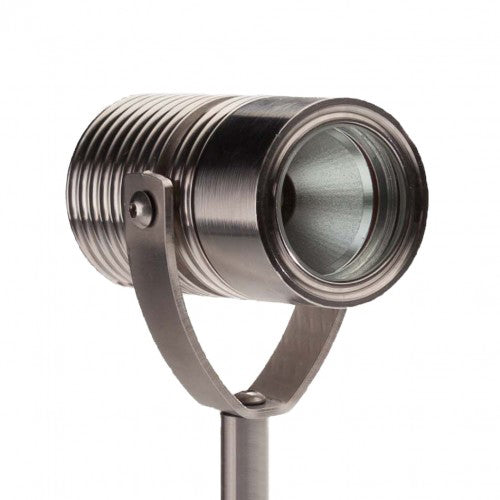

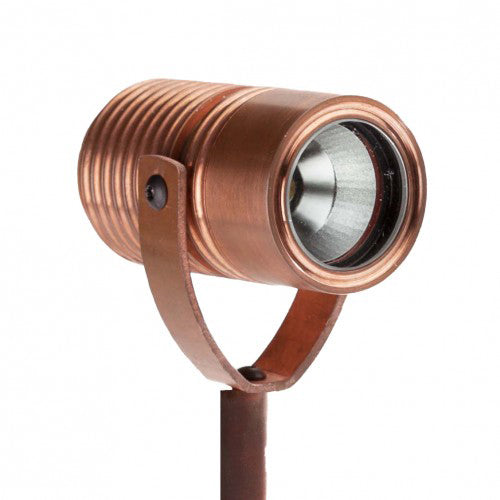

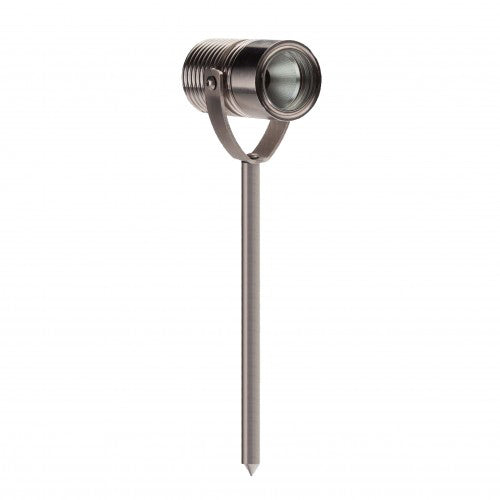

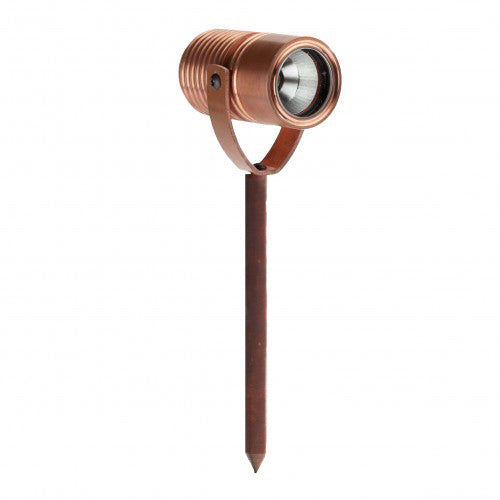

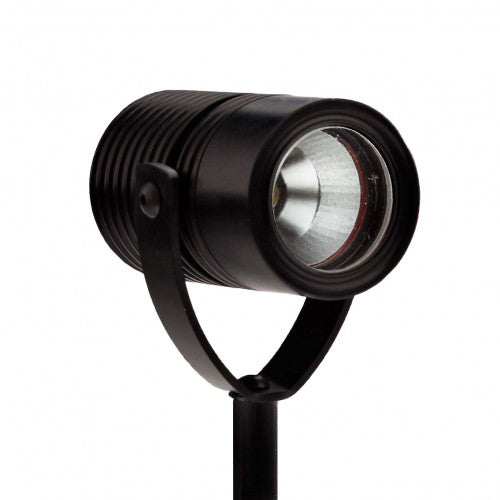

LuxR Lighting Modux Two Spike Spot Light

The Modux Two Spike Spot is a low-voltage dimmable outdoor spot light with a solid metal spike for installing into garden soil. The fully adjustable spot light typically produces 170 lumens.

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width (see specifications).

Available Power Supply Chart

Specifications

• Input Current: 700mA
• Forward Voltage: 3Vf
• Power: 2 Watt
• Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
• Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
• CRI [3000°K]: Ra 90
• Beam [FWHM]: 26°, 36°, 74°
• Glass lenses: Clear, Frosted, Hexcell louvre baffle
• Standards IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
• Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
• Driver: Remote constant current driver, LuxR Integral 12V AC driver, or 24V DC driver required.
