Description

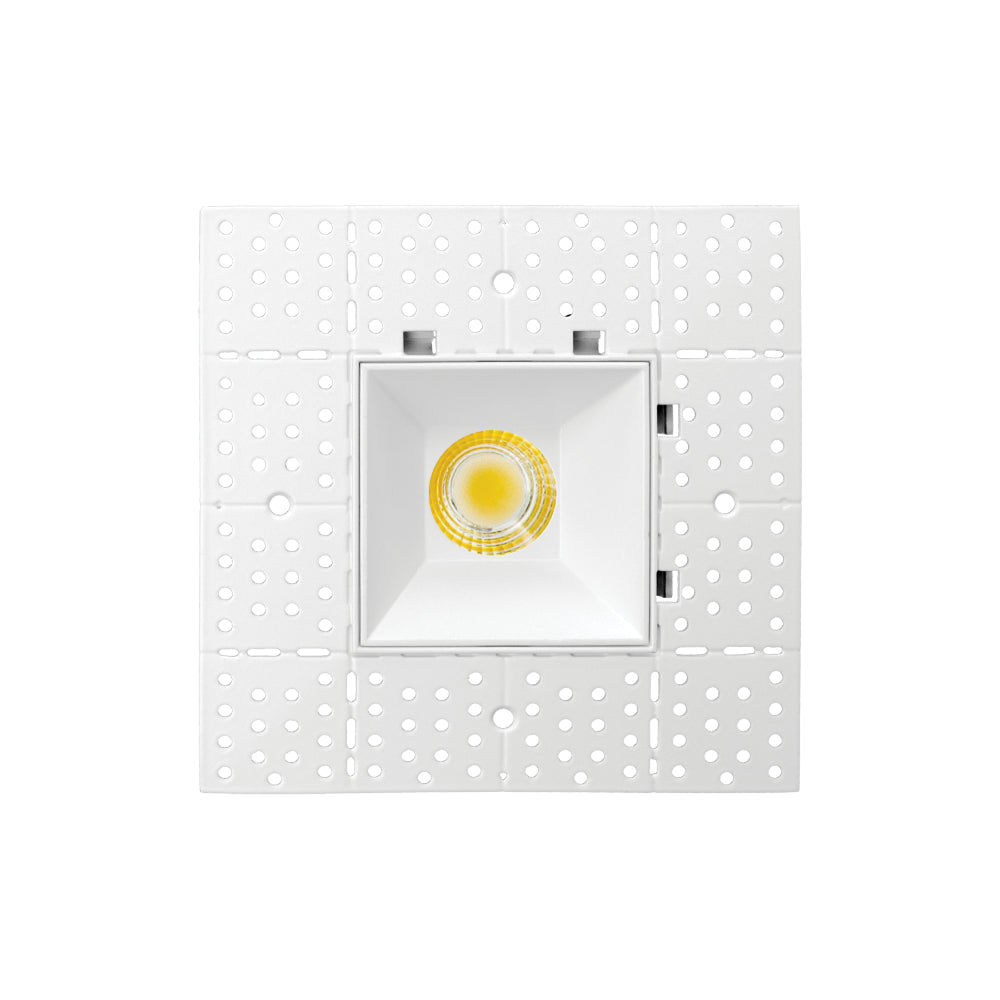

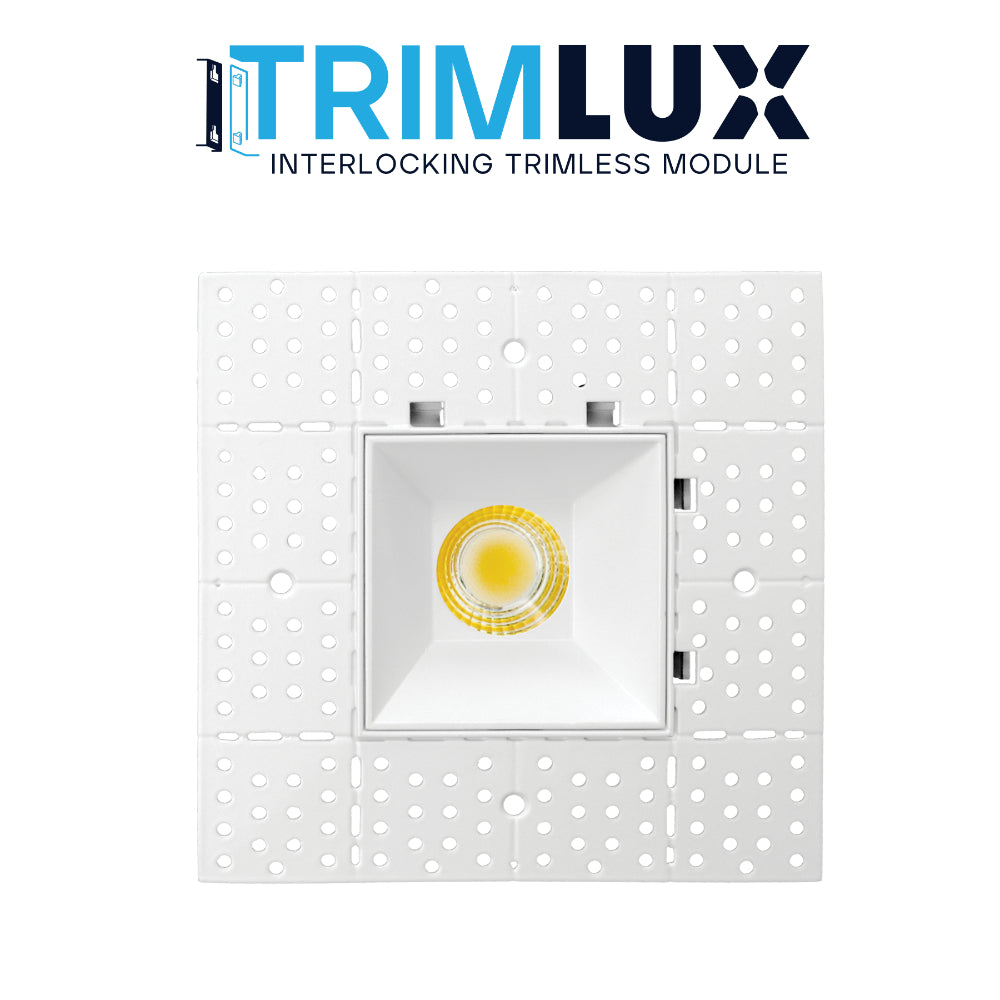

Luxrite 1" Interlocking Trimless Module Spotlight - 5CCT Selectable
Specifications
- Item description: LED/ITLMD1/5CCT/SQ/WT/D
- Size: 1 Inch
- Shape: Interlocking Trimless

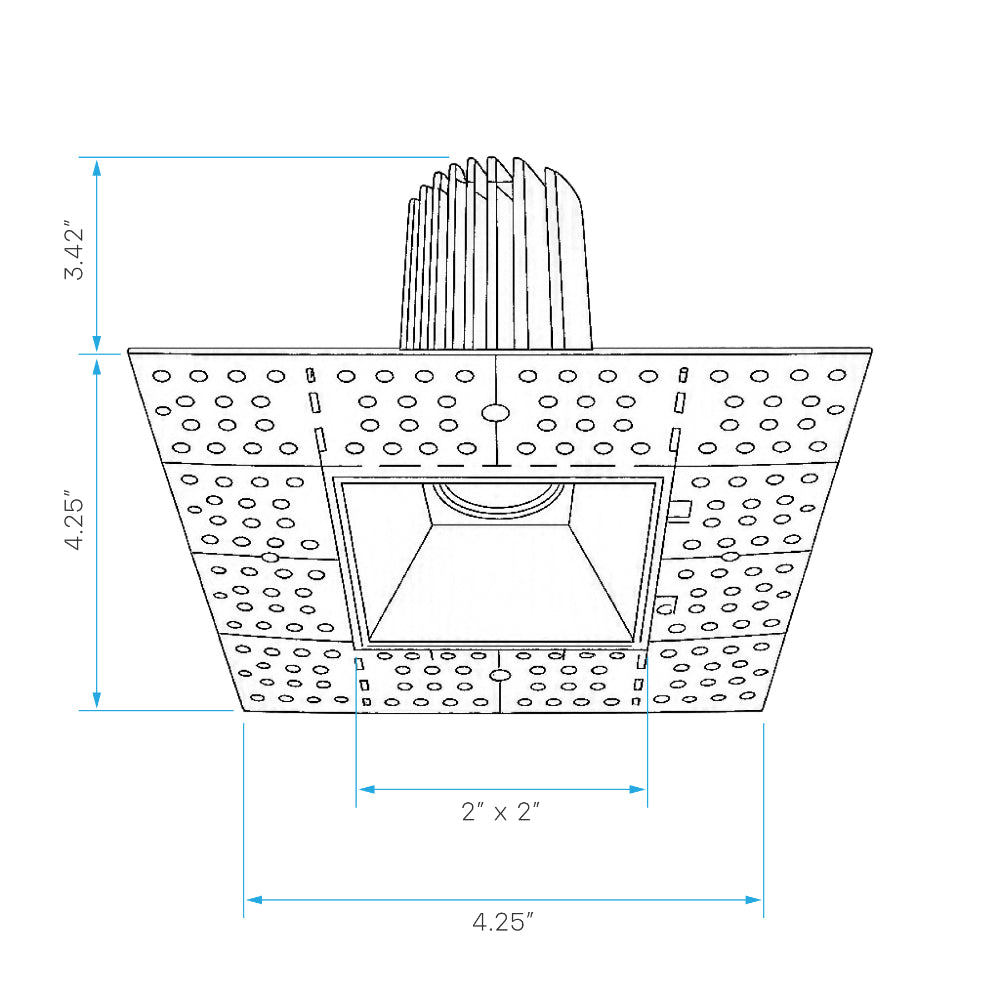

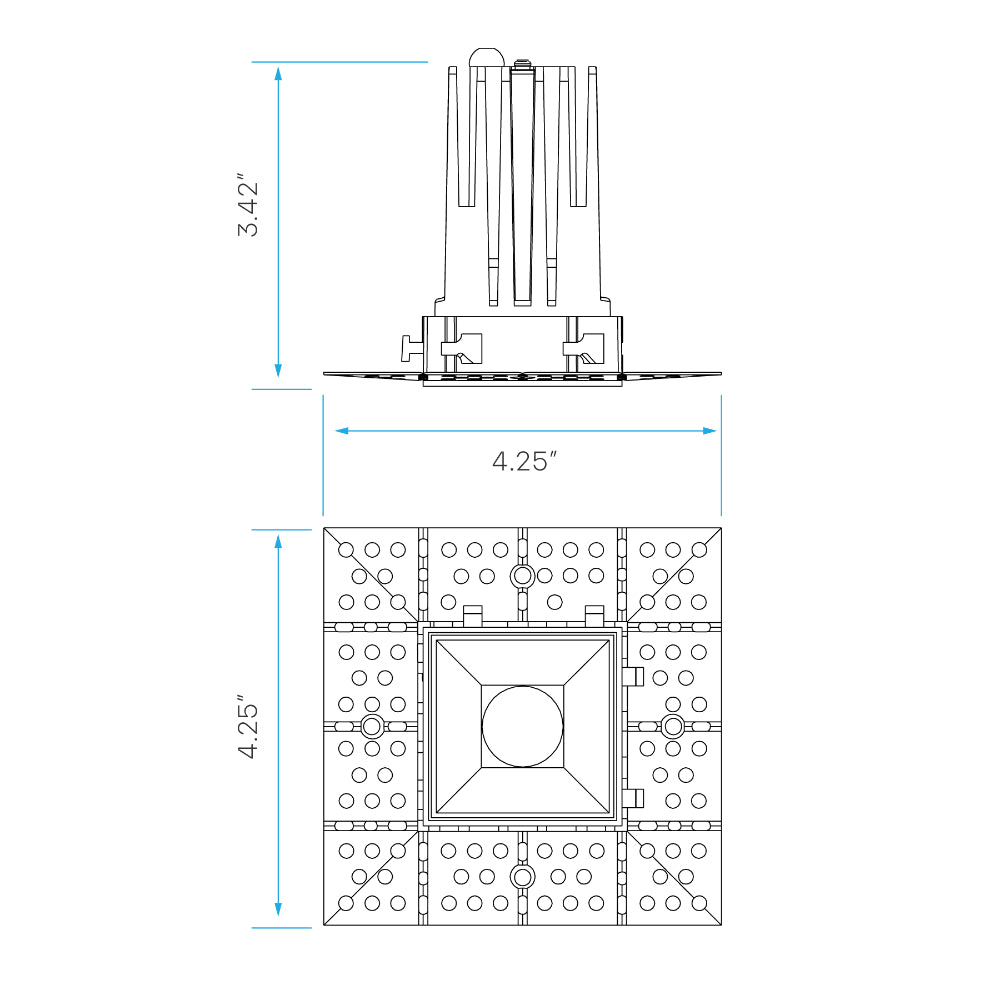

- Dimensions:
- Length: 4.25 Inch
- Width: 4.25 Inch
- Depth: 3.42 Inch
- Finish: White
- Cutout: 2.44 Inch x 2.44 Inch
- Plate: LR41005 (#0), LR41014 (#0)

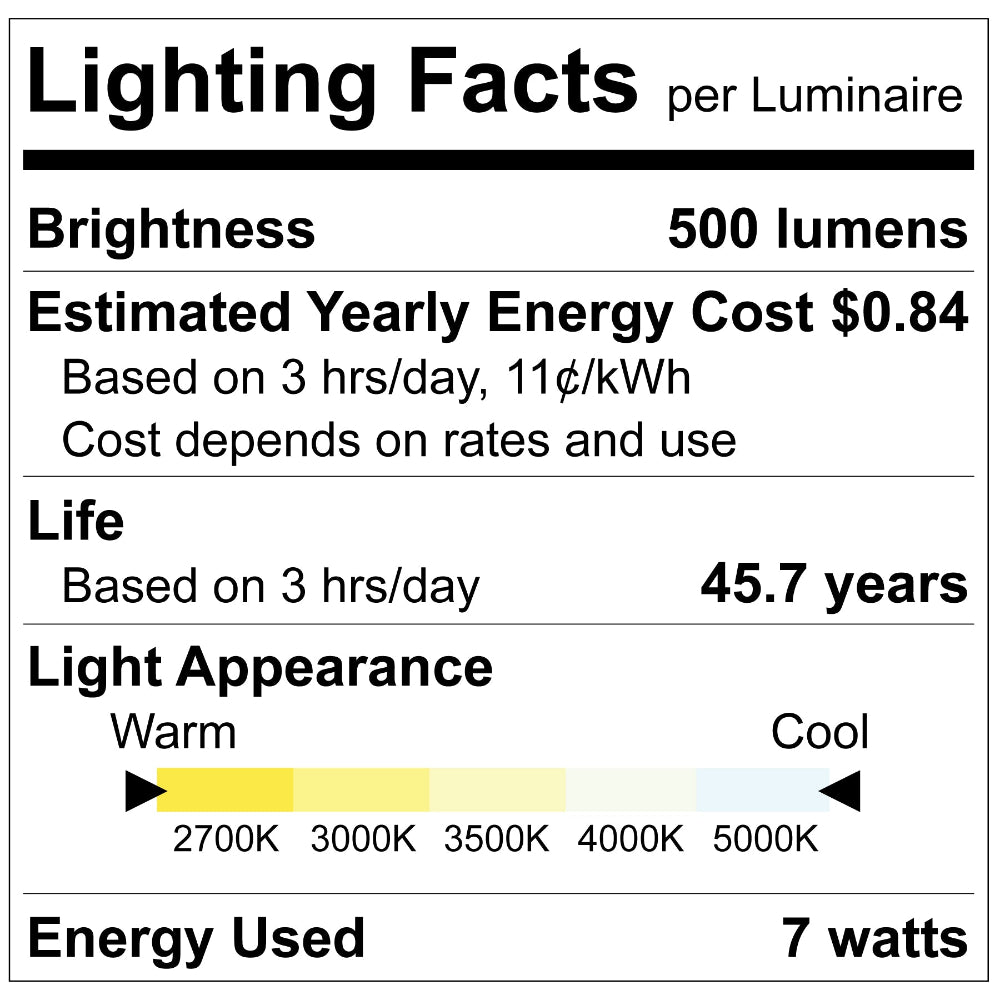

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 500
- Beam Angle: 38º
- CRI: 90
Electrical
- Power (Wattage): 7
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 75
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR25470 Specification Sheet
Click forLuxrite LR25470 Family Specification Sheet
Click forLuxrite LR25470 Install Guide
