Description

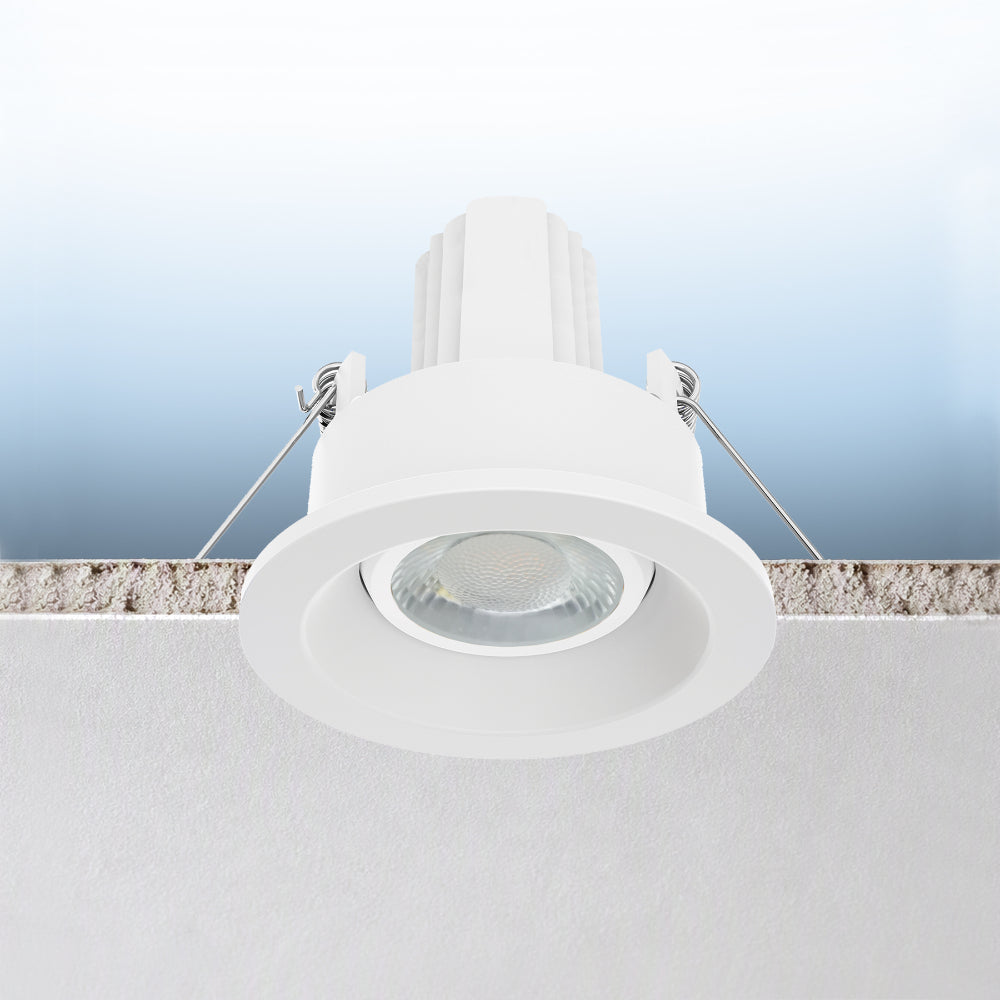

Luxrite 1" Regressed Recessed Gimbal - High Output
Specifications
- Item description: LED12W/RDL1/GB/HO/5CCT/FL
- Size: 1 Inch
- Shape: 1 Inch Regressed Gimbal

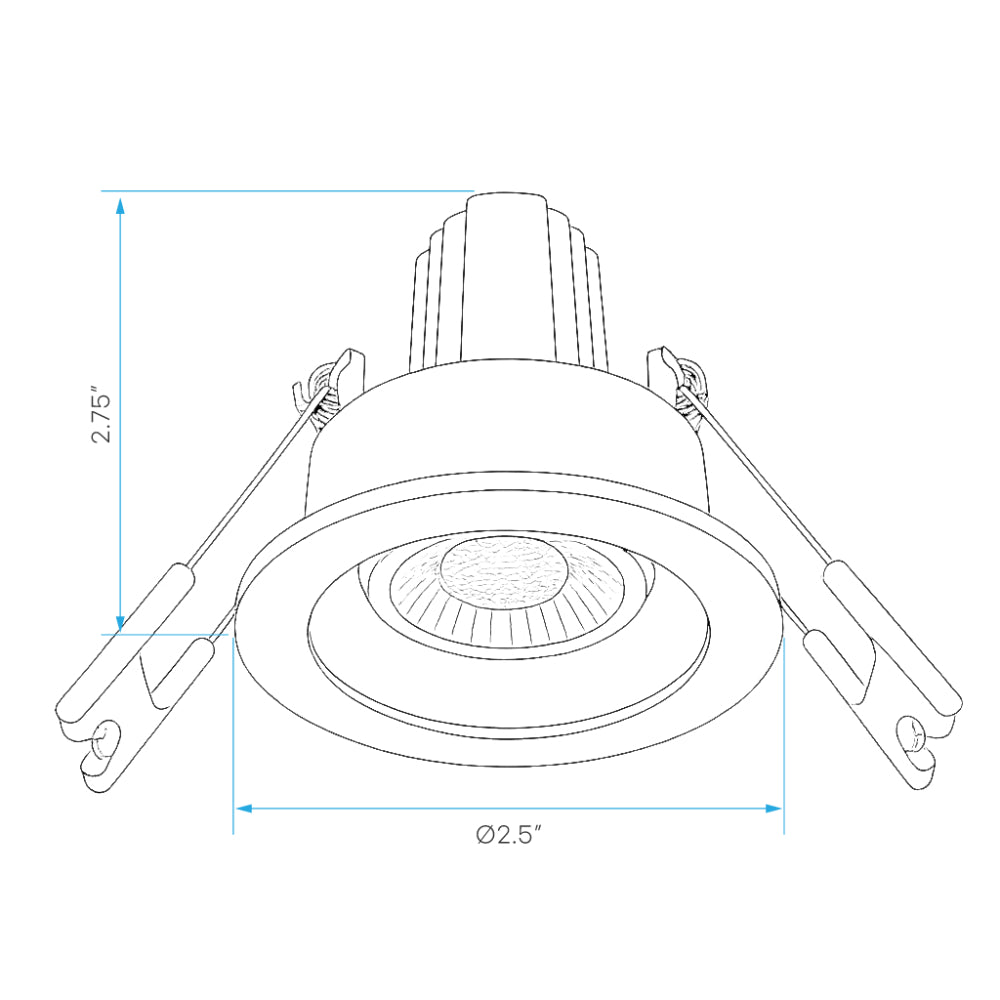

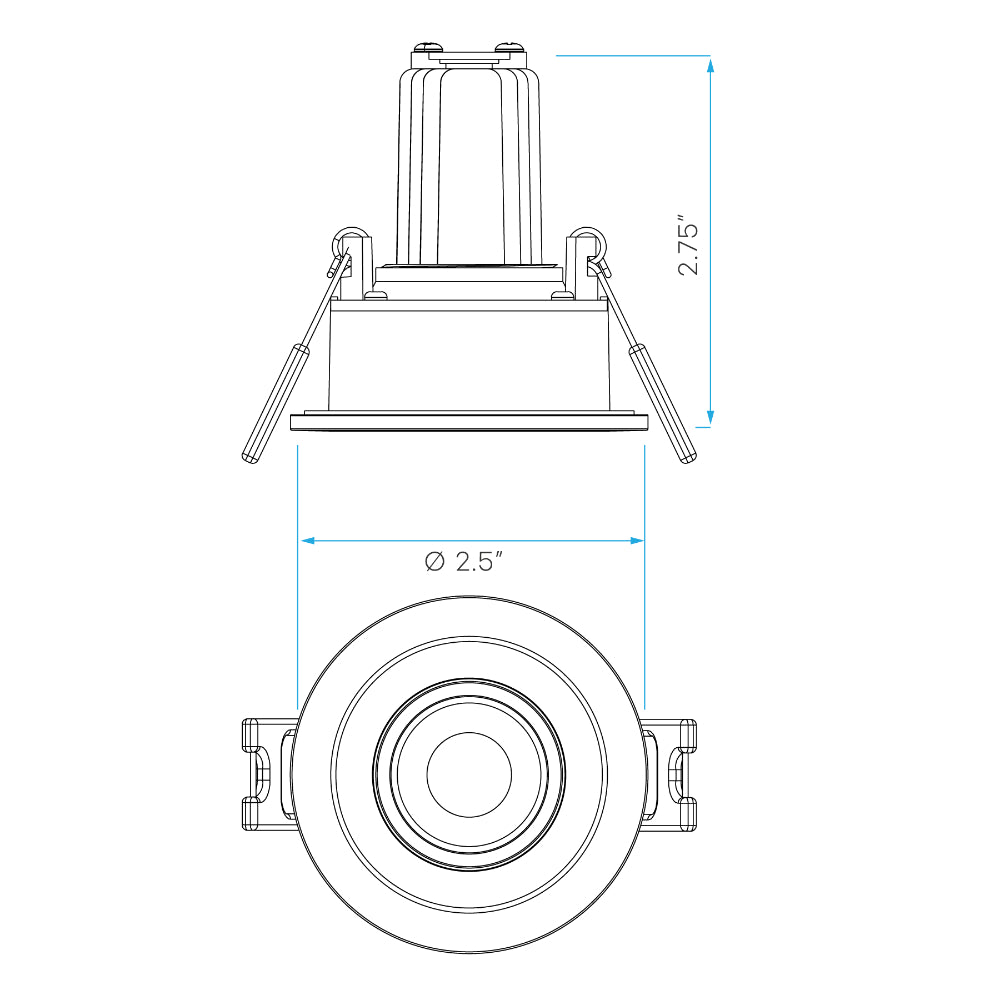

- Dimensions:
- Width: Ø2.5
- Depth: 2.75 Inch
- Finish: White
- Cutout: Ø2.16 Inch
- Plate: LR41004 (#0), LR41006 (#0), LR41010 (#L0)

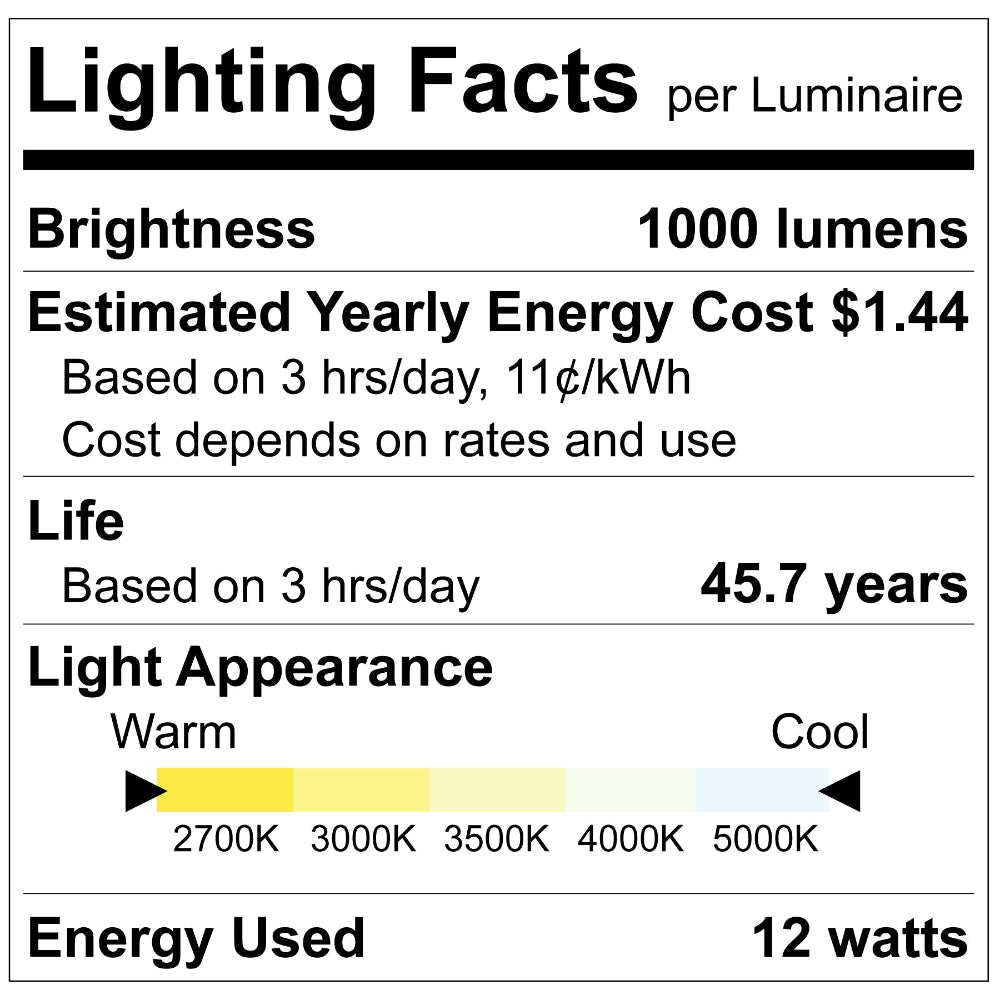

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1000
- Beam Angle: 36º
- CRI: 90
Electrical
- Power (Wattage): 12
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Input Current: 120Ma
- Frequency: 60Hz
- Lumen Efficacy: 83
- Operating Temp:
- Min: -4º
- Max: 104º
Product Files
Click forLuxrite LR23270 Specification Sheet
Click forLuxrite LR23270 Install Guide
Click forLuxrite LR23270 Dimmer Compatibility
