Description

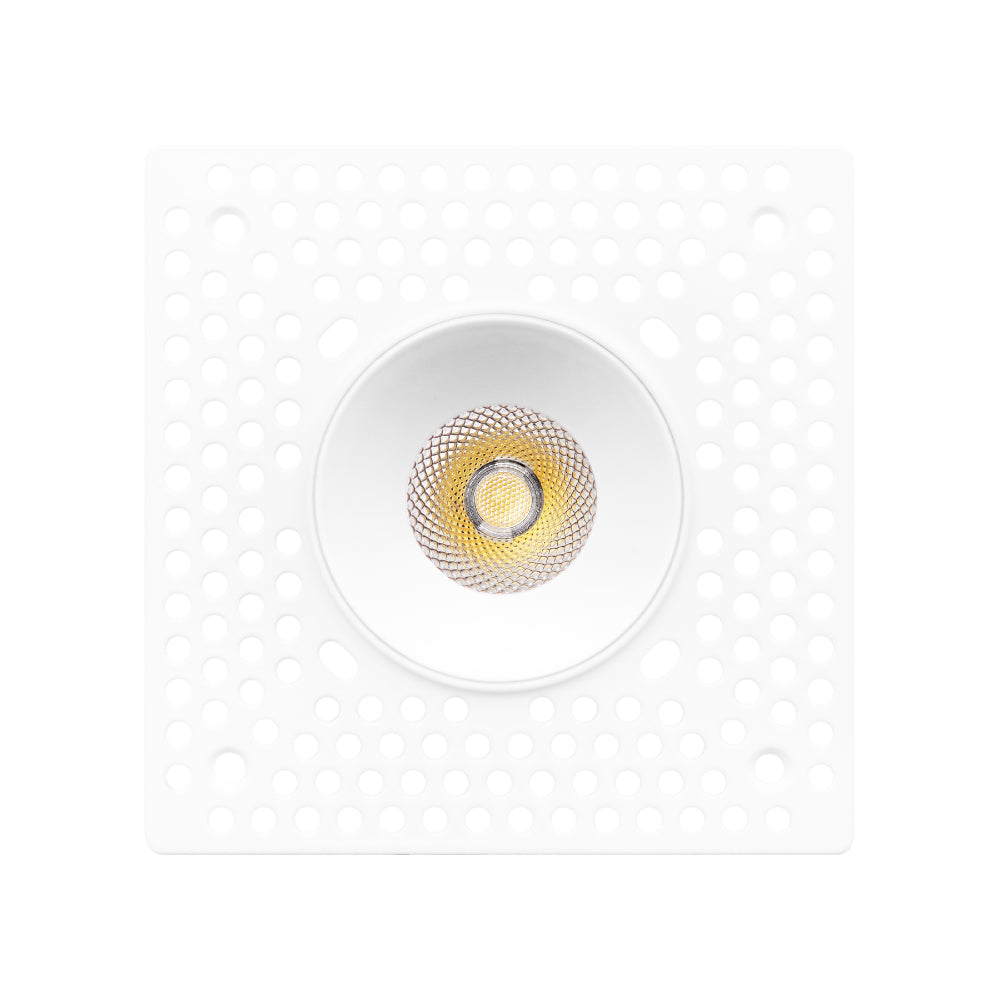

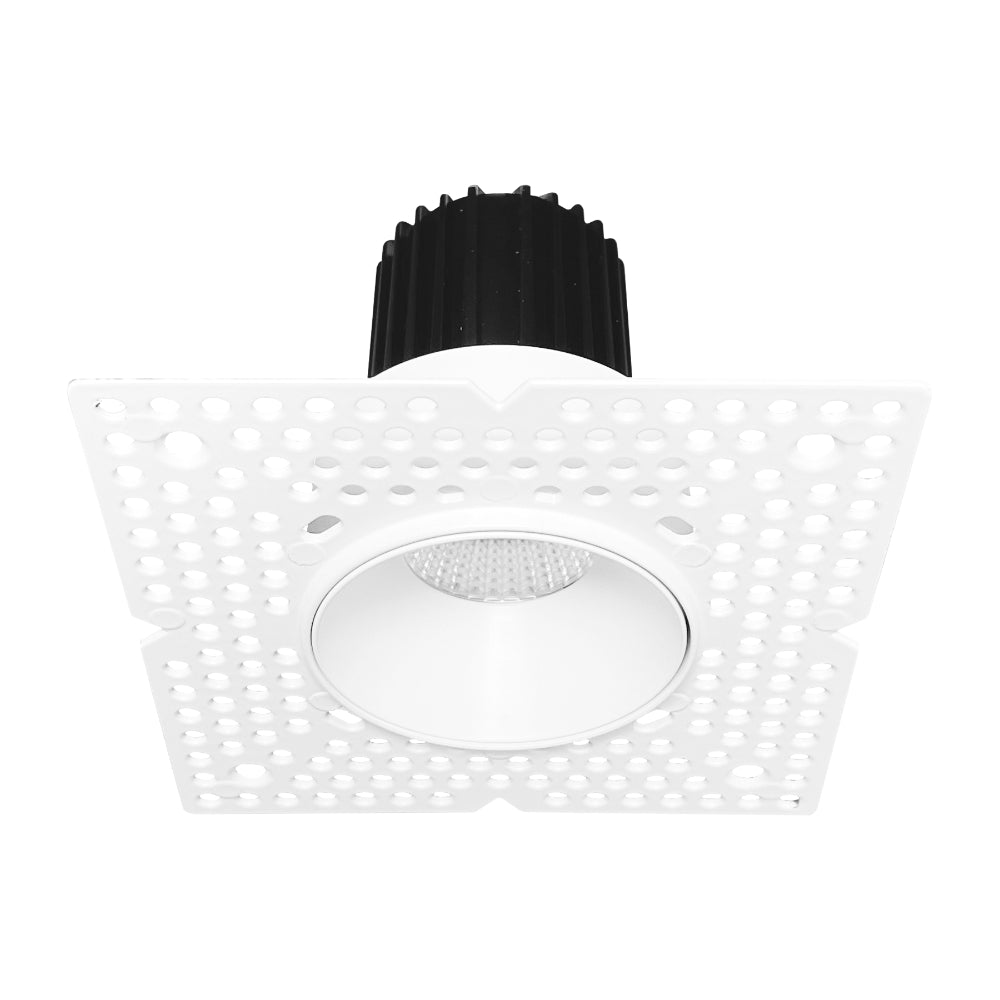

Luxrite 1" Regressed Trimless Push N' Lock Spotlight - CCT Selectable
Specifications
- Item description: LED/TLMD1/5CCT/RD/WT/D2
- Size: 1 Inch
- Shape: Regressed Trimless

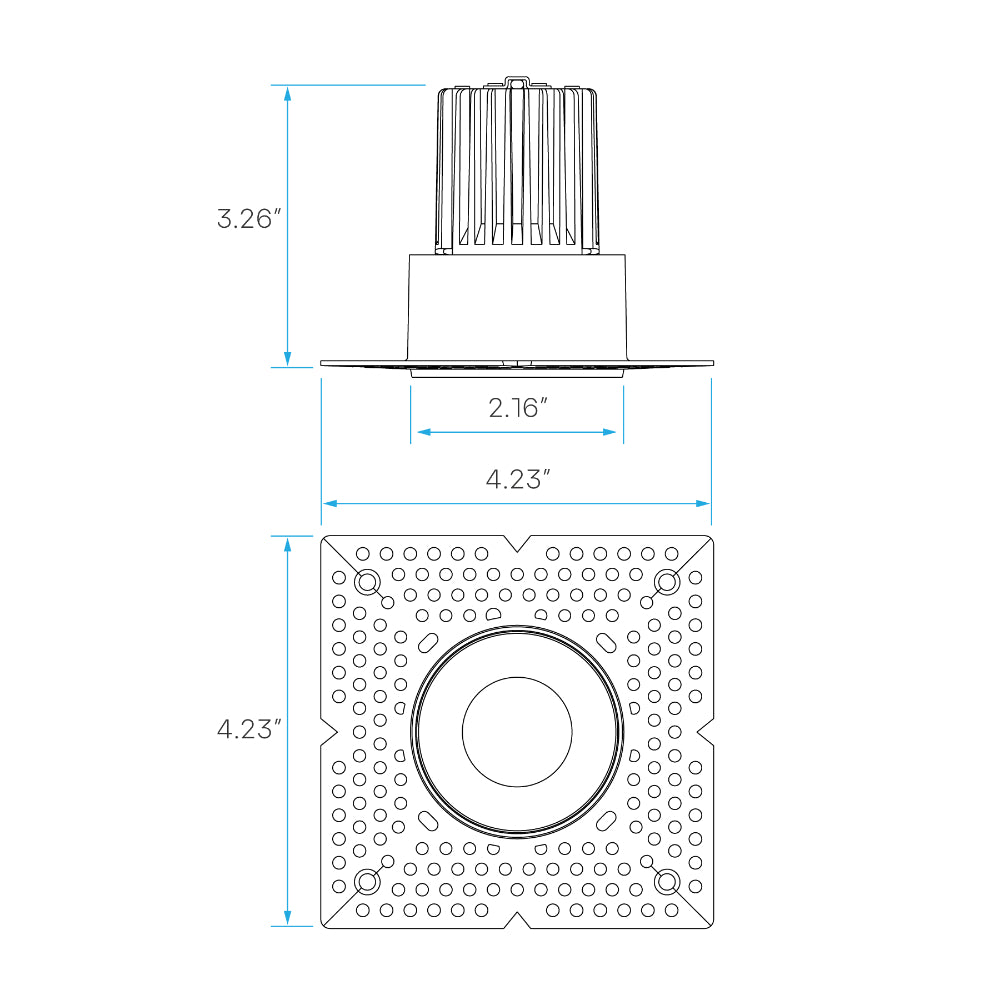

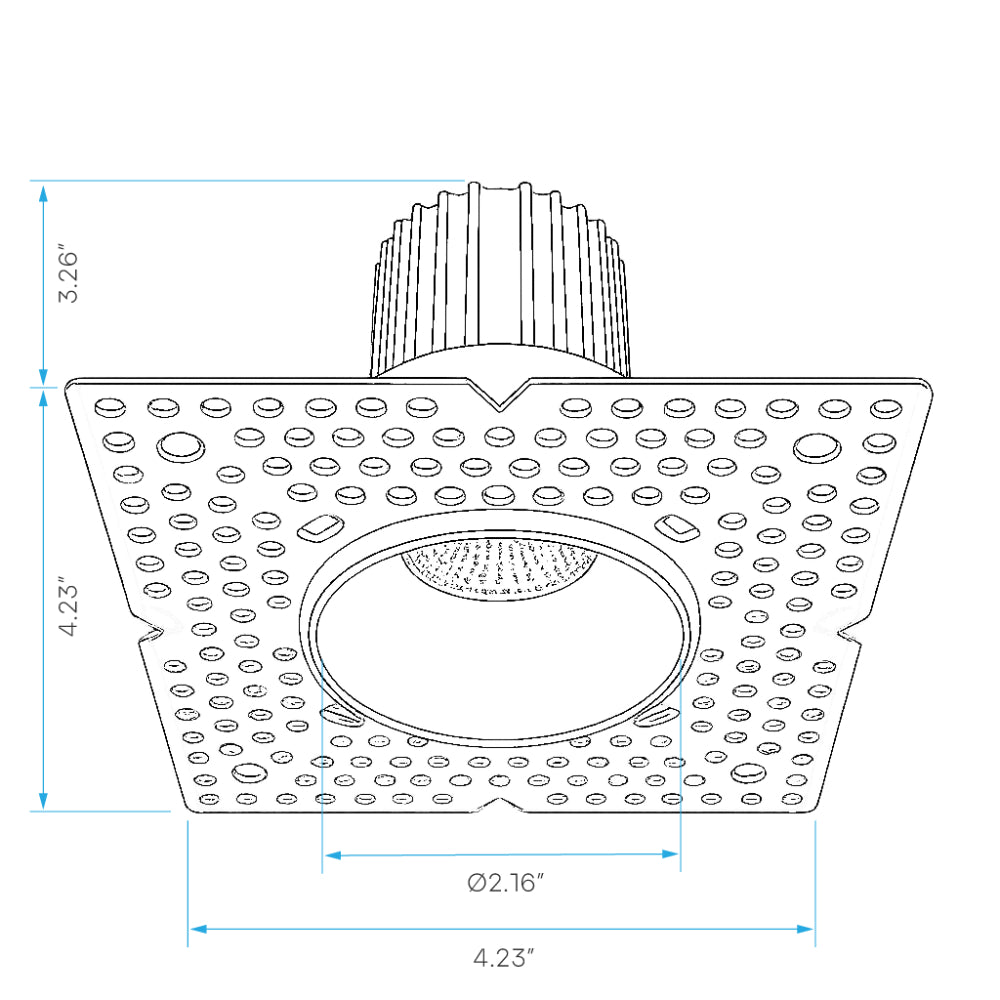

- Dimensions:
- Length: 4.23 Inch
- Width: 4.23 Inch
- Depth: 3.26 Inch
- Finish: White
- Cutout: Ø2.5 Inch
- Plate: LR41004 (#1),Lr41010 (#L1), LR41011 (#0)

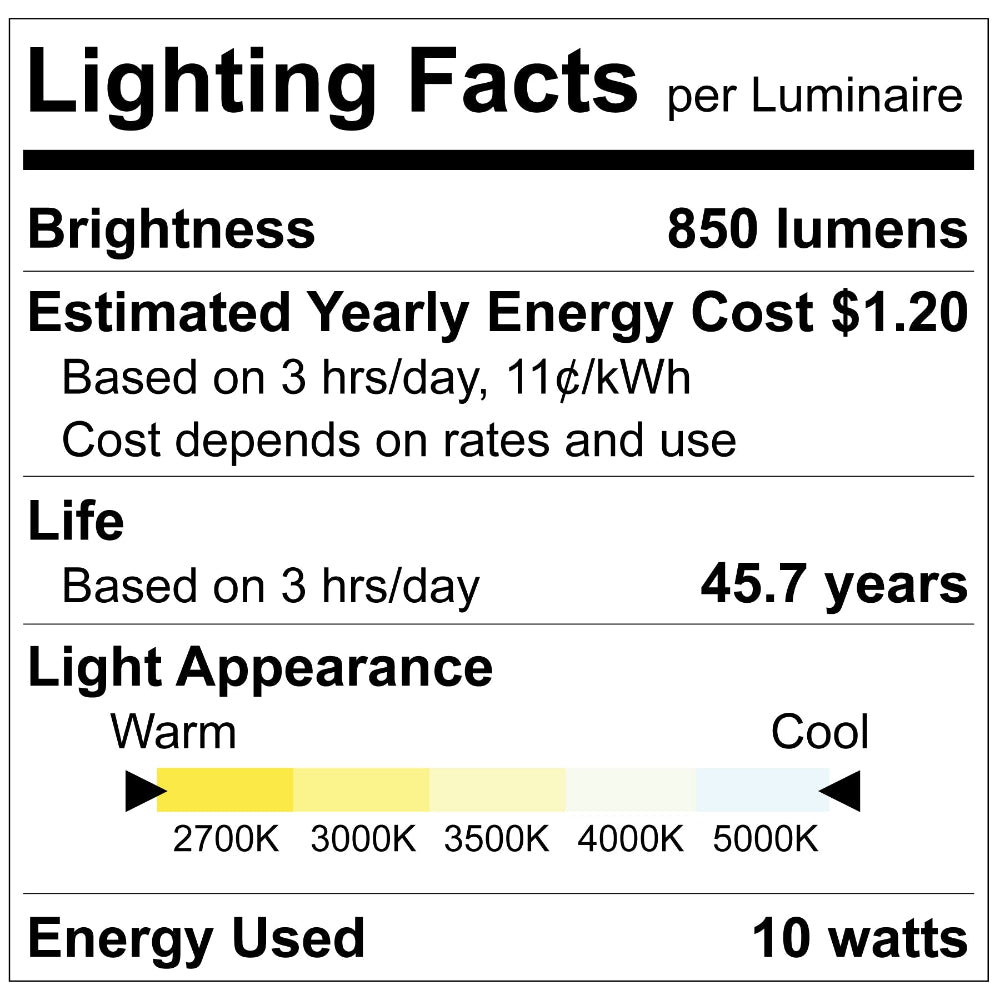

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 850
- CRI: 90
Electrical
- Power (Wattage): 10
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 85
- Operating Temp:
- Min: -4º
- Max: 113º
